Name: 1100-1390mhz 100W GaN Amplifier Anti drone Suppression 700-1100mhz module for anti drone system anti
Brand: Anti-Drone System Solution
SKU: 00284
Availability: InStock
Rating: 5 (1 reviews)

Home > Power Amplifer Module > GaN module > 100w GaN

1100-1390mhz 100W GaN Amplifier Anti drone Suppression 700-1100mhz module for anti drone system anti FPV RF power amplifier

Description Review

Description

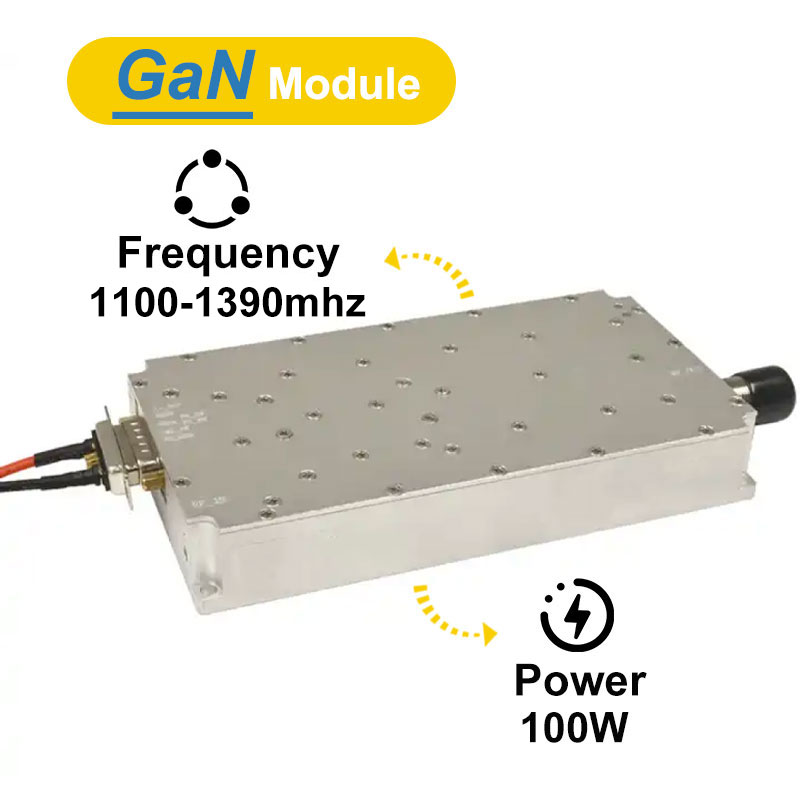

1100-1390mhz 100W GaN Amplifier Anti drone Suppression 700-1100mhz module for anti drone system anti FPV RF power amplifier

Appearance and installation instructions:

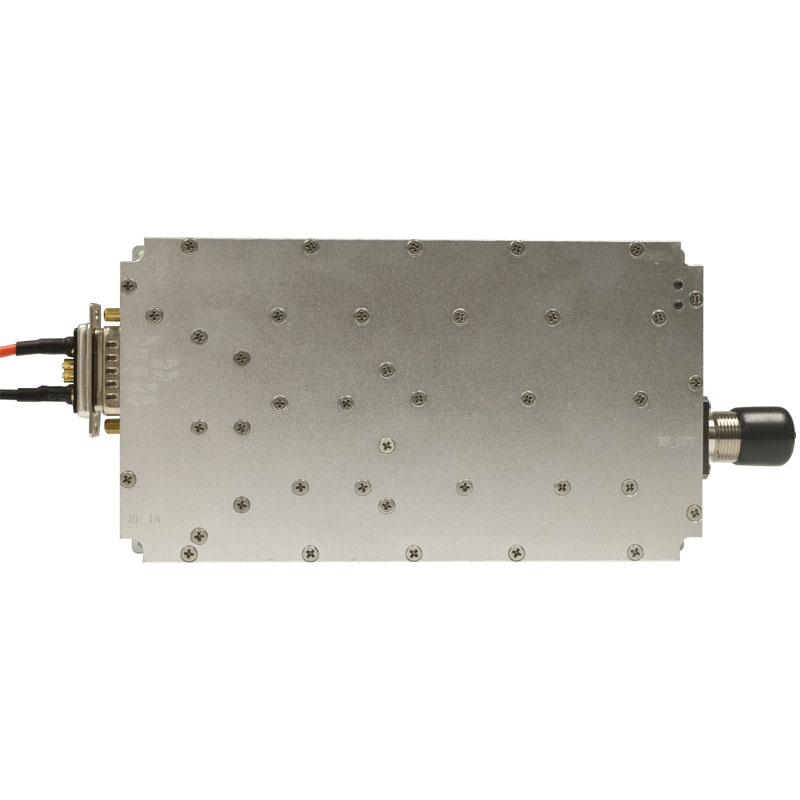

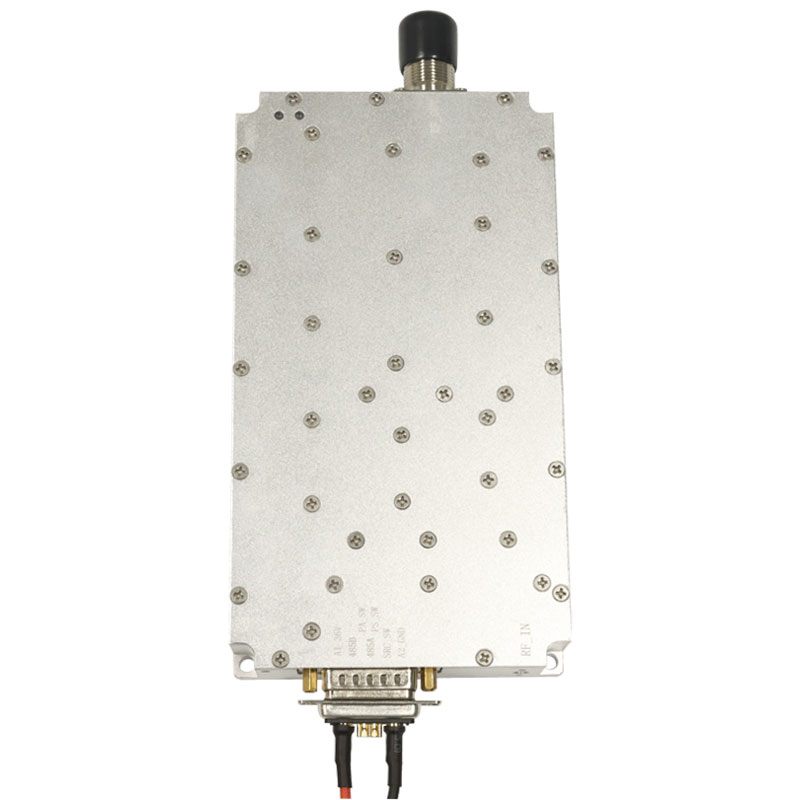

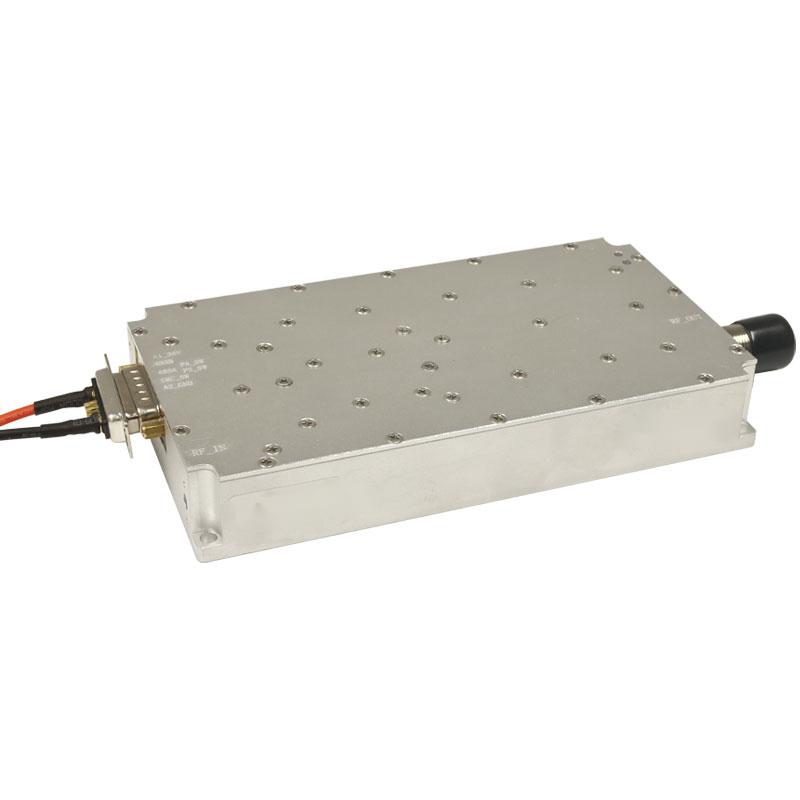

1. Overall dimensions: 170*94*26.5mm

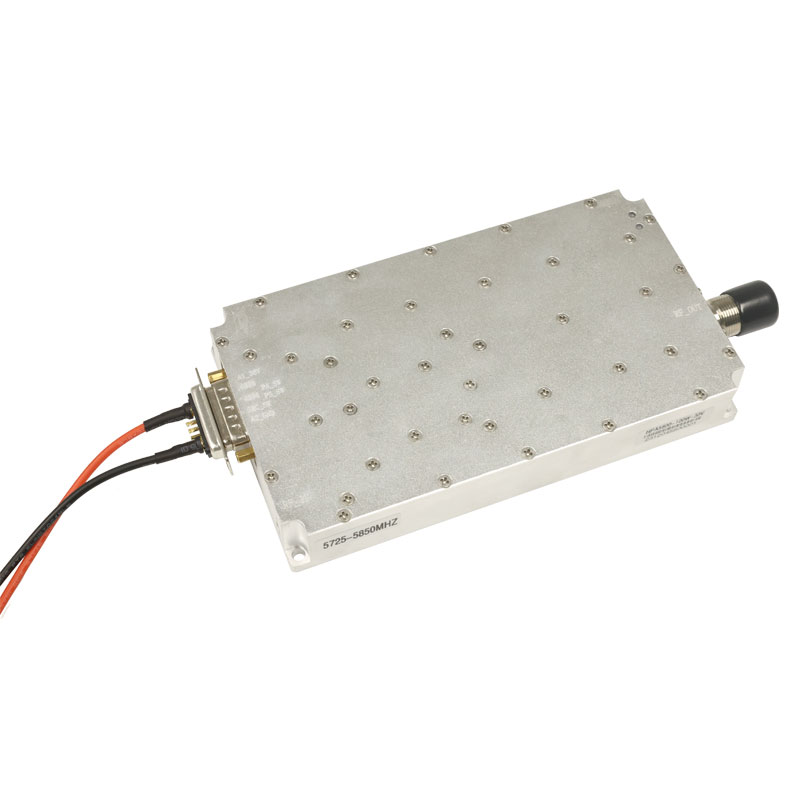

2. Interface form:

① Power supply conditions: +30V power supply: 7W2 (male)
②RF input interface: SMA-KFD (optional)

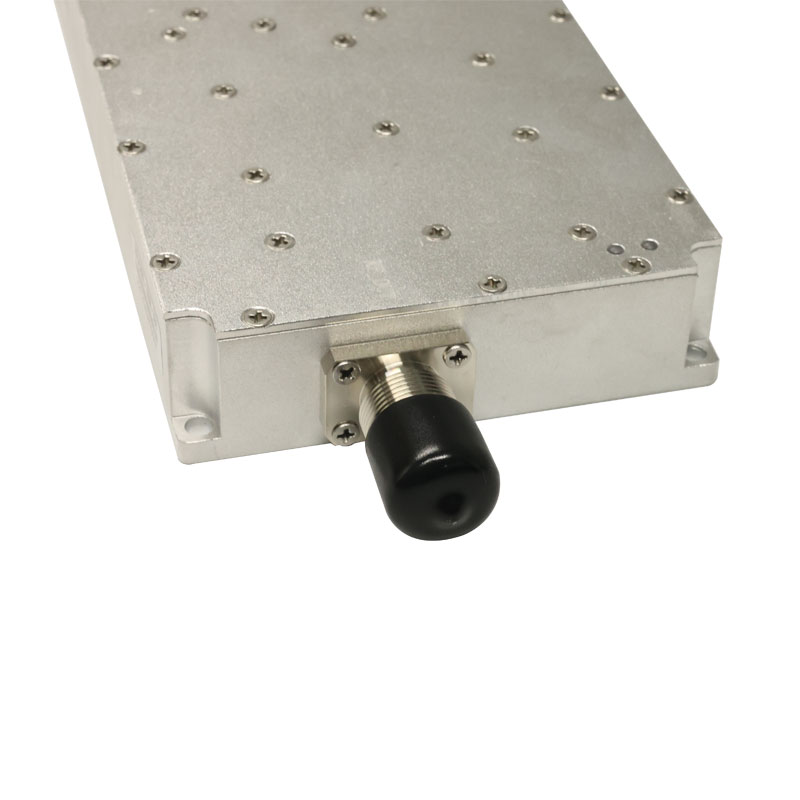

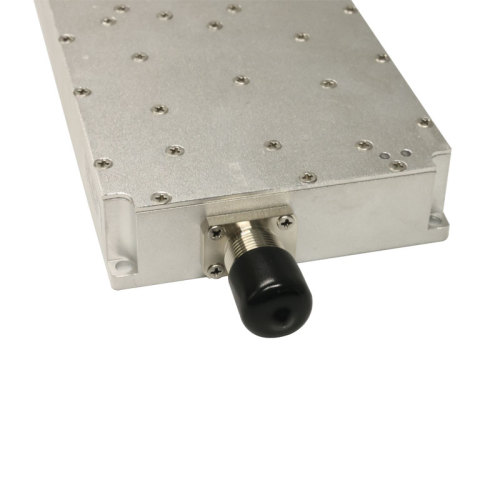

③RF output interface: N-KFD
④Control interface:

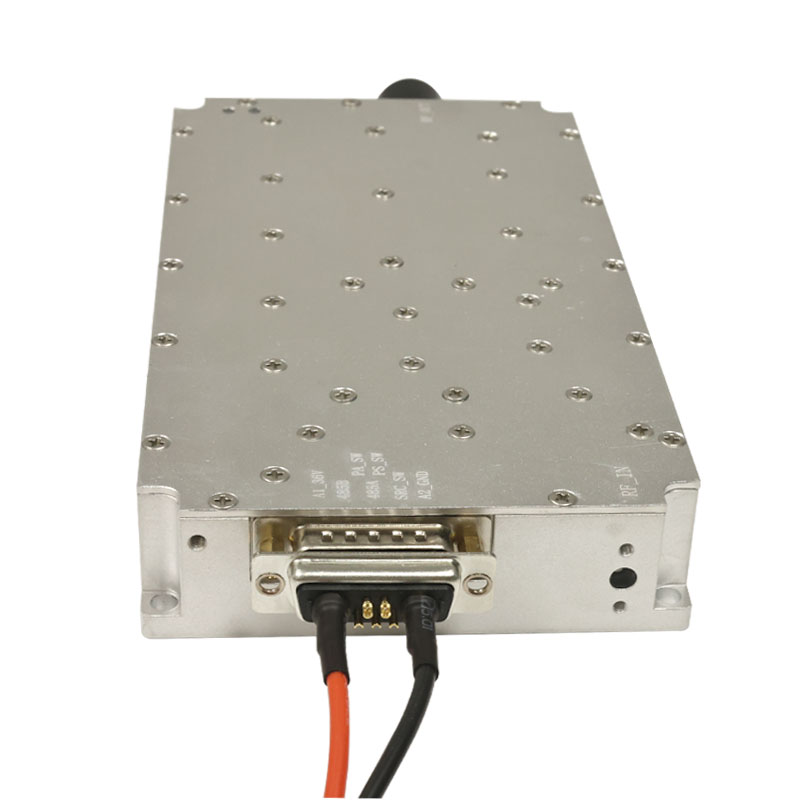

a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.

Frequency	1100-1390Mhz
Output Power(dBm)	100W(50dBm)
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Output RF connector	N-50KFD
Size	170×94×26.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;
