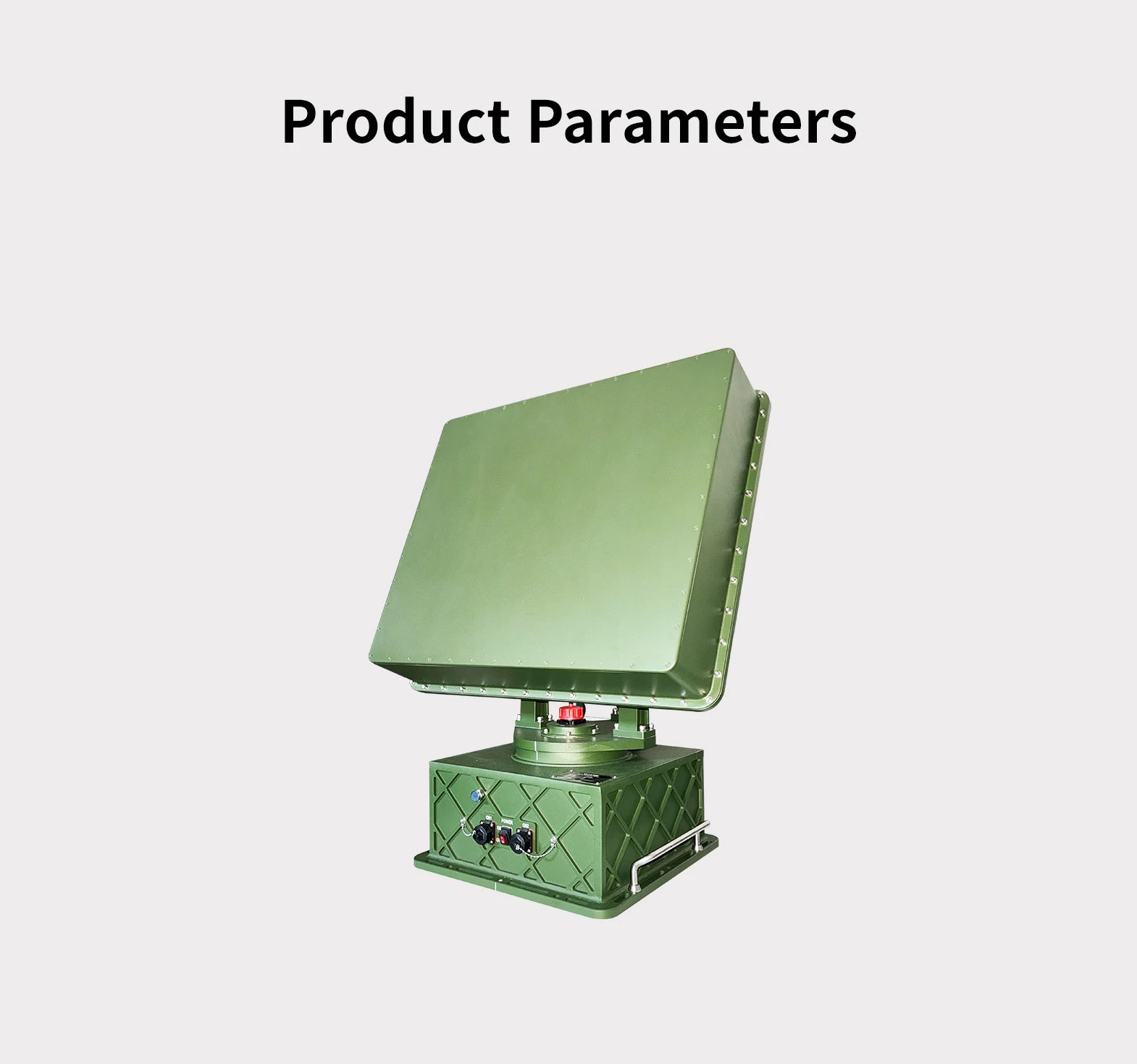

The TTSKRD3000 drone detection radar is a 3D radar that is costeffective with great performance, supporting 360° continuous detection of mini-UAVs up to 3 km. It has the capability to identify up to 50 targets simultaneously with distance, azimuth, height, and speed data. It is perfect for anti-UAV application for correctional facilities, airports, critical infrastructures, oil refineries, and national events etc.
| Model |
TTSKRD3000 |
| Radar Type | Frequency Modulated Continuous Wave (FMCW) |
| Frequency Band | K Band (24GHz, FCC & ETSl Unlicensed Band) |
| Transmission Power | ≤10W |
| Bandwidth | 40MHz |
| Scan Type | Mechanical Scanning |
| Scan Speed | 10 rpm (60°/s)& 20 rpm (120°/s) |
| Detection Range | 250m~3km (RCS=0.01m²) |
| Range Resolution | ±2m (RCS=0.01m²) |
| Effective Field of View (Horizontal) | 0° ~ 360° |
| Effective Field of View (Vertical) | 0° ~ 90°(adjustable) |
| Elevation Beam | 30° (RCS=0.01m²) |
| Detectable Target Velocity | 1.4~30m/s (4.6~98.4ft/s) RCS=0.01 m² (0.11ft²) |
| Simultaneous Tracking | ≥50 |
| System Power | 100~240V AC(50/60Hz) |
| Power Consumption | ≤150W |
| IP Rating | IP65 |
| Operating Temperature | -40℃~60℃/ ≤95%(RH) |
| External Dimension of Radar Units | 740*600*600 mm (29.1*23.6*23.6 in) |
| Weight of the Radar Unit (Approx.) | ≤30kg /≤66.2lbs |
| Communication Interface | RJ45 |
| GPS Positioning | Supported |
Anti-UAV Defense System is composed of front-end equipments such as detection radar, RF detector, E/O tracking camera, RF jamming or spoofing device and UAV control platform software. When the droneenters the defense zone, the detection unit outputs accurate position information through active distance, angle, speed and height. On entering the warning zone, the system will determine independently and start the jamming device to interfere the drone communication, so as to make the drone returning or landing. The system supports multi devices and multi zones management and can realize 7*24 all-weather monitoring and protection against drone invasion.
Anti-UAV Defense System consists of radar or RF detection unit, EO tracking unit and jamming unit. The system integrates target detection, tracking & recognition, command & control on jamming, multi functions in one. Based on different application scenarios, the system can be flexibly deployed into an optimal solution by choosing different detection unit and jamming device. AUDS can be fixed installation, vehicle mobile mounted or portable. By fixed installation type, AUDS is widely used in high level security protection site, vehicle mounted type is normally used for routine patrol or more, and portable type is used a lot for temporary prevention & control in key conference, sport events, concert etc.
