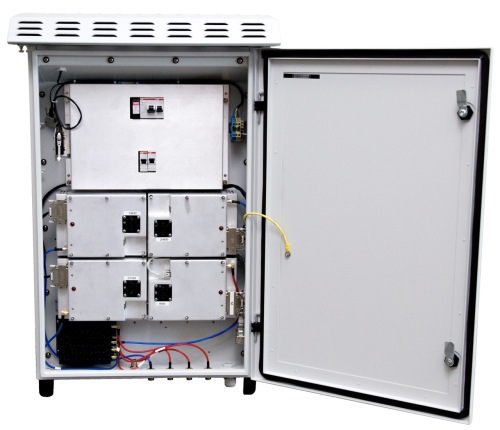

1.Shielding range:radius of 50-200 meters(-75dBm,in an outdoor open environment, depending on the distance of the surrounding base stations);
2.2.Transmitting power: the total RF power of the whole machine is 300W, the total DC current:30A; the power consumption of the whole machine is 840W, and the total AC current:3.85A;
3.Shielded signa ltypes:4G,3G(LTE/TD/WCDMA/CDMA2000),GSM(2G),CDMA(2G);
4.Output channel:6channel output,single channel 50W,power software adjustable range 5W-50W;
5.Network RJ45 remote control function,which can facilitate wired or wireless networking(wireless 433M or 135M transmission);
6. It can monitor the parameter information of all equipment in the entire prison at the same time, including the working status, frequency, power, temperature, voltage, current and other parameters of the modules in the equipment;
7. It also has the whole machine fault, door opening state, position movement, standing wave open circuit alarm, module faults including low power, over temperature, over-voltage, overload, standing wave alarm, etc.; and software can adjust the power, the adjustable range is 5W-50W;
Applications:
Sensitive Areas
Prisons
Oil Refineries
Protected Areas
|
Item
|
Parameter
|
Remark
|
|
Frequency
|
500M-6000MHz
|
High frequency
|
|
Working voltage
|
28V
|
12-30V
|
|
Max output power
|
4±1dBm
|
Typical
|
|
VSWR
|
≤1.5
|
No power, standard network output -10dBm
|
|
|
≤1.5
|
Power On, Dual Directional Coupler Test
|
|
High and low-temperature test
|
Working environment temperature (ºC)
|
-10~+65ºC
|
Low temperature can start, and monitoring works normally
|
|
|
Gain Stability
|
±1dB @-20ºC~+55ºC
|
|
|
|
power stability
|
±1dB @-20ºC~+55ºC
|
|
|
Power Requirements
|
≥0.8A @+28Vdc;
|
|
|
Power supply interface, monitoring interface RS485
|
7W2
|
male
|
|
RF connector
|
SMA-F
|
|
| dimension |
123mm * 107mm * 20mm |
| Appearance (how to use) |
Aluminum cavity form (no need to add radiator) |
