TTSK-D09 UAV Detecting and 360° Omnidirectional Direction Finding System

Product Overview

The TTSKD09 UAV Radio Detection System is designed for drone detection and monitoring based on radio frequency (RF)signal analysis.It integrates capabilities such as:

 UAV spectrum identification

 Protocol decoding

 Full-band direction finding

The system can detect UAV signals across the full frequency range and performs detection,direction finding,and positioning based on emitted RF signals.

It features:

 Long detection range

 High direction-finding accuracy

 Low false alarm rate

With full-band scanning capability and electromagnetic environment learning, the system can:

 Detect unknown or suspicious targets

 Automatically learn and store new UAV signal characteristics

The system is suitable for both urban and open-field environments,supporting:

 Fixed installation (primary deployment mode)

 Vehicle-mounted deployment

 Tripod-mounted deployment

Technical Specifications
Detection Frequency Range:300 MHz ~6 GHz

•  Direction Finding Frequency Range:300 MHz ~6 GHz


  Detection Range:

   ≥5 km (spectrum detection;depends on environment and UAV model)

   ≥2 km (DJI protocol decoding;depends on environment and UAV model)

   ≥1 km (Remote ID;depends on environment and UAV model)

  Tatusky Tech

   Detection Coverage:360°omnidirectional

   Direction Finding Accuracy:≤3°(RMS,in open and low-interference environment)

   Detection Response Time:≤2 s

   Ingress Protection:IP66

   Power Consumption:≤100 W

   Weight:≤25 kg

Key Features

• 1.Passive detection using non-emitting RF signal reception

  2.Real-time detection of UAV and remote control signals with directional identification

  3.Built-in positioning module with automatic north alignment and GPS positioning

  4.Expandable UAV signal database,allowing on-site signal capture and library updates via management platform

  5.Automatic detection,tracking,recording,and direction finding of unknown UAV targets

  6.Protocol decoding for mainstream UAV models,with blacklist/whitelist management

  7.Automatic evidence collection of detected UAV signals,including spectrum data and target images

  Tatusky Tech

  8.Unattended operation capability with automatic recording of:

  o Detection time

  o UAV ID

  o UAV model

  o Azimuth angle

  9.Full-band scanning from 300 MHz to 6 GHz,with real-time spectrum display on the platform

  10.Decoding support for DJI O2,O3,and RID protocols,including:

   UAV serial number (SN)

   UAV and pilot location

   Speed and direction

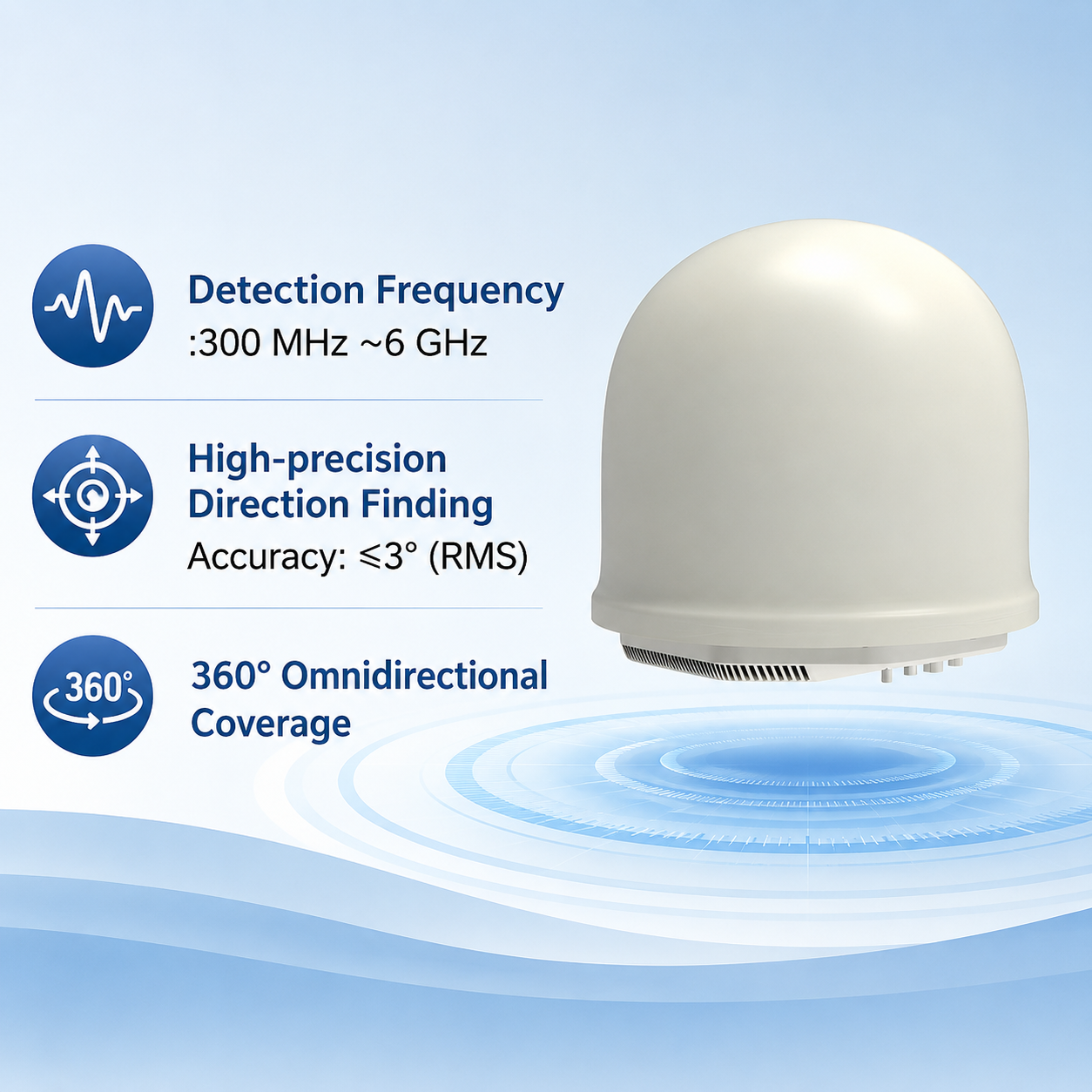

Product Image
