Parameter |
Description |
|
Dimension |
305*265*180 mm |
|
Weight |
about 3.5 Kg |
|
Frequency band and output power |
CH1: 900MHz: 830-960 MHz 30W |
|
CH2: GPS 1550-160 MHz 20W |
|
|
CH3: 2.4G: 2400-2500MHz 20W |
|
|
CH4: 5.2G: 5150-5250 MHz 30W |
|
|
CH5: 5.8G: 5725-5875 MHz 30W |
|
|
Total output power |
130W |
|
Ultra - long distances |
Around 500-1500 meters |
|
Shielding distance |
depends on the actual environment(500-1500M) |
|
Input power |
AC 220V- DC 24V |
|
Battery charge time |
3 hours |
|
Battery |
24V, 7AH |
|
Battery life |
Around 40 minutes |
|
Operating temperature |
-20℃ to +55℃ |
|
Working humidity |
35~95% |
Main Functional Features of the Equipment
a. Shielding output high power greater than 130W, ultra-long distance 500-2000 meters instant countermeasures against drones (Shielding distance depends on the actual environment).
b. Multi-frequency band 5-channel countermeasures including drone remote control signals 900MHz/2.4GHz/5.8GHz/5.2GHz/GPS&1.5G.
c. Built-in high integrated shielding module for each frequency band, stable output of precise shielding signals, high efficiency and long distance.
d. Portable and lightweight model about 4 Kg.
e. Certified rechargeable lithium batteries, can last 40 minutes .

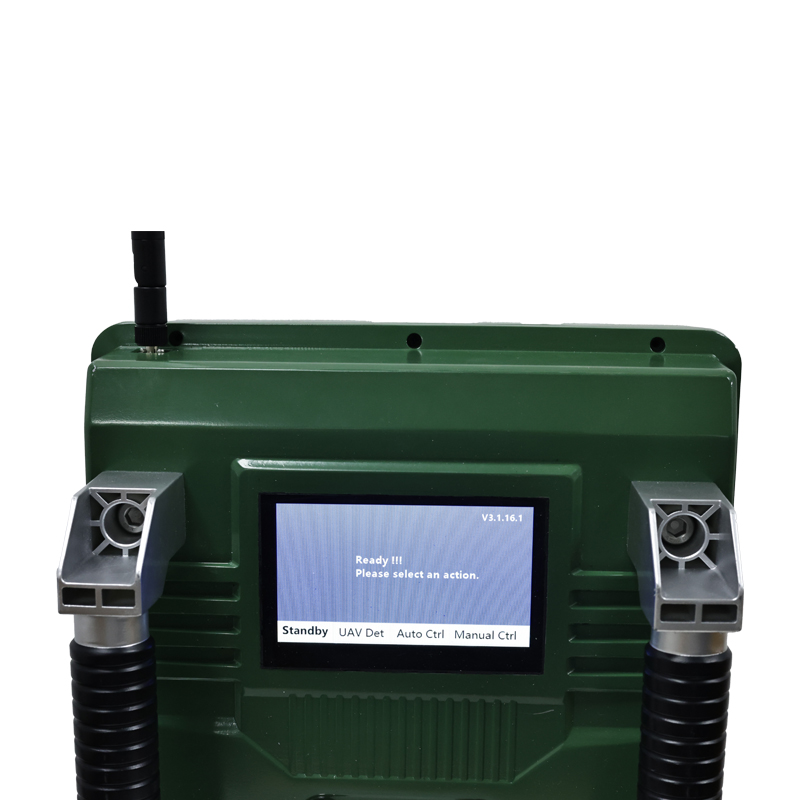

f. LCD screen clearly shows the remaining power, timely charging does not affect the use.
g. Unique design of built-in cooling fins, efficient cooling.
|
No. |
Device name |
Quantity |
Unit |
|
1 |
Drone jamming Countermeasure Shield |
1 |
Pcs |
|
2 |
Packaging Box |
1 |
pcs |
|
3 |
AC Charger |
1 |
pcs |
|
4 |
Detector antenna |
2 |
pcs |
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
| Selling Units: | Single item |
| Single package size: | 10X5X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
