TTSK-DW01 Handheld Wideband Drone Signal Detector for Anti Drone System
Professional Signal Detection Equipment for Airspace Safety & Site Protection
Product Overview
The TTSK-DW01 is a high-performance handheld signal detection device designed for reliable airspace safety management. It adopts superheterodyne architecture to achieve stable detection across 0MHz to 8000MHz, with 1MHz precision stepping and low false alarm rate. The device supports real-time signal analysis, parameter display, multiple alert modes and wireless data transmission. With IP54 protection, wide temperature resistance and long-lasting battery, it is widely used in outdoor safety, facility protection, public venue management and other scenarios.
Technical Specifications
- Model: TTSK-DW01
- Detection Frequency: 0MHz–8000MHz
- Detection Distance: Up to 1km (environment dependent)

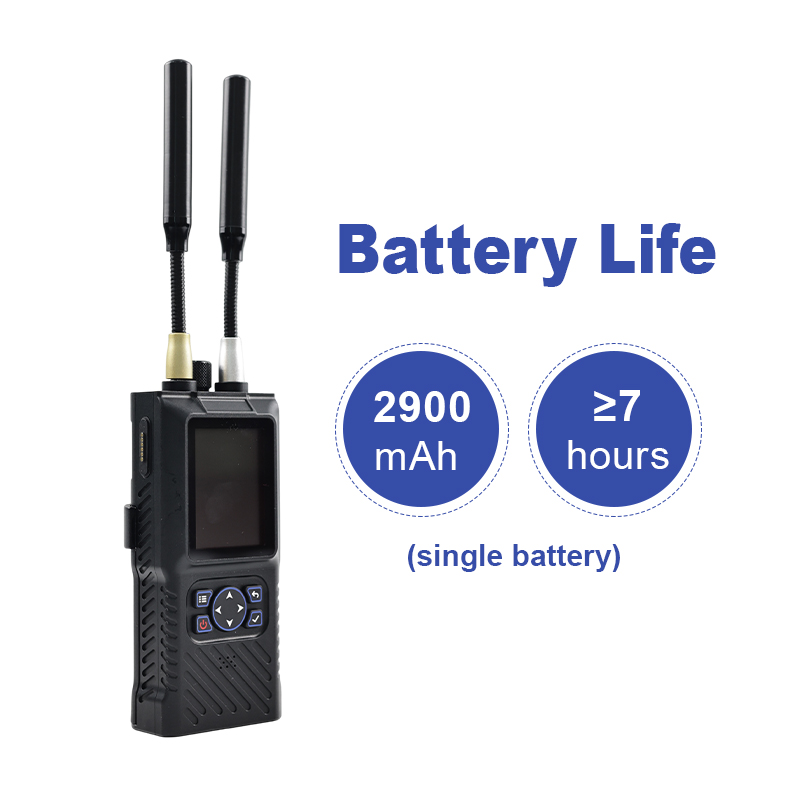

- Battery Capacity: 2900mAh
- Working Time: ≥7 hours
- Charging: 35W fast charge, full charge in 1 hour

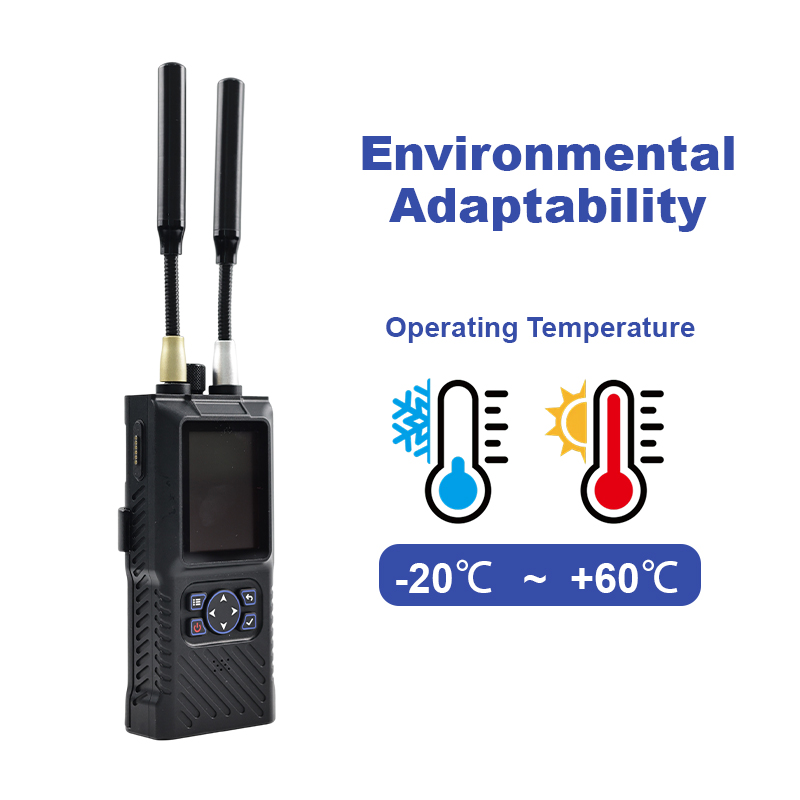

- Operating Temperature: -20℃ ~ +60℃

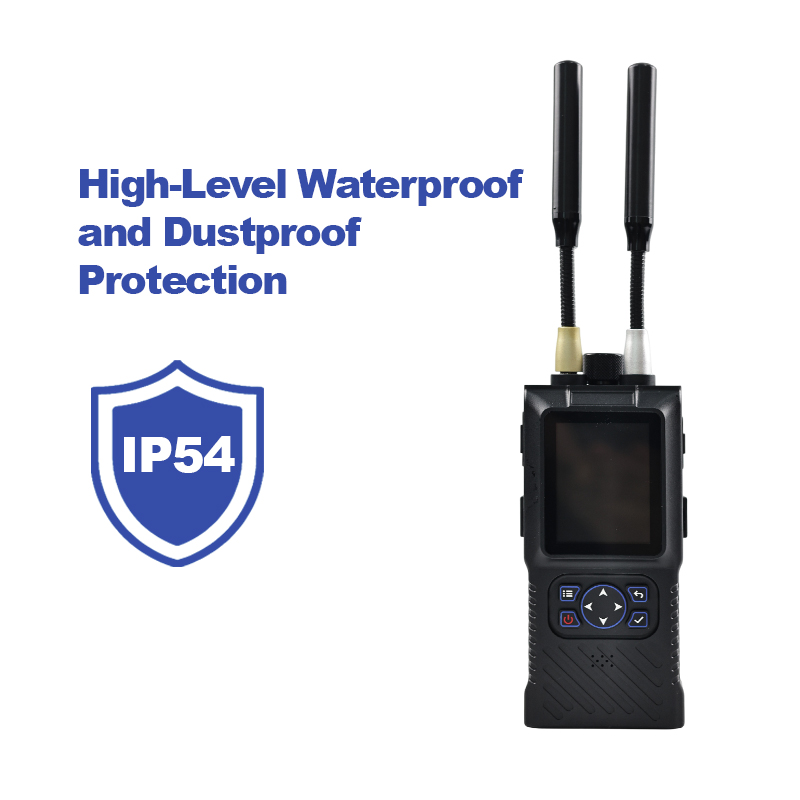

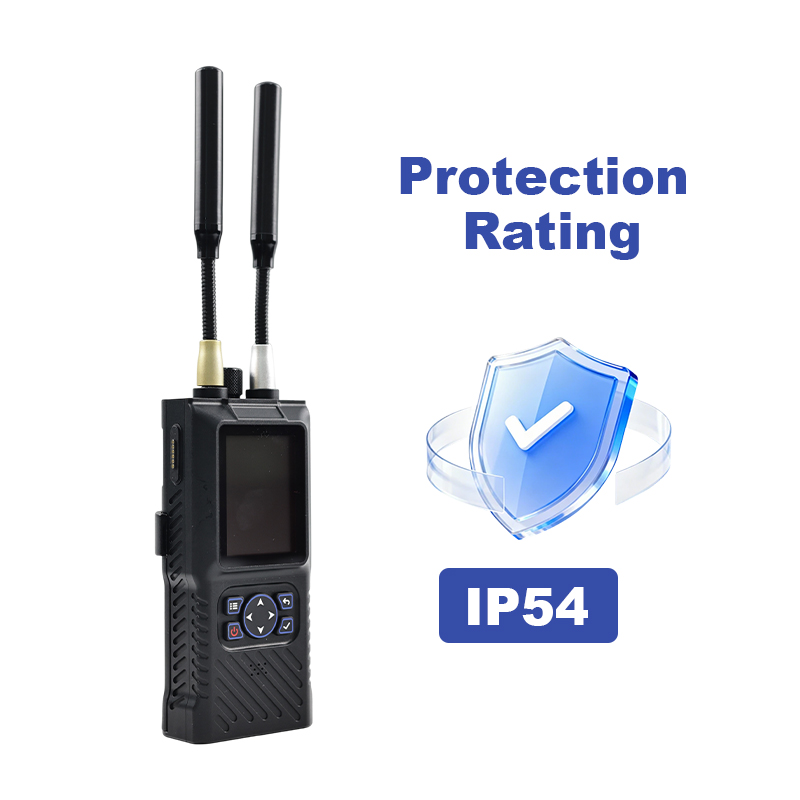

- Protection Grade: IP54
- Weight: ≤580g (with battery)

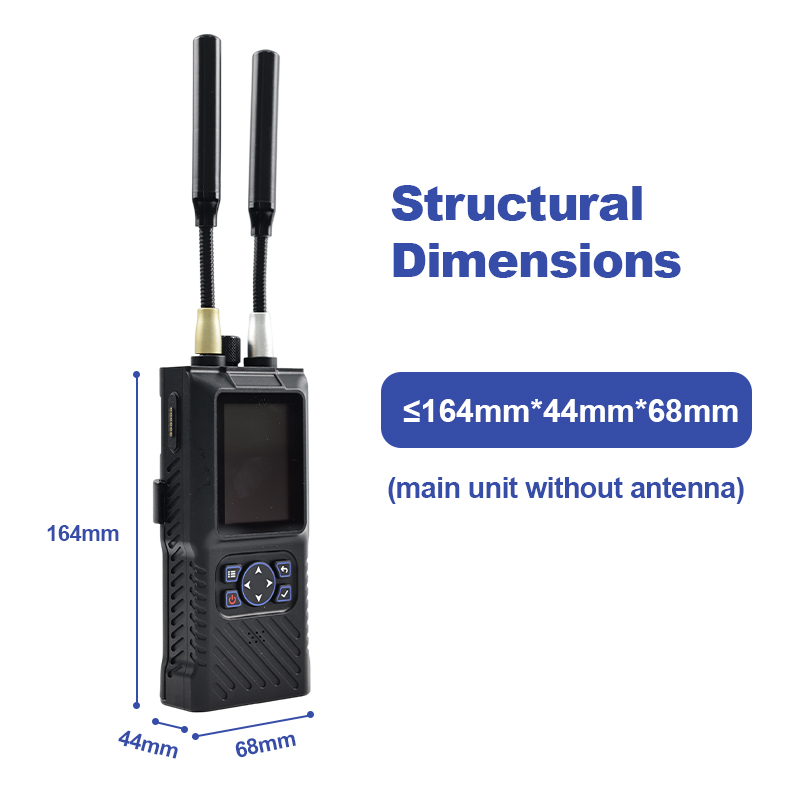

- Dimensions: ≤164×44×68mm
- Alert Mode: Video, audio, vibration
- Interface: Magnetic port, Type-C, Bluetooth
Key Features
- 0MHz to 8000MHz wideband signal detection with no blind zones
- High sensitivity and industry-leading low false alarm rate
- Real-time signal parameter display including frequency and strength
- Mute / vibration / sound three-level alert adjustment
- IP54 waterproof and dustproof for harsh environments
- Wide operating temperature range: -20℃ to +60℃
- 7+ hours long battery life and 35W fast charging
- Lightweight handheld design for easy carry and operation
- Bluetooth wireless data transmission and log recording
- Magnetic port for external screen and extended accessories
Product Image
Usage Scenarios
Manufacturer Information
Frequently Asked Questions
1.What frequency range does this detector support?
It supports signal detection from 0MHz to 8000MHz.
2.How long does the battery last?
A single 2900mAh battery supports up to 7 hours of continuous working.
3.Is it suitable for outdoor use?
Yes, it has IP54 protection and can work stably in -20℃ to 60℃.
4.Does it support fast charging?
Yes, it supports 35W fast charging and can be fully charged in about 1 hour.
5.Can I use external accessories?
Yes, it supports external screen, direction-finding antenna and connection cables.
