TTSK-DW01 Handheld Wideband Drone Signal Detector for Anti Drone System
Professional Signal Detection Equipment for Airspace Safety & Site Protection
Product Overview
The TTSK-DW01 is a premium handheld signal detector for airspace safety control. Featuring superheterodyne design, it offers steady detection from 0 MHz to 8000 MHz at 1 MHz step size, alongside minimal false alarms. It integrates real-time signal analysis, on-screen parameters, diverse alerts and wireless data transfer. With IP54 ingress protection, broad temperature adaptability and extended runtime, it serves outdoor security, facility guarding and public site management efficiently.
Technical Specifications
- Model: TTSK-DW01
- Detection Frequency: 0MHz–8000MHz
- Detection Distance: Up to 1km (environment dependent)

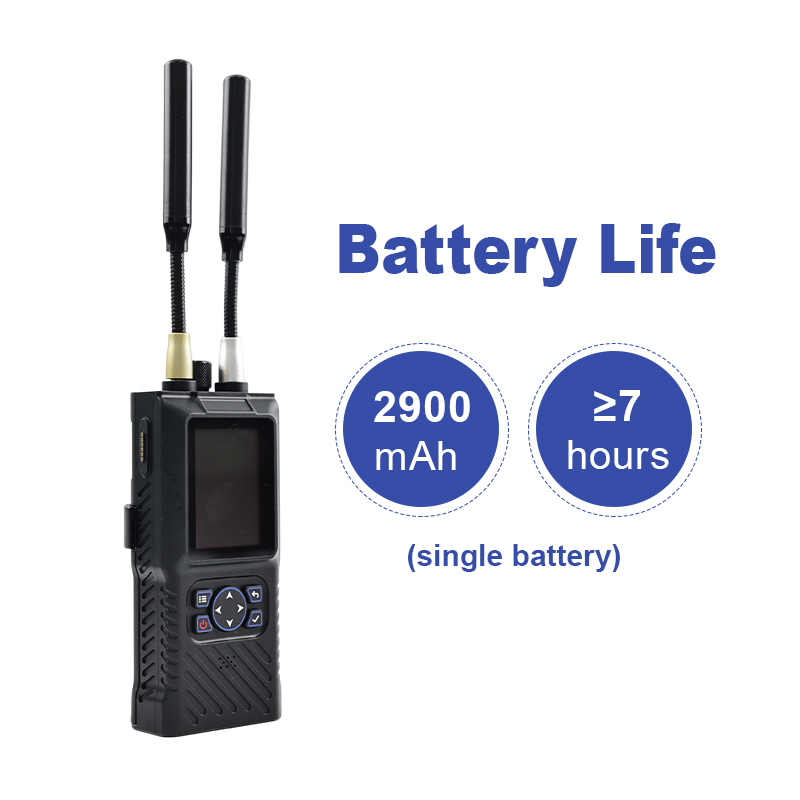

- Battery Capacity: 2900mAh
- Working Time: ≥7 hours
- Charging: 35W fast charge, full charge in 1 hour

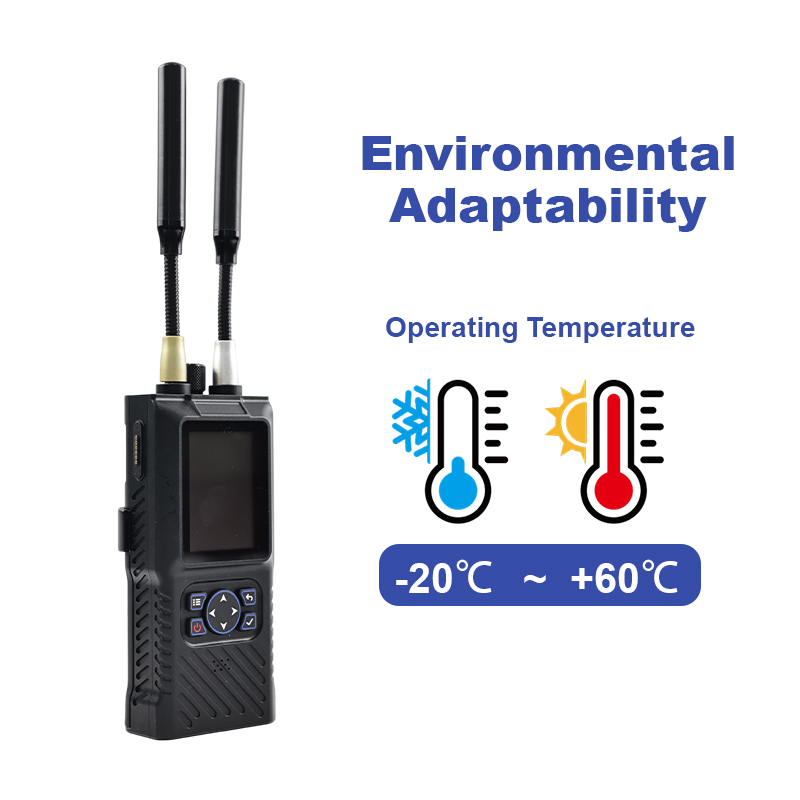

- Operating Temperature: -20℃ ~ +60℃

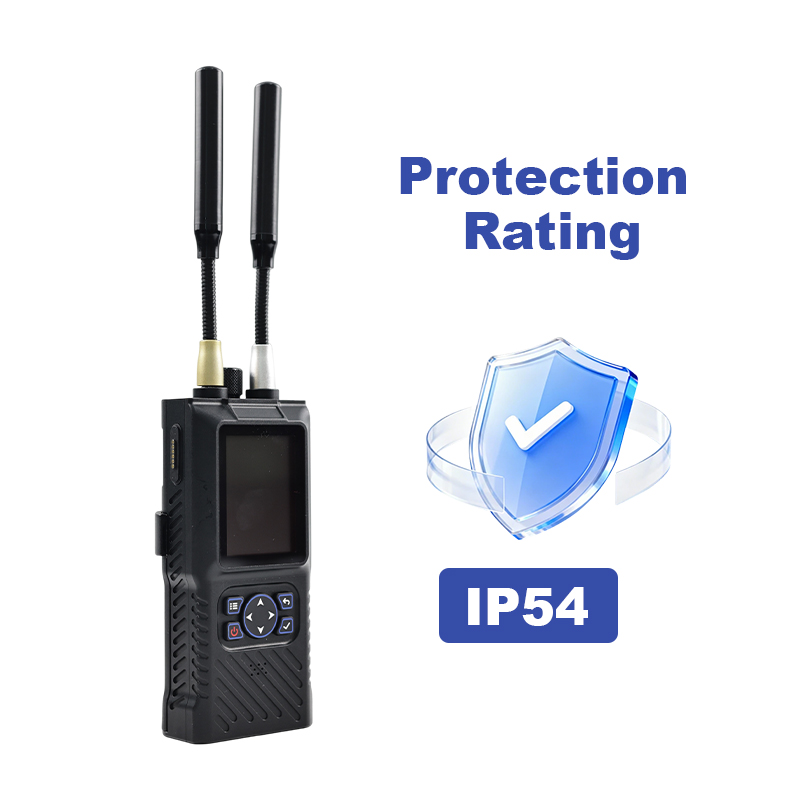

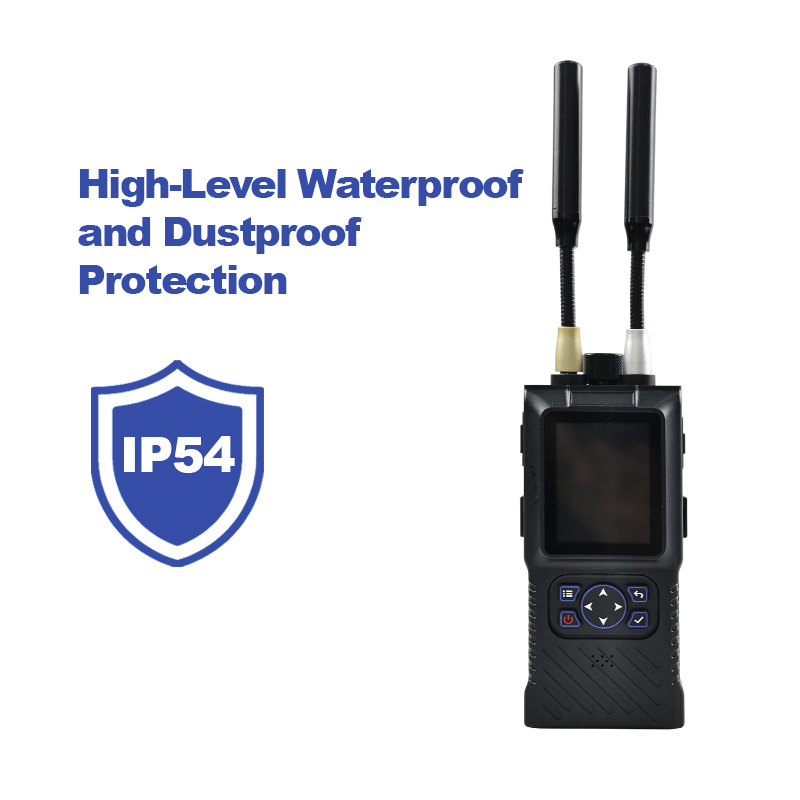

- Protection Grade: IP54
- Weight: ≤580g (with battery)

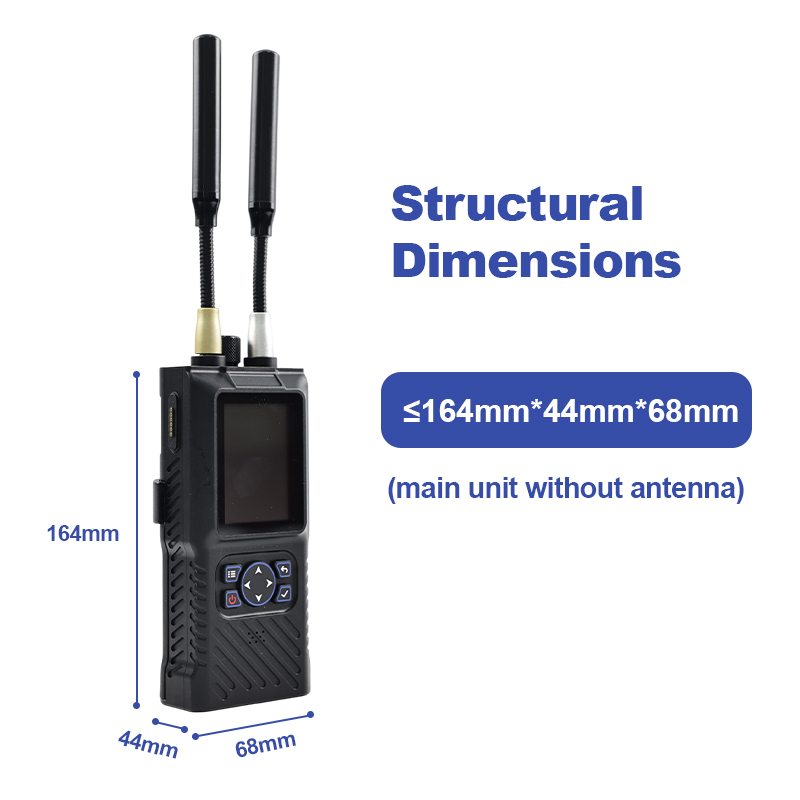

- Dimensions: ≤164×44×68mm
- Alert Mode: Video, audio, vibration
- Interface: Magnetic port, Type-C, Bluetooth
Key Features
- Wideband signal detection spanning 0 MHz to 8000 MHz with complete coverage
- Superior detection sensitivity and class-leading anti-false-alarm performance
- Onboard real-time presentation of signal frequency and signal strength
- Tri-mode alert system: audible alarm, vibration and silent mode
- IP54 ingress protection against dust and water ingress
- Extended operating temperature range: -20℃ up to +60℃
- Long endurance (7+ hours) and 35W fast charging capability
- Ergonomic lightweight handheld form factor for convenient handling
- Bluetooth-enabled wireless data transmission and log storage
- Magnetic connector for external displays and peripheral expansion
Product Image

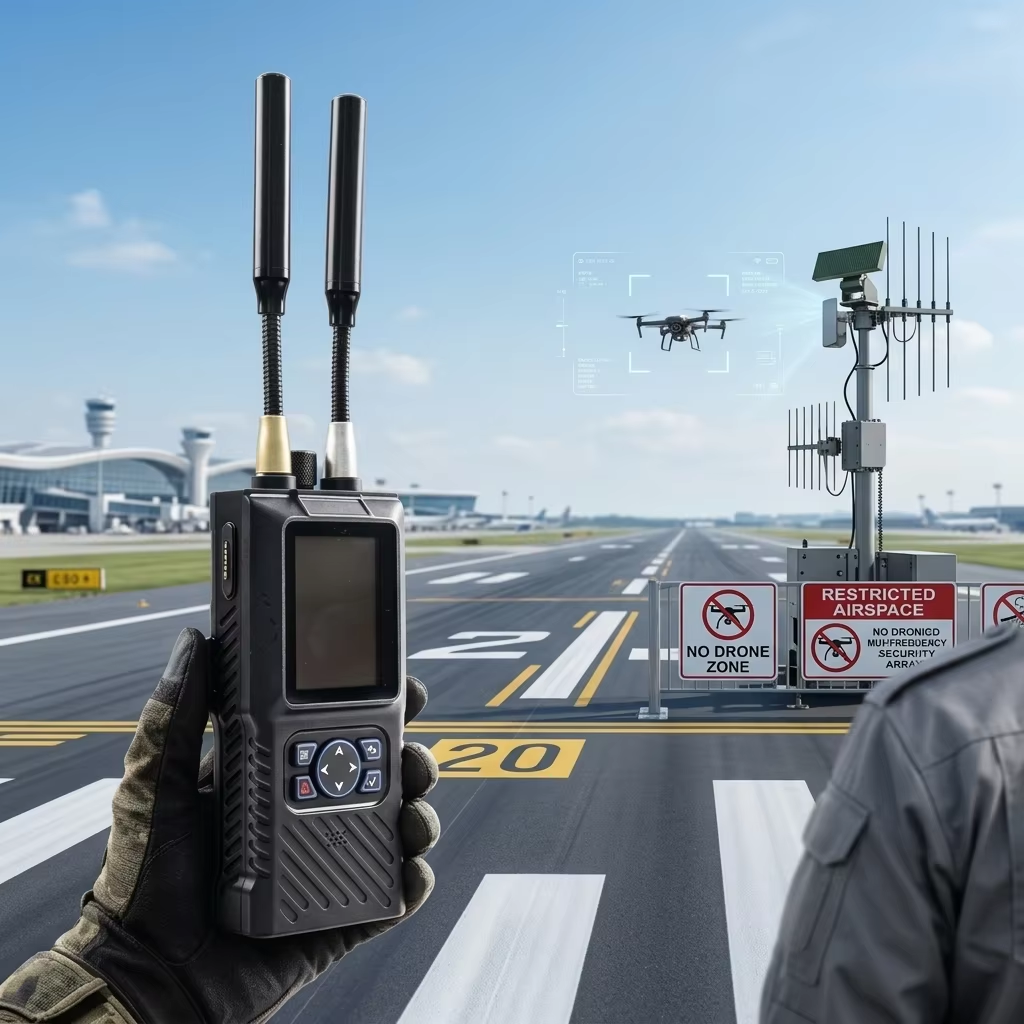

Usage Scenarios
Manufacturer Information
Frequently Asked Questions
-
What is the operating frequency range of the detector?
The device supports signal detection within the 0 MHz ~ 8000 MHz frequency band.
-
What is the maximum continuous operating time on a single charge?
Equipped with a 2900 mAh battery, the device runs continuously for up to 7 hours.
-
Is the unit designed for outdoor deployment?
It features IP54 ingress protection and maintains stable performance at -20℃ to 60℃.
-
Is 35W fast charging supported?
The device adopts 35W fast charging technology, with a full charging time of approximately one hour.
-
Can external peripherals be connected?
It is compatible with external displays, direction-finding antennas and dedicated connection cables.
