1. Product Overview
2. Key Features
✅ Covert Passive Radio Monitoring — No Signal Emission Operates as a pure passive receiver across 100 MHz‑6 GHz, covering critical drone bands: 433 MHz, 900 MHz, 1.4 GHz, 2.4 GHz, 5.2 GHz and 5.8 GHz. It never transmits radio signals and produces no electromagnetic radiation, enabling discreet surveillance for high‑security sites where active RF transmissions are prohibited.
✅ Single‑Unit Navigation‑Grade Drone Geolocation No multi‑station hardware required. Built‑in CRPC protocol analysis allows one single device to detect, identify and geolocate both cooperative and non‑cooperative drones. Decodes CRPC, physical Drone ID and RID data. Reaches up to 5 km detection range for mainstream DJI drones under clear line‑of‑sight and low‑interference conditions.
✅ Persistent Whitelist & Blacklist to Reduce False Alerts One‑click whitelisting for pre‑approved, authorized drones to suppress unnecessary alarms. All whitelist and blacklist entries save permanently to local storage. Configured rules survive power loss, reboot and battery swaps, cutting manual configuration work during repeated deployments.
✅ Hardened Portable Suitcase for Harsh Field Deployments IP66 dust‑proof and splash‑proof rating when the case lid is fully closed. The integrated 13.3‑inch 1920×1080 full‑HD touchscreen provides instant visual access to drone targets, spectrum readings and positioning outputs. Dual swappable lithium‑ion batteries deliver 6‑7 hours continuous runtime; also supports universal 110‑240V AC power for fixed‑site installations.
✅ Industrial‑Grade Connectivity & Wide Temperature Tolerance Works reliably over extreme temperature ranges: ‑40 ℃ to +65 ℃ on AC power; ‑25 ℃ to +55 ℃ running on battery power. Multiple physical interfaces including Ethernet, USB, Type‑C and dedicated antenna ports support log export, third‑party platform integration and ADS‑B accessory expansion.
3. Technical Specifications
| No | Item | Specifications |
| 1 | Detection Principle | It adopts a passive receiving method and does not actively transmit radio signals. |
| 2 | Detection Range | 100MHz～6GHz |
| 3 | Key Frequency Bands | 433MHz、900MHz、1.4GHz、2.4GHz、5.2GHz、5.8GHz |
| 4 | Detection Radius | CRPC detection and analysis: 0–5km (Test target: DJI Mavic 3 Pro; Environment: Good electromagnetic environment, no obvious obstructions) RID resolution: 0–5 km (Test target: DJI Mini5 Pro; Environment: Good electromagnetic environment, no obvious obstructions) Drone ID resolution: 0-5km (Test target: DJI Mini5 Pro/ DJI Mavic3 Pro; Environment: Good electromagnetic environment, no obvious obstructions) Non-standard CRPC detection and analysis: 433MHz data transmission: 0～1.5km Non-standard CRPC detection and analysis: 915MHz data transmission: 0～3km (Test target: 433MHz data transmission module (1W); 915MHz Black Sheep data transmission module (2W), Environment: Good electromagnetic environment, no obvious obstructions) |
| 8 | Positioning Method | Protocol parsing and location |
| 9 | Protocol Parsing | CRPC parsing, Drone ID parsing, RID parsing |
| 10 | Screen Size | A 13.3-inch LCD screen with a resolution of 1920*1080, using TFT technology. |
| 11 | Battery Capacity | 28.8V/9Ah x 2, 259.2Wh x 2 |
| 12 | Battery Life | 6-7h(Dual batteries) |
| 13 | Power Supply | Lithium battery; Power adapter supports input voltage AC110V～240V |
| 14 | Operating Power Consumption | Detection conditions: 71W (normal operating environment) |
| 15 | Equipment Size | 470mm*357mm*176mm(Length * Width * Height) (Closed state); 470mm*472mm*690mm(Length * Width * Height) (Open Lid) |
| 16 | Equipment Weight | 14.4 kg(Includes two lithium batteries) |
| 17 | Operating Temperature | -40℃～65℃(Adapter powered) Storage and startup operation under low/high temperature conditions; -25℃～55℃(Battery powered) Start-up operation after storage at low/high temperatures |
| 18 | Protection Level | IP66(With lid closed) |
5. Company Profile
5. Why choese us?
1. Excellent Products:
-Sold directly from the factory，affordable
-Our products are industry-leading and popular
2. Fast Delivery:
-Priority Production for Urgent/Bulk Orders
-As fast as 3 days
3. After-Sales Service:
-One-year warranty, free replacement for faulty products
-Free remote assistance from engineers
7.FAQ

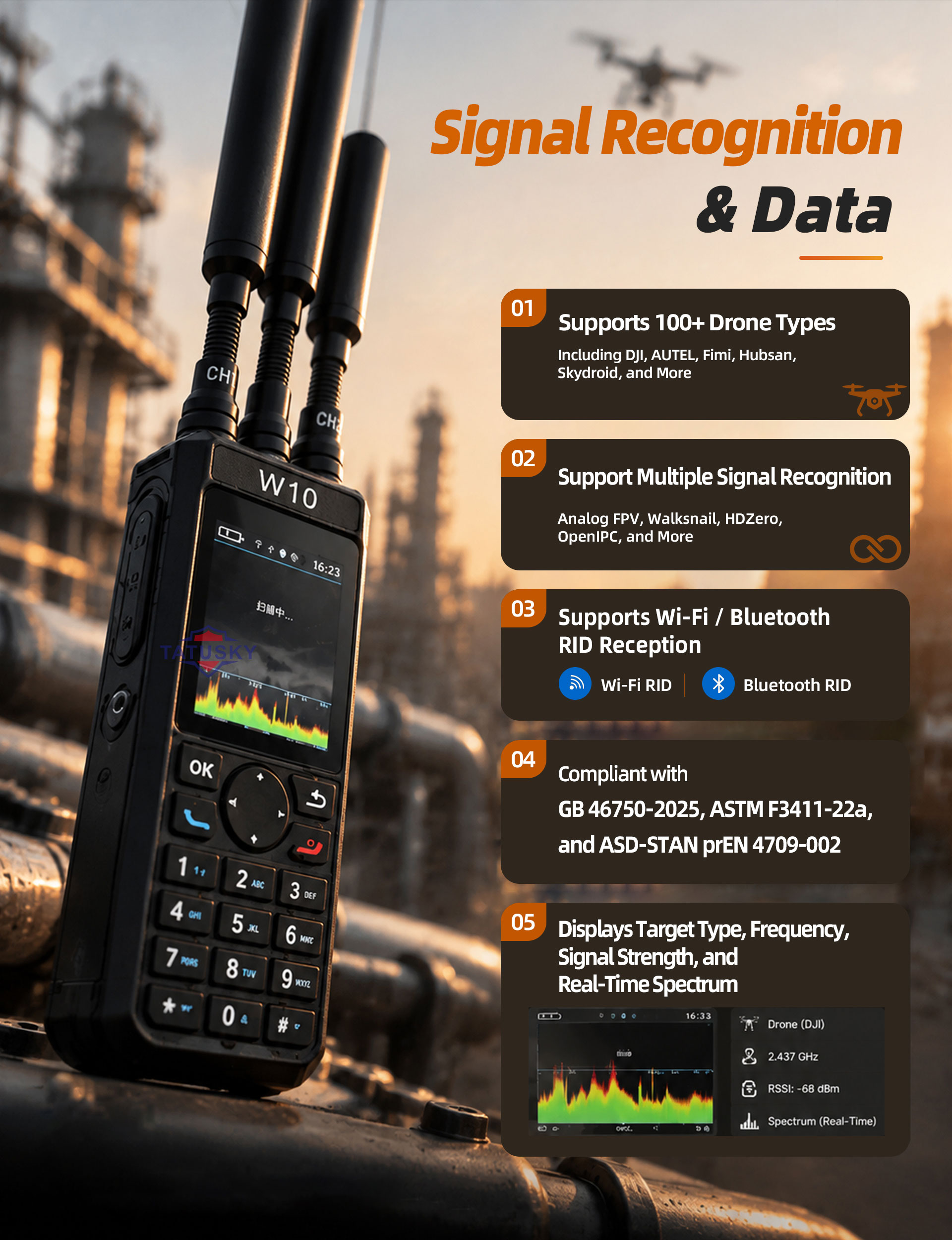

A1: It supports more than 100 drone types: mainstream consumer drones from DJI, Autel, Fimi, Hubsan, Parrot, Syma, SJRC; analog FPV racing drones; digital FPV craft like Walksnail, HDZero, OpenIPC, BetaFPV P1, Antigravity A1. New drone signatures can be added through OTA firmware updates.

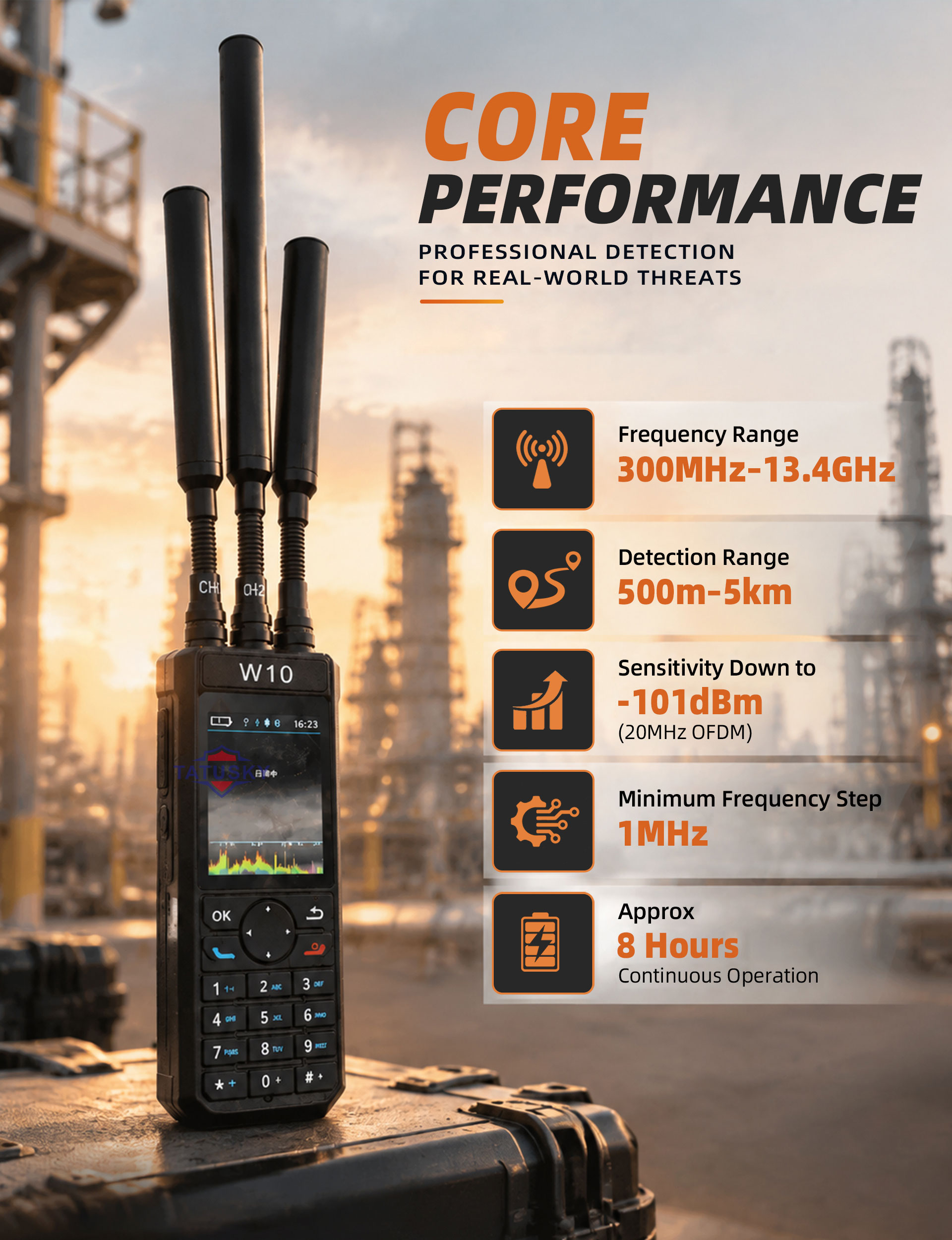

A2: Up to 5 km maximum under unobstructed line‑of‑sight for full‑power analog video‑transmission drones. Practical detection distance varies by obstacles, interference environment, drone transmit output power and signal bandwidth. Typical working range is 500 m‑5 km.

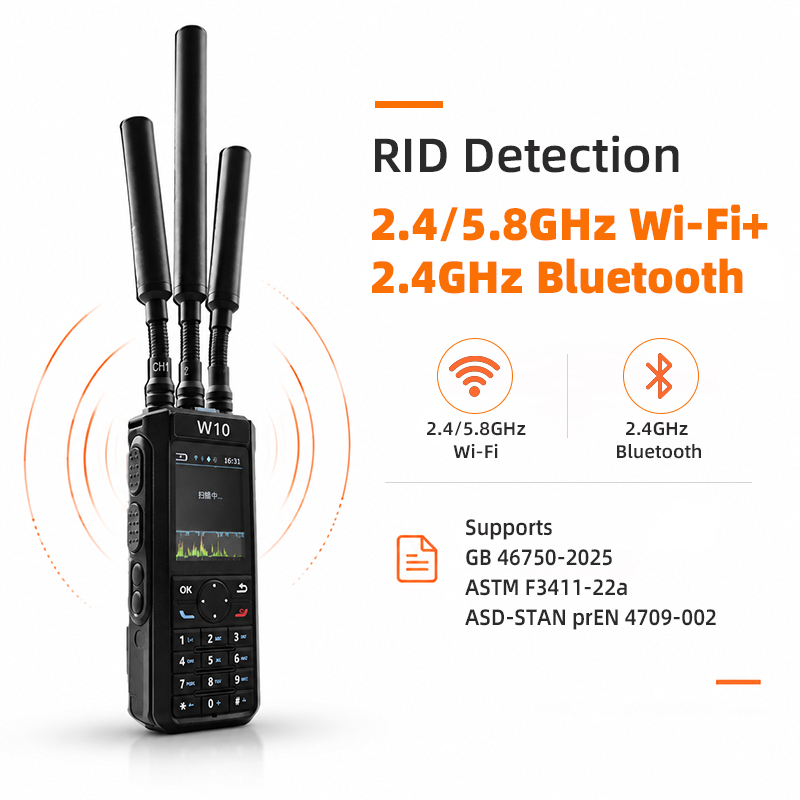

A3: It captures RID broadcast on 2.4 GHz /5.8 GHz Wi‑Fi and Bluetooth. Complies with China GB 46750‑2025, US ASTM F3411‑22a and EU ASD‑STAN prEN 4709‑002 Remote‑ID specifications.
A4: Yes. The GPIO alarm output port can connect to external backpack‑style countermeasure devices. When a drone is detected, it triggers the jammer to realize integrated detection‑countermeasure operation.
A5: Equipped with removable 2800 mAh lithium‑ion battery. Continuous runtime is around 8 hours at room temperature. Spare batteries can be swapped in field to extend working hours. Full charging takes 5‑6 hours with Type‑C 5V/1A input.
A6: IP54 offers dust‑resistance and splash‑water protection. It can resist splashing rain outdoors. Do NOT immerse the device into water. Operating temperature range: ‑25℃ ~ +55℃. Battery performance drops under extreme low‑temperature conditions.
A7: Support OTA upgrade via Bluetooth or Type‑C USB cable. You can install new firmware to expand drone‑identification library and optimize detection algorithms.
A8: 3 alarm outputs: local buzzer sound, motor vibration, and external GPIO electrical signal for linking third‑party equipment. All detection events can be saved to internal storage as log records.
A9:
A10: Main host ×1, replaceable Li‑polymer battery ×1, detection antennas &
