1.Product overview

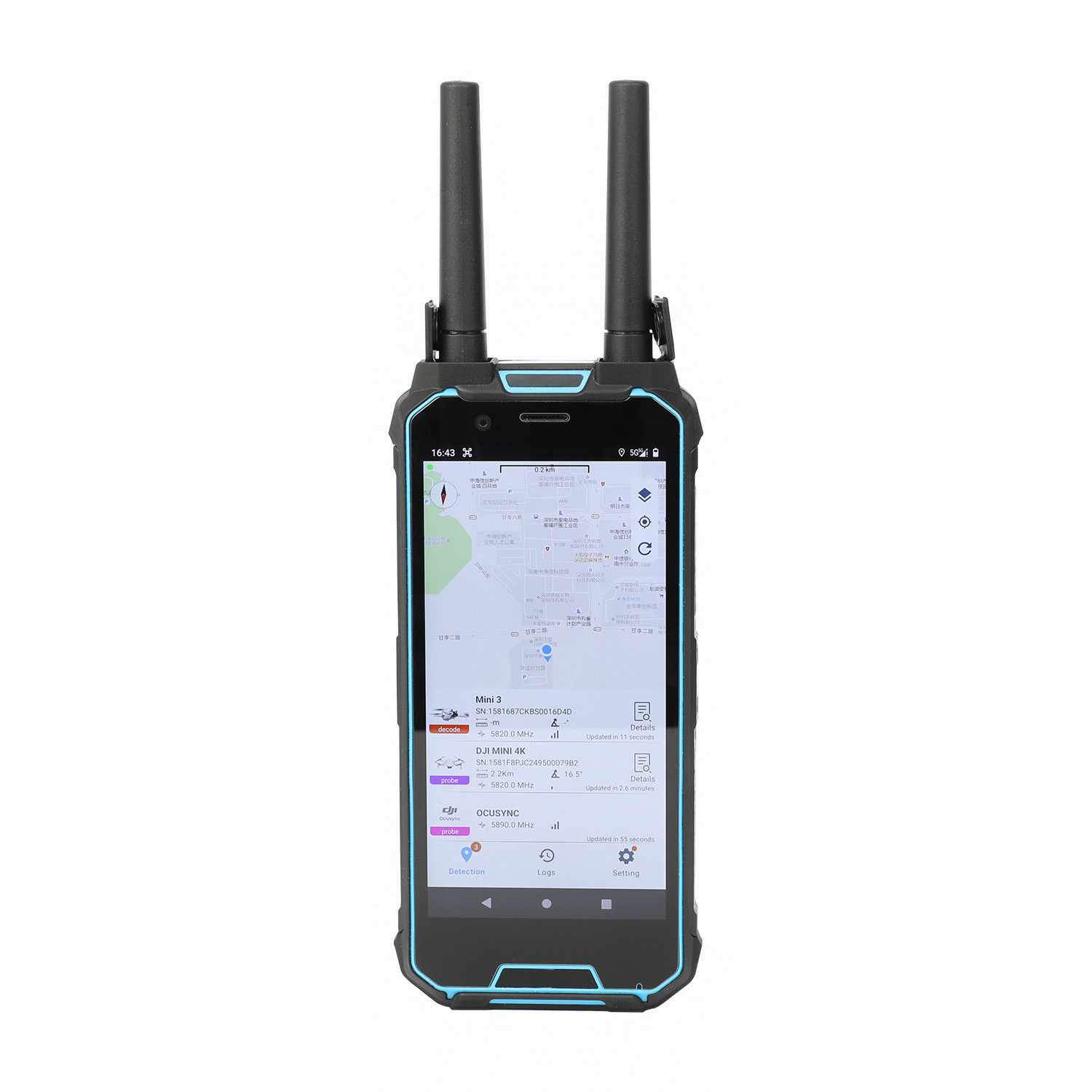

TTSKL02 is a single-soldier portable product integrating uav spectrum detection, protocol analysis, RID identification and other regulatory functions. The single machine can realize real-time detection and early warning of UAV, and accurate positioning and trajectory tracking of common UAV and pilots (remote control).
2.Product Features
(1)Uav positioning[1]: The single machine can locate the position of the UAV, which can be presented in the form of "UAV icon" in the electronic map interface.
(2)UAV Pilots positioning [2]: The single machine can locate the position of the remote control (Pilot), which can be presented in the way of "remote control icon" in the electronic map interface.
(3)Detection and identification[3]: With spectrum detection function, the recognizable models can include DJI, Dow Tong and other common models, as well as self-made crossing machine, WiFi machine and other models.
(4)FPV detection: it can detect and identify the self-made crossing machine, and analyze the first perspective flight picture in real time.
(5)Flying hand position navigation[4]: The system can plan the search route of the drone operator, and provide the function of "one-click position navigation".
(6)Unique identity[5]: DJI series (OcuSync) UAV, RID protocol UAV, WIFI UAV unique serial number (SN).
(7)Trajectory tracking[6]: Multiple flight tracks of drones can be displayed in the electronic map interface.
(8)Multidimensional information monitoring[7]: The current UAV model, location information (longitude and latitude), speed, altitude, and pilot position (longitude and latitude) can be displayed in real time in the detection list bar.
(9)Black and white list[8]: The whitelist can be set up, and the system detects the drone in the whitelist.
(10)RID monitor[9]: With RID remote recognition function, support for a variety of standard protocols.
(11)Intrusion alarm: When the drone invasion is detected, the equipment will conduct sound, vibration and other ways to alarm.
(12)Track playback: support historical track playback function to assist security personnel to analyze historical UAV flight data.
(13)Detection record: The detection record list can be reserved for the historical detection record, including multidimensional information such as UAV serial number, model and frequency.
(14)Visual data analysis: Support UAV detection and flight data statistical analysis, which can be displayed through a graphical interface.
(15)Networking intercom: The device can be connected to the wireless network and support the real-time intercom function between the devices.(Optional function)
3.Product Specifications
Table 2. Product Performance indicators
|
Item |
Performance Index |
Indicator Parameters |
Remarks |
|
1 |
Detection frequency band |
100MHz～6GHz |
|
|
2 |
Detection radius |
1.5~2km (urban environment) 2~3km (open area environment) |
|
|
3 |
Response time |
3~ 5s |
|
|
4 |
Positioning range |
1~2km (urban environment) 2~ 3km (open area environment) |
|
|
5 |
Detect the quantity |
≥10 sorties (simultaneously) |
|
|
6 |
Time of endurance |
3~ 4h |
|
Table 3. Mechanical parameters
|
Item |
Performance Index |
Parameter |
Remarks |
|
1 |
Host size |
L*W*H：（185mm*80mm*33mm）±5 mm |
|
|
2 |
Weight |
（ 650± 10） g |
Without Antenna |
Table 4. Electrical characteristics
|
Item |
Performance Index |
Parameter |
Remarks |
|
1 |
Battery capacity |
8000mAh |
Built-in lithium battery |
|
2 |
Time of endurance |
4~ 6 Hours |
The screen brightness was 20% with a room temperature of 25℃ |
|
3 |
Charging time |
~ 3 Hours |
Use the original battery charger |
Table 5. Environmental Adaptability
|
Item |
Performance Index |
Parameter |
Remarks |
|
1 |
Working temperature |
- 25~40℃ |
|
|
2 |
Storage temperature |
- 3 5~ 40℃ |
|
Company Profile

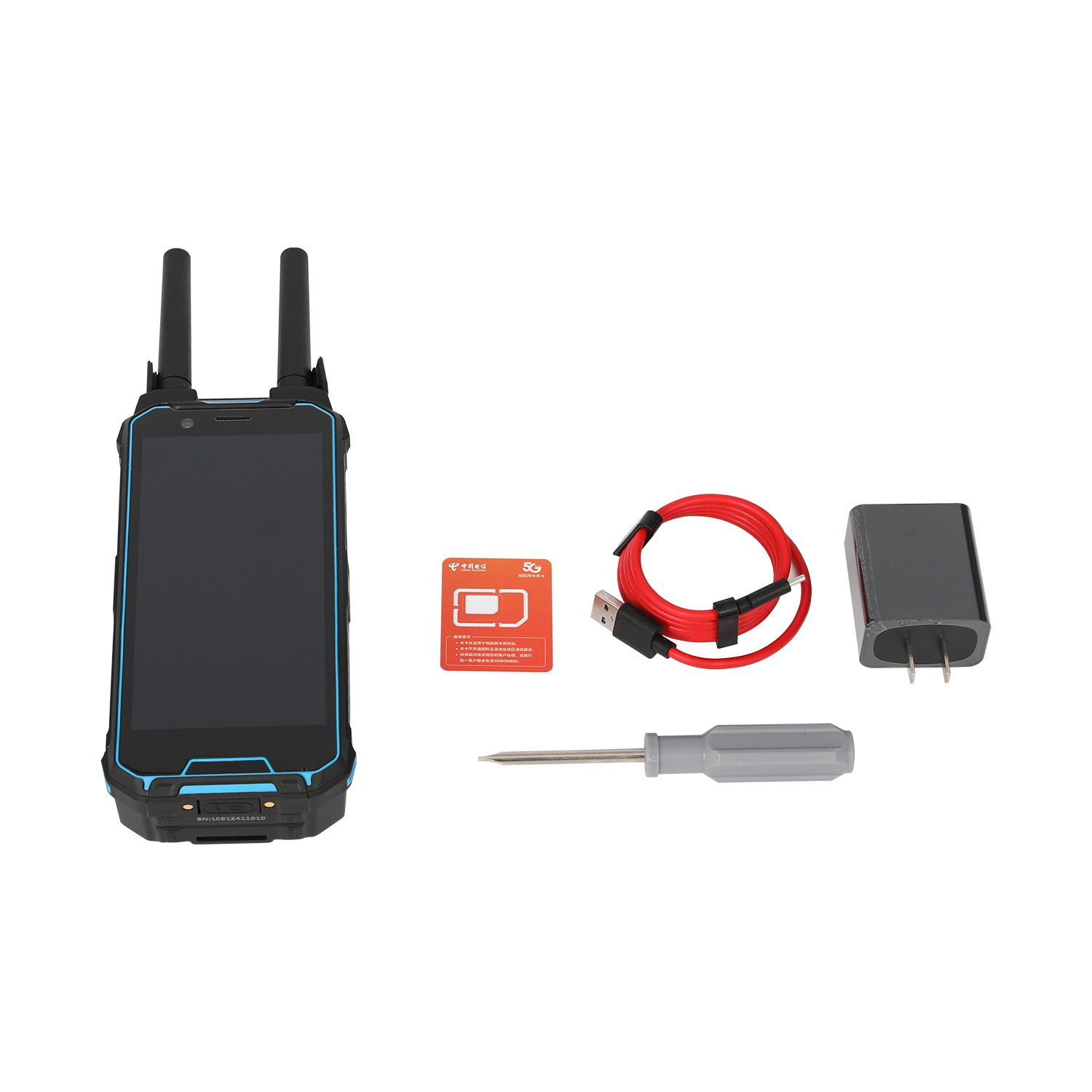

Product Packaging
