TTSKW08 Ultra-Wideband Handheld Drone Detector | 100MHz–8GHz Full-Spectrum Detection
Real-Time UAV Detection, Video Capture & Direction Finding for DJI, Autel, and DIY Drones
Product Overview
The TTSKW08 is a professional handheld drone detector designed for security, surveillance, and privacy protection. It scans the entire 100MHz–8GHz spectrum to identify OFDM and analog video signals from popular drones like DJI and Autel, as well as racing drones. With dual antennas, fast scanning, and high sensitivity, it ensures reliable detection up to 1km, low false alarms, and real-time video interception—all in a compact, portable device.
Key Features
-
Full-Spectrum Detection: Covers 100MHz–8GHz with real-time signal analysis
-
Compatible with Mainstream Drones: Supports DJI, Autel, and DIY FPV drones
-
Precise Direction Finding: Use directional antenna to locate drones quickly
-
Live Video Capture: View FPV drone video directly or export to external display
-
Interference Linkage: Connect to countermeasure devices for integrated defense
-
Long Battery Life: Up to 7 hours of continuous operation
-
Rugged & Weatherproof: IP54 rated, operates from -20℃ to 60℃
-
Fast Charging: 35W fast charge in just 1 hour
-
Bluetooth Data Transfer: Send detection logs to mobile devices wirelessly
Technical Specifications
- Frequency Range: 100MHz – 8000MHZ
- Detection Range: Up to 1km (varies by signal)
- Video Capture: Analog video within 100MHz–8GHz
- Detection Types: OFDM HD video & analog FM signals
- Battery: 2900mAh, ≥7 hours
- Charging: Type-C, 35W fast charge
- Dimensions: 164mm × 44mm × 68mm (without antenna)
- Weight: ≤580g (with battery)
- Operating Temp: -20℃ to +60℃
- Protection: IP54 waterproof & dustproof
- Interface: Magnetic cable for data export & upgrade

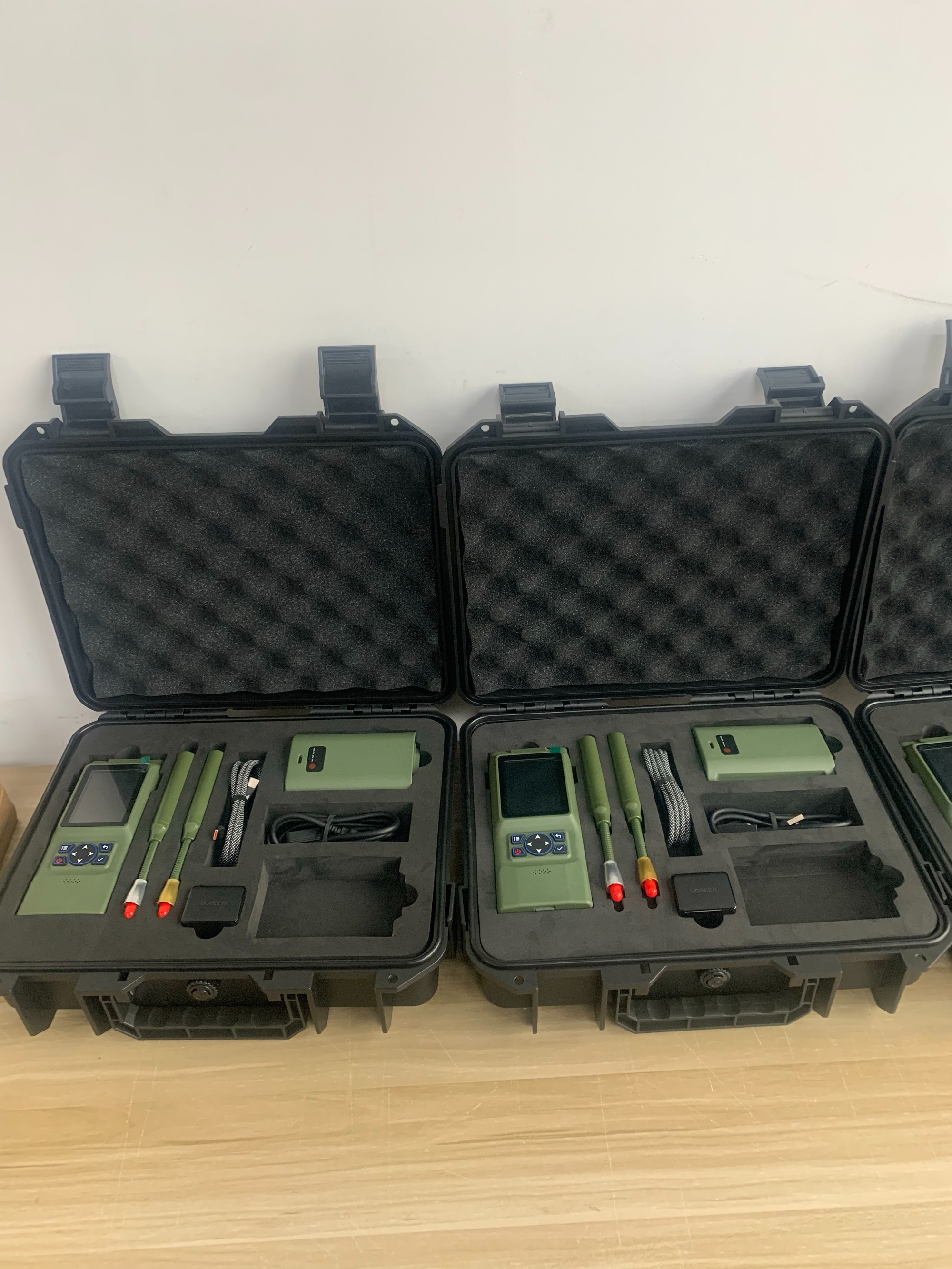

Product Image
Usage Scenarios
Manufacturer Information
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Dongguan City, China.
What shipping methods are available?
We support all major shipping methods including DHL, UPS, TNT, FedEx, and sea shipment.
What is the typical delivery time?
Normal orders ship within 5-7 working days. Bulk orders may require additional time.
Can I customize labels and logos?
Yes, we support custom labeling and branding.
What is your minimum order quantity?
MOQ ranges from 1 to 20 sets depending on your requirements.
What if I receive a defective product?
We maintain strict quality control but will address any issues promptly with replacements or compensation.
