100MHz-6GHz Wideband Detection Coverage Single-station Precise Positioning Non-cooperative Target Recognition Power-off Resistant Blacklist Whitelist Data

100MHz-6GHz Wideband Detection Coverage Single-station Precise Positioning Non-cooperative Target Recognition Power-off Resistant Blacklist Whitelist Data

Name: 100MHz-6GHz Wideband Detection Coverage Single-station Precise Positioning Non-cooperative Target Re
Brand: Anti-Drone System Solution
SKU: 03504
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 03504

The DC01 is a mobile, handheld low-altitude detection product. It features a highly integrated and easy-to-operate design.

Detection Range:

100MHz～6GHz
Detection Principle:

It adopts a passive receiving method and does not actively transmit radio signals.
Key Frequency Bands:

433MHz、900MHz、1.4GHz、2.4GHz、5.2GHz、5.8GHz
Positioning Method:

Protocol parsing and location
Protocol Parsing:

CRPC parsing

Drone ID parsing

RID parsing
Screen Size:

A 13.3-inch LCD screen with a resolution of 1920*1080

using TFT technology.
Battery Capacity:

28.8V/9Ah x 2

259.2Wh x 2
Power Supply:

Lithium battery; Power adapter supports input voltage AC110V～240V
Operating Power Consumption:

Detection conditions: 71W (normal operating environment)
Equipment Weight:

14.4 kg(Includes two lithium batteries)

Request Quote Contact Us PDF Format

Description Review

Description

TTSK-DC01 Portable Passive Drone Detection Equipment

Advanced Handheld UAV Detection & Tracking System for Low-Altitude Airspace Security

Product Overview

TTSK-DC01 is a mobile, handheld low-altitude drone detection device with highly integrated suitcase design. Adopting passive receiving technology and protocol reverse engineering, it realizes UAV passive detection, accurate identification, image capture and trajectory tracking. It supports non-cooperative target detection, single-station positioning based on CRPC technology, and blacklist/whitelist management. With IP66 protection, wide temperature range and long battery life, it is widely used in important places for low-altitude security protection.

Key Features

Passive Detection
Works purely by signal reception with no active transmission. Zero electromagnetic radiation ensures excellent concealment.
Precise Identification
Accurately identifies drone brand, model, frequency and fuselage ID.
Non-Cooperative UAV Detection
Effectively detects, identifies and locates non-cooperative unmanned aerial vehicles.
Single-Station Navigation-Grade Positioning
Delivers high-precision positioning powered by CRPC technology.
Blacklist & Whitelist
Supports one-click configuration. Records are saved permanently and retained after power cycles.

High Portability
Lightweight suitcase-style design for effortless transport and rapid deployment.

Wide Compatibility: Cover 100MHz–6GHz, support multiple mainstream frequency bands.

Technical Specifications

Item	Specification
Model	TTSK-DC01
Detection Principle	Passive receiving, no active radio signal emission
Detection Frequency	100MHz–6GHz
Key Bands	433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz

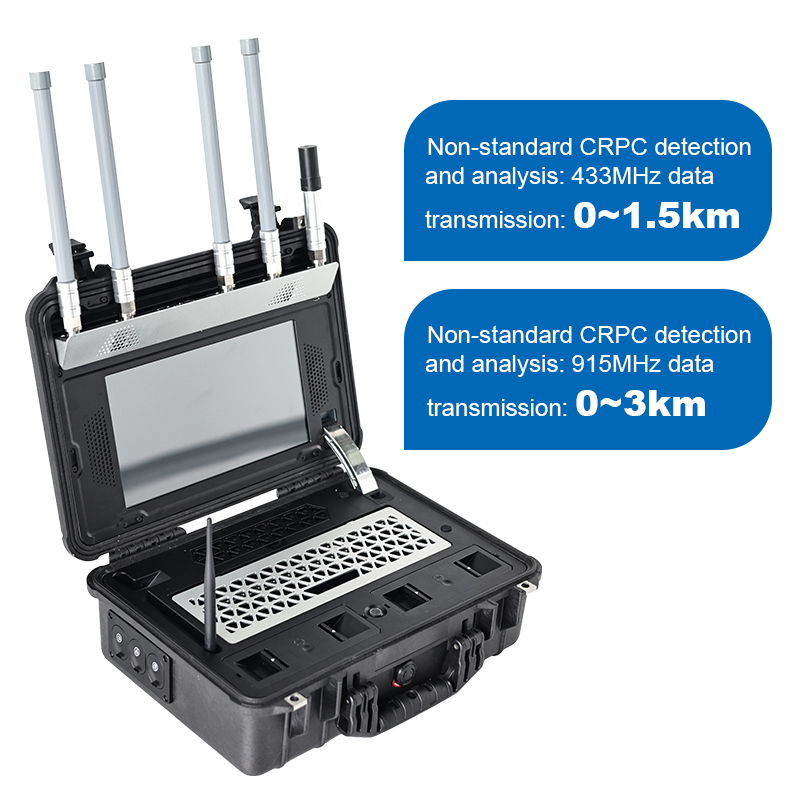

Detection Radius	CRPC/RID/Drone ID: 0–5km; 433MHz: 0–1.5km; 915MHz: 0–3km
Positioning	Protocol parsing & location, CRPC/RID/Drone ID parsing
Screen	13.3-inch TFT LCD, 1920*1080 touch screen
Battery	28.8V/9Ah×2, 259.2Wh×2
Working Time	6–7 hours (dual batteries)
Power	AC110V–240V adapter, lithium battery
Power Consumption	71W (normal detection)
Size (Closed)	470mm×357mm×176mm
Weight	14.4 kg (with 2 batteries)
Operating Temp	-40℃~65℃ (adapter); -25℃~55℃ (battery)
Protection	IP66 (closed lid)
