The TTSKC02 is a passive, long-range UAV detection system that delivers 360° omnidirectional monitoring and precise identification of UAVs up to 10 km coverage. With two working modes (Aeroscope-like detailed tracking and CRPC-style alerting), it identifies models, flight routes, GPS position, altitude and pilot location for supported drones. Designed for unattended 24/7 operation, the system supports whitelist/blacklist management and integrates easily with radar, EO and jamming systems.
Airports & airfields
Border, port & perimeter defense
Critical infrastructure (power plants, data centers, refineries)
Event security & crowd protection
Law enforcement, emergency response & rapid reaction teams
VIP protection and convoy security
| Item | Specification |
|---|---|

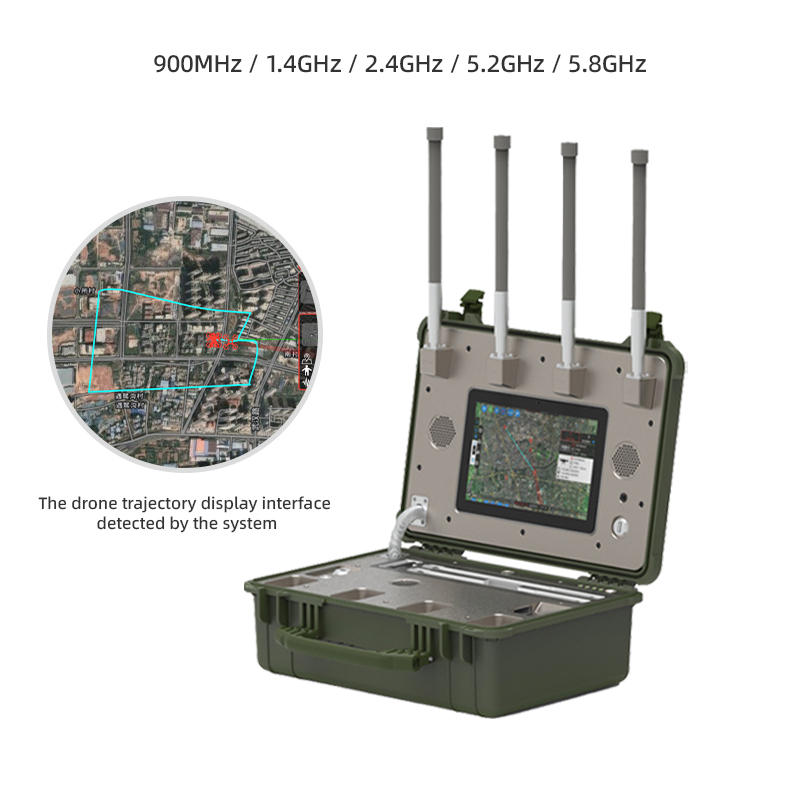

| Key Detection Frequency Bands | 900 MHz / 1.4 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz |
| Detection Method | Passive (no signal emission) |

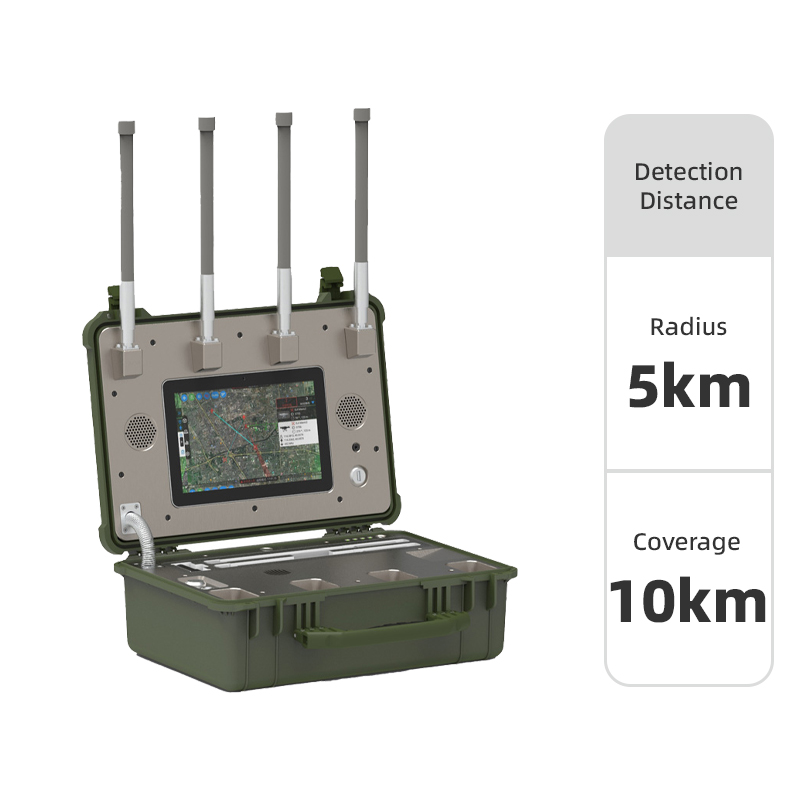

| Detection Distance | Radius: 5 km, Coverage: 10 km |
| Sensitivity | Better than -115 dBm (25 kHz) |
| Coverage | 360° omnidirectional |
| Supported Modulations | FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS |
| Simultaneous Detection Capability | ≥30 drones |
| Detection Modes | Panoramic scanning, Channel scanning |
| Dynamic Range | 70 dB |
| False Alarm / Reliability | (See product QA/testing notes) |
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
