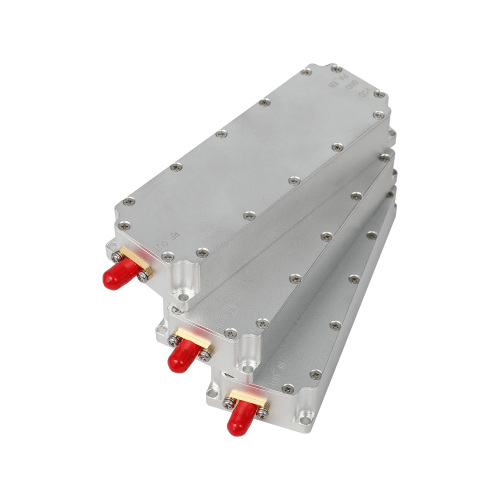

200-300MHZ WRF PA Module RF Amplifiers for Anti UAV System Shielding Module Gan Module Without Internal Circulator With External Circulator

Test items

Index

Unit

Remark

Frequency range

200-300Mhz

MHz

Built-in noise source

Operating voltage

24-32

V

Typical voltage 28V built-in voltag regulator module

Maximum output power

50

dBm

≤7.3 A

Power supply requirements

Greater than 10

A

Work efficiency

50

%

Typical work efficiency

Output port VSWR

≤2

High and low temperature test

Working environment temperature (℃)

-40～+55

℃

Power stability

1.5

dB

-20 ℃～ + 75 ℃

Powered by

M4 Feedthrough Capacitor

Red and black wire or through-hole capacitor

Communication interface

CON2*4

1, 2, 3, 4 pin NC

8pin enable (high open, low close)

6pin temperature alarm (normal low level, alarm high level)

7pin standing wave alarm (normal low level, alarm high level)

5pin GND

RF output connector

N or sma

Female

RF input connector

SMA

Female

size

37*120*19.5

mm

Not including interface

Mounting holes

151.5*59.4

M3*10 steel screw
