Test Item |
Index |
Unit |
Remarks |
|
|

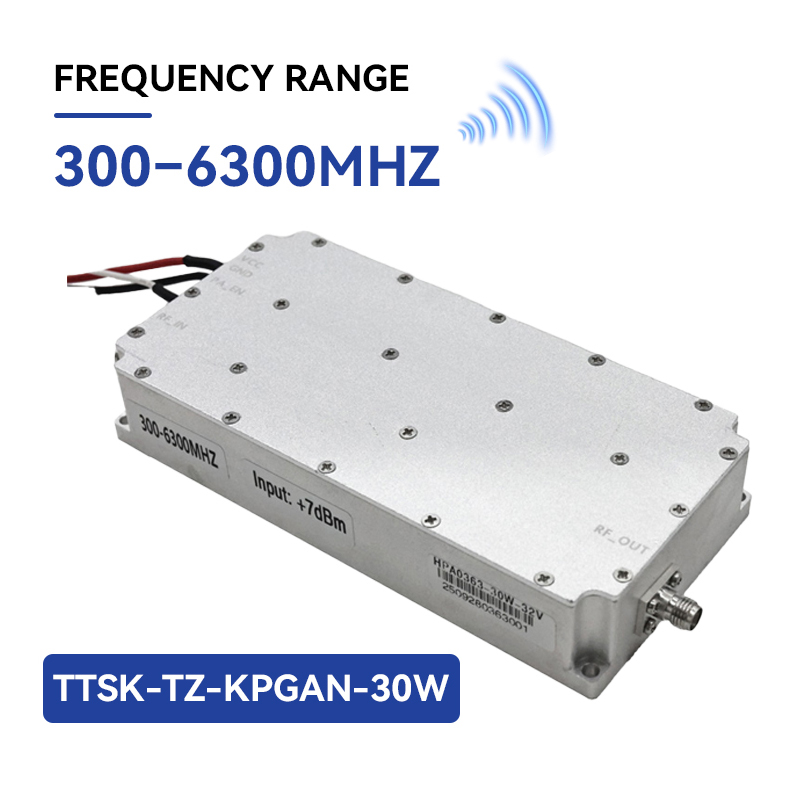

Frequency Range |
300-6300 |
MHz |
|
|
|
Operating Voltage |
28 |
V |
24 - 32V |
|
|

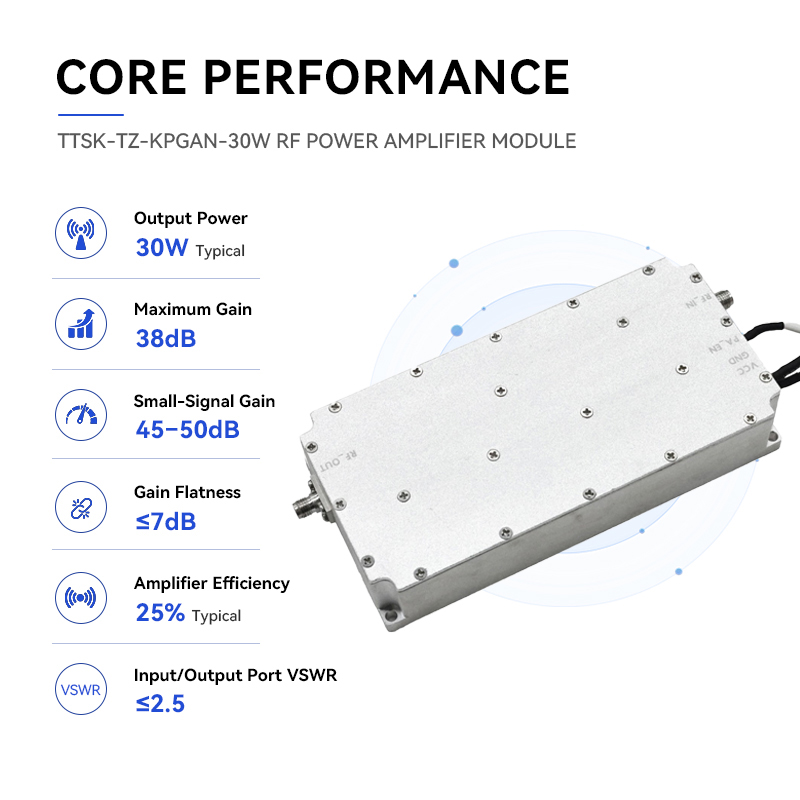

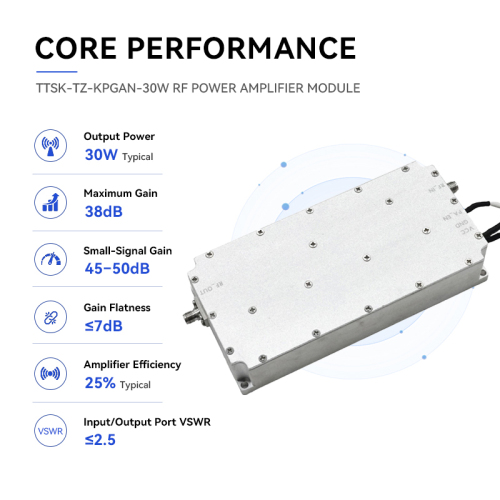

Maximum Output Power |
30-50 |
W |
30W@≤4.7A Typical values |
|
|
Amplifier Efficiency |
25 |
% |
@30W Typical values |
|
|

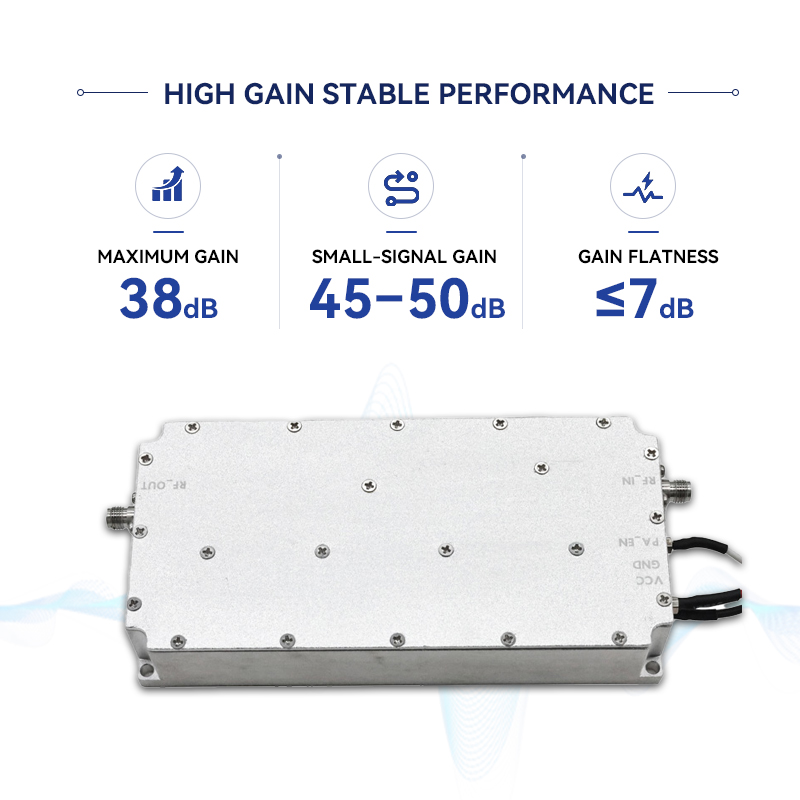

Maximum Gain |
38 |
dB |
Maximum power gain |
|
|
Small Signal Gain |
45-50 |
dB |
|
|
|
Gain Flatness |
≤7 |
dB |
|
|
|

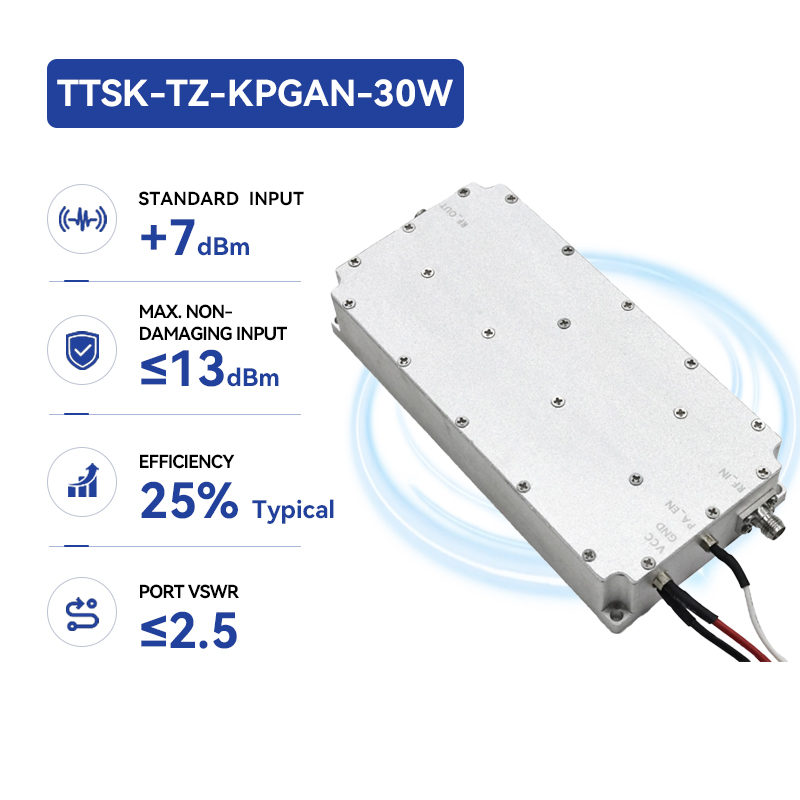

Standard Input Power |
+7 |
dBm |
|
|
|
Maximum Non-Damaging Power |
≤13 |
dBm |
|
|
|
Input and Output Port Standing Wave Ratio |
≤2.5 |
|
No power, network test |
|
|
High and Low Temperature Test |
Operating Environment Temp |
-30～+55℃ |
℃ |
|
|
Power Stability |
±1.5 @-30℃～+55℃ |
dB |
|
|
|
Power Supply Req. |
≥6.5A@+28V DC |
|
30W CW output |
|
|
Power Interface |
Feedthrough Capacitors |
|
|
|
|
PA Enable |
Feedthrough Capacitors |
|
Turn on at high level, turn off at low level(High 3.3-5V) |
|
|
RF Input and Output Connector |
SMA |
|
SMA female |
|
|
Dimensions |
130*62.9*24.5 |
mm |
|
|
|
Weight |
360 |
g |
|
|
|
Mounting Holes |
125.3*57.7 |
mm |
M3.0*4 |
|
