Model: TTSK-TZ-KPG-50W
Frequency Range: 6000-8000 MHz
· High output power
· Broadband coverage
· GaN technology: high efficiency, high temperature tolerance, high voltage resistance
· High linearity and low distortion
· Package Type: Metal module
· Cooling Method: Bottom-mounted heat sink
· Connector Type: Input SMA.Output SMA
· Cooling Requirement: Forced air cooling or conductive heat sink
· Mounting Method: Screw-fixed installation
|
Item |
Specification |
Unit |
Remarks |
|
|
Frequency Range |
6000-8000 |
MHz |
|
|
|
Working voltage |
28-32 |
V |
Typical 28V |
|
|
Power supply requirements |
≥10 |
A |
|
|
|
Input Power |
6 |
dBm |
Typical |
|
|
Maximum output power |
47±0.5 |
dBm |
≤9A |
|
|
Power amplifier efficiency |
33 |
% |
Typical efficiency |
|
|
Output port VSWR |
≤2 |
|
|
|
|
High and low temperature test |

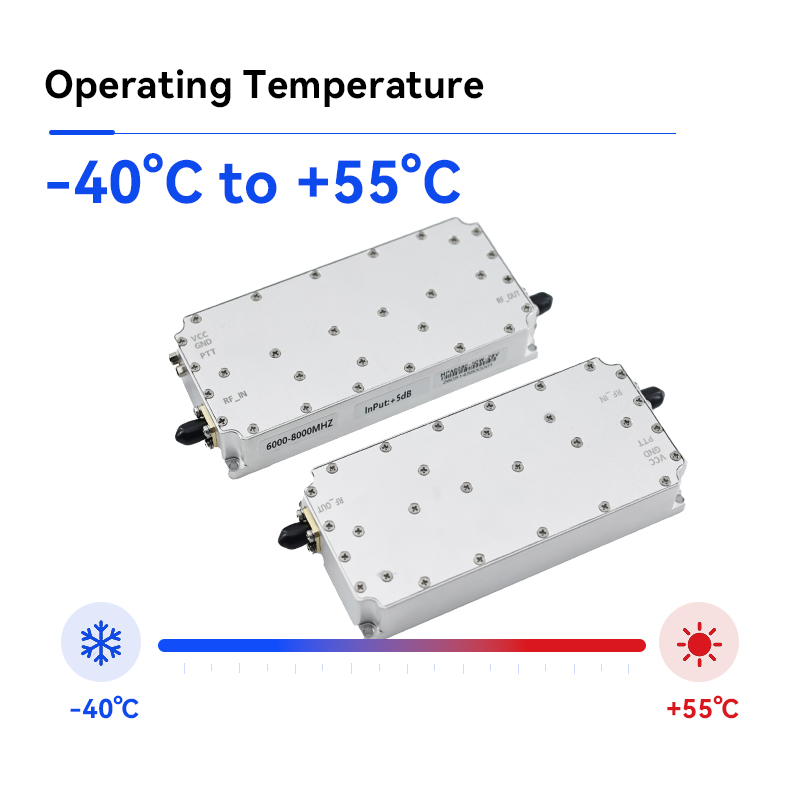

working environment temperature |
-40～+55 |
℃ |
|
|
Power stability |
1.5 |
dB |
-20℃~+45℃ |
|
|
Power Supply |
Feedthrough Capacitor |
|
Red and black wires or feedthrough capacitors |
|
|
Enable Control |
No |
|
Increase as needed |
|
|
RF input connector |
SMA |
|
Female |
|
|
RF output connector |
SMA |
|
Female |
|
|
Size |
124.2*58.2*22.5 |
mm |
Excluding connector |
|
|
Installation hole |
119.5*53 |
mm |
