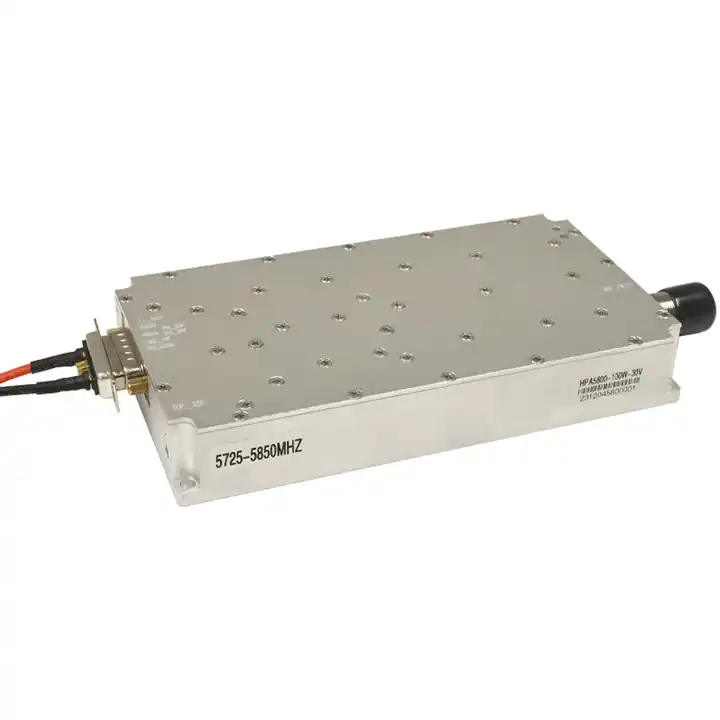

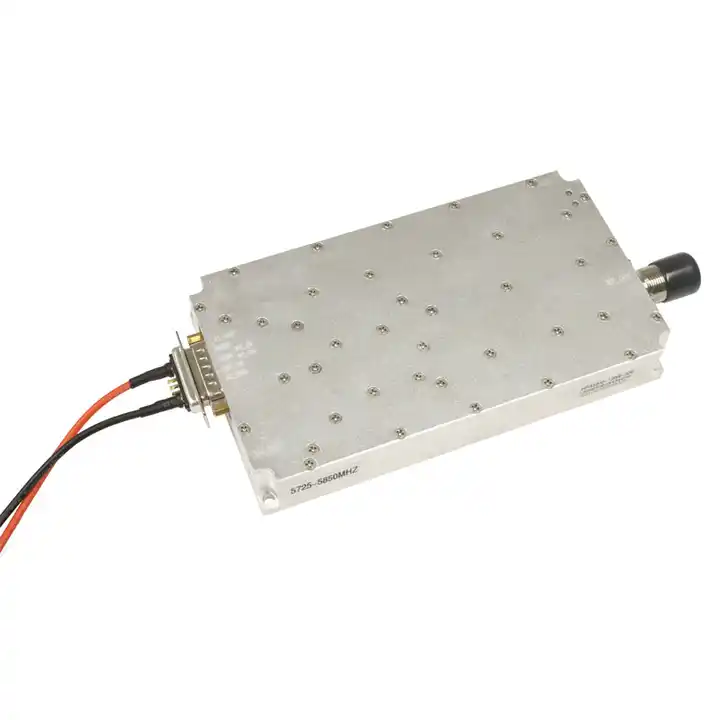

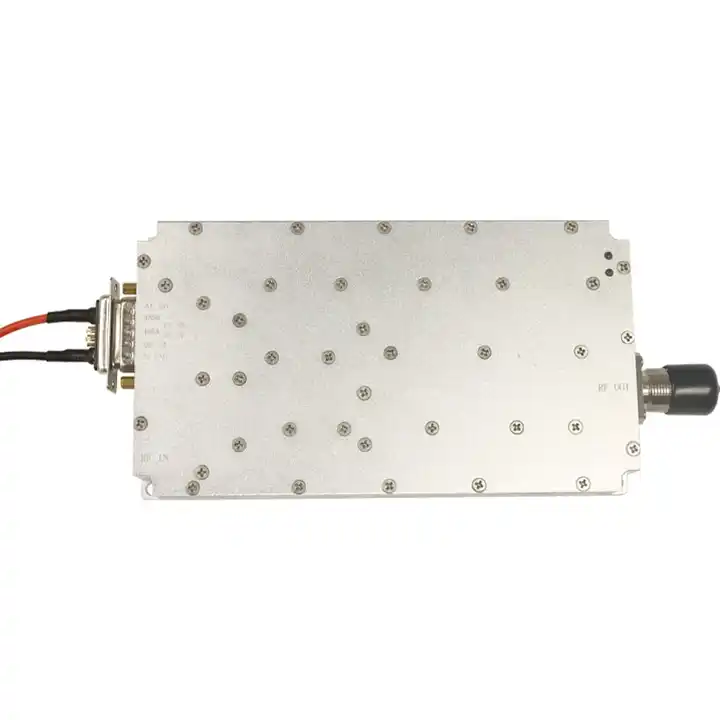

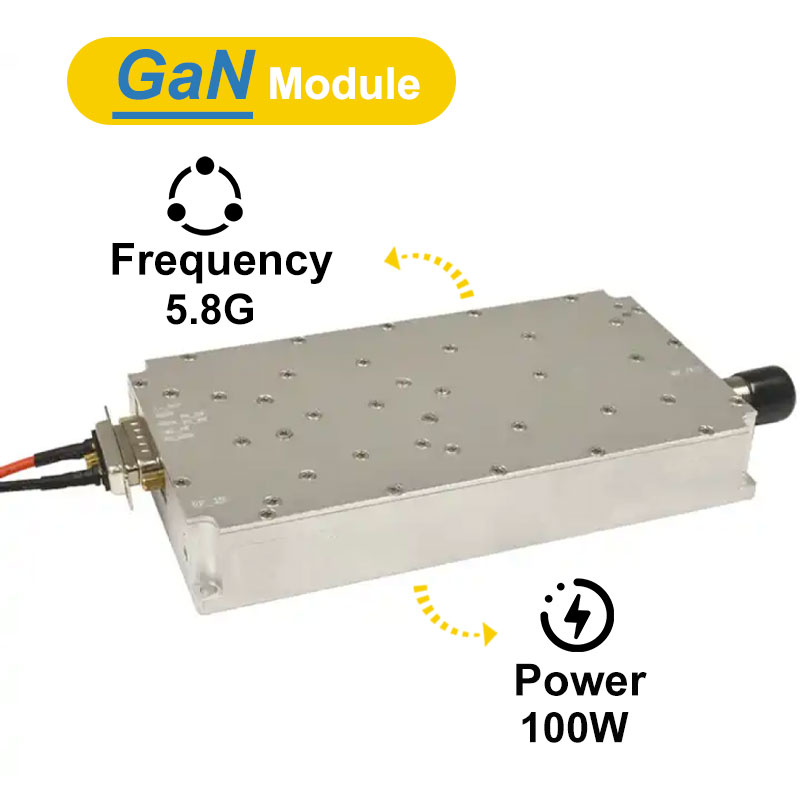

5.8G 100W GaN Amplifier drone counter module for anti drone system anti Autel RF power amplifier

Frequency

5725-5850Mhz

Output Power(dBm)

50dBm

In-band group delay

≤1us

Gain

45±1.0,45±1.0 (external input 9dbm, power amplifier output 50dbm)

In-band fluctuation (dB)

≤2.5 (peak-to-peak value)

Input voltage standing wave ratio

≤1.35

Output voltage standing wave ratio

≤1.3

Supply voltage Typical

+30Vdc Range: 24-36V

Supply current

+30Vdc@100W≤6.5A

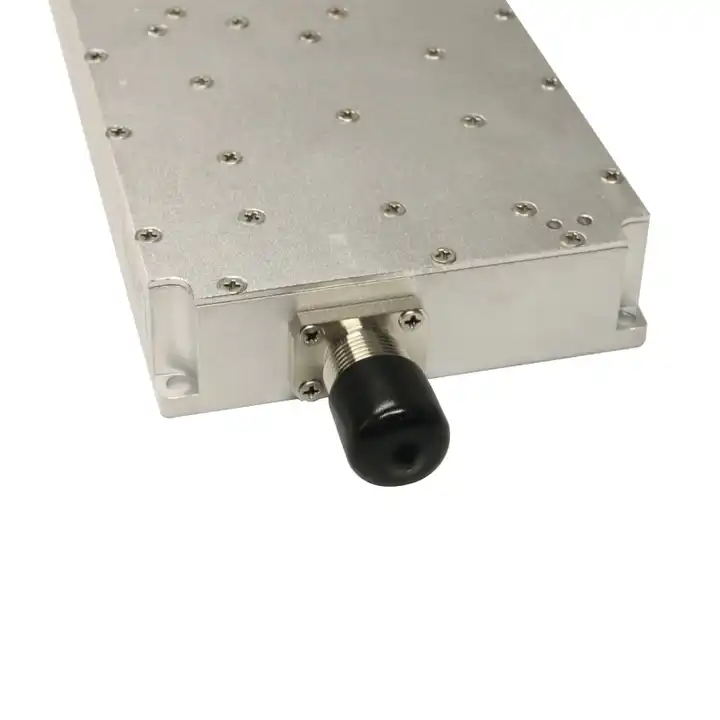

Output RF connector

N-50KFD

Size

170×94×26.5mm (excluding connectors)

Input signal source

Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources

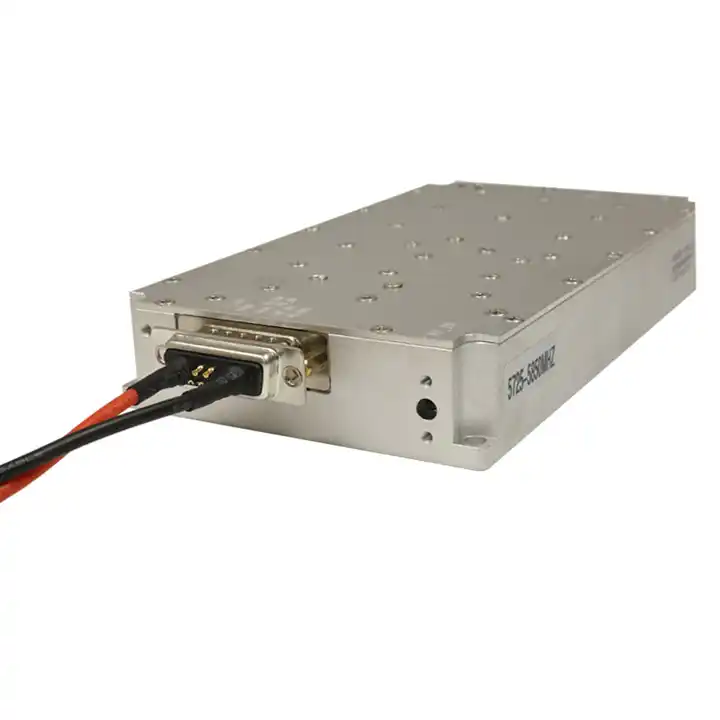

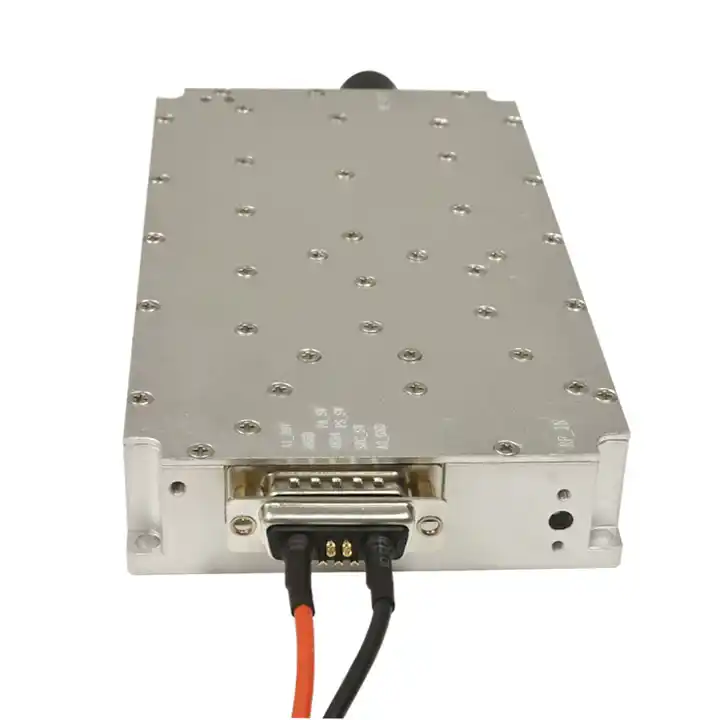

1 7W2 male socket

2 Feedthrough capacitors (from top to bottom)

1: A1 is the 30V power input, and A2 is GND;

2: The first pin of 7W2 is the PA_SW power amplifier enable;

3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off;

4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;
