Advanced Customizable UAV Drone Detection Signaling Briefcase For 1.2G 1.4G 2.4G 5.8G Detection Pilot Positioning 2-8KM IP65

Item No.: 01635
TTSKC05 portable drone detector is a briefcase style drone detection device for drone monitoring.
It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, etc.
Description Review
Description



Portable Drone Detector Specification
TTSKC05
I. Product Overview
The portable radio positioning detector integrates drone radio detection, direction-finding, and protocol decoding and positioning functions. By utilizing omnidirectional radio frequency scanning for feature recognition and decoding, it detects unauthorized drones and issues an alert upon target identification.

It supports handheld directional antenna operation, using amplitude comparison for direction-finding, and can also decode DJI drone beacon signals, extracting information from the radio messages. The extracted data includes, but is not limited to, the drone model, serial number (SN), latitude,
longitude, orientation, pilot location, and home point. The system features long detection range, high identification accuracy, precise positioning, real-time flight path indication, and audio/visual alerts. All detection information is intuitivelydisplayed on the LCD screen.

The entire system adopts a modular design with a portable suitcase structure, making it highly mobile. It features a user-friendly software interface for easy operation and supports 24/7 uninterrupted monitoring and recording. The device is capable of simultaneously locating multiple DJI drones and their controllers within a certain range. Additionally, it continuously monitors the surrounding RF environment and displays the geographic positions of detected drones and remote controllers.

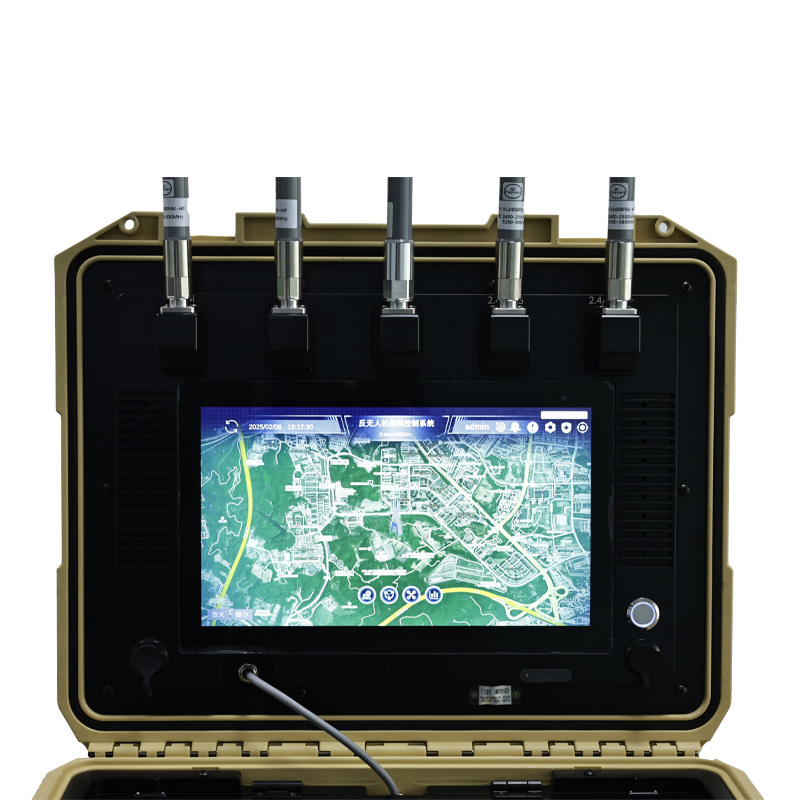

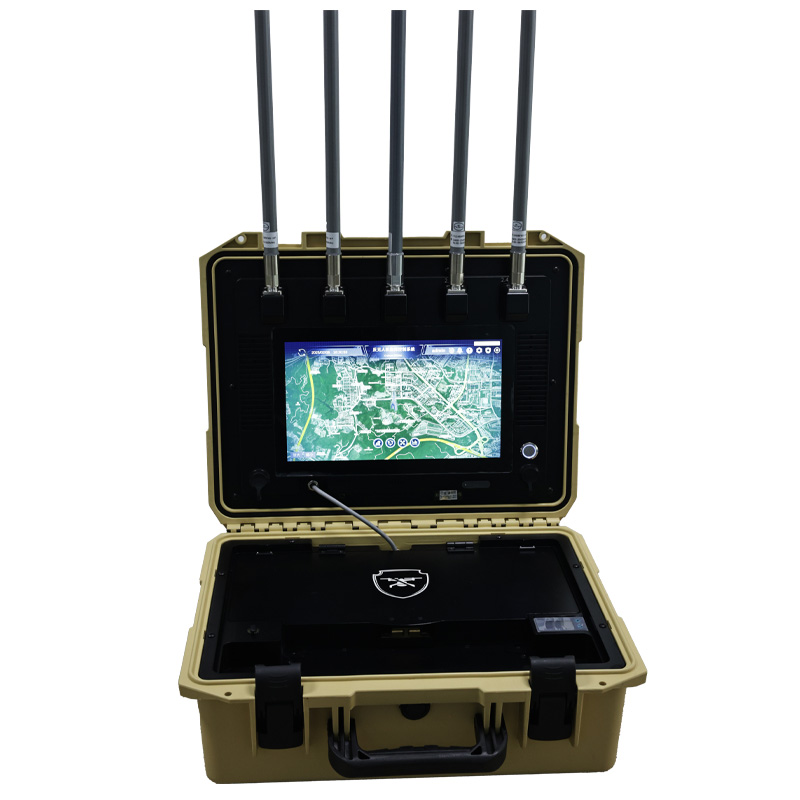

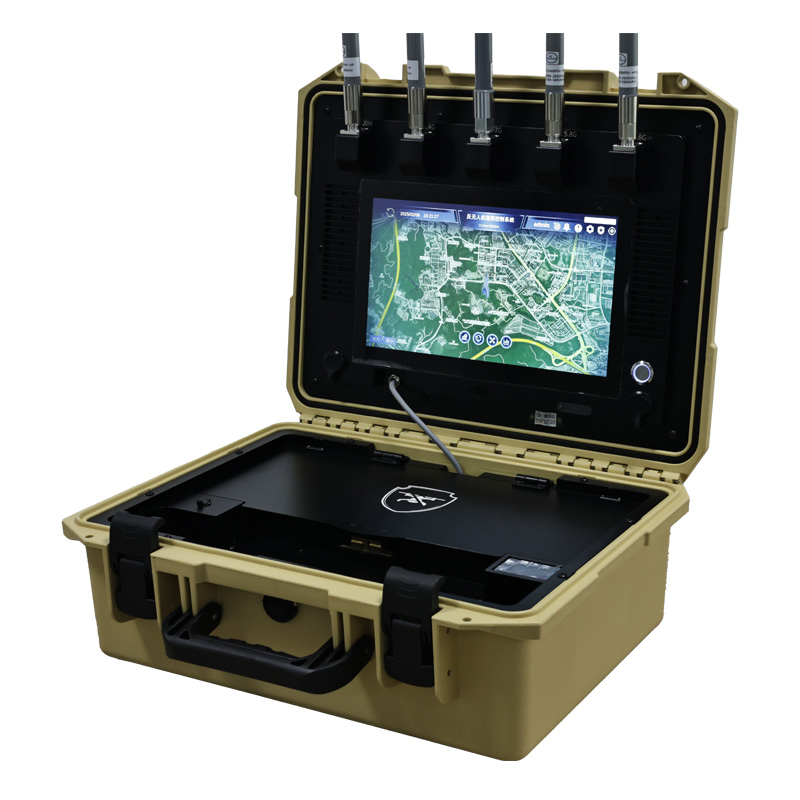

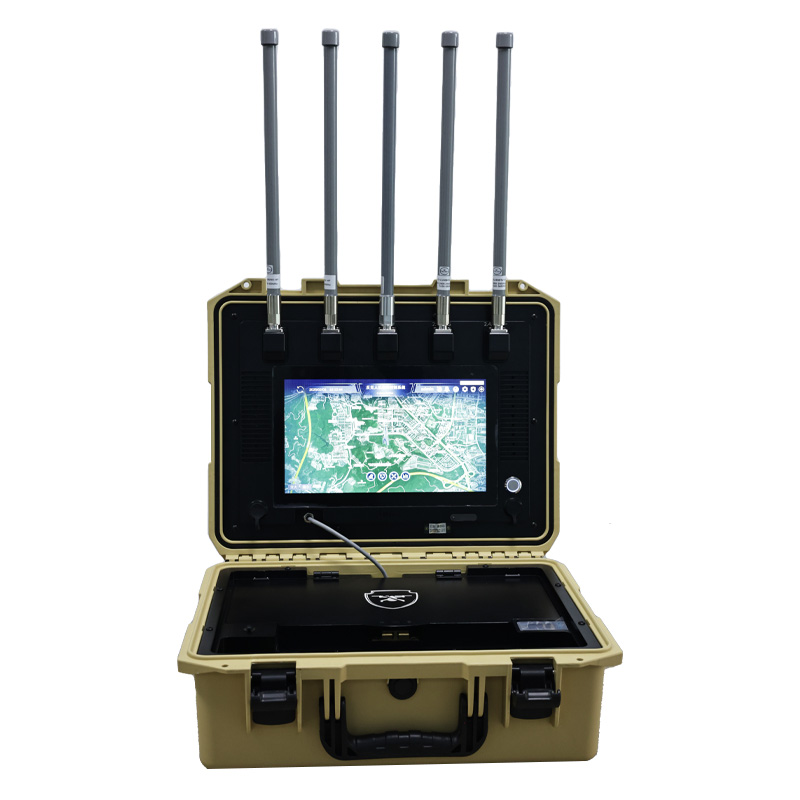

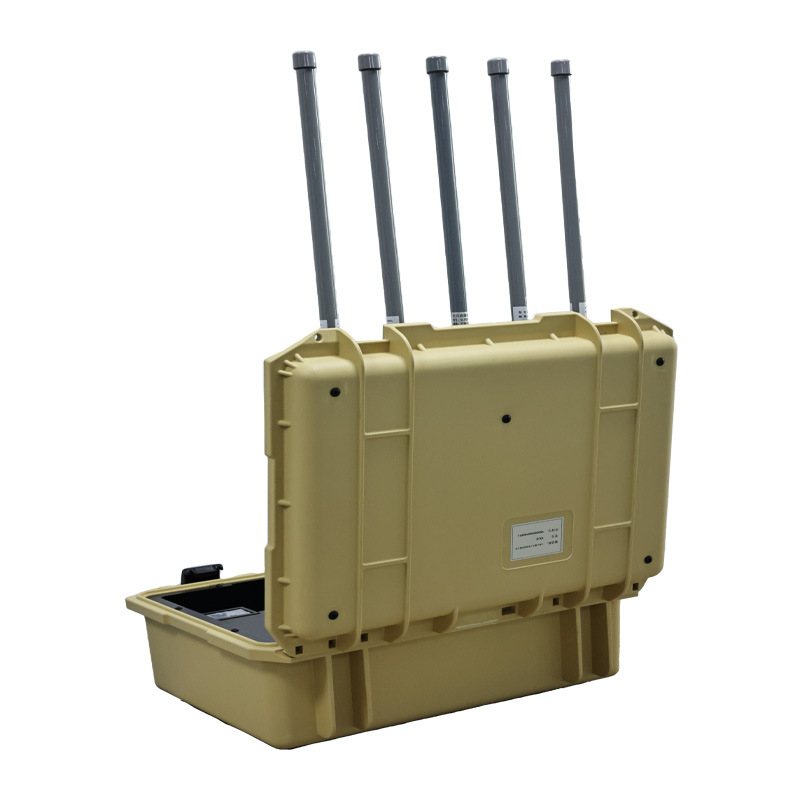

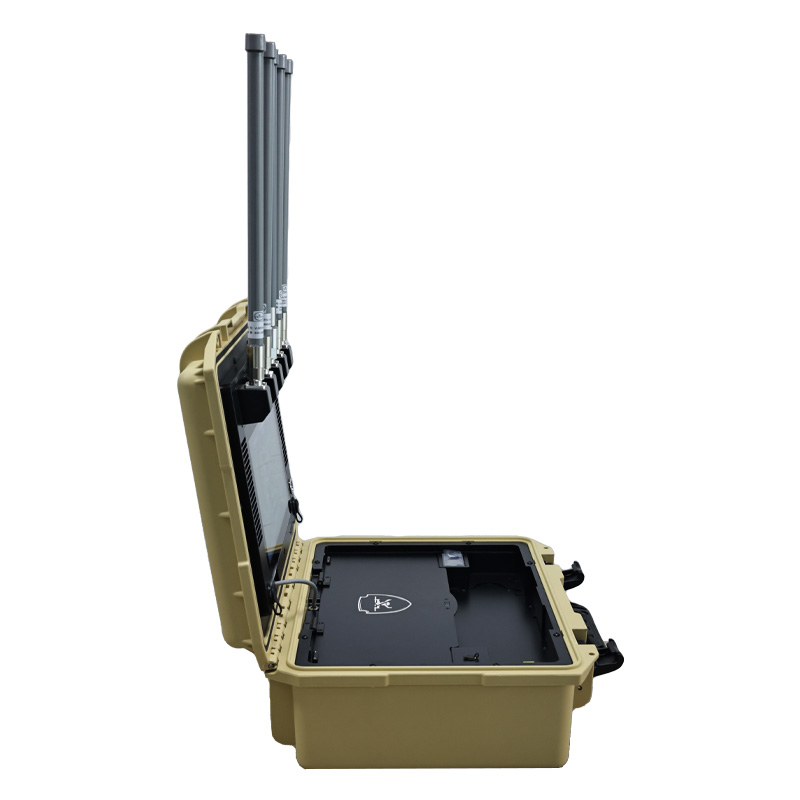

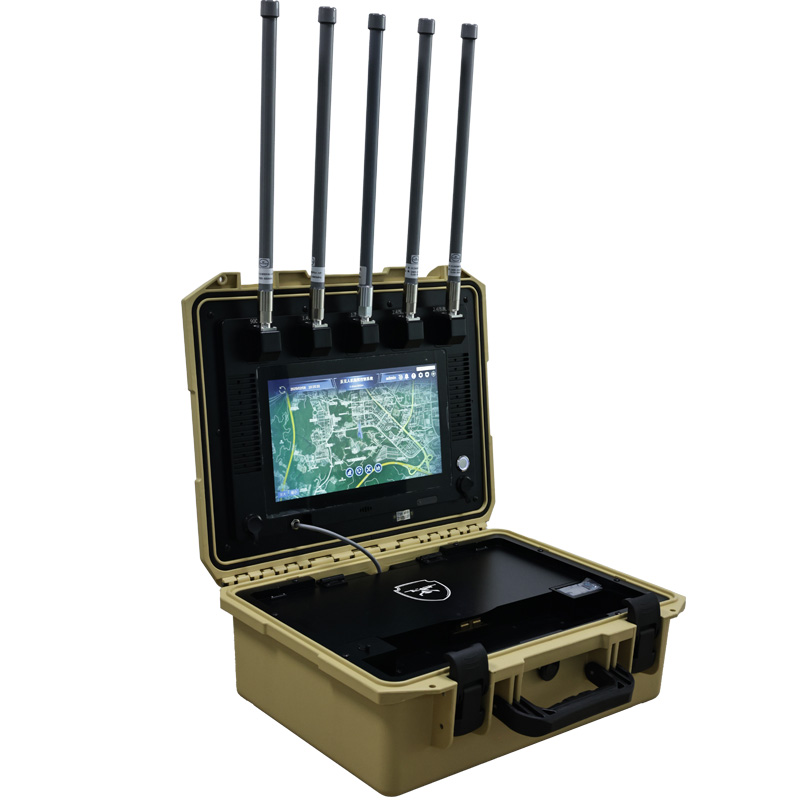

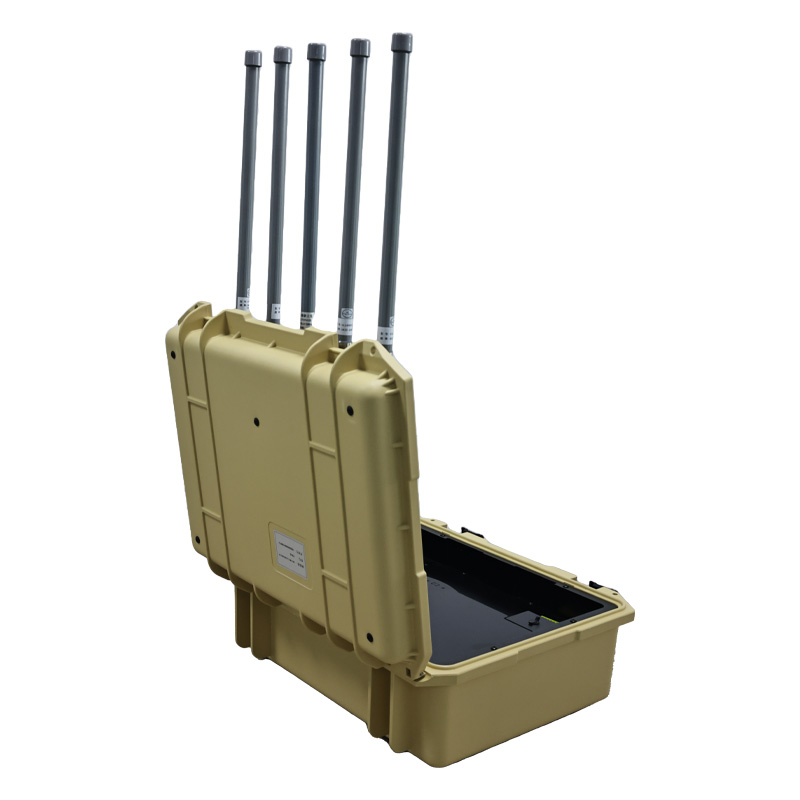

II. Product Appearance


III. Product Features
Pilot Positioning – The device can locate and display the pilot's position in real time.
Drone Positioning – Capable of detecting and tracking the drone's flight location.Unique Identification – Identifies the drone’s unique serial number (SN).
Network Expansion – Supports network integration with backend management platforms and multi-device collaboration for large-area coverage.
Rapid Deployment – Deploys in seconds, ready to use upon startup.
Portable & Compact – Suitcase-style design, lightweight and easy to carry.

IV.Parameter
Parameter
Specification
Device Name Portable Drone Spectrum Detector
Detection Range 2 - 8 KM
Spectrum Detection
Frequency Band
45MHz ~ 6000MHz
Spectrum Identification
Capability
- Supports drone spectrum
identification- Recognizes over 100 drone models
- Supports DJI O3 and DJI O4
decryption
- Supports RID data reception
Supported Drone
Models for Positioning
DJI Phantom 4PV2, DJI Mavic 2, DJI
Mavic 3, DJI FPV, DJI 2S, DJI M300,
etc.
Screen Size 12.6 inches
Power Consumption 40W
Total Weight 16 KG
Battery Capacity 720Wh
Operating Time (Full
Charge)
18 hours (Ideal conditions)



FAQ

1. How long is the production lead time?

The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.



2. Can I customize the product?

Yes,Power and frequency band can be customized according to your needs

Please contact us with your specific requirements.



3. What is your payment term?

We accept various payment methods, including T/T (Telegraphic Transfer), PayPal, and Alibaba Trade Assurance.

Payment terms are typically 30% deposit and 70% balance before shipment.



4. How do you ensure product quality?

We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.



5. What shipping methods are available?

We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.



6. Can I track my order?

Yes, we will provide you with a tracking number once your order is shipped.

You can use this number to track your order through the carrier's website.



7. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including technical assistance and warranty services.

Please contact our customerservice team for any issues related to your order
