Anti UAV Portable Ultra-wide Full-Band Antenna autonomous Drone monitoring equipment can locate drone and pilot positions comprehensive UAV(Autel,parrot,FPV,Wifi,DIY drones) detection platform VS DJI mobile system mavic fpv autel anti drone device

                                                                       TTSKC02  Drone Detection Equipment

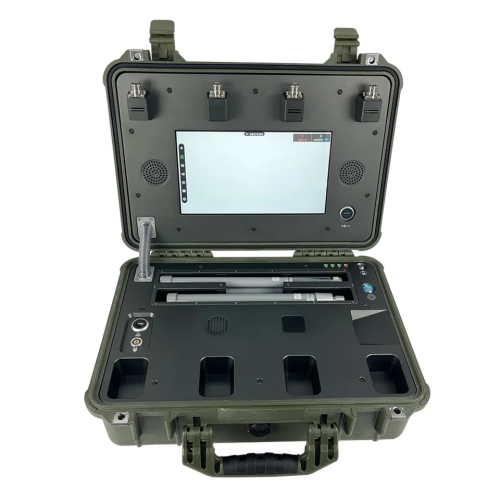

TTSKC02 portable drone detector is a briefcase style drone detection device/platform for drone monitoring.

It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home-point,controller location(longitude/latitude, azimuth, distance) etc.

TTSKC02 system works offline or online (optional). The drone detection sensor is easy to carry, deploy, and use via touch screen.

The TTSKC02 is a comprehensive drone detection/anti-drone platform that rapidly identifies UAV communication links, gathering information such as flight status, paths, and other information in real-time. Real-time
UAV monitoring can help in swift contingency measures. However, the TTSKC02 can detect DJI drones and other drones(Autel,parrot,WIFI,FPV,DIY drones) which use frequencies within 900MHz、1.2GHz、2.4GHz、5.2GHz、5.8GHz.The drone system consists of  a portable unit  with antenna.

The Portable Unit  a temporary and mobile drone detecting solution,the portable unit has antennas that can detect drones up to 10km.  Alternatively, the portable unit can also be plugged
into a power supply for continuous operation. The portable unit has the upper hand for mobile or emergency applications. It can even function offline making it useful for use during power outages. However, considering its weight it wouldn’t be quite as easy to carry around by one person.

PRODUCT SPECIFICATIONS

Item	Parameters
Product Name	Portable drone detector
Frequency Bands	413MHZ-453MHZ,824MHZ-960MHZ,1150MHZ-1400MHZ,1550MHZ-1650MHZ,2400MHZ-2500MHZ,5700MHZ-5900MHZ
Distance	Up to 10km
Size	71*29*7cm
Operating Temperature:	-25℃~65℃
Weight	About 5.5kg
Working Time	16-20 hours
Location Accuracy	Less than 3 meters
Material	High Strength Fireproof PC

Products Pictures

While the popularity of consumer drones continues to increase, it has posed potential safety and security challenges for areas such as airports, prisons, nuclear power plants, and various government facilities and infrastructure. Traditional protections in these locations may not be able to adequately detect and monitor UAVs to prevent consequential incidents. TTSKC02 is able to identify the vast majority of popular drones on the market today by monitoring and analyzing their electronic signals to gain critical information, allowing users to protect the integrity of their flight-sensitive environment.
