TTSK-D01 Fixed UAV Detecting and Locating System
Stable Outdoor Stationary Device for Long-Term Field Deployment
Product Overview
TTSK‑D01 is stationary signal detecting and locating equipment built for long-term outdoor setup. It receives UAV wireless signals passively to acquire device serial code, geographic coordinates, flying speed, takeoff point and remote controller location data. Supporting standalone offline running and multi-unit network grouping, it can connect with peripheral matching equipment to build complete regional protection setup. The unit works steadily round-the-clock under varied climate, widely adopted for important premises, airport surroundings and boundary site setup.
Technical Specifications
- Detectable UAV Types: DJI, Autel, Hubsan, FPV, Tello and homemade aircraft
- Working Frequency:100MHz~6000MHz
- Effective Range:1~10km | Max detect height:0~1000m
- Concurrent Target Quantity:≥5 units
- Position Precision:≤10m | Azimuth error ≤1.5°
- Response Time:≤5s | Successful identification rate≥95%
- Power Input:AC100~220V | Total power ≤100W
- Host Weight:≤15kg | IP Rating:IP65
- Operating Temp:-20℃~+65℃
Key Features
- Passive signal receiving without outward signal emission
- Recognize mainstream UAV brands including DJI, Autel, FPV and DIY models
- Effective locating range from 1km to 10km depending on surroundings
- Pinpoint both drone and remote pilot position within ≤10m precision
- Identify up to 5 targets simultaneously with separate position marking
- Built-in allow/block list to skip alert for permitted aircraft
- Visible & audible prompt once unauthorized aircraft access
- Store historical detection logs and support multi-style data analysis via charts
- Compatible with multiple electronic map platforms
- IP65 casing, -20℃~65℃ working range for all-weather outdoor use
- Supports cascading networking and linkage with auxiliary hardware

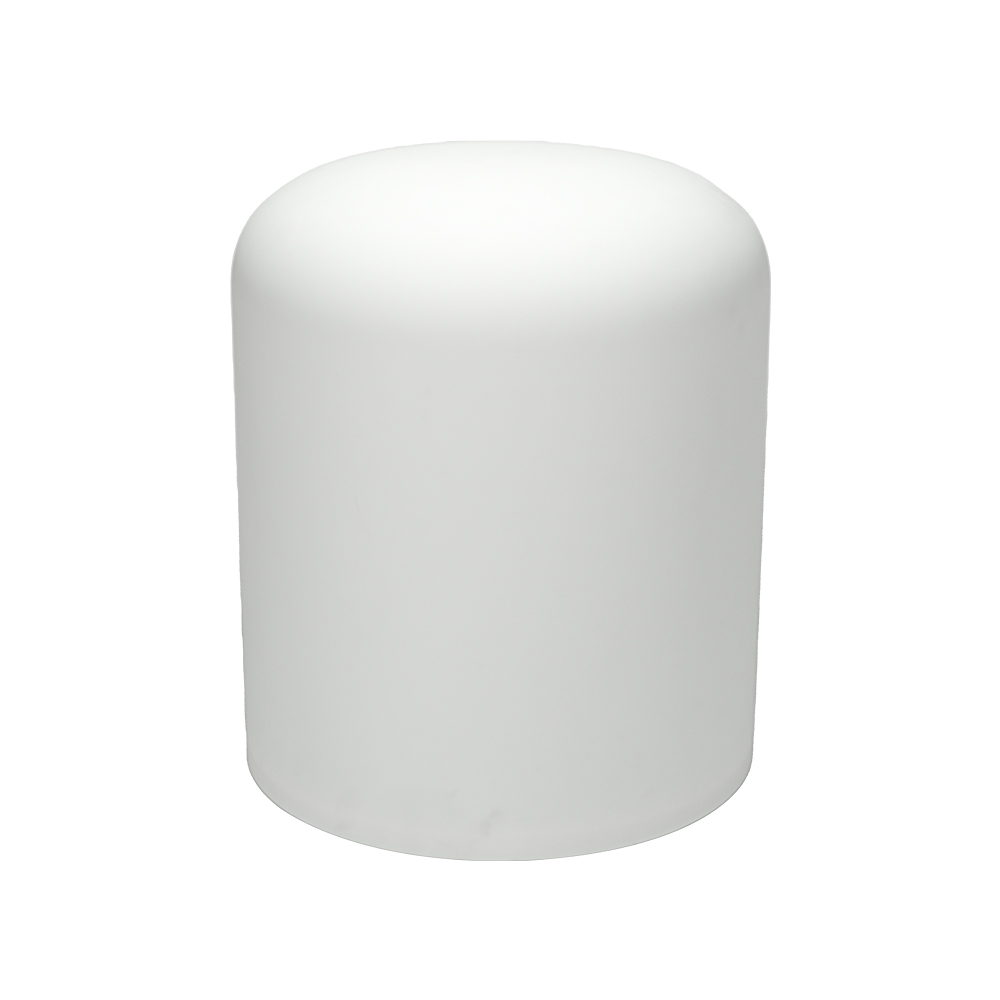

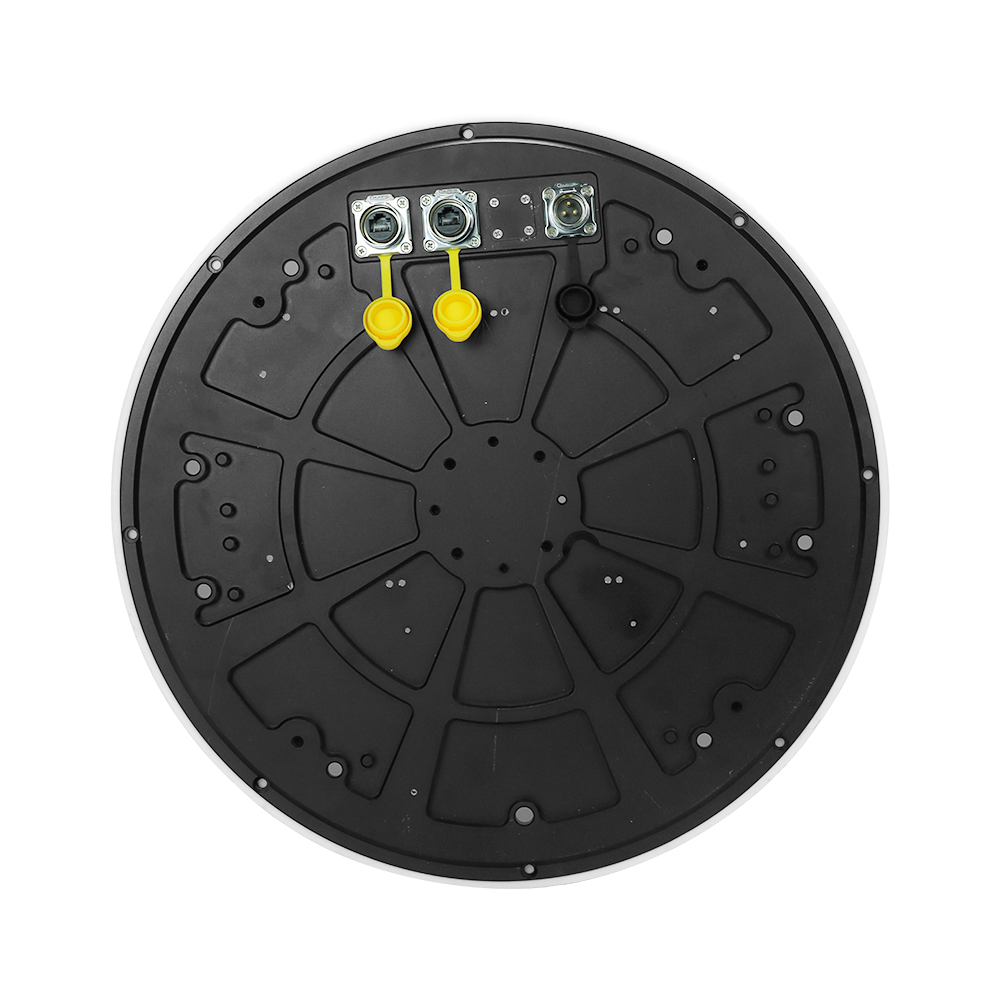

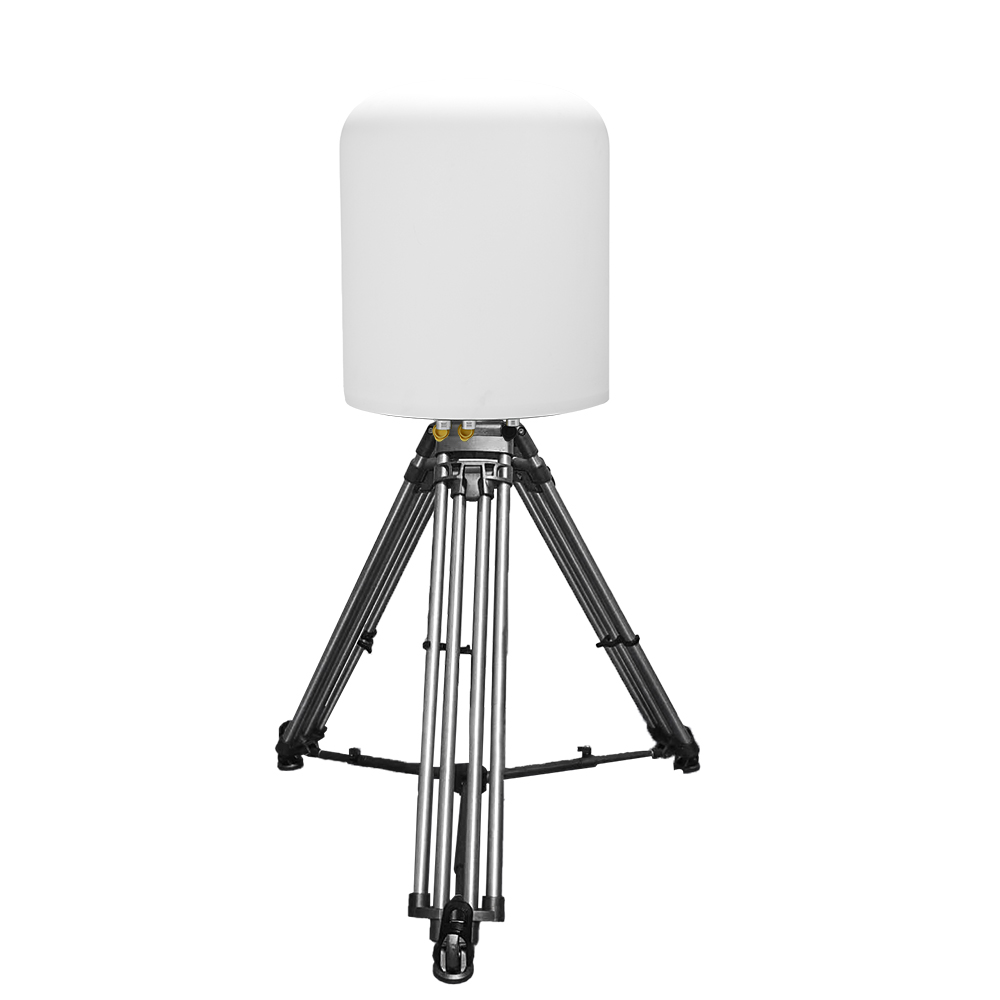

Product Image

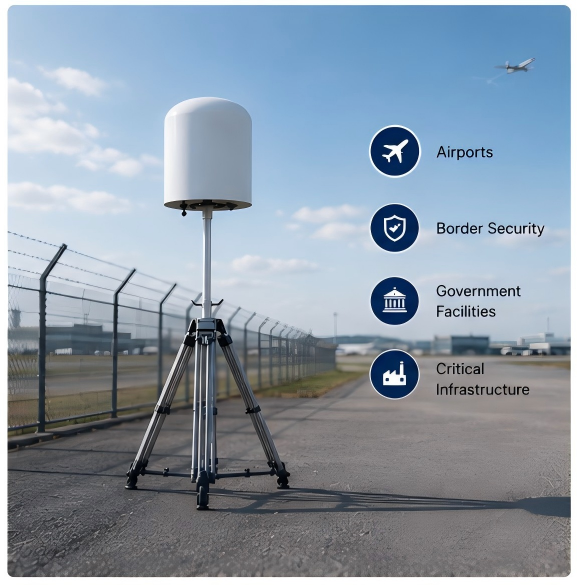

Usage Scenarios
Manufacturer Information
Frequently Asked Questions
1.Does the equipment send out signals during operation?
No, it works via passive signal reception with zero outward radiation.
2.Can multiple units be linked together for large-area coverage?
Yes, devices can be networked on backend platform for wide-area layout.
3.What protection level does the casing have?
IP65 waterproof and dustproof for long-term outdoor fixed installation.
4.Can it tell allowed drones apart from unknown ones?
It supports white-black list setting to ignore authorized UAV without alert.
5.How long can it run continuously?
24/7 non-stop stable operation under standard working condition.
