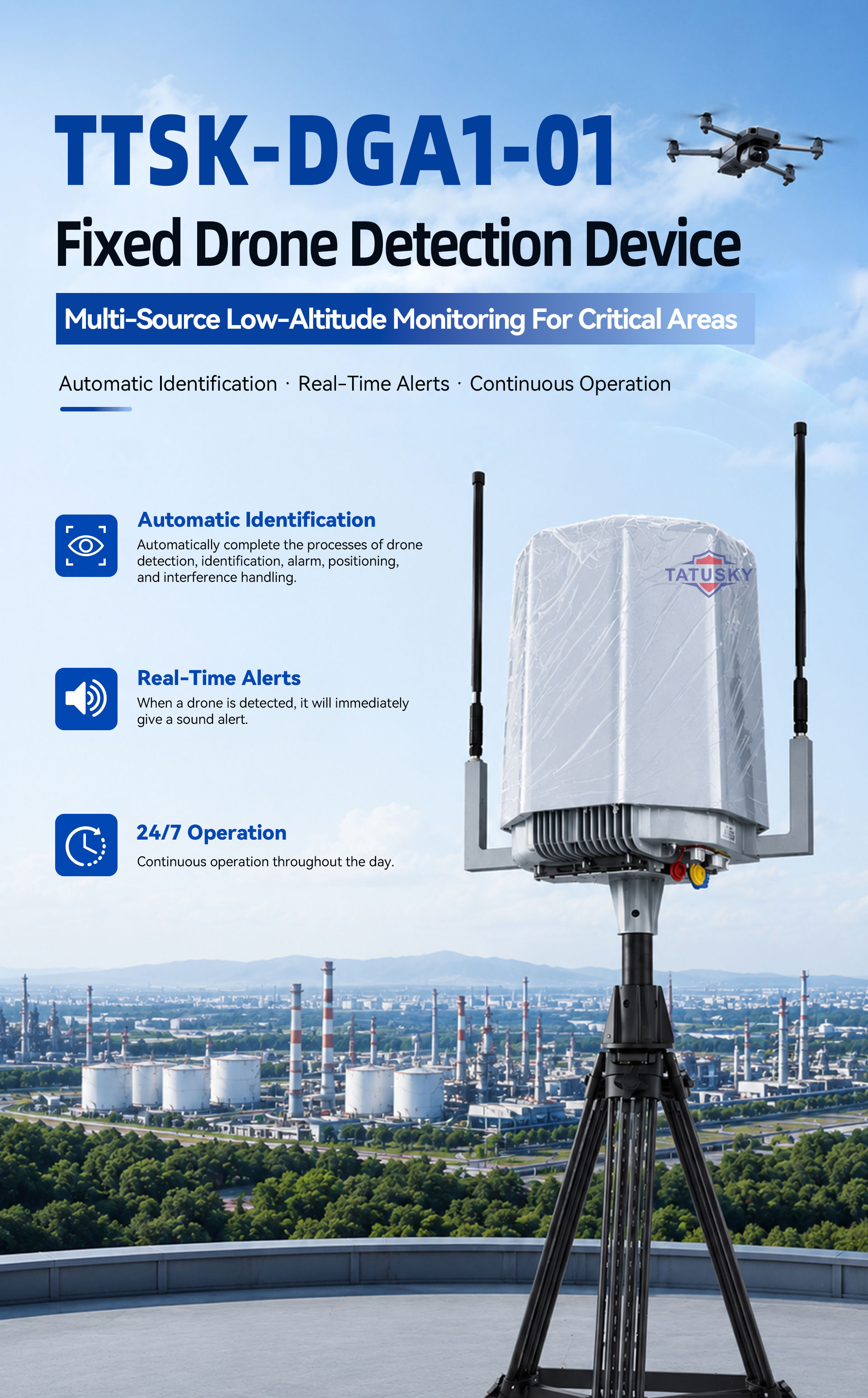

The TTSK-DGA1-01 is designed for continuous monitoring of low-altitude aerial activity in fixed outdoor locations.
The device combines wideband signal scanning, direction finding and Remote ID reception in one integrated system. It can display available information such as location, altitude, speed, direction, identification details and real-time flight routes.
Its IP66-rated enclosure and wide operating temperature range make it suitable for long-term outdoor installation. The accompanying software platform supports map display, event alerts, record playback, statistical reports and device status management.

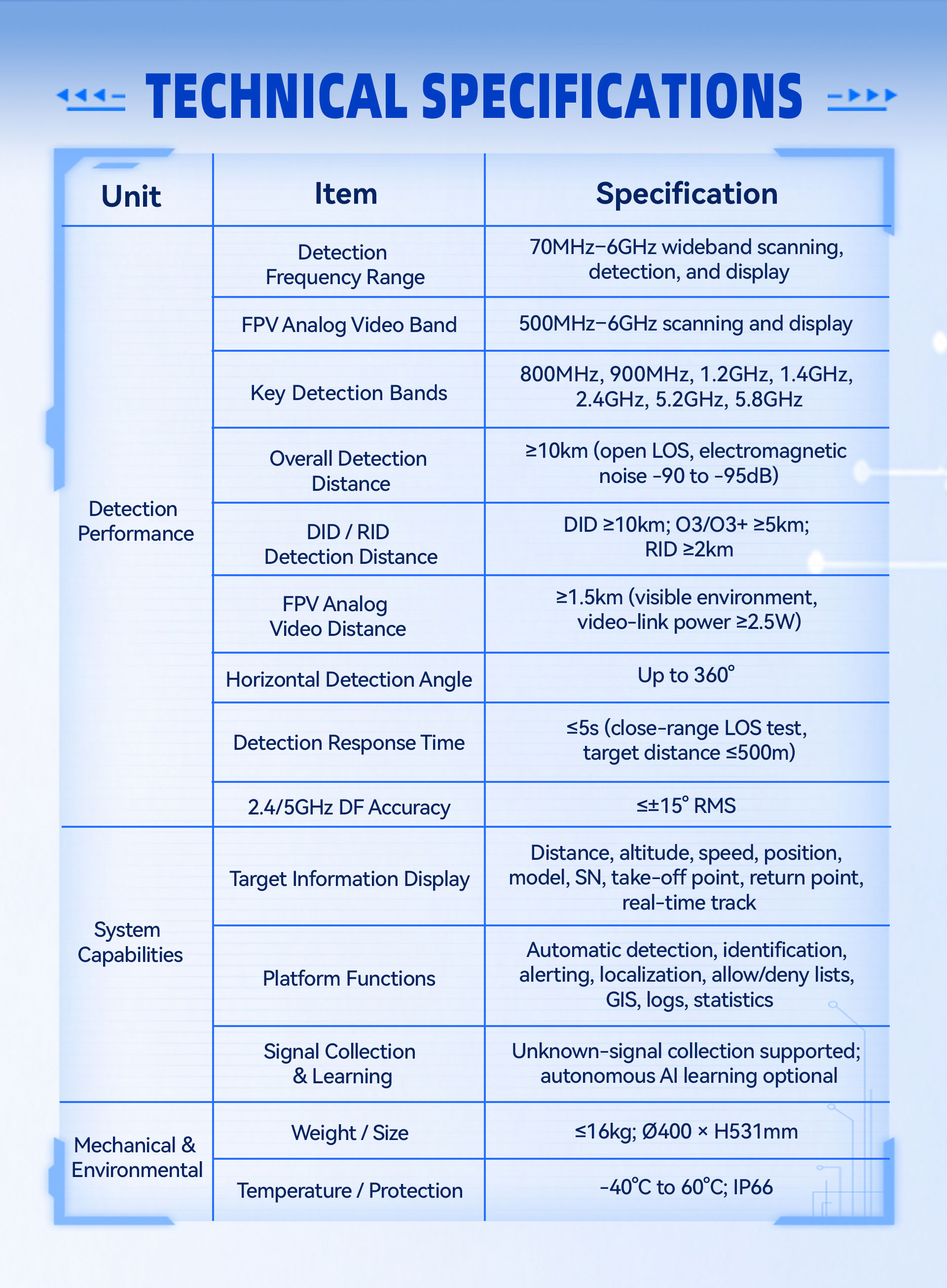

Model: TTSK-DGA1-01
Product Type: Fixed outdoor monitoring device
Scanning Range: 70 MHz-6 GHz

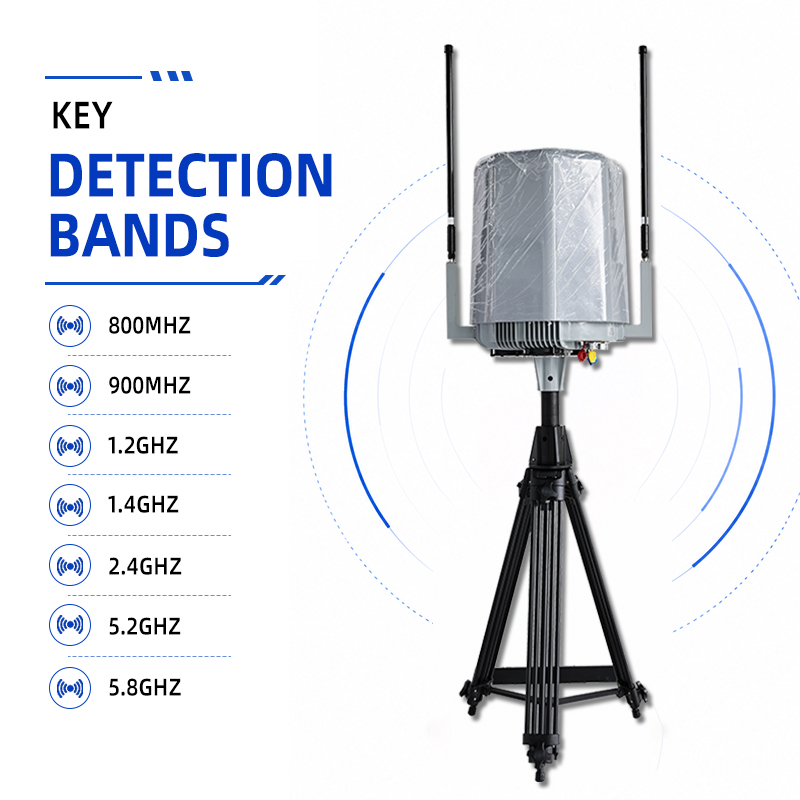

Key Frequency Bands: 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz and 5.8 GHz
Analog Video Signal Range: 500 MHz-6 GHz
Horizontal Coverage: 360°

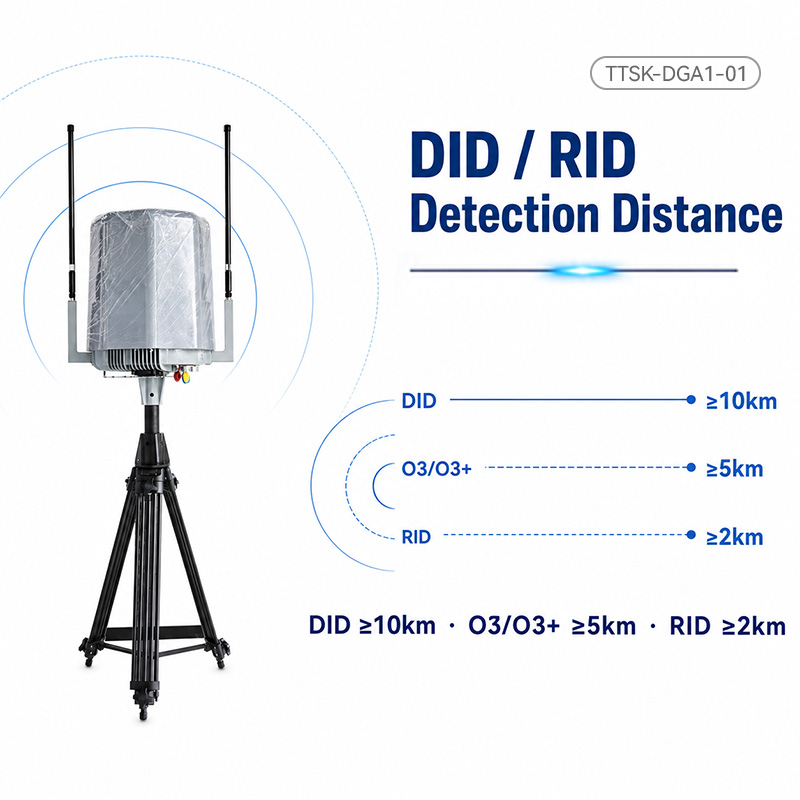

Monitoring Distance: Up to 10 km under specified test conditions
Remote ID Reception Distance: Up to 2 km under specified test conditions

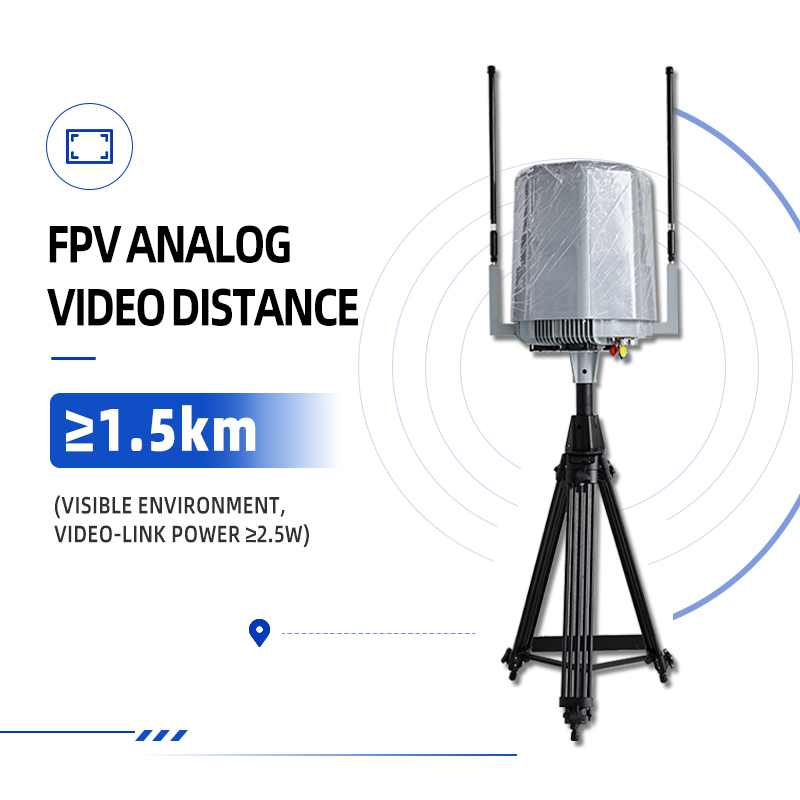

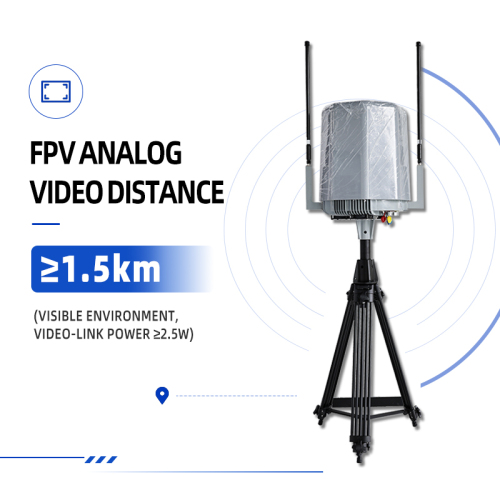

Analog Video Signal Distance: Up to 1.5 km under specified test conditions
Response Time: ≤5 seconds under close-range test conditions
Direction Finding Accuracy: ≤±15° RMS at 2.4/5 GHz
Protection Rating: IP66
Operating Temperature: -40°C to 60°C

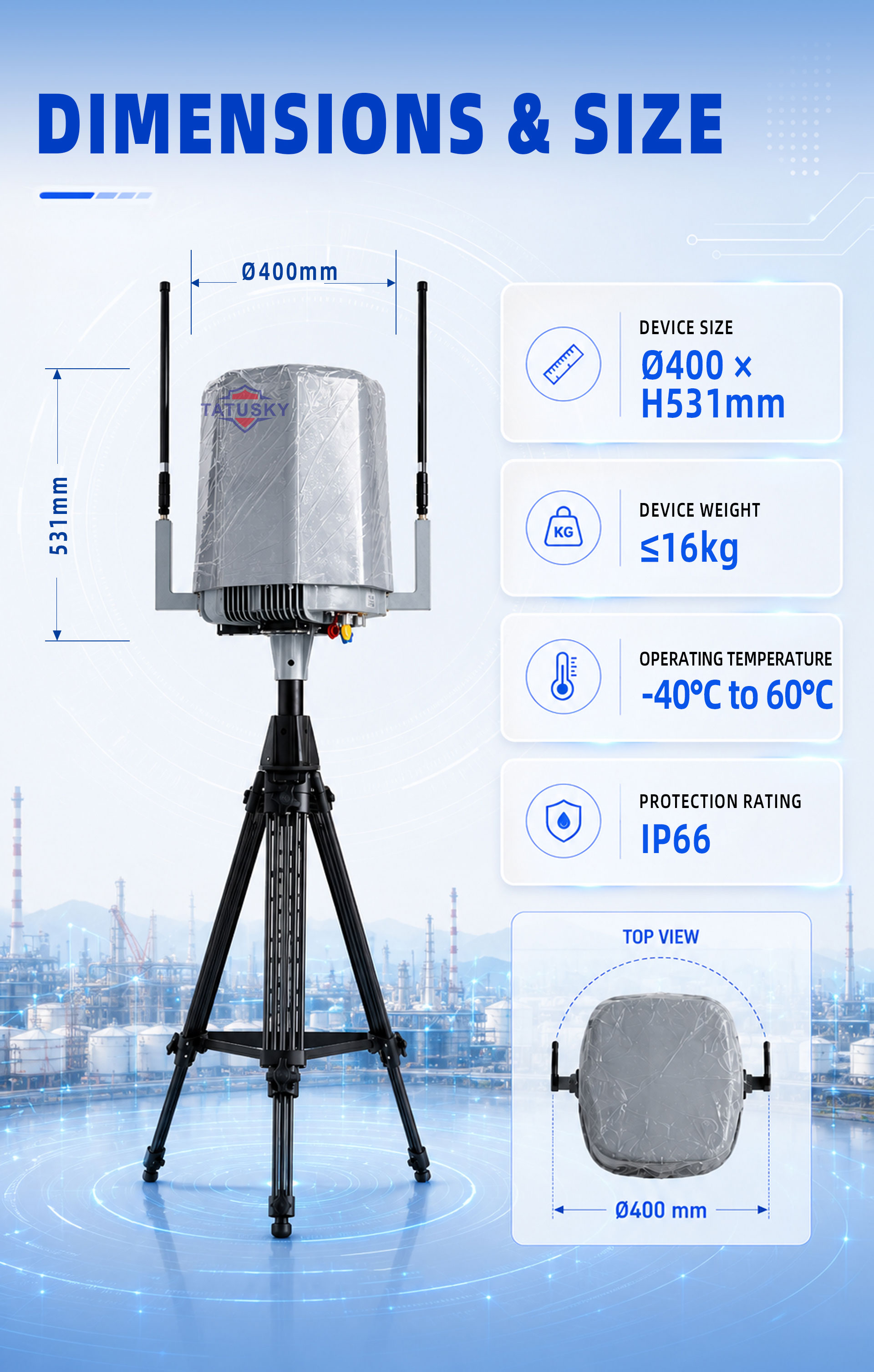

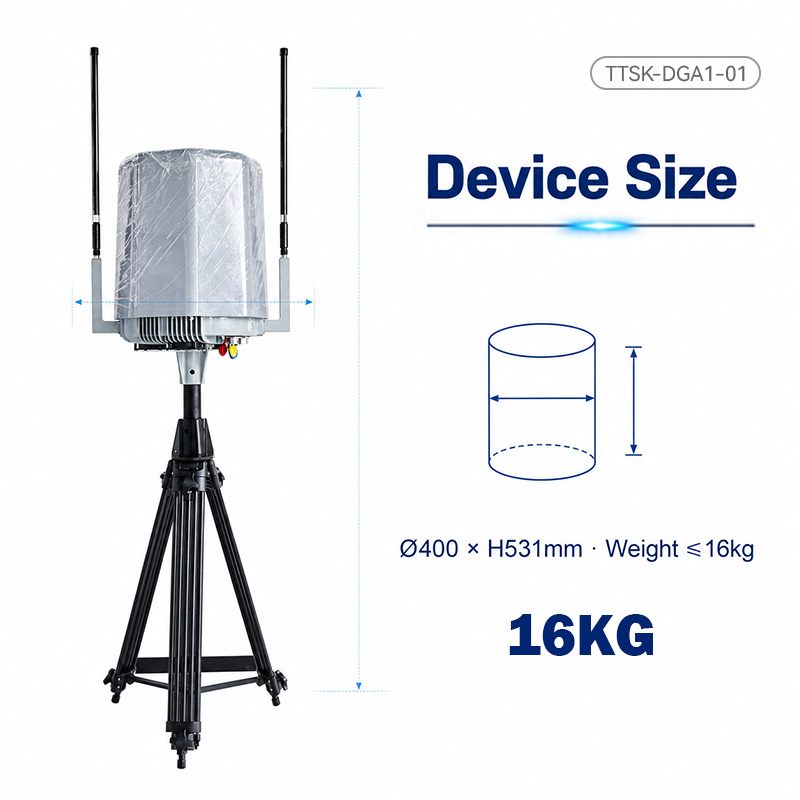

Dimensions: Ø400 × 531 mm
Weight: ≤16 kg
Management Platform: Supported
Installation Type: Fixed installation

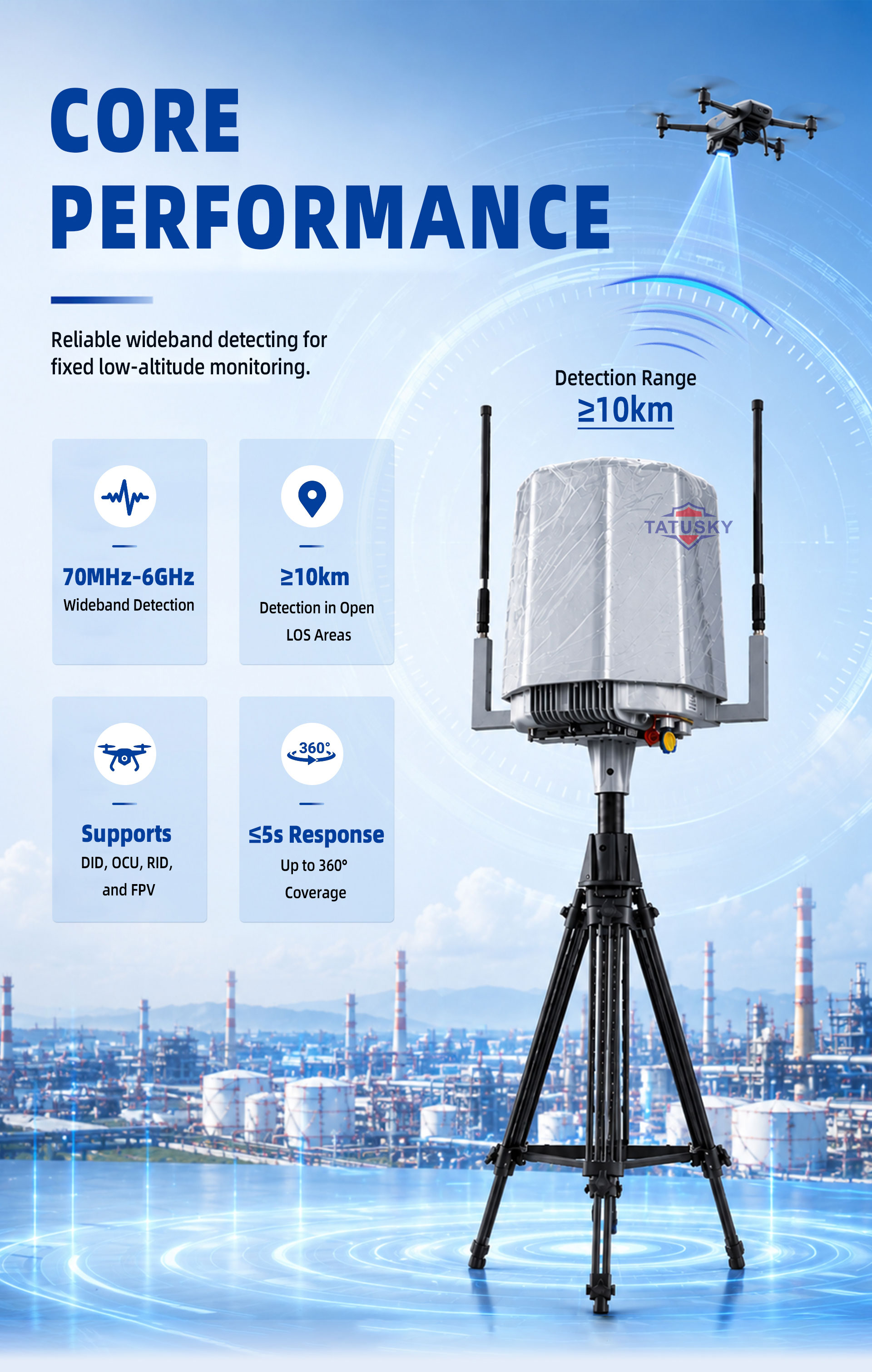

Wide Frequency Coverage
Supports signal scanning from 70 MHz to 6 GHz.

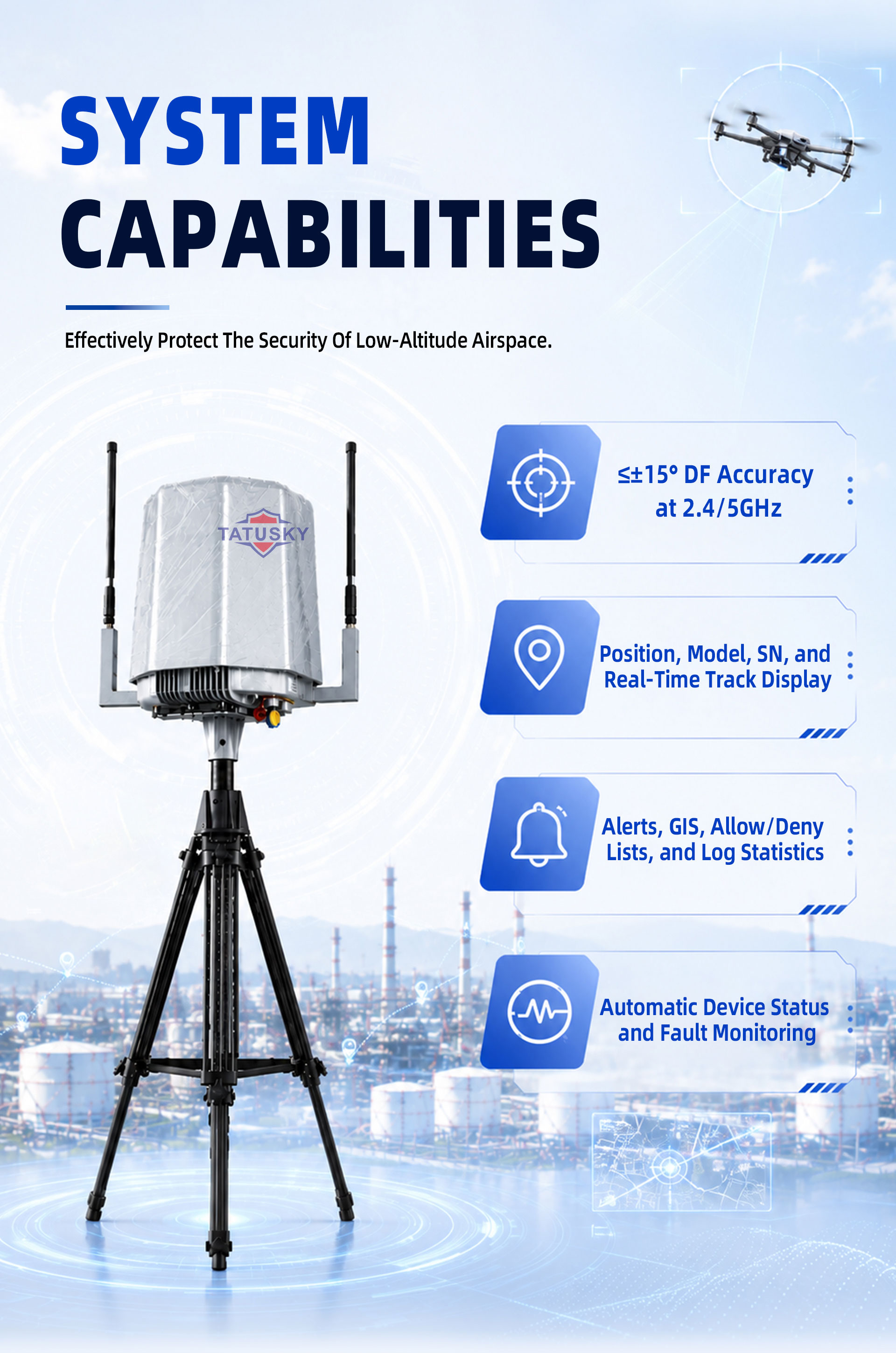

Integrated Monitoring
Combines signal detection, direction finding and Remote ID reception.
360° Coverage
Provides full horizontal monitoring around the installation point.
Fast Response
Reports supported aerial devices within 5 seconds under test conditions.
Clear Data Display
Displays available location, altitude, speed, direction and route information.
Outdoor Installation
IP66-rated housing with an operating range of -40°C to 60°C.

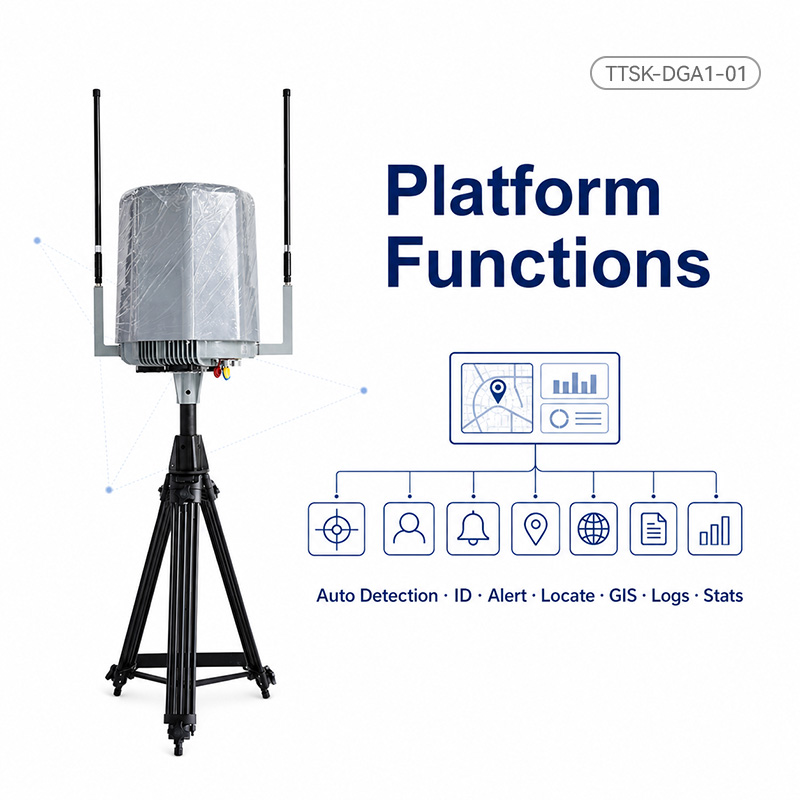

Centralized Management

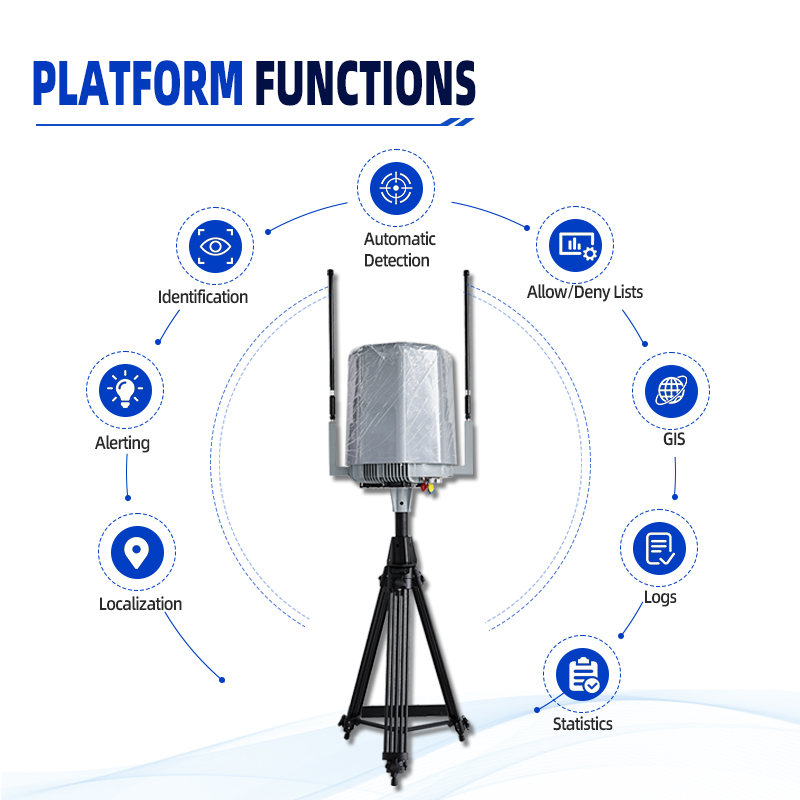

Supports map display, event records, playback and device status monitoring.
