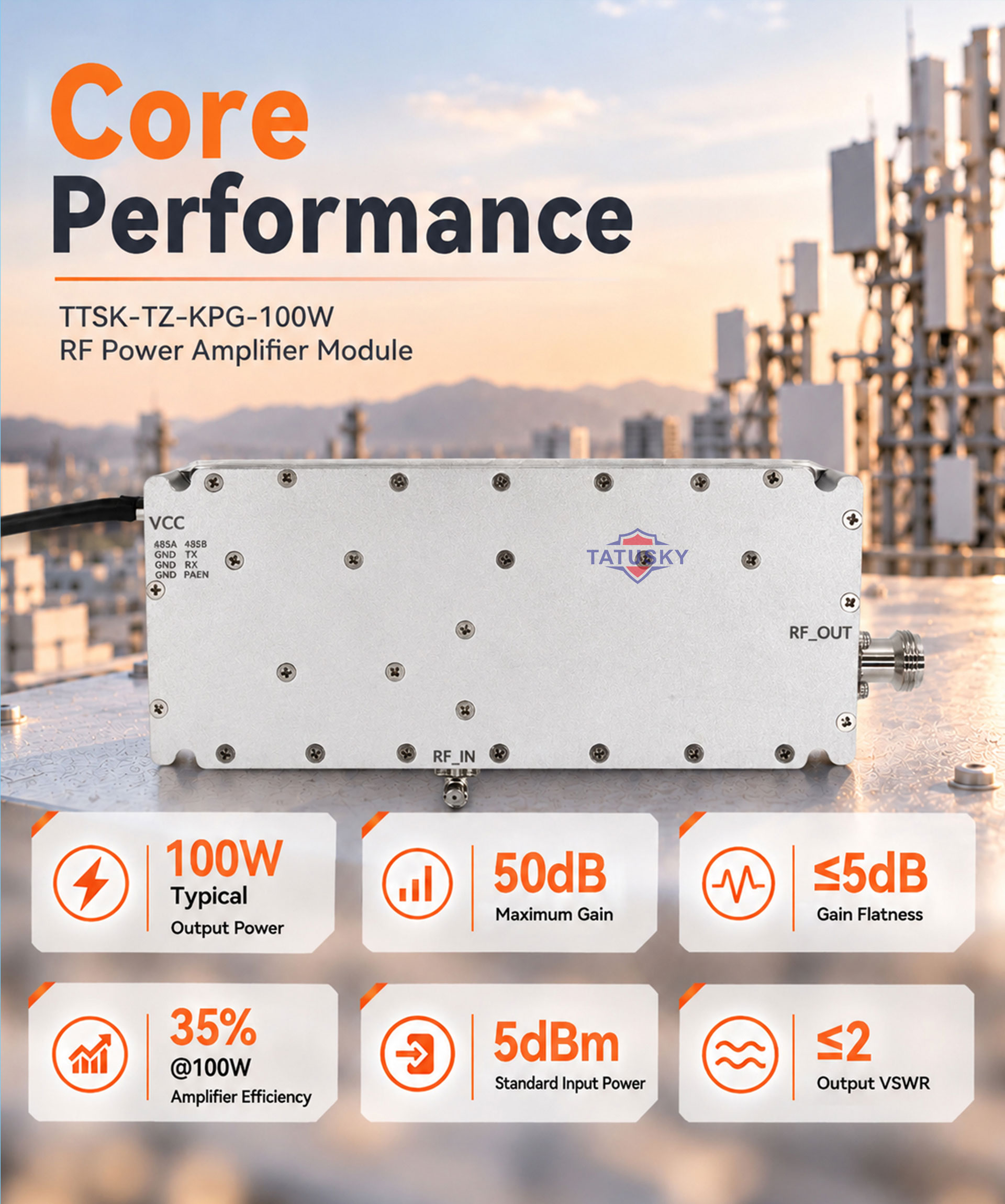

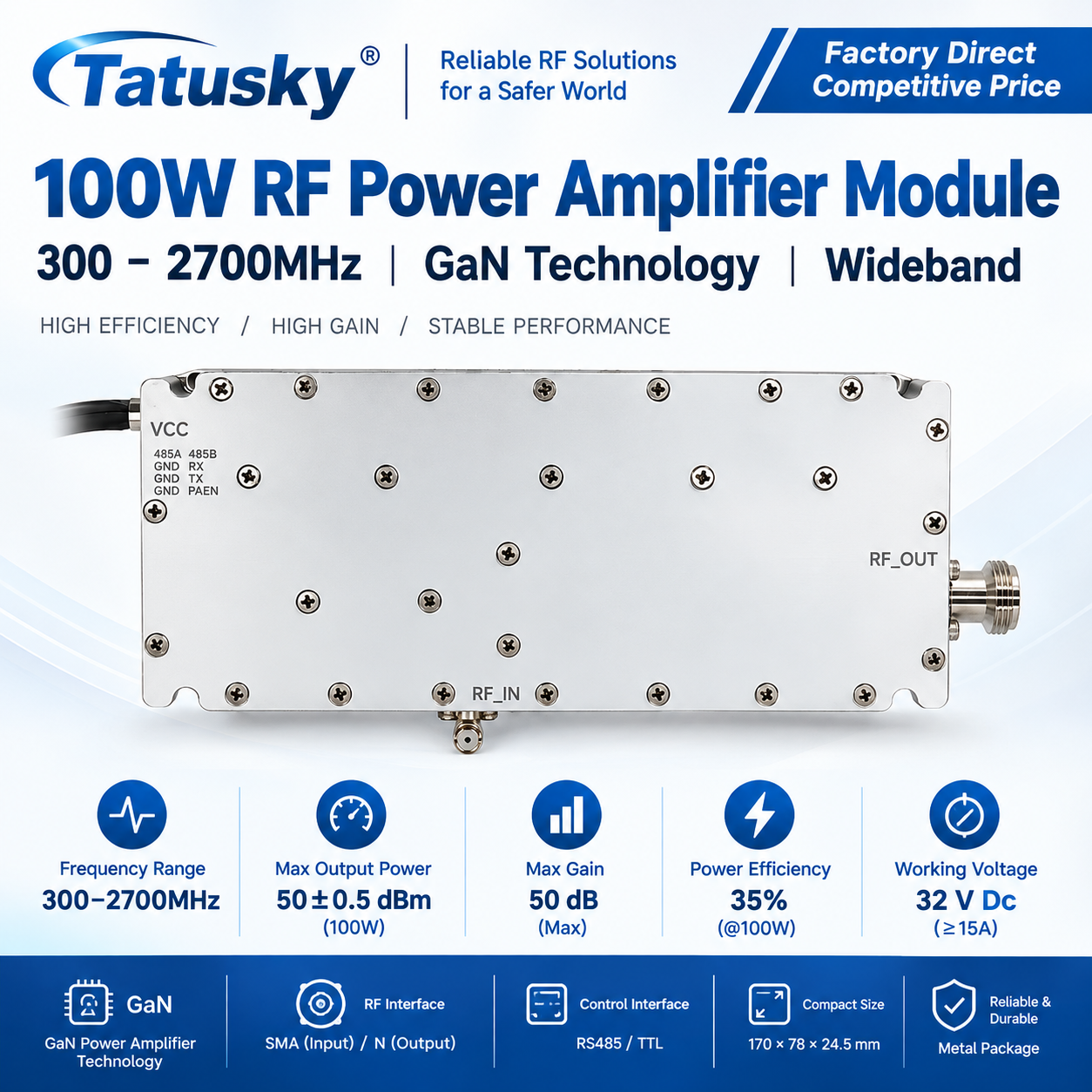

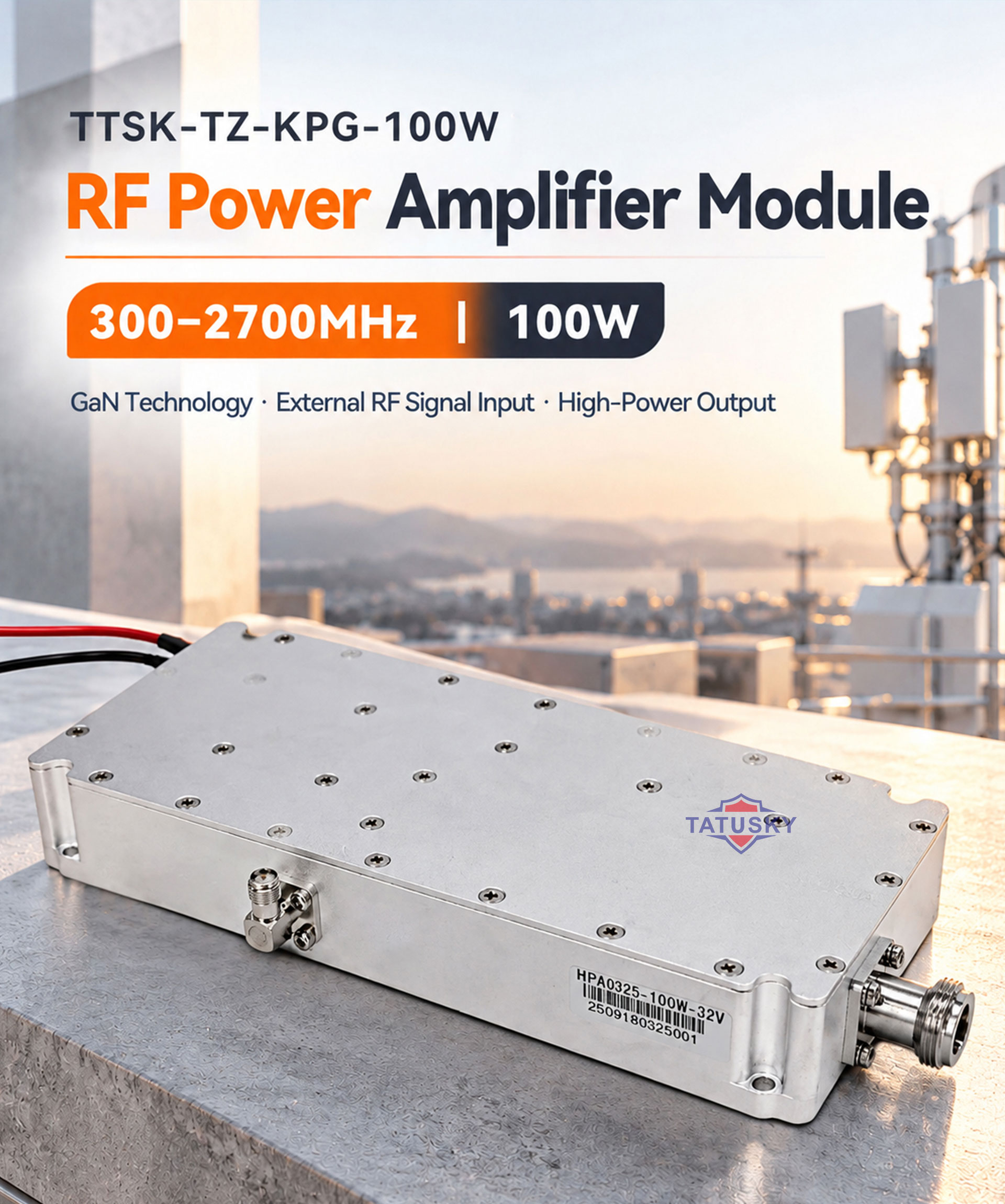

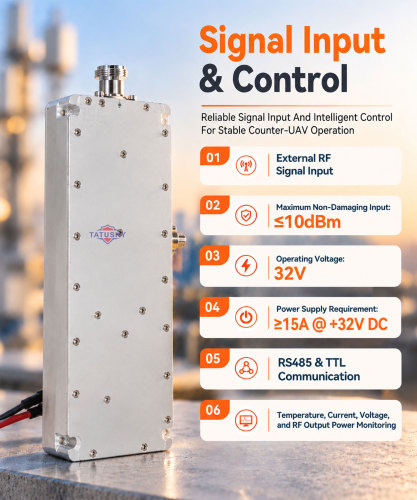

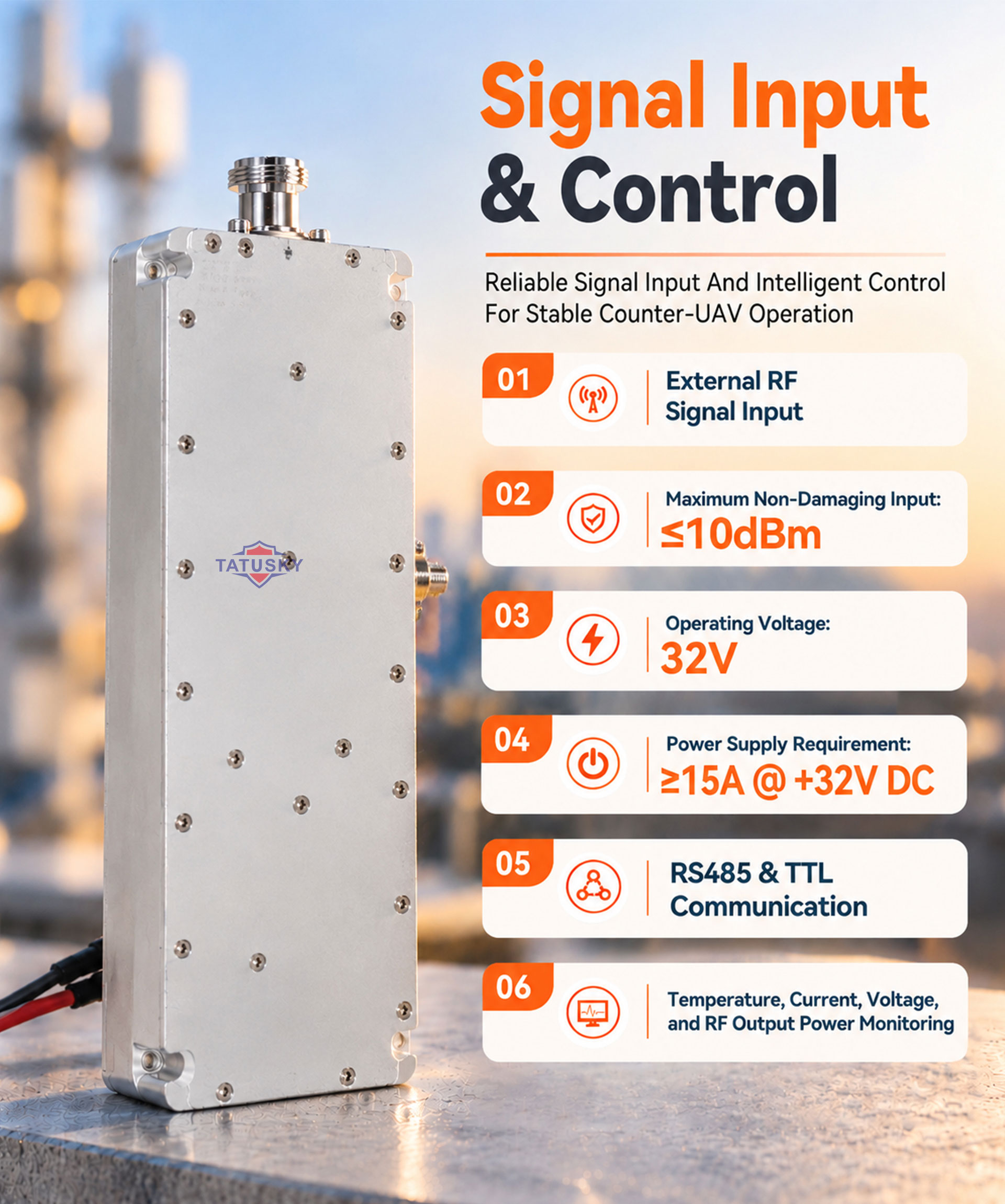

Model: TTSK-TZ-KPG-100W
Frequency Range: 300-2700 MHz
Output Power: 100W
· High output power
· Built-in high-efficiency signal generator
· GaN technology: high efficiency, high temperature tolerance, high voltage resistance
· High linearity and low distortion
· Package Type: Metal module
· Cooling Method: Bottom-mounted heat sink
· Connector Type: SMA-Type input,N-Type output
· Cooling Requirement: Forced air cooling or conductive heat sink

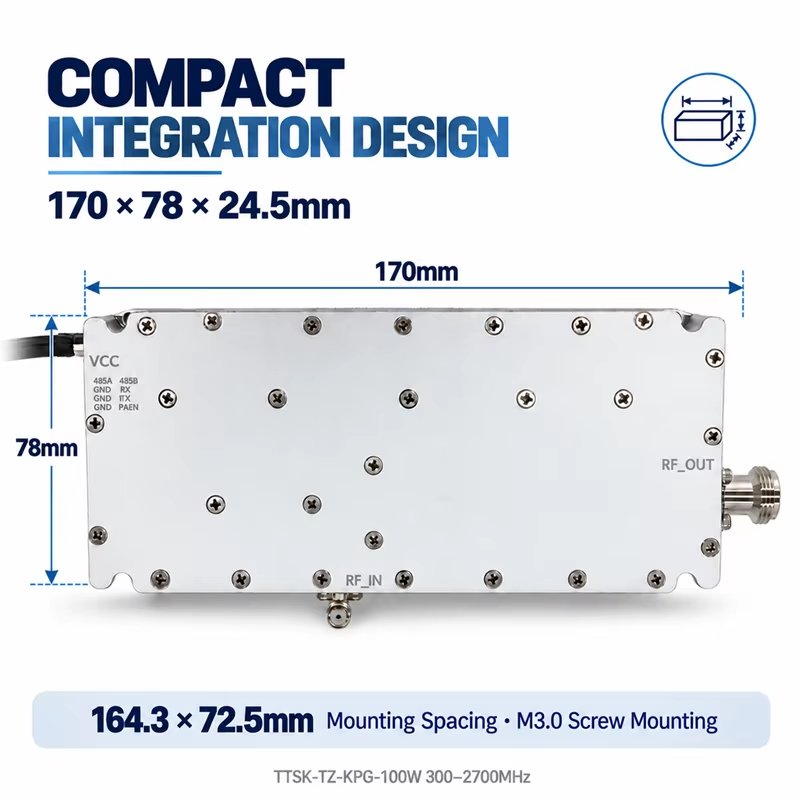

· Mounting Method: Screw-fixed installation
|
Item |
Specification |
Unit |
Remarks |
|
|
Frequency Range |
300-2700 |
MHz |
|
|
|
Working Voltage |
32 |
V |
|
|
|
Max Output Power |
50±0.5 |
dBm |
100W@≤9A Typical value |
|
|
Power Amplifier Efficiency |
35 |
% |
@100W |
|
|
Max Gain |
50 |
dB |
Max power gain |
|
|
Gain flatness |
≤5 |
dB |
|
|
|

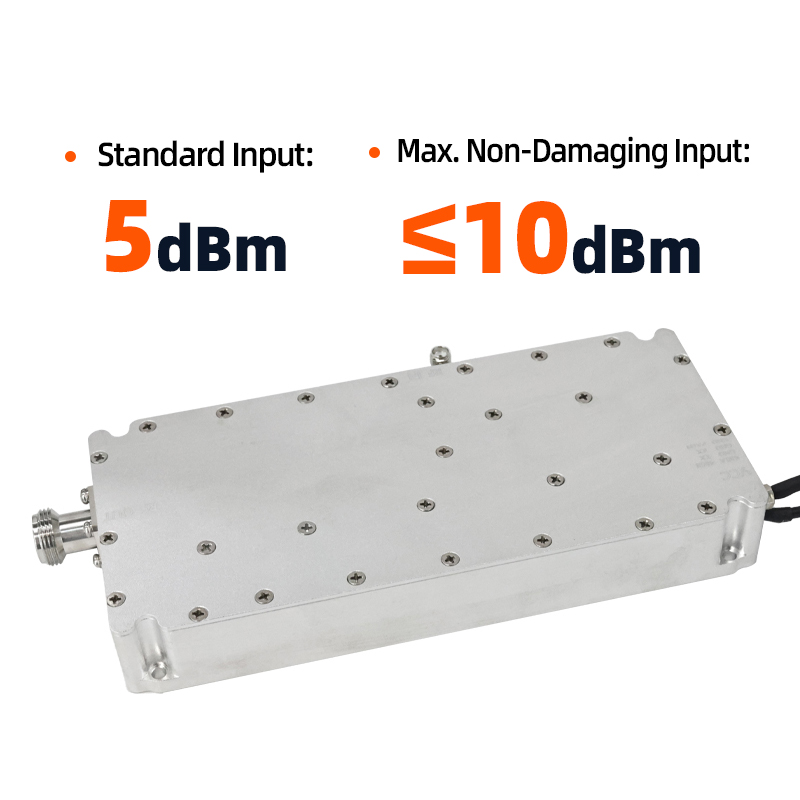

Standard Input Power |
5 |
dBm |
|
|
|
Maximum non-damaging Power |
≤10 |
dBm |
|
|
|
Output Standing Waves |
≤2 |
|
Network split test without power |
|
|
High and low temperature test |
Working Temperature |
-10～+55 |
℃ |
|
|
Power stability |
±1.0@-40℃～+55℃ |
dB |
|
|
|
Power Supply |
≥15A@+32Vdc； |
V |
Continuous wave output 100W
| |
