Fix Drone Sensor with 100MHz-6GHz Detection Bands 10km Range Multi-target Tracking Drone RF Locator for Airport Government Venue Critical Industrial Airspace Safety

Fix Drone Sensor with 100MHz-6GHz Detection Bands 10km Range Multi-target Tracking Drone RF Locator for Airport Government Venue Critical Industrial Airspace Safety

Name: Fix Drone Sensor with 100MHz-6GHz Detection Bands 10km Range Multi-target Tracking Drone RF Locator
Brand: Anti-Drone System Solution
SKU: 03472
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 03472

TTSK-D01 is a Omni-directional Anti-UAV Detection Equipment Identify DJI FPV Self-built Drones Remote Controller Positioning Tool for Governmental Venues Critical Factory Safety

Detection frequency band:

100-6000MHz
Detection and positioning distance:

1~10km
Detection Method:

Passive Detection
Detection height:

0m~1000m
Detection and identification of drone types:

DJI series drones

FPVs

Xiaomi

Yuneec

Hubsan

Powervision

Tello drones etc.
Positioning accuracy:

≤10m
Localizable drone models:

DJI mavic、air、mini、FPV、avata
Number of targets that can be detected simultaneou:

≥5 sorties
Capable of simultaneously tracking and displaying:

More than 5
Azimuth error:

≤1.5°(RMS)
Detection success rate:

≥95%
Identify response time:

≤5s
Detector Weight:

≤15kg

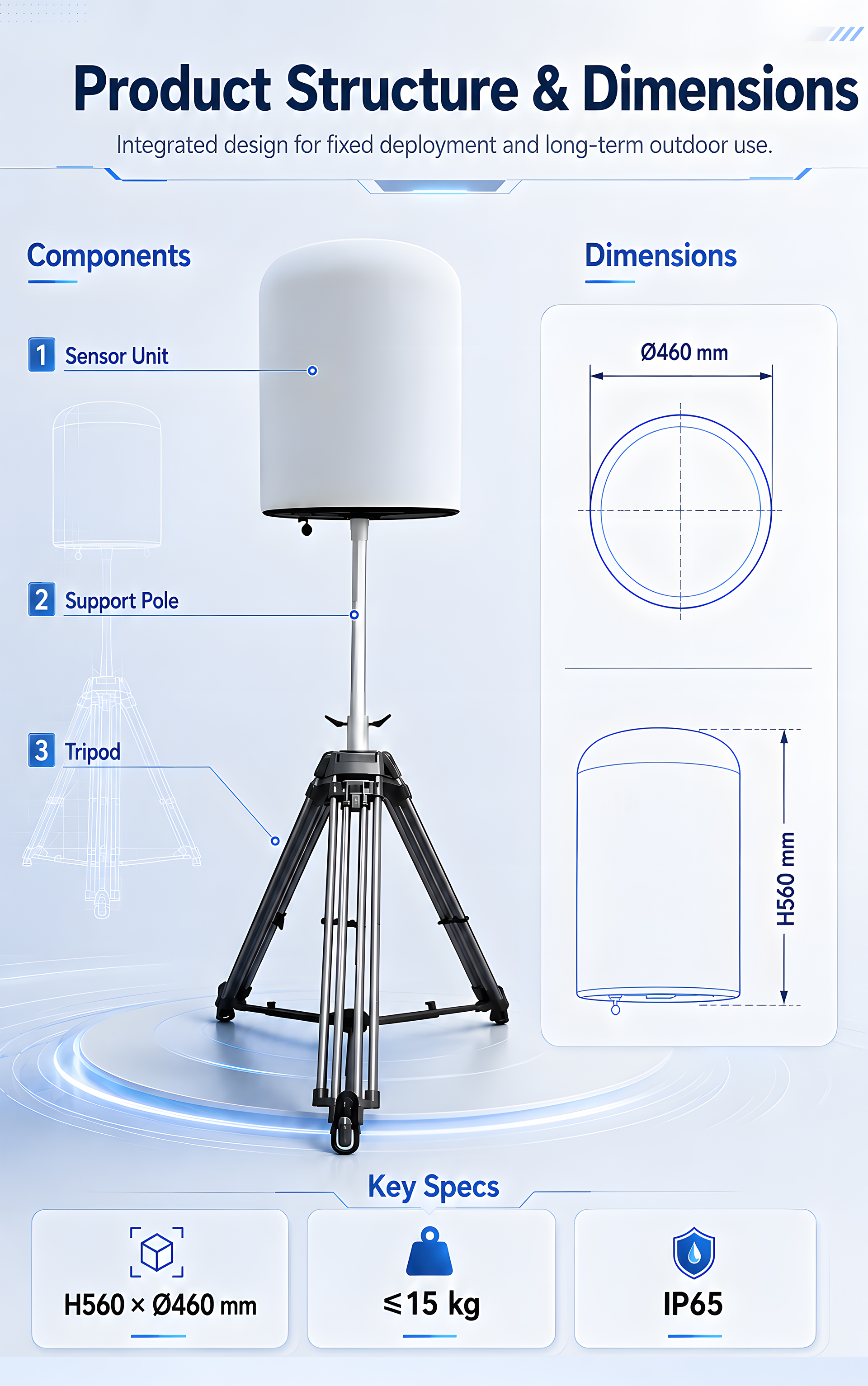

Size:

(H 56mm* Diameter 46mm)±2mm

Request Quote Contact Us PDF Format

Description Review

Description

TTSK-D01 Fixed Passive UAV Detection & Positioning System

Rugged Stationary Equipment for Permanent Outdoor Deployment

Product Overview

TTSK-D01 is a fixed passive RF detection and positioning solution designed for long-term outdoor installation. It captures wireless signals emitted by UAVs in a fully passive way to obtain comprehensive flight data, including drone serial numbers, geographic coordinates, flight speed, altitude, takeoff coordinates, home points, as well as the longitude, latitude and azimuth of the pilot’s remote controller.

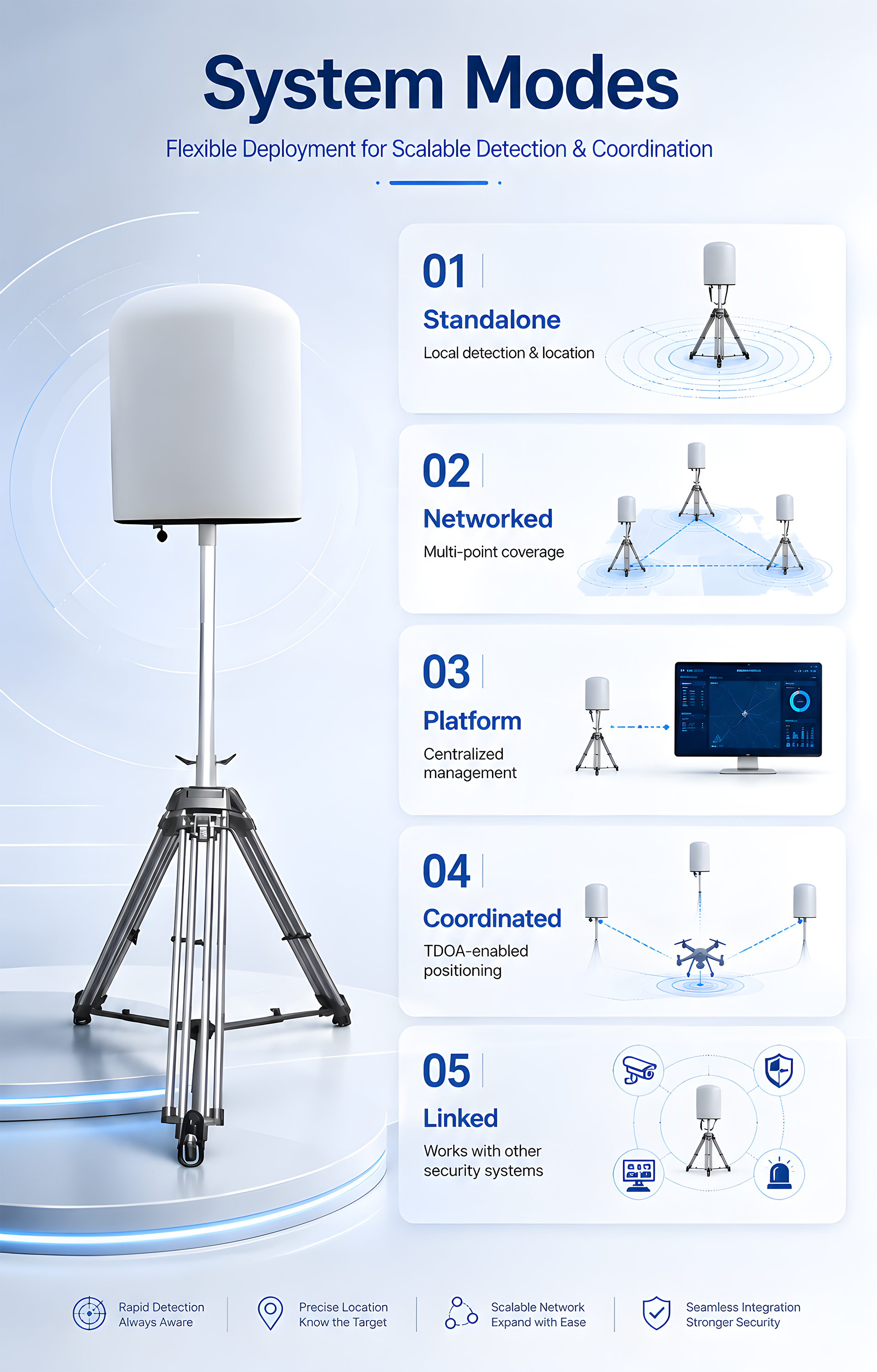

The system supports independent offline operation and multi-unit networking. It can link with supporting countermeasure devices to form a complete regional airspace protection system. Featuring stable 7×24-hour continuous operation under diverse harsh weather conditions, this equipment is widely deployed at governmental venues, airport perimeters and key industrial compound sites.

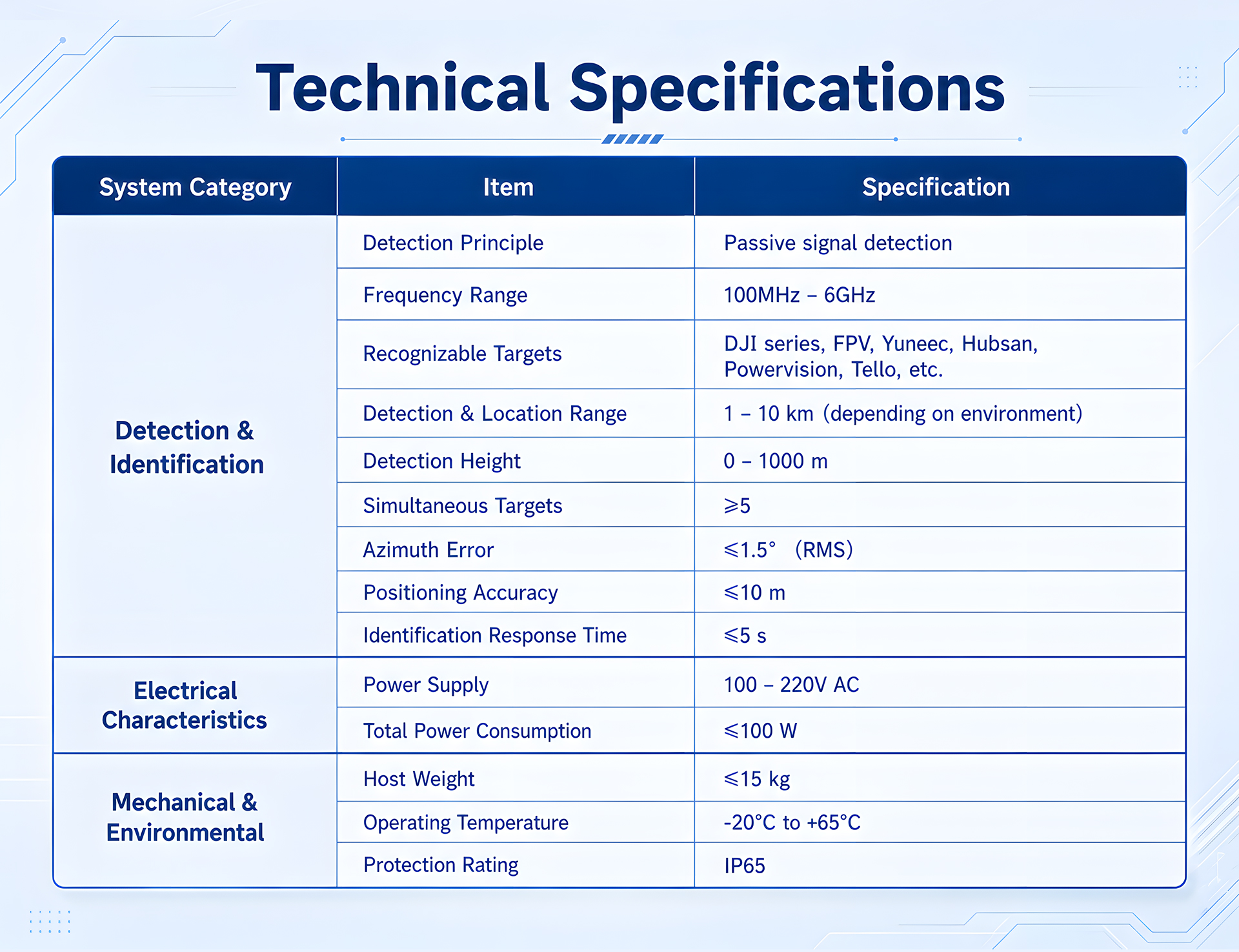

Technical Specifications

Item

Parameter

Supported UAV Models

DJI, Autel, Hubsan, Tello, FPV racing drones, self-assembled custom UAVs

Operating Frequency Band

100MHz – 6000MHz

Effective Detection Distance

1–10km (subject to site electromagnetic environment)

Maximum Detection Altitude

0m – 1000m

Simultaneous Trackable Targets

≥5 aircraft

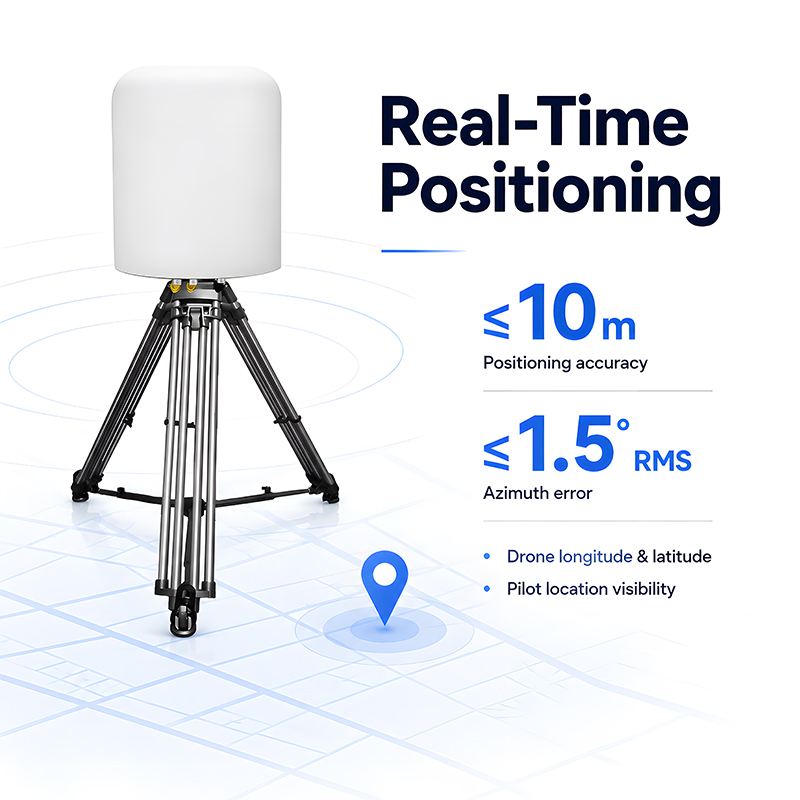

Positioning Accuracy

≤10m

Azimuth Angle Error

≤1.5° RMS

Identification Response Time

≤5s

Detection Success Rate

≥95%

Power Supply Input

AC 100V–220V

Total Power Consumption

≤100W

Main Unit Weight

≤15kg

Enclosure Protection Grade


IP65

Operating Temperature

-20℃ ~ +65℃

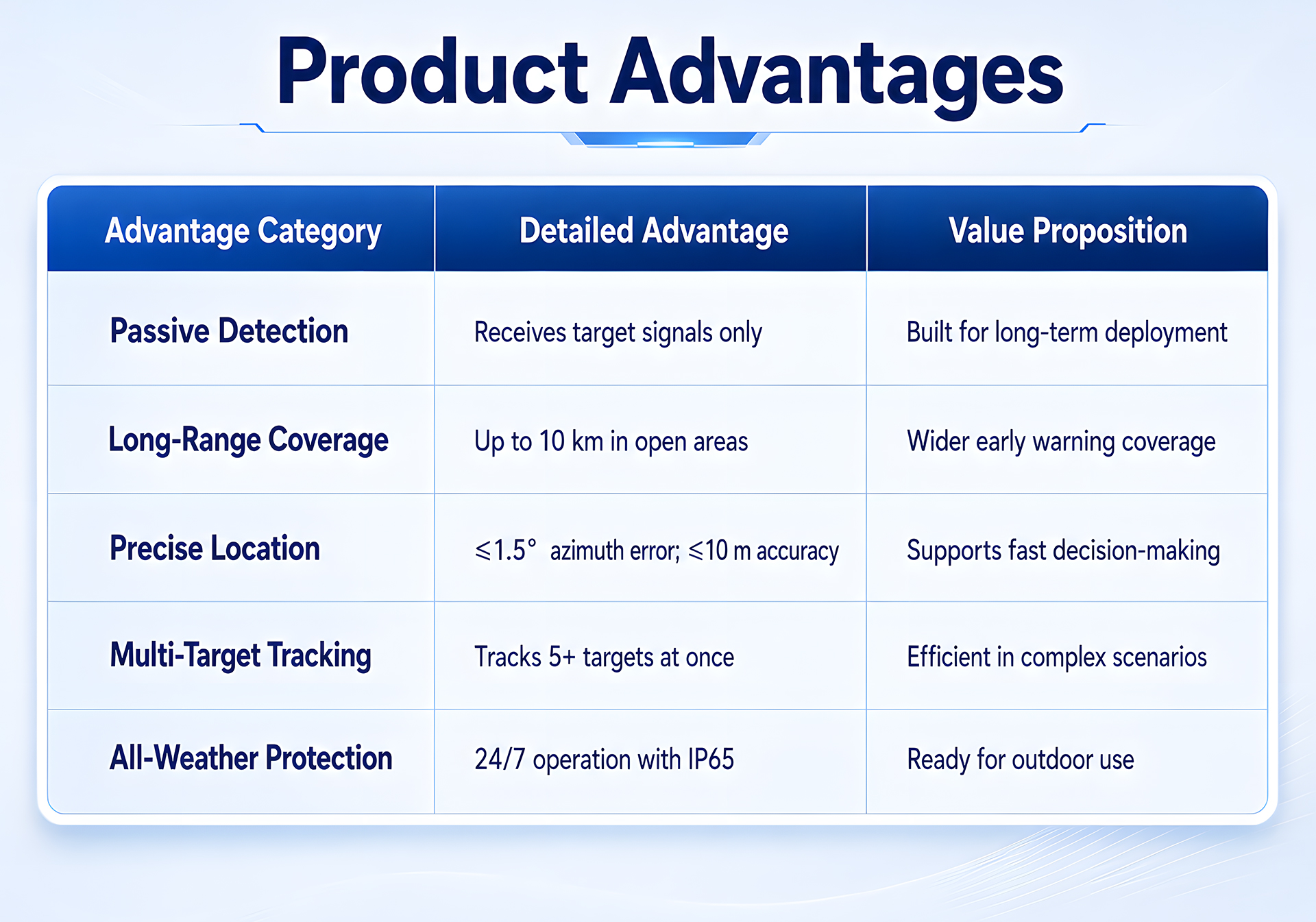

Core Advantages

Pure passive signal reception, no electromagnetic signal transmission, zero environmental interference
Full coverage of mainstream commercial, industrial and custom-built UAV models on the market
Long-distance detection up to 10km under open unobstructed environments
Dual positioning for both drones and pilot remote controllers with meter-level precision
Real-time tracking & separate trajectory display for a minimum of 5 concurrent targets
Built-in white/black list classification; no alarm triggered for pre-approved cooperative UAVs
Visible light & audible dual alarm notifications upon unauthorized airspace intrusion
Local storage of full historical detection records, supporting visualized data analysis via line charts, thermal maps and other graphs
Compatible with multiple mainstream electronic map engines for global deployment
IP65 waterproof & dustproof housing, stable performance across -20℃ to +65℃ for all-day outdoor operation
Multi-device cascading networking, reserved linkage interfaces for countermeasure equipments.

Product Image

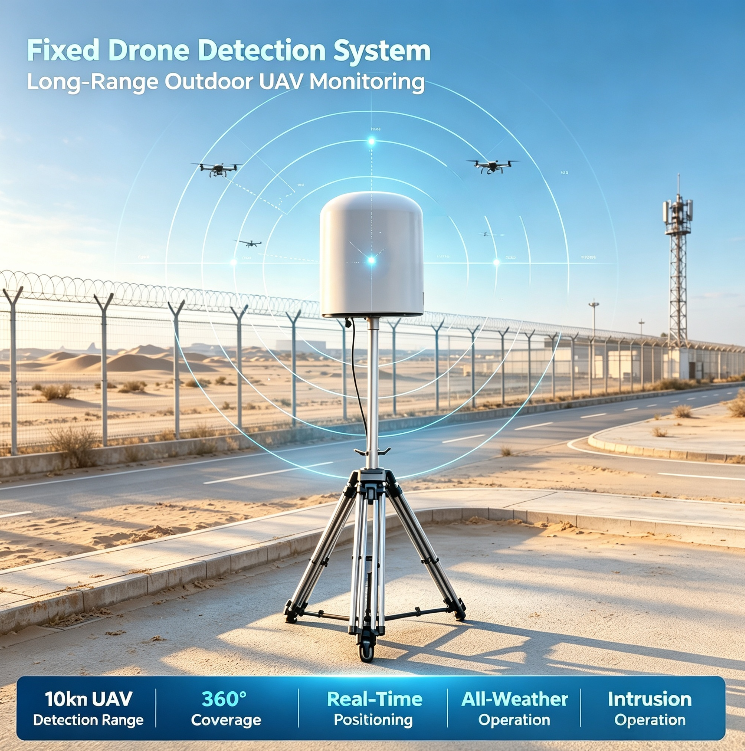

Application Scenarios

Manufacturer Information

Frequently Asked Questions

Q1: Does this TTSK-D01 device send out radio signals while working?

A: No. It adopts fully passive RF signal reception technology without transmitting any electromagnetic waves. It causes no signal interference to surrounding communication devices and zero electromagnetic pollution.

Q2: What types of drones can this equipment detect and identify?

A: It supports mainstream UAVs including DJI series, Autel, Hubsan, Tello, FPV racing drones, as well as self-assembled custom traversal and WiFi drones. Most consumer and industrial UAV models on the market are covered.

Q3: What determines the actual effective detection distance of the system?
