Fixed Drone Detection And Jamming Device
It can make the drone hover, make an emergency landing or return, effectively protecting the safety of low-altitude airspace and preventing the drone from entering the defense zone.
It has excellent detection and defense performance, long-distance working ability, no need for personnel on duty.

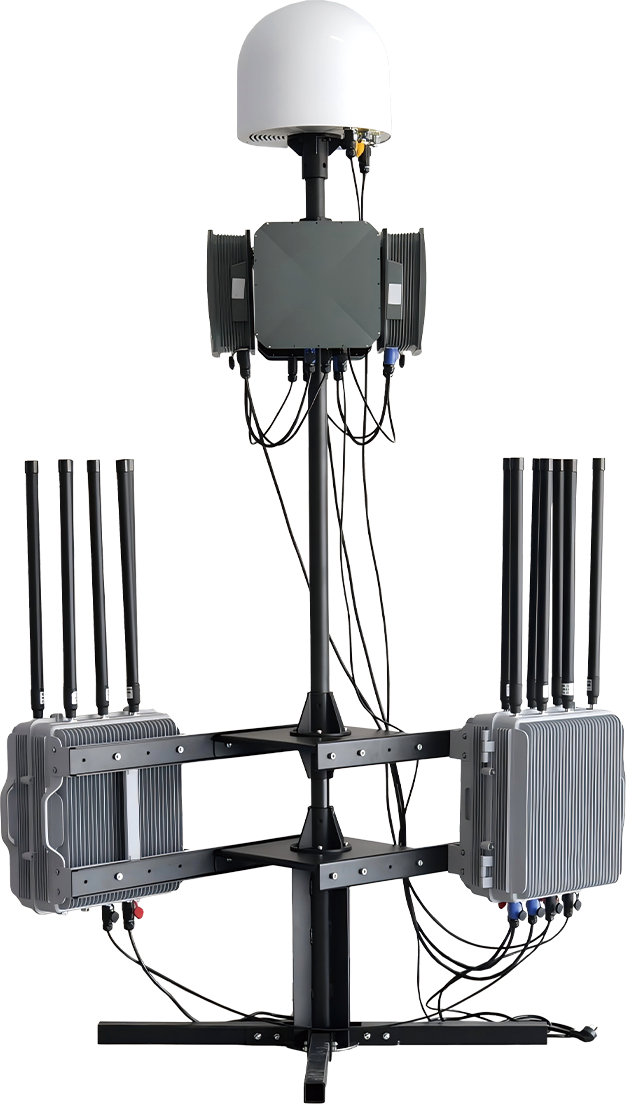

The fixed TTSKD2C drone detection and jamming equipment consists of a drone detection system, a radio interference system, a control motherboard, a support rod assembly, main body shell, and power supply assembly, etc.
|
No. |
Name |
Performance indicators |
|
1 |
Detection frequency bands |
70MHz-6GHz full frequency band scanning, detection and display |
|
2 |
Key detection frequency bands |
800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
|
3 |
FPV analog video transmission signal detection |
500MHz~6GHz scan and display |
|
4 |
FPV analog video transmission signal detection distance |
≥1.5km (support viewing real-time analog video) |
|
5 |
Detection distance |
≥10km (depends on working conditions) |
|
6 |
Detection range |
The horizontal detection angle can reach 360° Vertical detection range: -90°～90° |
|
7 |
Detection response time |
The time required from when the equipment is powered on to when it discovers and reports the drone ≤ 10s |
|
8 |
Jamming distance |
≥3km (depends on working conditions) |
|
9 |
Interference azimuth coverage |
The horizontal detection angle can reach 360° |
|
10 |
Jamming frequency bands |
Omnidirectional jamming frequency bands: 420MHz-480MHz 50W 650MHz-730MHz 50W 740MHz-840MHz 50W 860MHz-930MHz 50W 1080MHz-1200MHz 50W 1200MHz-1340MHz 50W 1340MHz-1500MHz 50W 1560MHz-1620MHz 50W 4880MHz-5080MHz 50W 5100MHz-5300MHz 50W 5870MHz-6060MHz 50W 5720MHz-5860MHz 100W 2385MHz-2490MHz 100W
|
|
11 |
Directional jamming frequency bands: 850MHz-950MHz 50W 2385MHz-2490MHz 50W 5720MHz -5860MHz 50W 5100MHz-5300MHz 30W
|
|
|
12 |
Jamming response time |
≤7s |
ü Full frequency band detection: 70MHz-6GHz full frequency band detection, covering all drone models.
ü Super interference with FPV drones: Effective defense against radio frequency flight control and FPV drones, with outstanding interference effect.
ü Simulated image transmission interference capability: Effectively prevents the intrusion of drones using simulated image transmission.
ü Multiple interference modes: Directional interference in key frequency bands and omnidirectional interference covering all frequency bands, effectively preventing the intrusion of high-power drones and non-standard frequency band drones.
ü Strong scalability: Expand and integrate radar, optoelectronics, navigation and deception and other equipment, support work by one equipment and by multiple equipment network .
ü Unattended: Realize all-weather automatic and intelligent execution of preset plans. When a drone is detected, it can quickly coordinate strikes outside the defense zone.
ü Military quality: Covered by aviation aluminum fuselage, no fear of high and low temperatures, strong environmental adaptability.
ü Signal collection: Built-in drone signal collection function, which can collect and learn unknown signals.
ü Customized services: Customized intelligent solutions according to needs to provide customers with better defense effects.
