Fixed UAS Detection Analysis & Alerting System 100MHz-6GHz, 10km+ Long-Range, UAV & Pilot Position Tracking Multi-Target Simultaneous Localization API & Multi-Unit Network Integration

Passive Fixed 100MHz-6G Long Band Scanner 10km Drone Location & Multi-Target Monitor Receiver

1. Overview

TTSK-D01 is a fixed detection system with comprehensive drone monitor capabilities. It monitors the S/N code, model, coordinates (longitude, latitude, altitude), speed, home point, flight path, controller coordinates(longitude, latitude) and other information of drones within its range through data mining and deep analysis of drone signals.

TTSK-D01 is suitable for lower airspace security in scenarios such as governmental venues, critical industrial facilities, airports, border control etc. It works independently offline, fits flexibly to various scenarios and supports quick installation. It also works together with multiple devices networked or integration with other counter drone devices such as TDOA system, countermeasure system and so on to form a more complete counter drone network.

2. Function Parameter

(1) Drone monitoring: Capable of obtaining information such as serial number, model, position (longitude, latitude, azimuth), speed, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth), etc. of unmanned aerial vehicles within the monitoring range.

(2) Unique ID identification: Identify the unique serial number of the drone and confirm its unique identity information.

(3) UAV positioning: Positionable drone position information, real-time display of drone position (longitude and latitude), azimuth information, and distance information (the distance of the drone relative to the location of the device).

(4) Flying hand positioning: Positionable pilot position information, real-time display of pilot (remote control) position (longitude and latitude), azimuth information, distance information (the distance of the pilot relative to the position of the device).

(5) Multi target trajectory tracking: Capable of locating and tracking drone swarms, while displaying multiple drone flight trajectories.

(6) Black and White List: Distinguishable between cooperative and noncooperative drones, with no alarm provided by the device when detecting cooperative drones, and trust labeling for cooperative drones.

(7) Intrusion alarm: When the device detects a drone intrusion, it will issue an audible or visual alarm.

(8) Track playback: Support drone flight trajectory playback and assist security personnel in analyzing historical drone flight data.

(9) Detection record: The detection record list can preserve historical detection records, including multidimensional information such as drone serial number, model, frequency, etc.

(10) Data and information visualization analysis: Support UAV detection and flight data statistical analysis, which can be presented through thermal diagram, Line chart and other visual icons.

(11) Electronic map: Electronic map switching, including Gaode, Bing, Baidu, Google, etc.

(12) Multiunit network: The devices can be connected to the backend control  platform through networking, and the multi unit network can meet the needs of large area coverage;

(13) Inspection and countermeasure linkage: Capable of collaborating with countermeasures or deception devices to countermeasure drones;

(14) Multiple device networking: The equipment can be networked with TDOA equipment to detect and locate drones, improving positioning accuracy and breadth.

3.Product Features

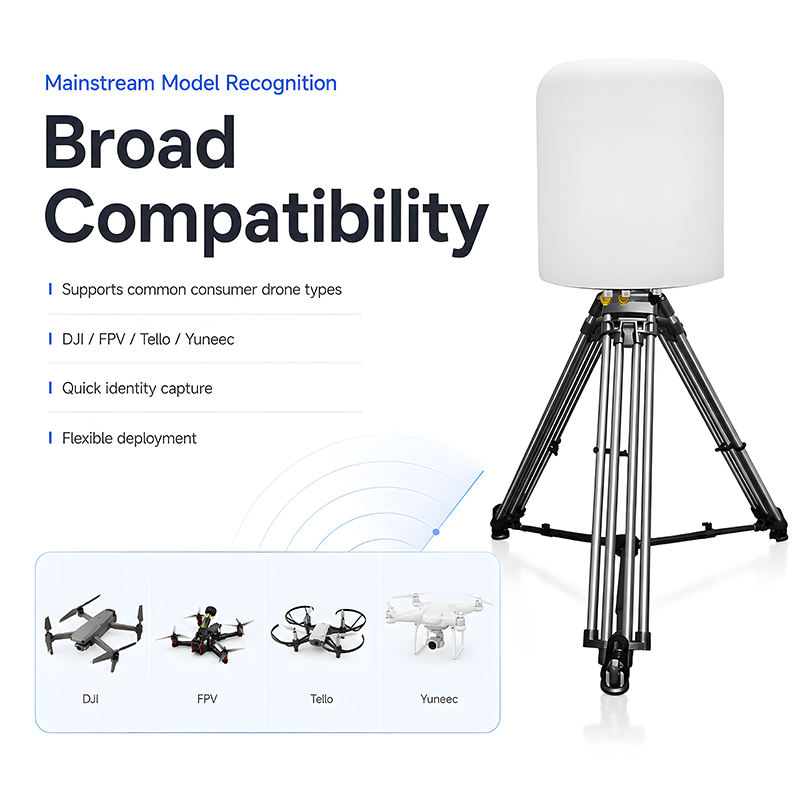

(1) All detection models: The system can identify and detect common brands of drones such as DJI, AUTEL, Dahua, and Haoxiang, as well as the vast majority of models on the market such as self-made traversing machines .

(2) Long detection distance: In an open environment, some models can detect distances of over 10km.

(3) Passive detection: The device does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.

(4) Comprehensive protection: The equipment operates continuously day and night throughout the day (7 * 24 hours), 24 hours a day (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area.

(5) Fixed installation: The equipment adopts a fixed structural design, which can be installed and used outdoors for a long time.

4. Product Index Parameters

1) Performance index

2) Mechanical parameters

3) Electrical characteristics

4) Environmental adaptability

Number

Index

Parameter

Notes

1

Operation temperature

-20~65℃

2
