Main Functions
1) The device adopts a passive detection method, without emitting any signals externally.
2) It possesses the capability to detect various models including the entire DJI series, Autel series, and FPV.
3) It can display the detected UAV model type and battery level information of detector on the screen.
4) It features audible, visual, and vibration alarm methods.
5) It has a low battery alarm function.

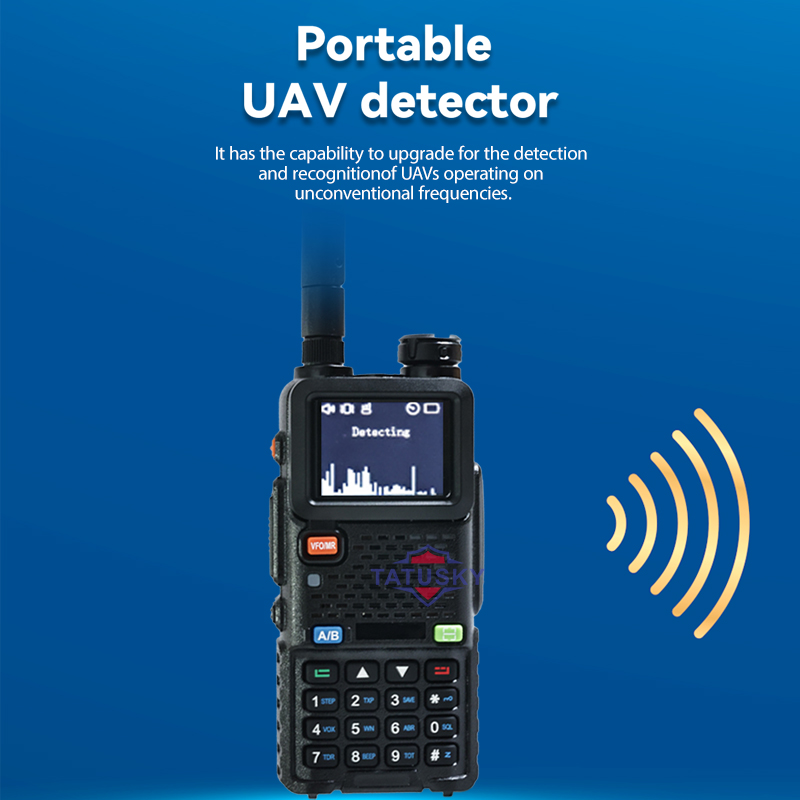

6) It has the capability to upgrade for the detection and recognition of UAVs operating on unconventional frequencies
Product Overview
TTSKW06, the Portable UAV Detector is a small and compact device specifically designed for individual soldier use for detecting unmanned aerial vehicles (UAVs).
The Portable UAV Detector utilizes proprietary low-power digital-analog hybrid receiver technology for passive detection of unmanned aerial vehicles (UAVs).
It can detect various models including the entire DJI series, Autel series, and FPV.
While maintaining high sensitivity in detection, the device achieves an extremely low false alarm rate.
Upon detecting a signal, it immediately alerts the user through lights, sounds, and vibrations, and displays relevant information about the UAV on its screen, enabling rapid response and monitoring of the UAV.
Product Technical Parameter
| Working Frequency | 300-6200mhz |
| Identification Type | OFDM high-definition image transmission signal Cross -border FMsimulation image transmission |

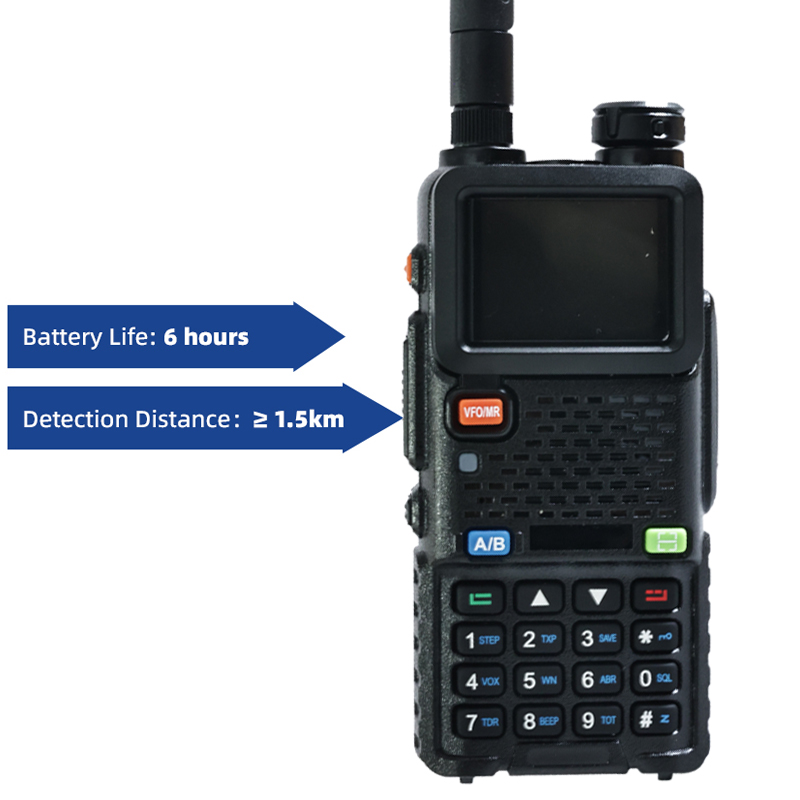

| Detection Distance | ≥1KM, Depends on the enviroment |
| Detection Sensitivity | Better than -96dBm |
| Detection and Alarm Methods | Headphones, sound and light |
| Logging | Support no less than 500 alarm records |
| Upgrade and Data Export Interrface | Micro USB power supply removable lithium battery ( type-C charging) |
| Battery | 1S 4000mAh |
| Working Time | ≥6 Hours |

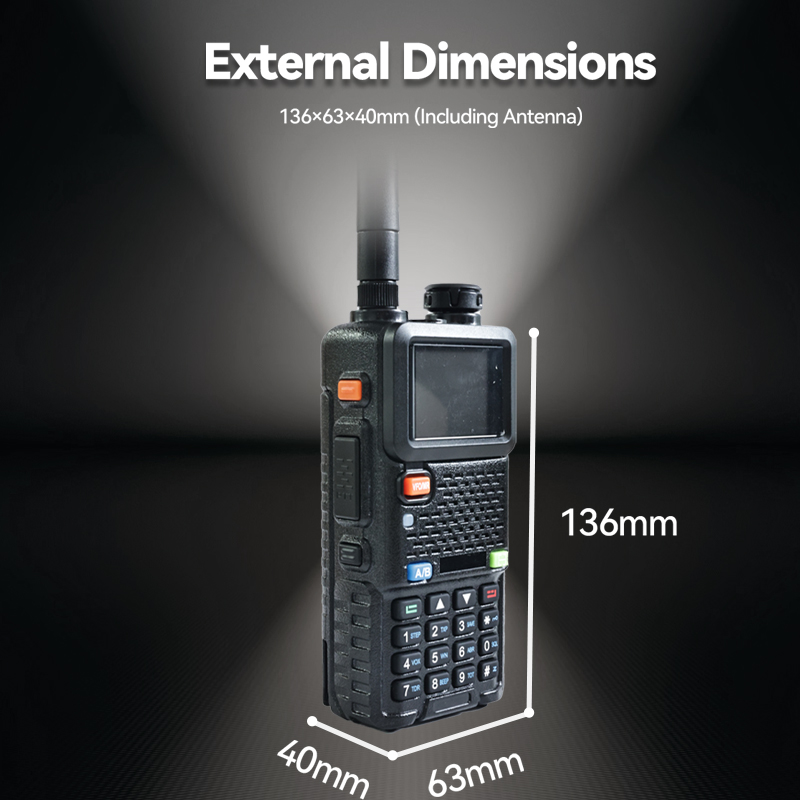

| Structural Dimiensions | 135*60*35mm, antenna is not including |
| Working Weight | 500g |
Product Decription
FAQ
Q1: Are you a factory or trading company?
We are a factory, which locates in Dongguan City, China. Welcome to visit us:)
