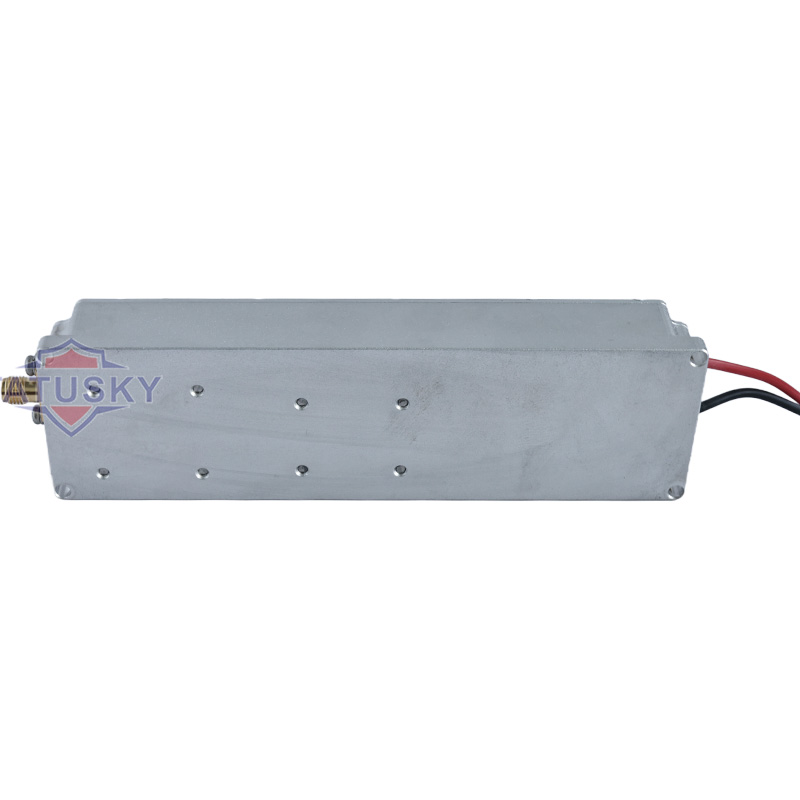

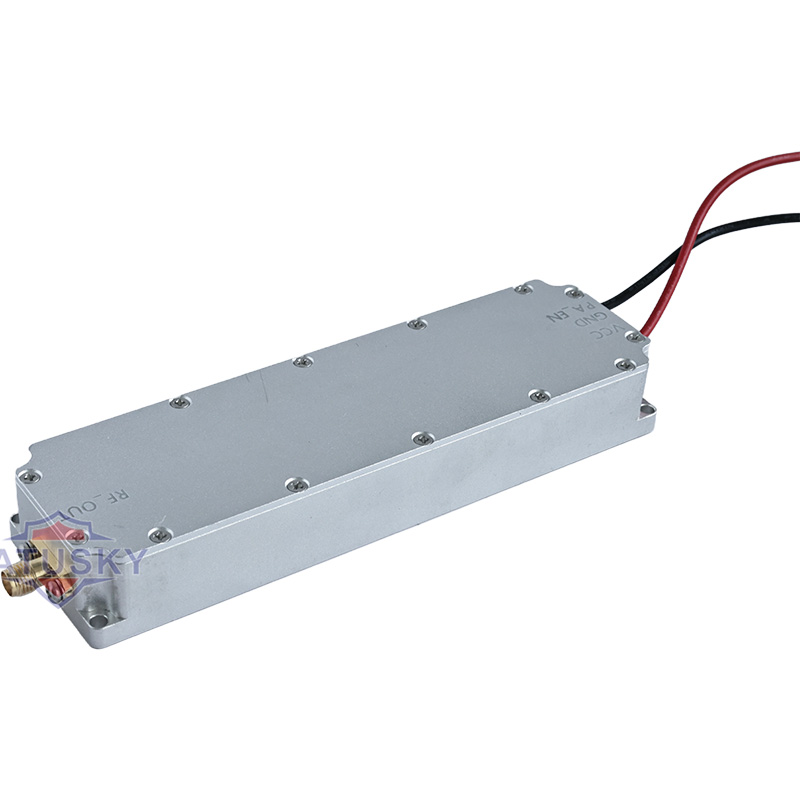

Test Item |
Indicators |
Unit |
Remark |
|
|
Frequency Range |
700-1000 |
MHz |
|
|
|
Working Voltage |
28 |
V |
28-32V |
|
|
Max Output Power |
50 |
W |
50W@3.1A typical value |
|
|
Working Efficiency |
55 |
% |
@50W |
|
|
Max Gain |
45 |
db |
|
|
|
Gain flatness |
≤4 |
db |
|
|
|
Max undamaged power |
≤10 |
dbm |
|
|
|
Input Port VSWR |
≤1.3 |
|
Without power, network test |
|
|
High and low temp testing |
Temperature of working environment |
-10～+55℃ |
℃ |
|
|
Power Stabilization |
±1.0@-40℃～ +55℃ |
dB |
-20℃～+75℃ |
|
|
Power supply requirements |
≥3.7A@+30Vdc； |
|
Continuous wave output 50 W |
|
|

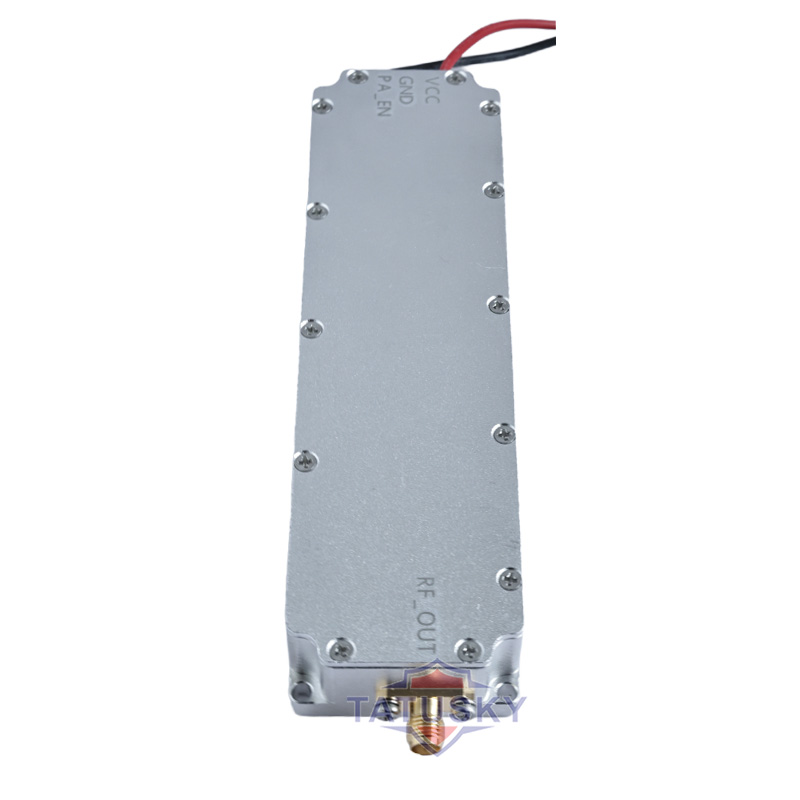

Power supply connector |
Cables or Feedthru capacitor |
|
|
|
|

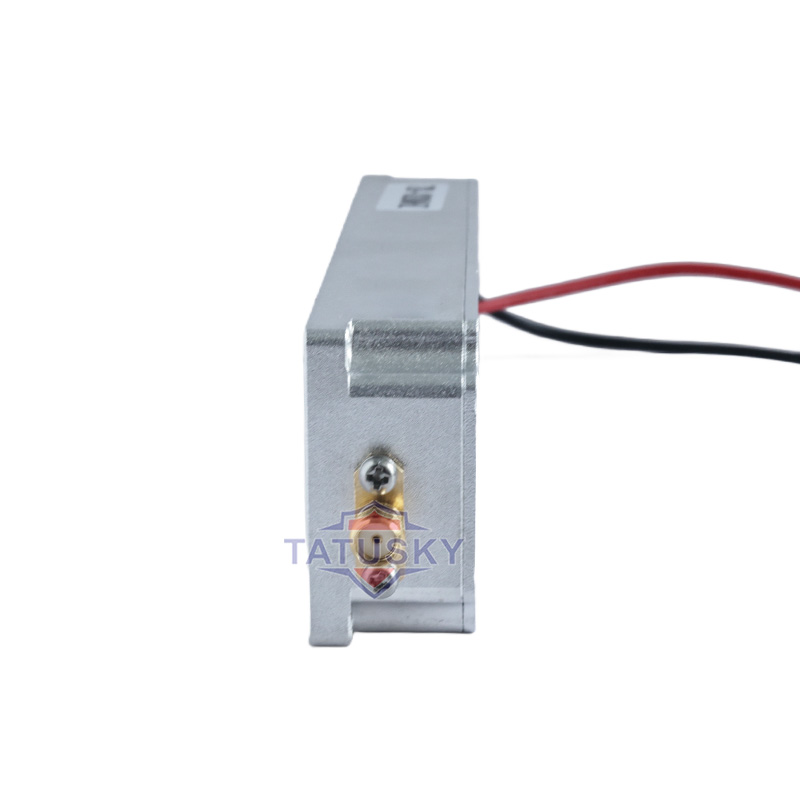

RF Output Connector |
Input SMA/ output N |
|
|
|
|
Dimension |
133.8*51.3*22.5 |
mm |
|
|
|
Weight |
750 |
g |
|
|
|

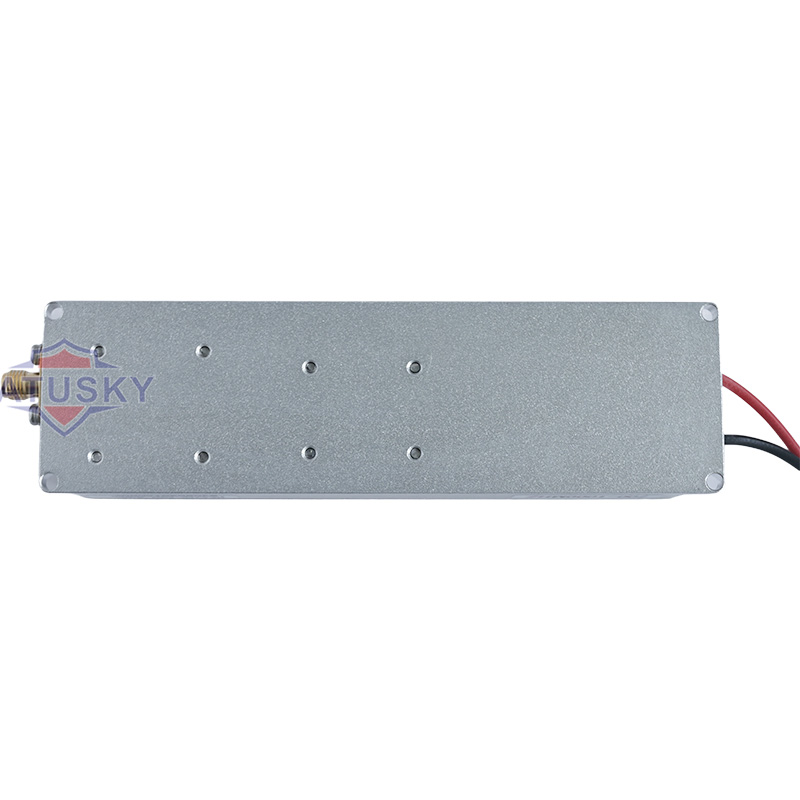

Mounting holes |
129.1*46.1 |
mm |
M3*10 |
|
1.1 Use frequency range
3.2 Interference distance and output power configurati
The interference distance is related to the output power of the power
amplifier and the transmitting antenna. The greater
