300–6200MHz Full-Band Portable Handheld UAV Detection Device with 1.5km Maximum Detection Range and Triple (Audible/Visual/Vibration) Alarm Modes for DJI, Autel and FPV Drones
Core Features
- Pure passive detection with zero signal emission.
- Works with mainstream UAVs: DJI, Autel and all FPV drones.
- Onboard screen displays drone models and real-time battery status at a glance.

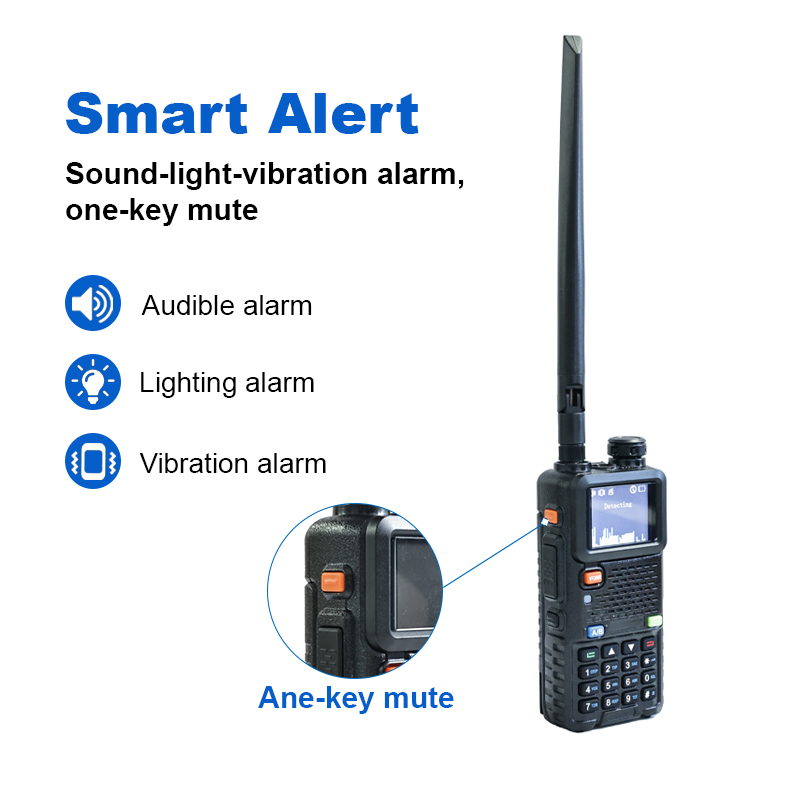

- Triple alarm modes: sound, light and vibration for full-range alerts.
- Built-in low-battery reminder for timely power warnings.
- Firmware upgrade available to optimize performance on non-standard frequency drones.
Technical Specifications
The TTSKW06 portable UAV detector adopts a compact and lightweight design, tailored for individual field deployment and professional UAV detection tasks. Utilizing self-developed low-power analog-digital hybrid receiver technology, it implements full passive detection without any signal transmission.
Capable of identifying DJI, Autel, FPV and other mainstream UAV models, the device delivers outstanding detection sensitivity and an extremely low false alarm rate. When UAV signals are detected, the integrated sound, light and vibration alarms will be activated right away. Meanwhile, detailed UAV data is presented on the display to support real-time target tracking and prompt operation.
Product Technical Parameter
| Working Frequency |
300-6200mhz |
| Identification Type |
OFDM high-definition image transmission signal Cross -border FMsimulation image transmission |

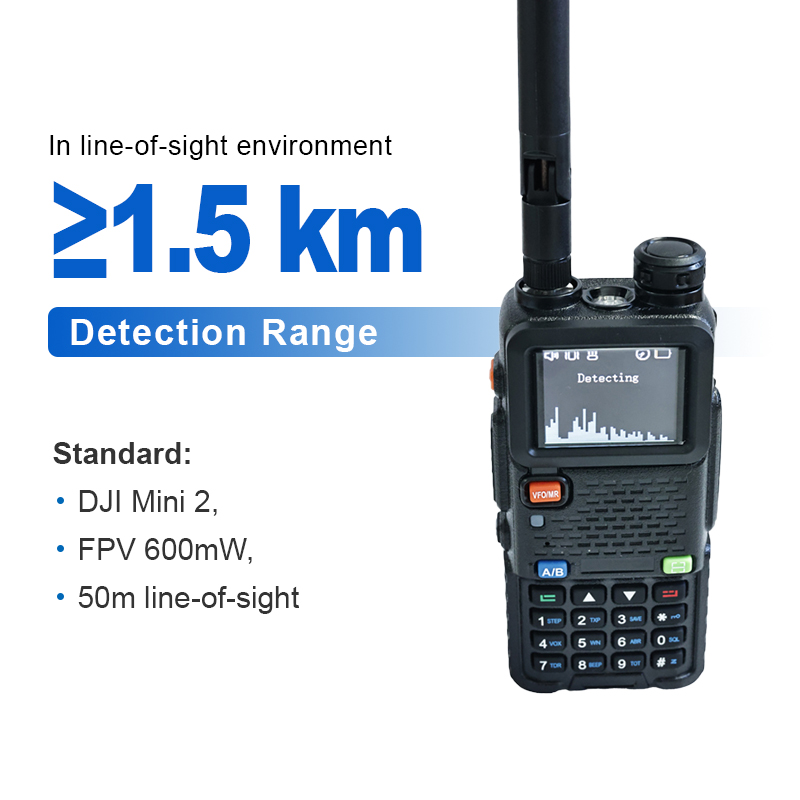

| Detection Distance |
≥1KM, Depends on the enviroment |
| Detection Sensitivity |
Better than -96dBm |
| Detection and Alarm Methods |
Headphones, sound and light |
| Logging |
Support no less than 500 alarm records |
| Upgrade and Data Export Interrface |

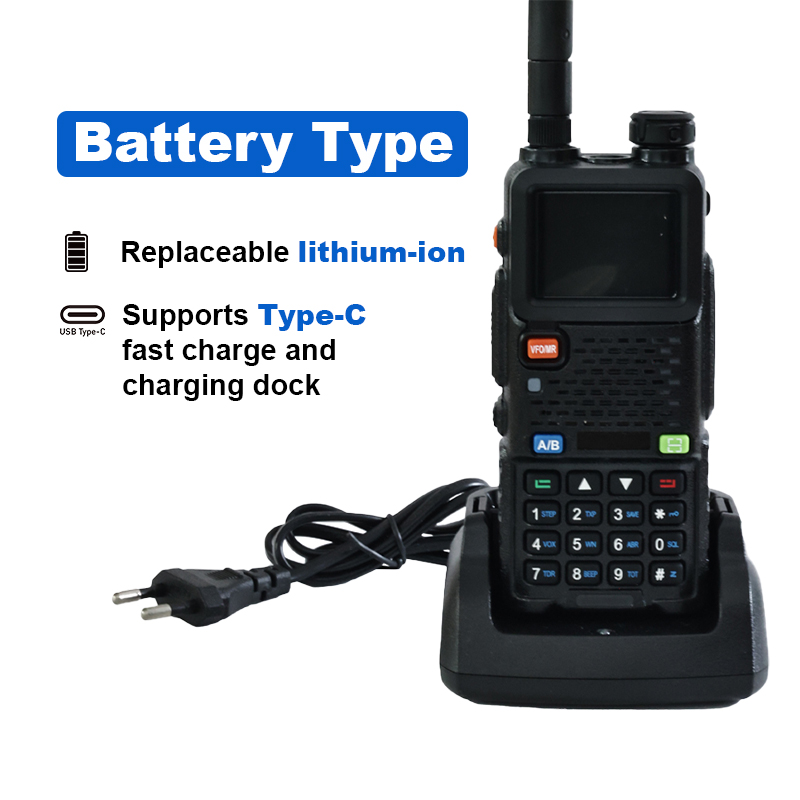

Micro USB power supply removable lithium battery ( type-C charging) |

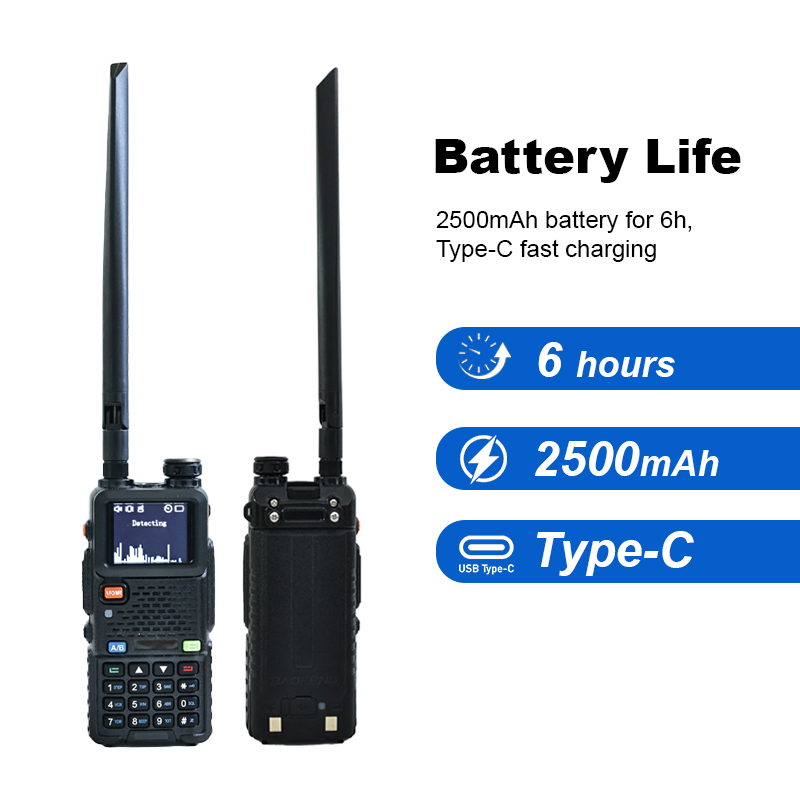

| Battery |
1S 4000mAh |

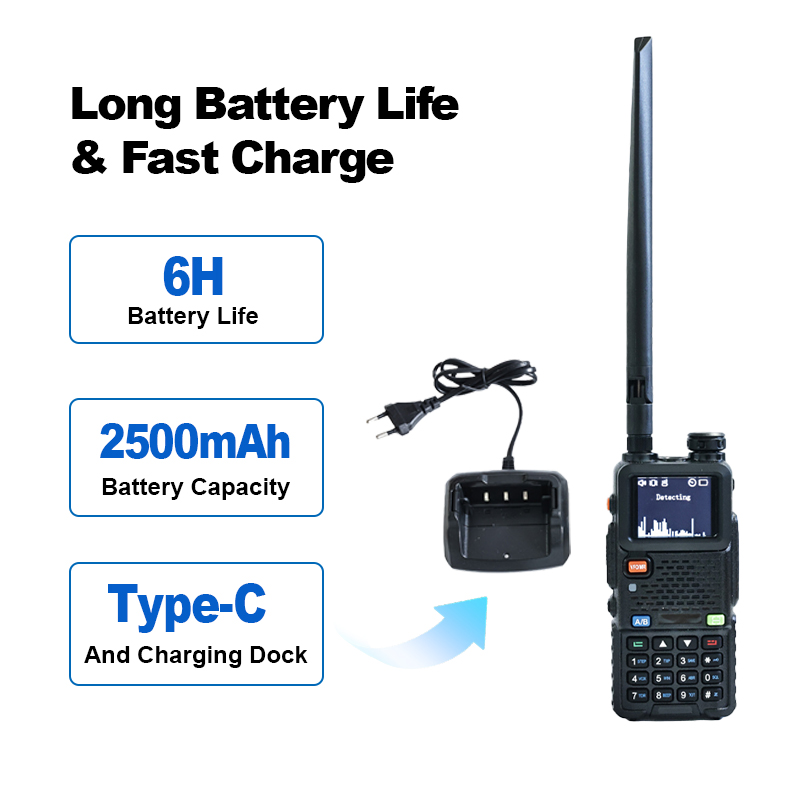

| Working Time |
≥6 Hours |
| Structural Dimiensions |
135*60*35mm, antenna is not including |
| Working Weight |
500g |
Product Decription
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacturer located in Dongguan, China. You are warmly welcome to visit our factory.
Q2: Why choose our company?
A2:
- Rich experience: Over 10 years of expertise in the industry
- Competitive pricing: Cost-effective rates for all products
- Reliable quality: All items undergo strict lab testing and quality inspection
- Fast lead time: Production completed within 3–7 working days normally
- Professional after-sales: Our skilled engineers provide timely technical support and solutions
Q3: What products do you supply?
A3: We offer RF modules, finished products and supporting accessories. Feel free to contact us for more details.
Q4: What is your ordering process?
A4: Inquiry & Communication → Payment → Production → Delivery
Q5: What are your delivery schedule and shipping options?
A5: Standard orders take 5–7 working days for delivery. For bulk orders, we will confirm the exact lead time separately. We support nearly all mainstream shipping methods to meet your demands.
Q6: How can I get in touch with you?
A6: Please leave your email and WhatsApp information, and our team will contact you shortly.
