Comprehensive Model Detection: It adopts digital-analog hybrid technology and incorporates multiple UAV characteristic spectrum databases. By detecting UAV spectrum signals, it can achieve long-range detection of common consumer-grade UAVs such as DJI and Daotong.

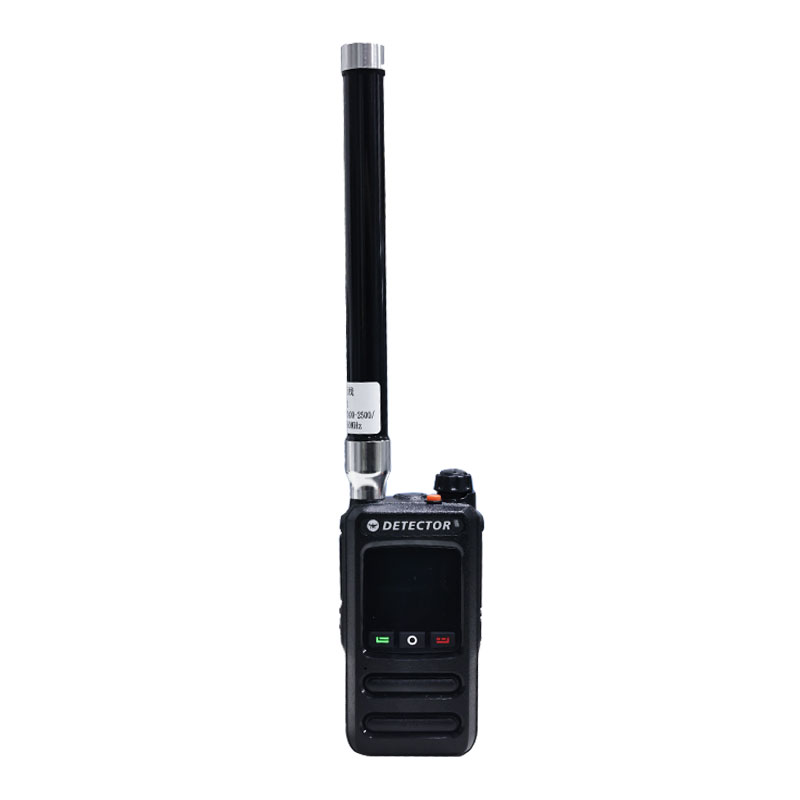

Long Detection Range: Equipped with a high-gain receiving antenna, the warning detection range exceeds 1km.
Detection Log: It has the function of exporting UAV logs, recording, and exporting information such as the brand, time, and frequency of detected UAVs.
Specification
|
Operating Frequency Bands: |
800～1500MHz 2400～2485MHz 5100～5950MHz
|
|
Detection Types: |
Common consumer-grade UAVs such as DJI and Daotong models, as well as some FPV models |
|
Detection Range: |
≥1Km (results may vary depending on the UAV model and electromagnetic environment) |
|
Detection Method: |
Passive detection |
|
Power Supply: |
External lithium battery, 3.7V |
|
Operating Temperature: |
-20℃～+55℃ |
|

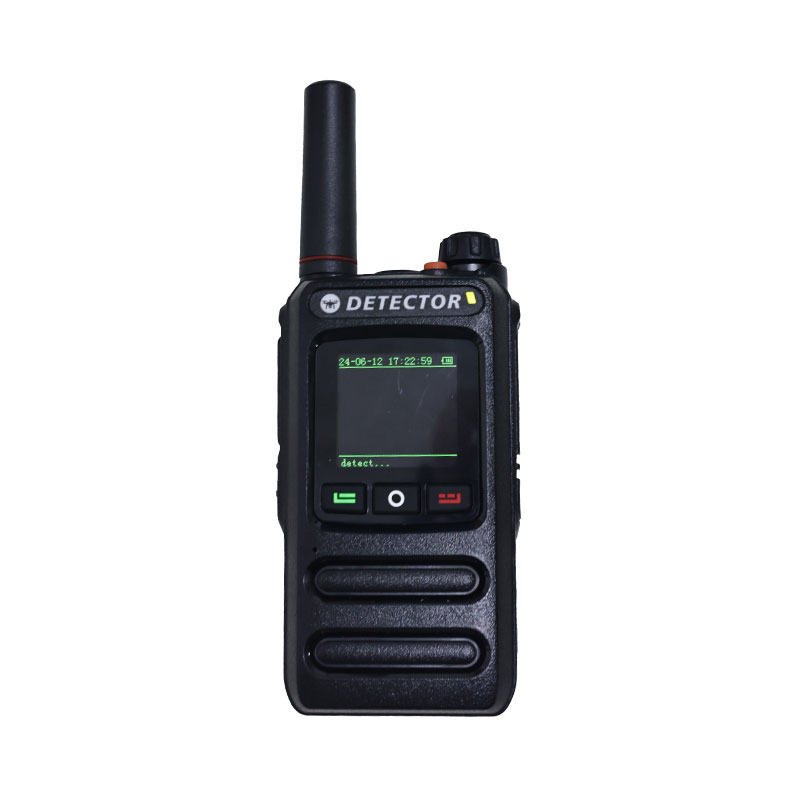

Time Display: |
Year/Month/Day, Hour/Minute/Second display, supports time retention during power outages |
|
Log Export: |
When exporting logs, it shows information such as UAV model, frequency, field strength, and detection time |
|
Product Weight: |
＜200g (including battery, excluding antenna) |
|
Battery Life: |
≥4 hours (in detection mode standby state) |
|
Product Dimensions: |
110mm * 56mm * 35mm ± 2mm (excluding antenna) |
