Comprehensive RF Spectrum Monitoring: Covers a broad frequency range from 300MHz to 13.4GHz, with frequency tuning increments as fine as 1MHz. The integrated spectrum display provides real-time visibility into detected RF activity.
Detection of Diverse Drone Platforms: Compatible with signals from more than 100 drone models and families, including DJI, Autel, FIMI, and Hubsan. It also supports detection of analog and digital FPV systems using technologies such as Walksnail, HDZero, and OpenIPC, alongside other widely used drone platforms.
Long-Distance Detection Capability: Provides a detection range of up to 5km in unobstructed line-of-sight environments. For OFDM signals with a 20MHz bandwidth, receiver sensitivity can reach -101dBm under specified operating conditions.
Remote ID Protocol Compatibility: Receives Remote ID broadcasts compliant with supported standards, including GB 46750-2025, ASTM F3411-22a, and ASD-STAN prEN 4709-002.
Rugged Design for Outdoor Deployment: The IP54-rated enclosure offers protection against dust ingress and water splashes, making the device suitable for mobile operations and outdoor security tasks.

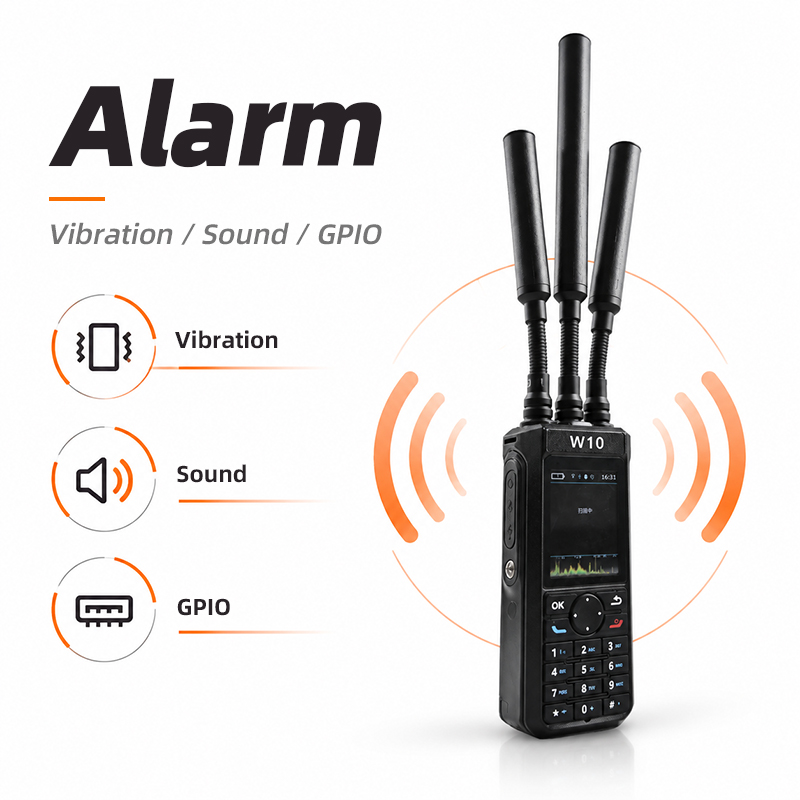

Flexible Alert and Event Recording: Provides multiple notification methods, including vibration and audible alarms. A GPIO alarm interface supports external signaling, while onboard event logging helps retain records of detected activity.
Rechargeable Power for Field Use: Operates for up to 8 hours on a removable 7.4V, 2800mAh lithium-ion battery, supporting extended monitoring sessions away from fixed power sources.
Convenient Wireless and USB Connectivity: Bluetooth enables wireless data exchange, while the USB Type-C interface supports wired connectivity and firmware updates.
Integration with Compatible Security Equipment: The GPIO interface allows connection to supported external systems, including compatible backpack-mounted countermeasure equipment, for coordinated monitoring and response workflows.
Q1. What is the detection frequency range of the TTSK-W10 handheld drone detector?
The TTSK-W10 covers a wide RF frequency range from 300 MHz to 13.4 GHz, with a minimum scanning step of 1 MHz. It supports wideband drone signal detection and real-time spectrum monitoring.
Q2. What is the maximum detection range of the TTSK-W10?
The TTSK-W10 offers a detection range of up to 5 km under clear line-of-sight conditions with a typical drone transmitting at full power. Actual performance depends on the drone model, operating frequency, transmission power, and surrounding environment.
Q3. What types of drones can the TTSK-W10 detect?
The TTSK-W10 supports identification of over 100 drone types, including mainstream commercial UAVs, analog FPV drones, digital FPV drones, and Wi-Fi drones. Its built-in drone signature database can be expanded through supported OTA updates.
Q4. Does the TTSK-W10 support Remote ID detection?
Yes. The TTSK-W10 supports reception of Remote ID information via Wi-Fi in the 2.4 GHz and 5.8 GHz bands and Bluetooth in the 2.4 GHz band. Supported standards include ASTM F3411-22a in the United States and the specified Chinese and European standards listed in the product specifications.
Q5. How long can the TTSK-W10 operate on a single battery?
The TTSK-W10 provides approximately 8 hours of operation on a single removable 2,800 mAh lithium-ion battery under room-temperature conditions. It supports Type-C charging, and a full charge takes approximately 5–6 hours.
