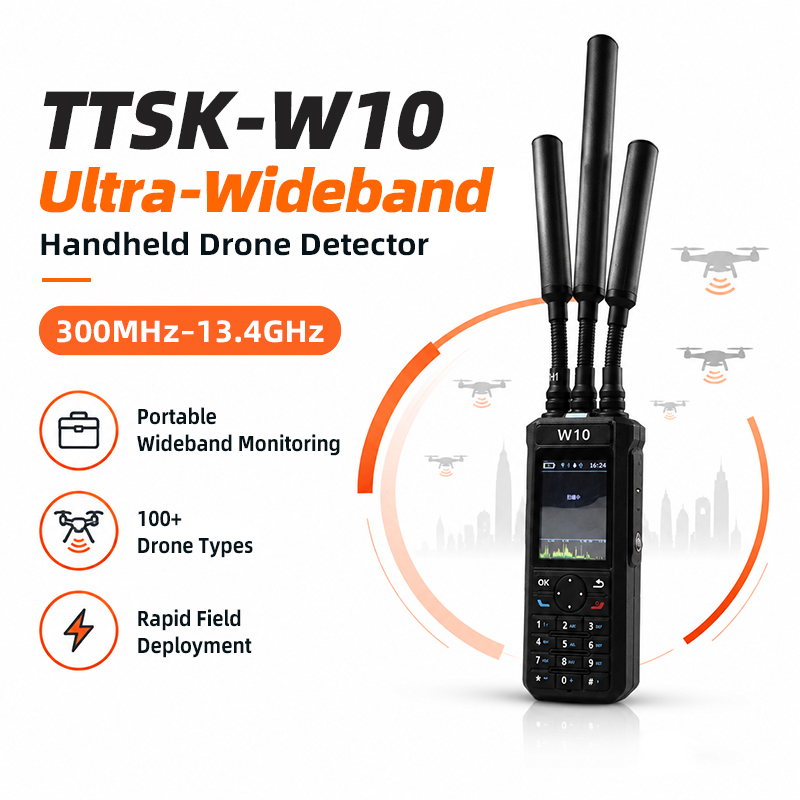

The Tatusky TTSK-W10 is a portable, passive handheld drone detection device designed for low-altitude security and outdoor operations. Featuring high-sensitivity broadband RF reception and an extensive built-in drone signature database, it covers 300MHz–13.4GHz and identifies over 100 types of consumer and FPV racing drones. The device displays drone type, signal frequency, signal strength, and real-time spectrum data on its built-in screen, while supporting multiple Remote ID standards. With IP54 protection, up to 8 hours of battery life, and GPIO connectivity for integration with compatible external countermeasure systems, the TTSK-W10 delivers flexible drone detection capabilities across diverse operational environments.
Ultra-Wideband Detection: 300MHz–13.4GHz frequency coverage, 1MHz minimum frequency step, and real-time spectrum display.
Broad Drone Compatibility: Detects over 100 drone types, including DJI, Autel, Fimi, Hubsan, analog and digital FPV systems such as Walksnail, HDZero, and OpenIPC, plus other mainstream brands.

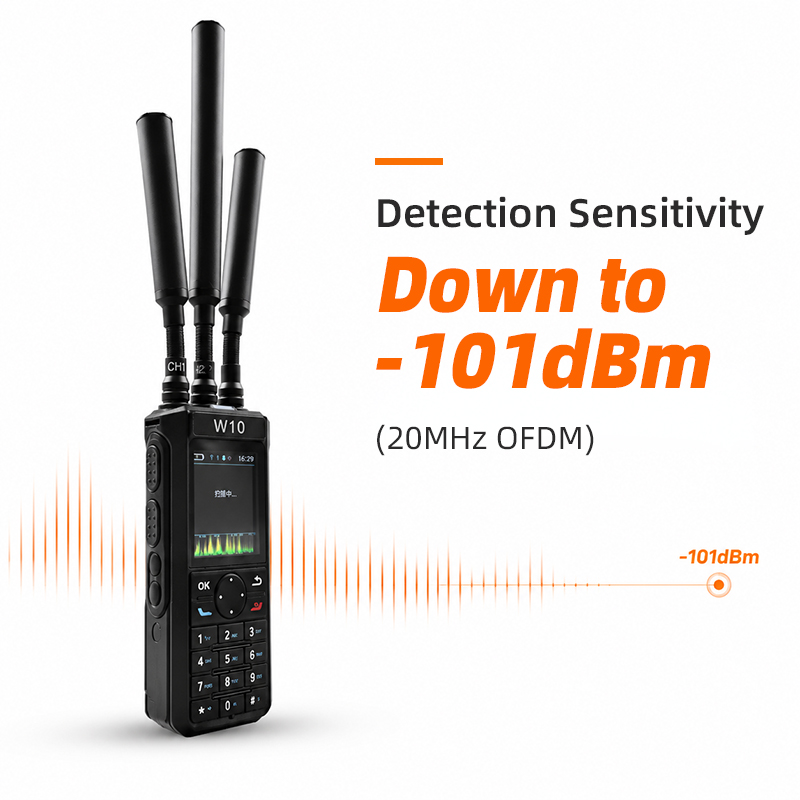

Extended Detection Range: Up to 5km under clear line-of-sight conditions; sensitivity down to -101dBm for 20MHz bandwidth OFDM signals.
Multi-Standard Remote ID Reception: Supports Remote ID standards including GB 46750-2025, ASTM F3411-22a, and ASD-STAN prEN 4709-002.
IP54 Outdoor Protection: Dust-protected and resistant to water splashes for reliable field operation.
Multiple Alarm Options: Vibration, audible alerts, GPIO alarm output, and internal event log storage.
Up to 8 Hours of Operation: Powered by a removable 7.4V, 2800mAh lithium-ion battery.
Bluetooth & Type-C Connectivity: Supports wireless data transmission and firmware updates via Bluetooth or USB-C.
External System Integration: GPIO interface enables integration with compatible backpack-mounted countermeasure equipment for coordinated detection and response.
| Item | Specification |
|---|---|
| Receiving Frequency | 300MHz‑13400MHz |
| Detectable UAV | DJI,Autel,Fimi,Hubsan,Skydroid,Analog/Digital FPV,Wi‑Fi drones etc, over 100 models |
| Detection Range | 500m‑5km (LOS, varies by environment & drone power) |
| RID Standard | GB46750‑2025, ASTM F3411‑22a, ASD‑STAN prEN 4709‑002 (2.4G /5.8G Wi‑Fi & Bluetooth RID) |
| Screen | 2.4‑inch TFT, 240×320 resolution |
| Alarm Mode | Vibration, Sound, GPIO alarm output |
| Log | Internal storage log |
| Interface | Type‑C, Bluetooth, GPIO; 3 × SMA antenna ports |
| OTA | Support OTA update via Type‑C / Bluetooth |
| Battery | Removable 7.4V,2800mAh Li‑ion battery |
| Battery Life | Up to 8 hours continuous operation |
| Operating Temp | ‑25℃ ~ +55℃ |
| Protection Grade | IP54 (dust‑proof, splash‑proof, not for immersion) |
| Dimension | With antenna&clip:3606354mm; Main unit:1406341mm |
| Weight | 450g(host+battery+antennas) |
| Working Mode | Pure Passive RF Receiving, no signal transmitting |
The TTSK-W10 covers a wide RF frequency range from 300 MHz to 13.4 GHz, with a minimum scanning step of 1 MHz. It provides real-time spectrum information, including detected signal frequency and strength, for drone signal monitoring.

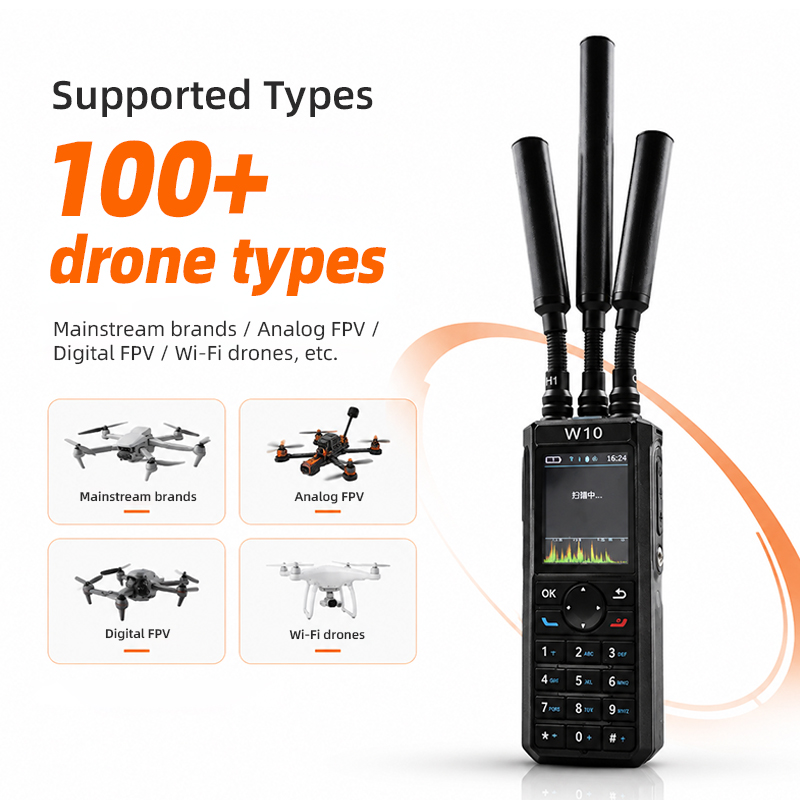

The TTSK-W10 supports identification of over 100 drone types, including mainstream UAVs, analog FPV drones, digital FPV drones, and Wi-Fi drones. Actual detection performance depends on the drone model, transmission frequency, signal strength, and operating environment.
The maximum detection range is up to 5 km under clear line-of-sight conditions with a typical drone transmitting at full power. The actual range may vary depending on the frequency band, drone model, signal characteristics, and surrounding environment.
Yes. The TTSK-W10 supports Remote ID reception through 2.4 GHz Wi-Fi, 5.8 GHz Wi-Fi, and 2.4 GHz Bluetooth, supporting the applicable protocols specified in its technical documentation.
The TTSK-W10 operates for approximately 8 hours on a single removable 2,800 mAh lithium-ion battery under room-temperature conditions. It supports Type-C, Bluetooth, and GPIO interfaces, as well as firmware updates via USB-C or Bluetooth.
