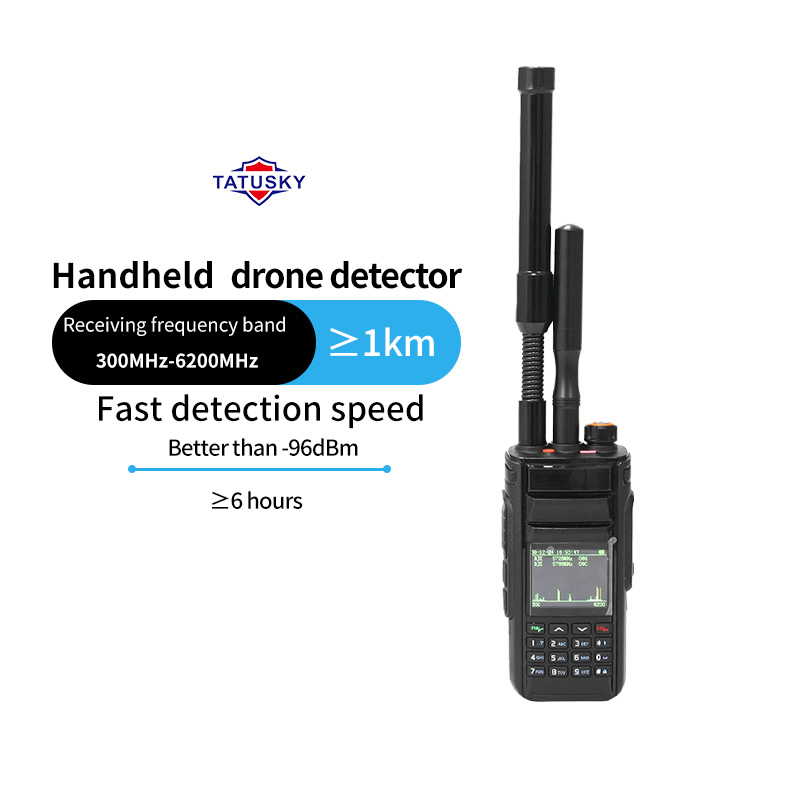

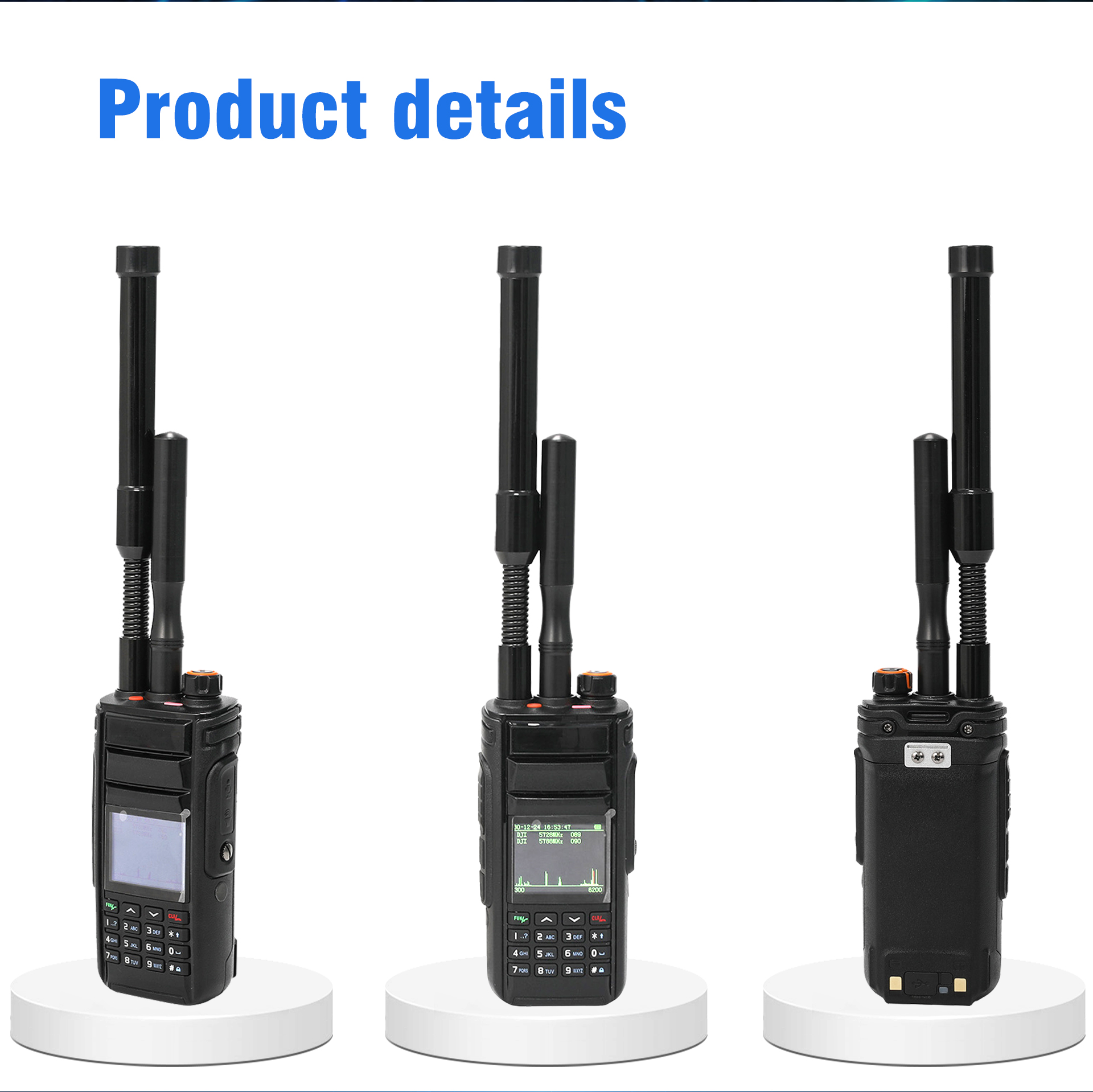

Tatusky TTSKW07 Portable Broadband Drone Detector
The Tatusky TTSKW07 Portable Drone Detector is a broadband, low-power UAV detection device designed for fast and accurate drone identification.
It can detect DJI, Docom, and FPV/DIY drones using OFDM or analog image transmission across a wide frequency range of 300MHz–6200MHz.
With dual antennas, multi-channel scanning, and real-time spectrum analysis, it delivers long-range detection (≥1km), high sensitivity (-96dBm), and low false alarm rate — ideal for security forces, public safety, and field operations.

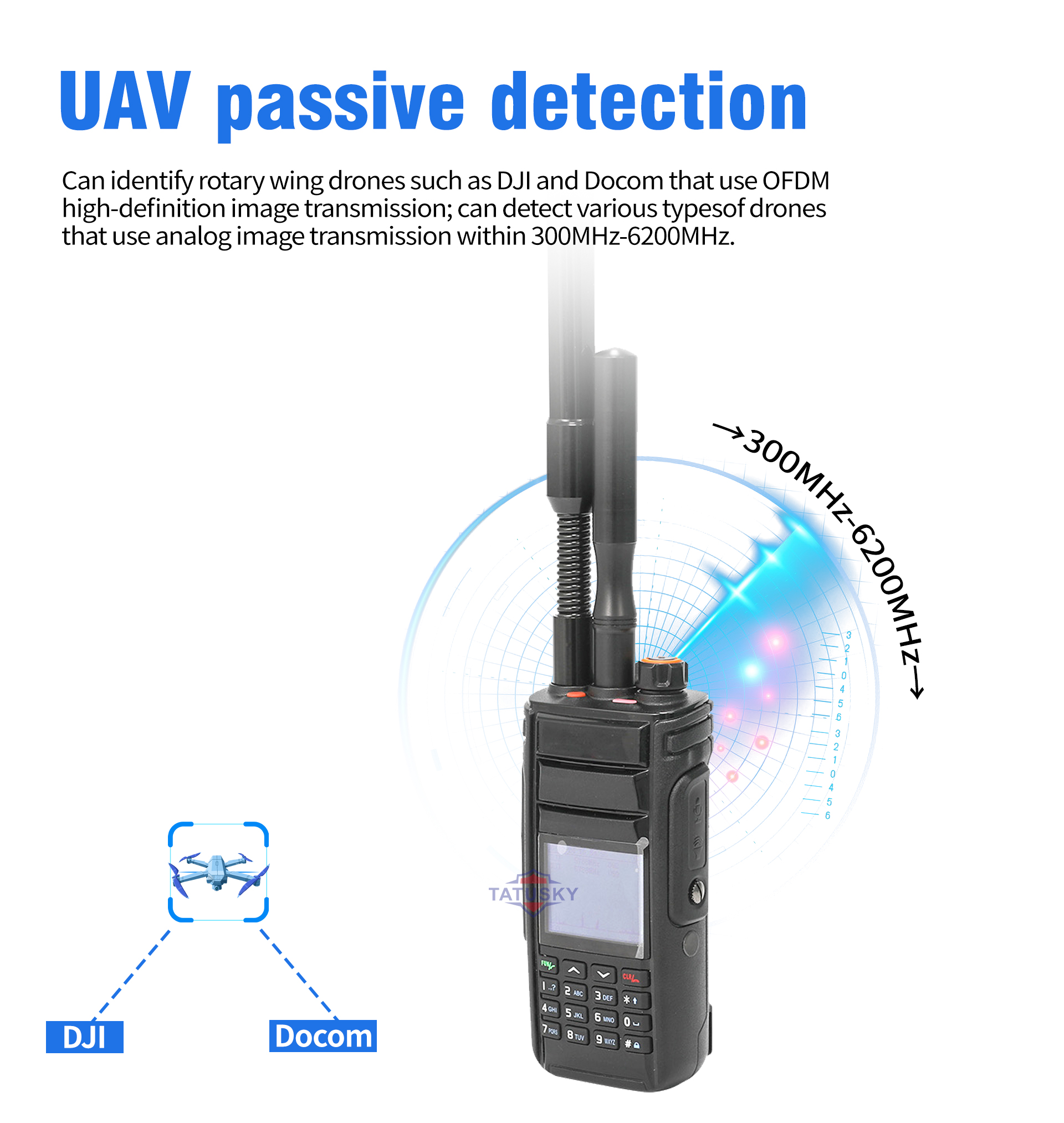

Passive Detection: Detects DJI, Docom, and analog FPV drones without emitting signals.
Dual-Antenna & Multi-Channel Scanning: Enhances detection range and speed.

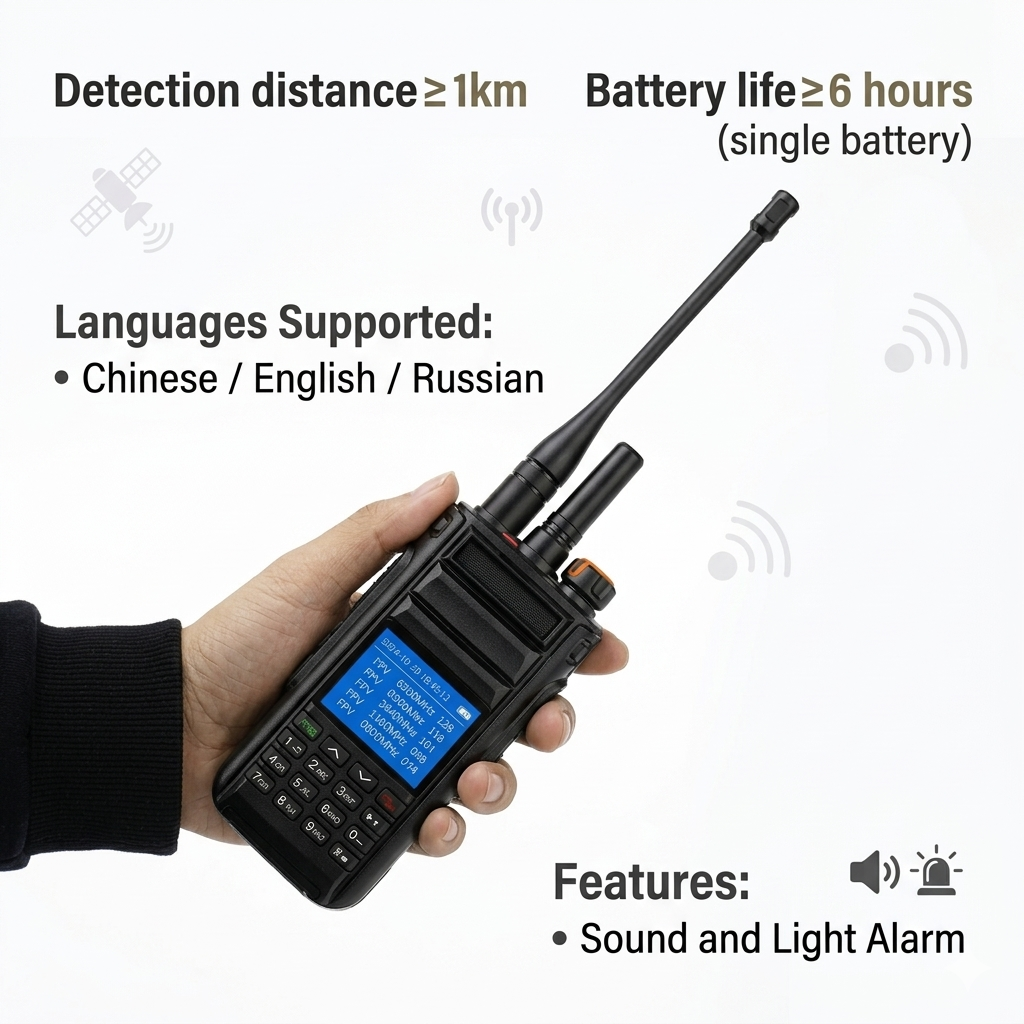

Sound & Light Alarm: Headphone, external light, and sound alerts for real-time warning.
Data Logging: Stores up to 500 alarm records, exportable via USB.
Custom Drone Library: Add, edit, or delete drone signatures via USB interface.
Firmware Upgrade: Simple USB firmware updates for long-term use.
Multi-Language Interface: Supports English, Chinese, and Russian.
Real-Time Spectrum Display: Visualize signals across 300–6200MHz in real time.
| Item | Specification |
|---|---|

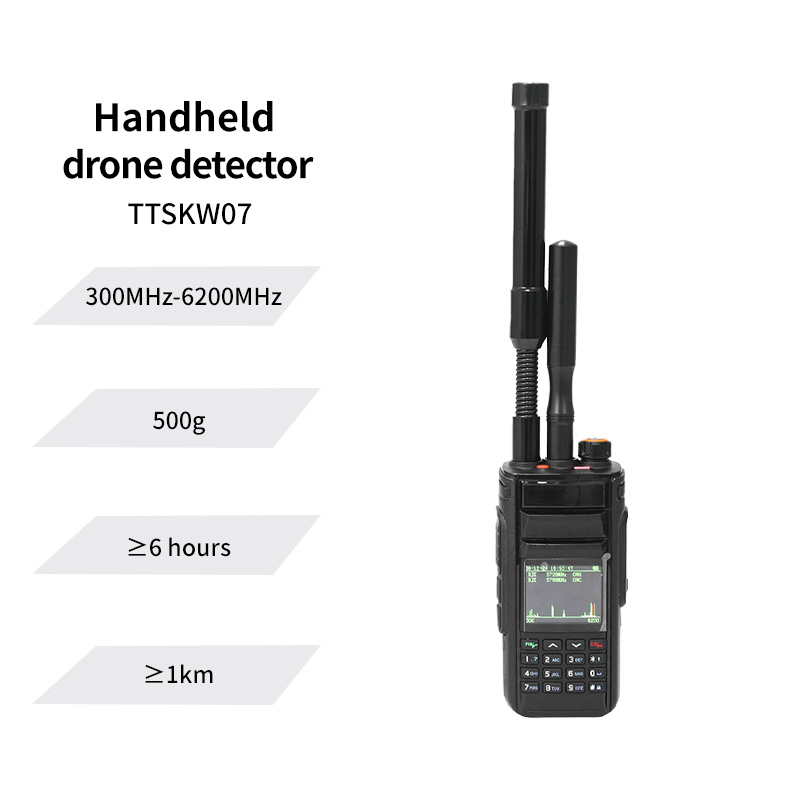

| Model | TTSKW07 |
| Frequency Range | 300MHz – 6200MHz |
| Detection Type | OFDM HD & FM Analog Image Transmission |
| Detection Distance | ≥1 km |
| Sensitivity | Better than -96 dBm |
| Alarm Mode | Headphones, Sound, and Light |
| Log Record | ≥500 alarm records |
| Interface | Micro USB (data export & firmware upgrade) |
| Power Supply | Removable lithium battery (Type-C charging) |
| Battery Life | ≥6 hours (single battery) |

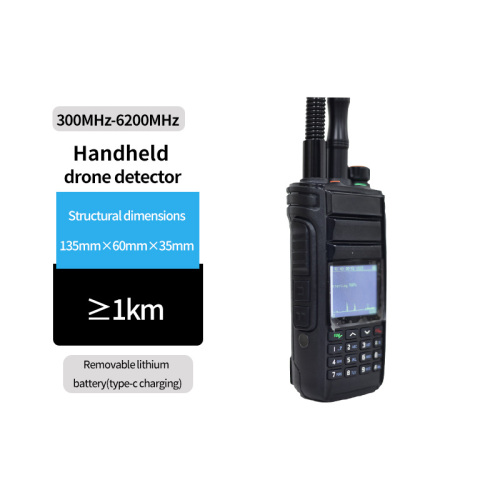

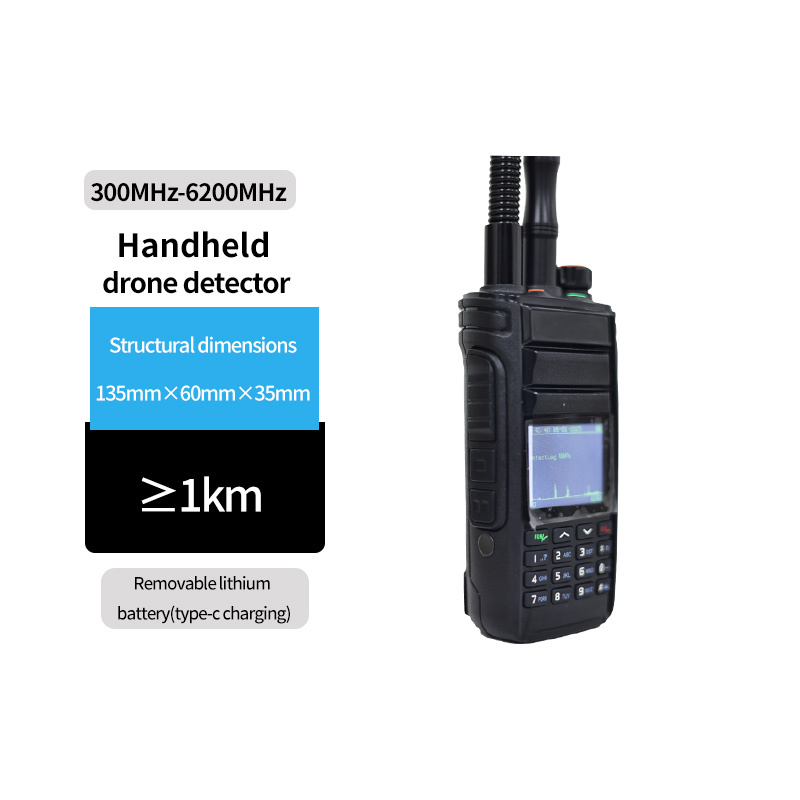

| Dimensions | 135 × 60 × 35 mm (excluding antenna) |
| Weight | 500 g (with battery) |
Perfect for:
Military and police patrols
Airport and border security
Event and public venue protection
Anti-drone field operations
Private or government facilities monitoring
Tatusky specializes in advanced anti-drone and RF detection technologies, delivering professional-grade UAV detection solutions trusted by security agencies and system integrators worldwide.
