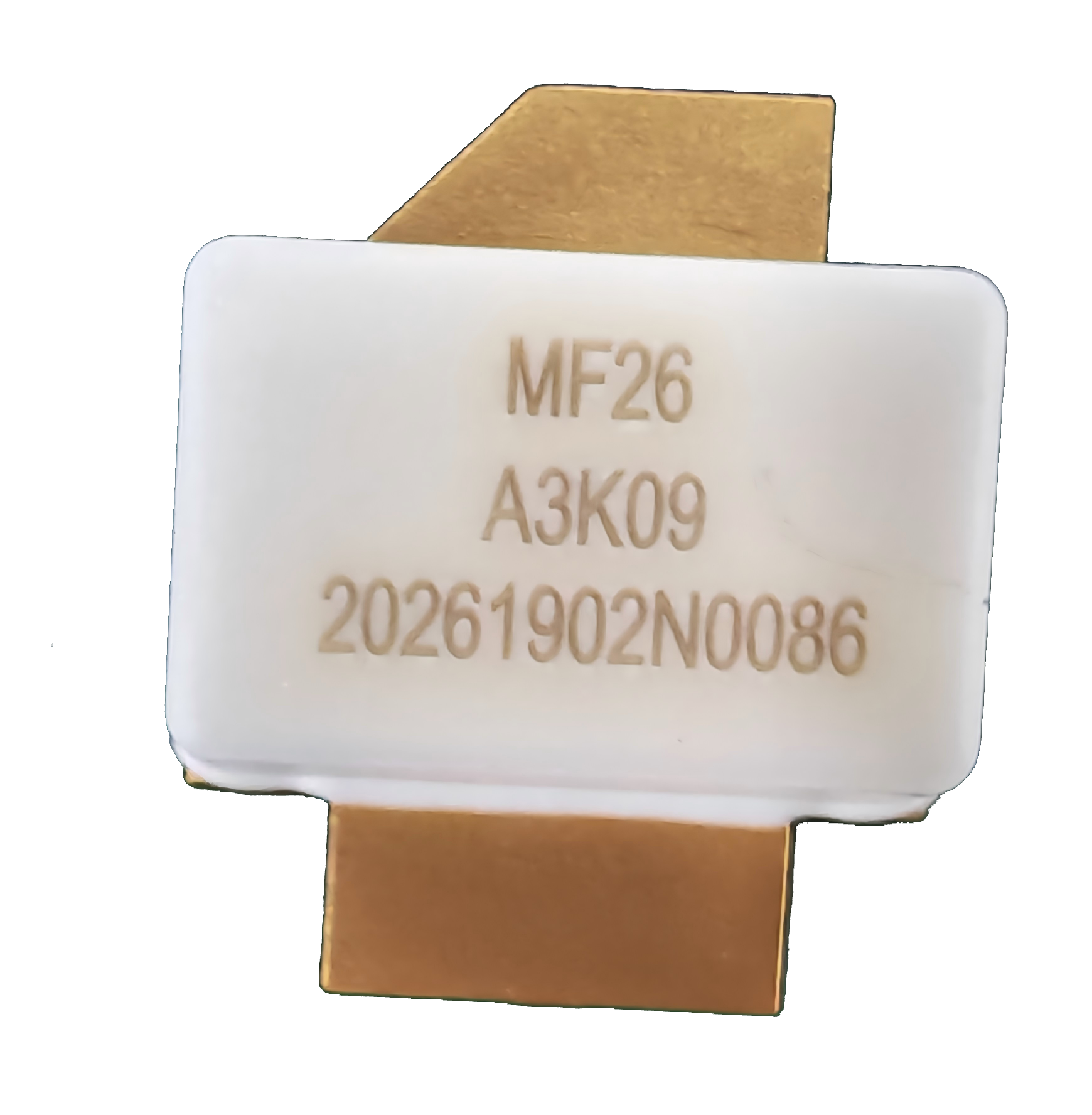

MF26 transistor microelectronic component |
|
|
|
summary The MF26 operates at 28V, offering a universal solution for various RF and microwave applications with high efficiency and gain capability, making it an ideal choice for linear and saturated amplifier circuits. |
||
|
apply l Radio/Television/Emergency Communications l Wireless Coverage l Industrial Internet of Things l Test and Measurement Equipment
|
MF26 |
|
|
|
||
|
characteristic u Working frequency range from 2110 MHz to 2170 MHz u Input pre-match u The typical value at a test frequency of 2140 MHz Ø 28V DC power supply Ø 10.8 dB power gain Ø Typical output power: 60.3 W Ø The Psat efficiency is 62.9%. u Complies with Pb-free and RoHS standards |
|
|
|
|
||
|
|
|
|
|
|
||
|
l Important Notes (Power transistor bias circuit power-on sequence) |
||
|
Open the device |
closing device |
|
|
1. Set VGS to the shutdown voltage (typically –5 V) 2. Set the VDS to the operating voltage (28V) 3. Increase the VGS until the IDS current is reached 4. Apply the required level of radio frequency input power |
1. Close the RF input power 2. Close VDS 3. Close VGS |
|
Pin Definition
|
name |
Pin |
description |
Simplified Flowchart |
|
MF26 |
D |
Drain drain electrode |
|
|
G |
Limit value (unless otherwise specified, TC = 25°C simultaneously)
|
parameter |
symbol |
Limit Value |
unit |
|
Source-drain voltage |
VDSS |
65 |
Volts |
|
Gate-source voltage |
VGS |
-8, +2 |
Volts |
|
storage temperature |
TSTG |
-65, +150 |
°C |
|
junction temperature |
TJ |
220 |
°C |
|
welding temperature |
TS |
245 |
°C |
thermal performance
|
characteristic |
symbol |
price |
unit |
|
Thermal resistance; junction temperature to housing T C = 80°C, T J = 200°C, DC power consumption |
RJC |
1.8 |
°C/W |
u The RJC is tested solely under DC conditions and is associated with the highest thermal resistance value under all test conditions. It may vary under different RF operating conditions, such as CW signals or pulsed RF signals.
u Continuous operation at the maximum junction temperature will affect MTTF.
|
Electrical characteristics (unless otherwise specified, TC = 25°C) |
||||||
|
direct-current characteristic |
||||||
|
characteristic |
symbol |
| ||||
