TTSKC01 Portable Drone monitoring equipment can locate position drone and pilot comprehensive drone detection platform VS DJI aeroscope mobile G8 G16 detect dji autel fpv mavic 900MHz 1.2GHz 2.4GHz 5.2GHz 5.8GHz
TTSKC01 portable drone detector is a briefcase style drone detection device/platform for drone monitoring.
It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home-point,controller location(longitude/latitude, azimuth, distance) etc.
TTSKC01 system works offline or online (optional). The drone detection sensor is easy to carry, deploy, and use via touch screen.
The TTSKC01 is a comprehensive drone detection platform that rapidly identifies UAV communication links, gathering information such as flight status, paths, and other information in real-time. Real-time
UAV monitoring can help in swift contingency measures. However, the TTSKC01 can detect DJI drones and other drones(Autel,parrot,WIFI,FPV,DIY drones) which use frequencies within 900MHz、1.2GHz、2.4GHz、5.2GHz、5.8GHz.The drone system
consists of a portable unit with antenna.
The Portable Unit a temporary and mobile drone detecting solution,the portable unit has antennas that can detect drones up to 10km. It is powered by two 20,000mAh batteries. Alternatively, the portable unit can also be plugged
into a power supply for continuous operation. The portable unit has the upper hand for mobile or emergency applications. It can even function offline making it useful for use during power outages. However, considering its weight it wouldn’t be quite as easy to carry around by one person.
RF sensing
900MHz、1.2GHz、2.4GHz、5.2GHz、5.8GHz
Detect various drones including DJI, WiFi, FPV models
1-10km (varies due to environment and drone model)
≥10 concurrent drones
~ 4 hours (running at 20°C)
Comparison(DJI Aeroscope Mobile VS TTSKC01)
| No. | Items | DJI Aeroscope mobile | TTSK01 Portable drone detector |
| 1 | IP Level | IP54 | IP65 |
| 2 | Reaction time | / | The test shows that the time to discover drone is more than 10 seconds faster than the DJI's. |
| 3 | Storage temperature | 22~30℃ | -40~70℃ |
| 4 | Working Range | 5km | 10km |
| 5 | Drones can be located | DJI Mavic、Air、Mini series | DJI Mavic、Air、Mini、FPV、Avata series |
| 6 | Operating temperature | -20~40℃ | -20~65℃ |
| 7 | battery | 2*4280mAh,6S | 2*20,000mah,6S |
| 8 | Working Time | / | 4h |
| 9 | Weight | 9kg | ≤20kg |
| 10 | Dimensions | 405*327*175mm | 520mm*415mm*224mm |
| 11 | Certifactes | CE | / |
1. Antenna
2. Display screen
3. Battery compartment
4. Power switch
5. Battery level display
6. GNSS antenna
7. Fan
8. USB interface × two
9. Ethernet interface
10. External power interface
Mechanics:
Removable battery*1
Power adapter*1
Host*1

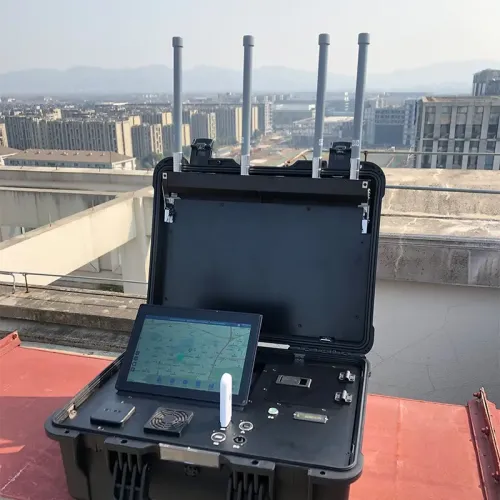

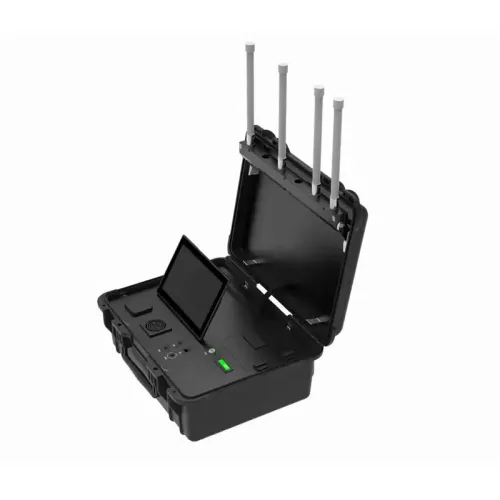

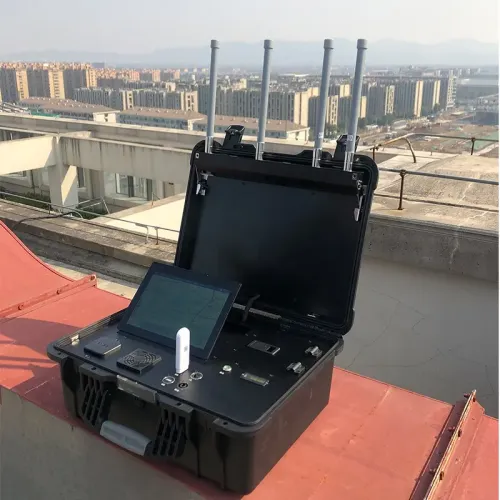

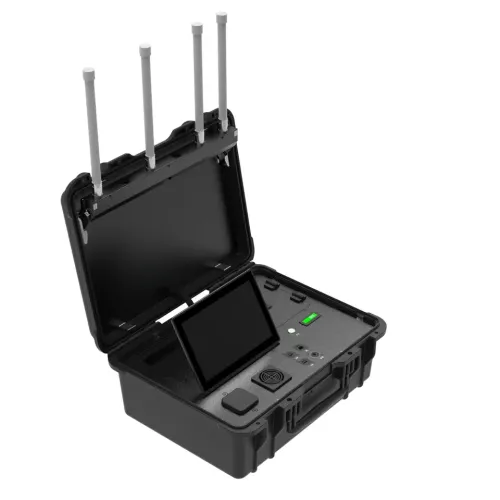

Real Photos:
While the popularity of consumer drones continues to increase, it has posed potential safety and security challenges for areas such as airports, prisons, nuclear power plants, and various government facilities and infrastructure. Traditional protections in these locations may not be able to adequately detect and monitor UAVs to prevent consequential incidents. TTSKC01 is able to identify the vast majority of popular drones on the market today by monitoring and analyzing their electronic signals to gain critical information, allowing users to protect the integrity of their flight-sensitive environment.
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
| Selling Units: | Single item |
| Single package size: | 60X50X50 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
