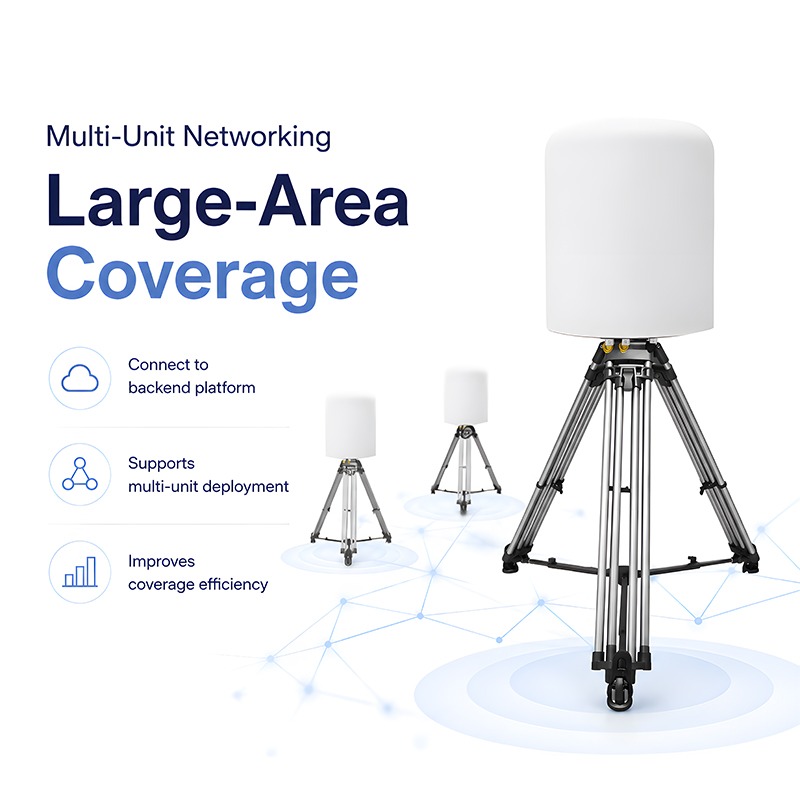

TTSK‑D01 is stationary signal detecting and locating equipment built for long-term outdoor setup. It receives UAV wireless signals passively to acquire device serial code, geographic coordinates, flying speed, takeoff point and remote controller location data. Supporting standalone offline running and multi-unit network grouping, it can connect with peripheral matching equipment to build complete regional protection setup. The unit works steadily round-the-clock under varied climate, widely adopted for important premises, airport surroundings and boundary site setup.
| Index | Parameter |
|---|---|
| Recognizable UAV Types | DJI, Autel, FPV, Xiaomi, Yuneec, Hubsan, Tello, homemade traversing & WiFi drones; Locatable DJI series: Mavic, Air, Mini, FPV, Avata |
| Detection Frequency Band | 100MHz–6000MHz |
| Effective Detection Distance | 1–10km (depends on site environment) |
| Detectable Flight Altitude | 0m–1000m |
| Simultaneous Detectable Targets | ≥5 sorties |
| Simultaneous Trackable Trajectories | ≥5 strips |
| Azimuth RMS Error | ≤1.5° |
| Positioning Accuracy | ≤10m |
| Detection Success Rate | ≥95% |
| Identification Response Time | ≤5s |
