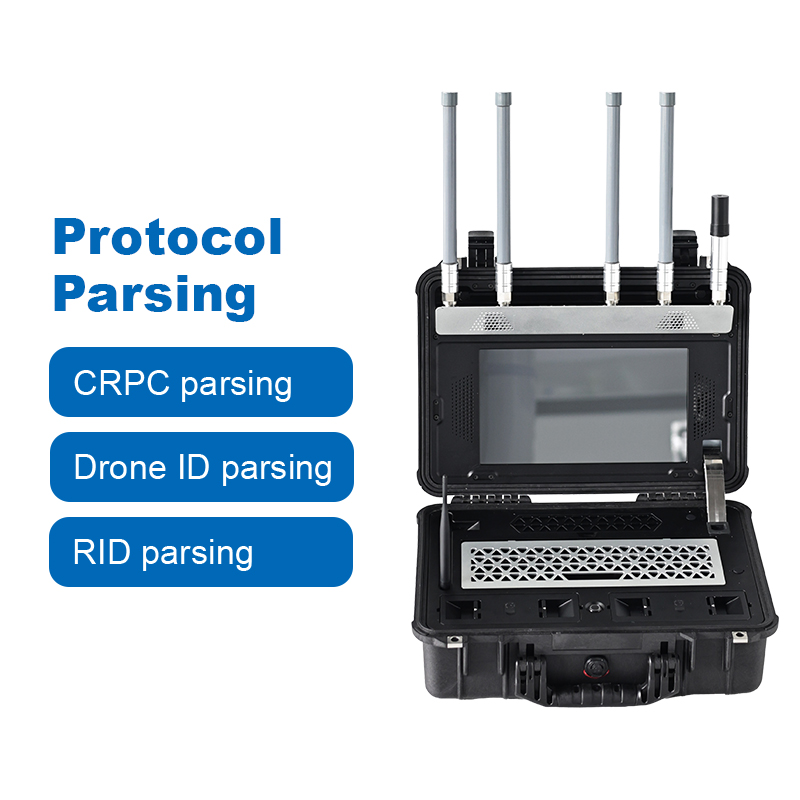

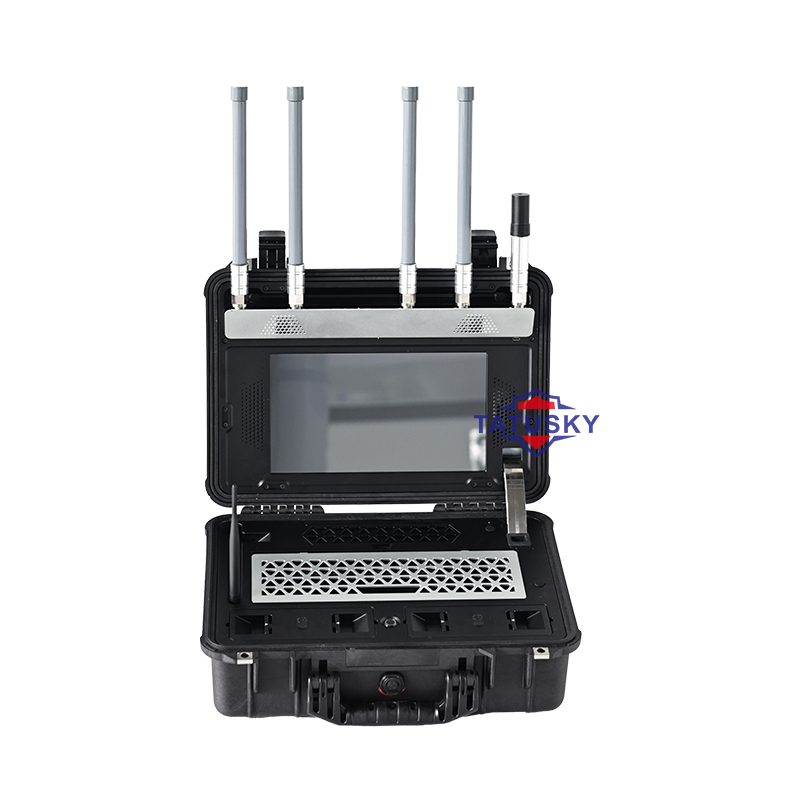

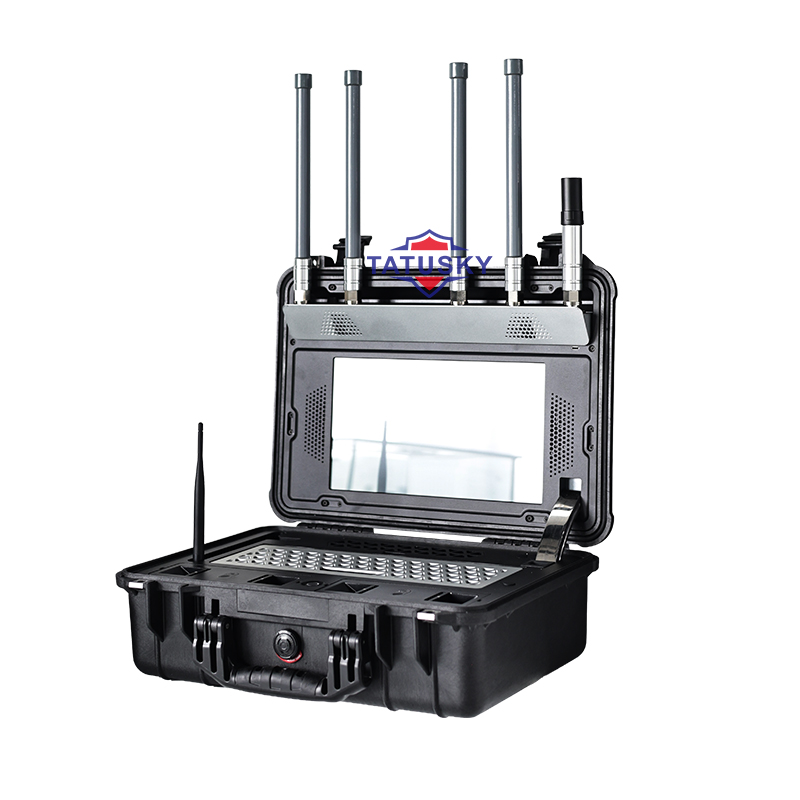

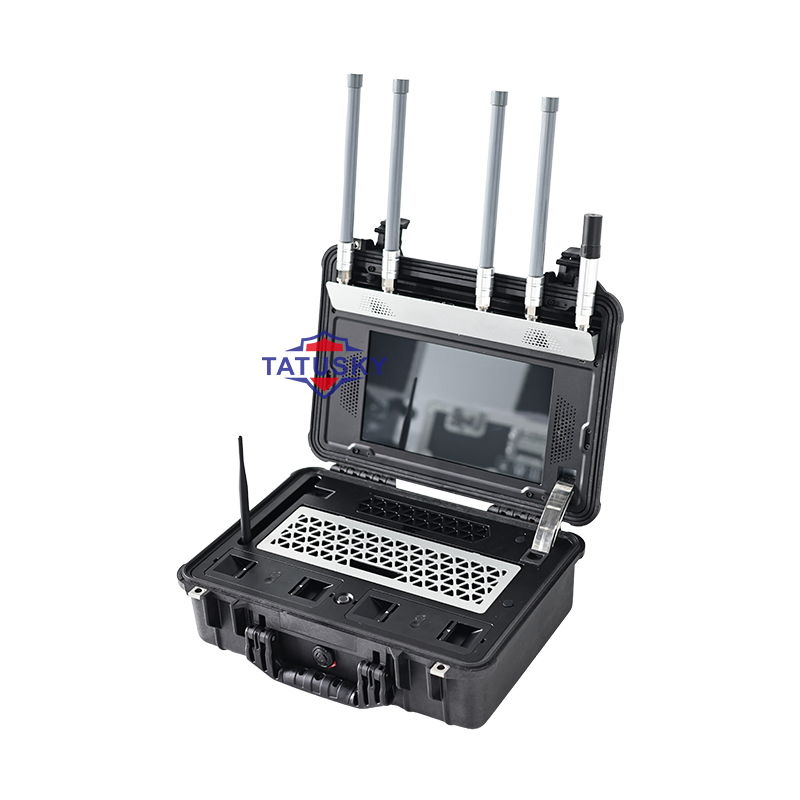

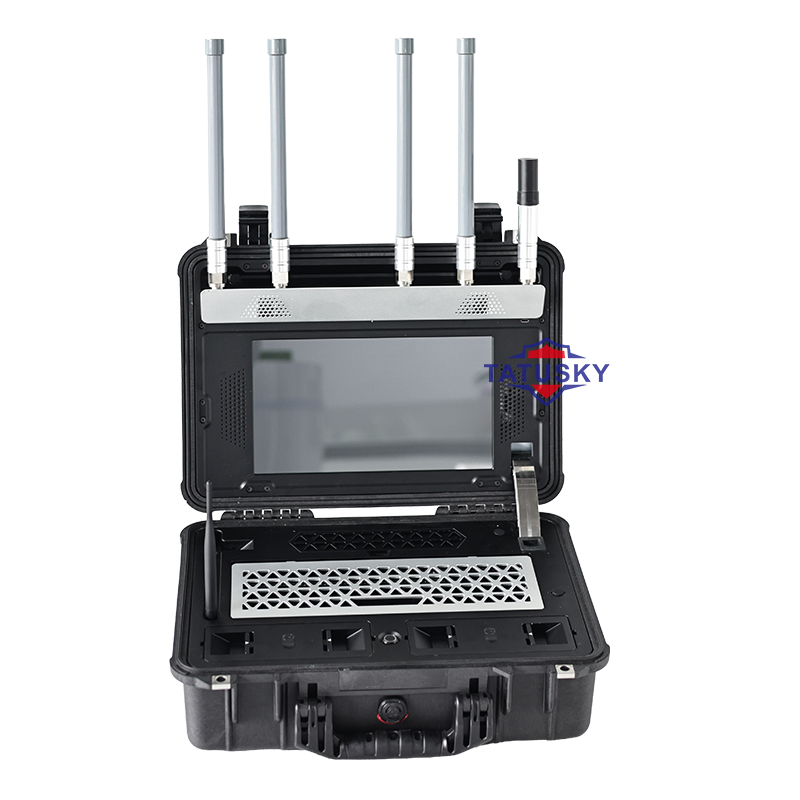

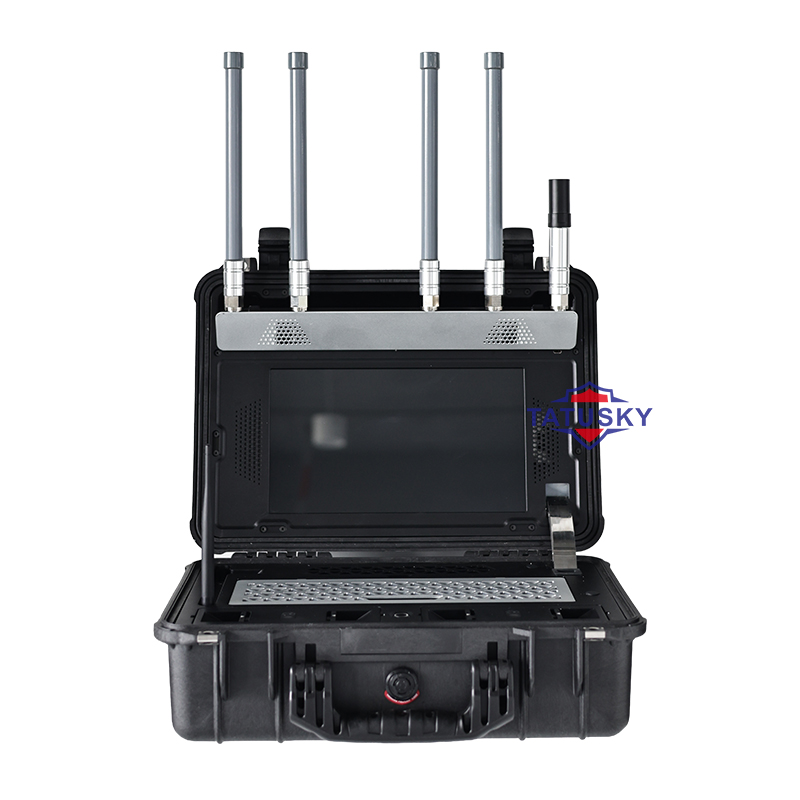

Compact and portable, the TTSK-DC01 is a handheld low-altitude drone detector built into an all-in-one suitcase design. Leveraging passive reception and protocol reverse engineering, it detects, identifies, captures images and tracks flight trajectories of UAVs. It features non-cooperative target detection, CRPC-based single-station positioning and blacklist/whitelist functions. With IP66 dust and water resistance, broad temperature adaptability and extended runtime, it is an ideal solution for low-altitude security in critical areas.
| Item | Specification |
|---|---|
| Model | TTSK-DC01 |
| Detection Principle | Passive receiving, no active radio signal emission |
| Detection Frequency | 100MHz–6GHz |
| Key Bands | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection Radius | CRPC/RID/Drone ID: 0–5km; 433MHz: 0–1.5km; 915MHz: 0–3km |
| Positioning | Protocol parsing & location, CRPC/RID/Drone ID parsing |
| Screen | 13.3-inch TFT LCD, 1920*1080 touch screen |
| Battery | 28.8V/9Ah×2, 259.2Wh×2 |
| Working Time | 6–7 hours (dual batteries) |
| Power | AC110V–240V adapter, lithium battery |
| Power Consumption | 71W (normal detection) |
| Size (Closed) | 470mm×357mm×176mm |
| Weight | 14.4 kg (with 2 batteries) |
| Operating Temp | -40℃~65℃ (adapter); -25℃~55℃ (battery) |
| Protection | IP66 (closed lid) |
