The TTSKL02P is a next-generation handheld drone detection and positioning device with enhanced capabilities for FPV drone detection. It is specifically designed to detect low-frequency FPV racing drones and can decode first-person-view (FPV) video transmission signals, enabling more effective threat awareness.
The device integrates drone spectrum detection, communication protocol analysis, Remote ID (RID) identification, and regulatory compliance functions into a single portable unit. With a lightweight design of approximately 650 g, it delivers real-time detection and early warning for 900 MHz-series drones, while accurately locating and tracking both UAVs and their operators (remote controllers).
Featuring a compact form factor, long battery life, and user-friendly operation, the TTSKL02P is ideal for a wide range of low-altitude security, defense, and counter-UAS applications, including mobile patrols and rapid deployment scenarios.
Accurately locates detected drones and displays their positions as drone icons on the electronic map (e-map) in real time.
Identifies and locates drone remote controllers (pilots), with their positions clearly shown as controller icons on the e-map.
Capable of detecting and identifying homemade FPV racing drones, with real-time analysis and decoding of FPV video transmission signals.
Automatically generates and displays navigation routes to guide operators in tracking and approaching drone pilots, ensuring efficient and user-friendly operation.
Supports identification of DJI drones using the OcuSync protocol, drones equipped with Remote ID (RID), and Wi-Fi drones with unique serial number (SN) recognition.
Provides real-time visualization of detailed drone and pilot data, including drone model, geographic coordinates, speed, altitude, pilot location, and more.
Supports customizable blacklist and whitelist settings. No alarm will be triggered when a whitelisted drone is detected.
Delivers immediate alerts through audible alarms or vibration upon drone detection.
Supports playback of historical flight trajectories, enabling effective post-incident analysis and review.
Automatically stores detection records for traceability, including serial number (SN), drone model, frequency band, and other key parameters.
Available in English, Chinese, Russian, and Portuguese.
Note: In [1] - [8], The positioning UAV is the OcuSync transmission model of DJI series. [9] GB 42590-2023、ASTM F3411 Remote ID、ASD-STAN prEN 4709-002
Technical Parameters
|
Item |
Performance Index |
Indicator Parameters |
Remarks |
|
1 |
Detection frequency band |
100MHz～6GHz |
|
|
2 |
Detection radius |
1.5~2km (urban environment) 2~3km (open area environment) |
|
|
3 |
Response time |
3~ 5s |
|
|
4 |
Positioning range |
1~2km (urban environment) 2~ 3km (open area environment) |
|
|
5 |
Detect the quantity |
≥10 sorties (simultaneously) |
|
|
6 |
Time of endurance |
3~ 4h |
|
The L02 can detect and identify a wide range of drones, including DJI drones, Remote ID (RID) compliant UAVs, Wi-Fi drones, FPV drones, and various commercially available drone models operating within the supported frequency range.
The typical detection range is up to 1.5–2 km in urban environments and 2–3 km in open areas. Actual performance may vary depending on the surrounding electromagnetic environment and terrain conditions.
Yes. The L02 supports drone positioning and operator (remote controller) positioning for compatible drone models, allowing users to view locations on the built-in electronic map.
No. The L02 uses passive detection technology, which means it only receives and analyzes signals without transmitting any radio signals, ensuring discreet operation and minimal environmental impact.
The device supports drone signal detection across a wide frequency range from 100 MHz to 6 GHz, covering most common commercial drone communication frequencies.
Yes. The system can detect and identify FPV drones and supports real-time analysis of FPV video transmission signals from compatible systems.
Yes. The L02 supports Remote ID awareness and can identify drones that comply with RID standards, helping users obtain relevant identification information.
The L02 can detect and monitor 10 or more drones simultaneously, making it suitable for complex environments where multiple UAVs may be operating at the same time.

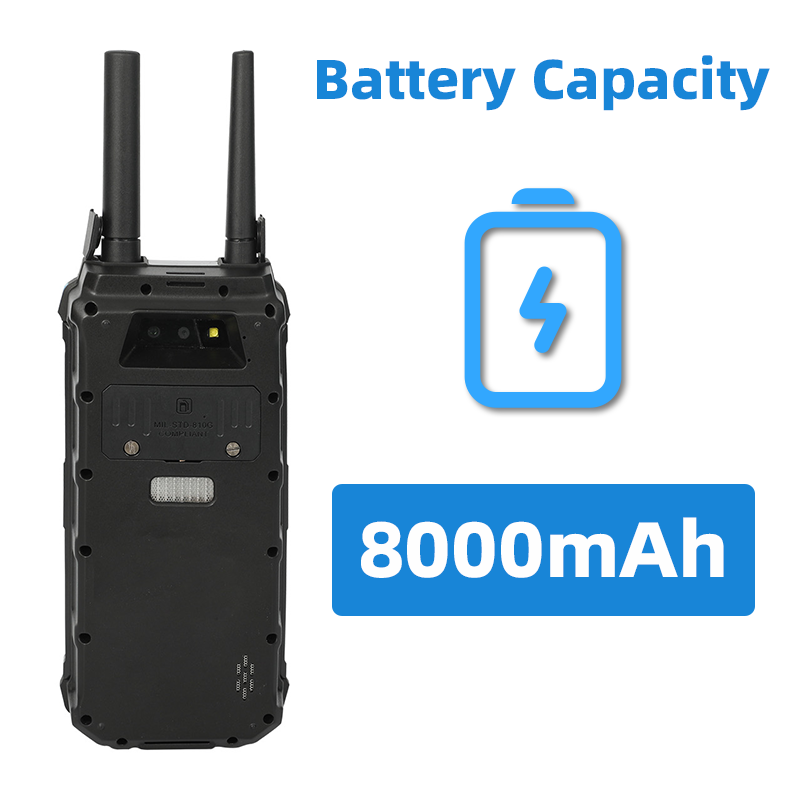

The built-in 8000 mAh battery provides approximately 4–6 hours of continuous operation, depending on screen brightness, usage conditions, and environmental factors.
The device can display various details, including drone model, serial number (for supported drones), location coordinates, altitude, speed, flight path, operator location, and historical detection records.
