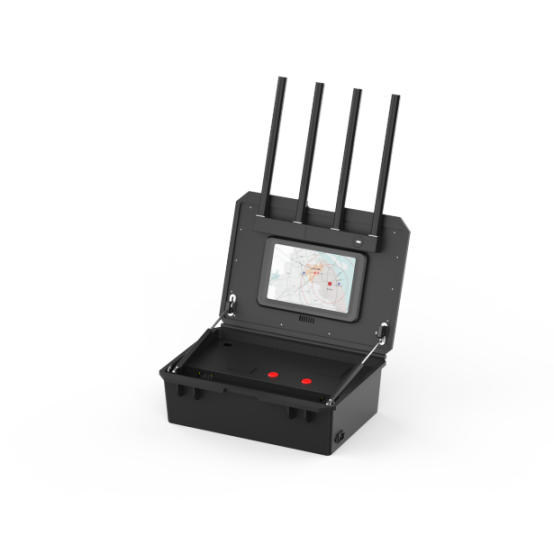

Portable UAV detection And Positioning Integrated System
With a detection range of up to 5 km, it effectively monitors nearby drones.
By deeply analyzing drone signals and mining data, the device can detect multidimensional information in real time — including serial number (SN), model, position, speed, altitude, takeoff and return points, flight path, and even the operator’s location.
It supports both standalone and networked deployment, with rapid setup and touchscreen control for easy use.
|
Feature |
Specification |
|
Detection Frequency Range |
70MHz–6GHz (Focus: 400MHz, 850MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz) |
|
Supported Drone Models |
Over 300 models including DJI, AUTEL, FPV, DIY, and WiFi-based UAVs |
|
Simultaneous Detections |
≥ 20 drones |
|
Detection Rate |
≥ 99.99% |
|
Drone Data Extractable |
SN, model, position, speed, altitude, takeoff/return points (Remote ID/DJI ID) |
|
Blacklist/Whitelist |
Supports UAV fingerprint recognition and classification |
|
Detection Range |
5 km (depending on environment and UAV type) |
|
Dimensions (L×W×H) |
50 mm × 420 mm × 220 mm |
|
Battery Life |
6 hours (supports 24-hour use with external power supply) |
|
Operating Temperature |
-20°C to +65°C |
