Portable GNSS Spoofing Gun for Drones – Multi-Mode Spoofing, 5km Detection, Foldable Antenna & Rapid Deployment

Portable Integrated Drone Detection & Spoofing Device

Model:TTSKC06

1. Product Introduction

The Portable Integrated Drone Detection & Spoofing System merges long-range UAV reconnaissance with wide-area navigation deception capabilities into a single, compact unit. Engineered for exceptional mobility, the system requires no complex setup or calibration. It can be easily carried and operated by a single user to establish reliable low-altitude security coverage for designated areas. Offering a highly effective, all-in-one, and field-deployable counter-drone solution, this system is ideal for military operations, law enforcement, aviation security, critical energy infrastructure, and large-scale public events.

2. Key Features

(1) Precision Drone Identification
Utilizes cutting-edge recognition algorithms to accurately differentiate between drones, even those sharing the same brand, model, or operating frequency.

(2) Multi-Band GNSS Spoofing
Capable of emulating multiple satellite navigation systems to generate convincing GNSS interference signals, thereby greatly increasing the effectiveness of spoofing attacks.

(3) Intelligent Response Mechanism
Upon detecting an unauthorized drone, the system autonomously transmits deceptive signals to either initiate a forced landing or actively expel the target from the protected perimeter, ensuring robust airspace security.

(4) Extensive UAV Database Compatibility
Supports identification of a broad spectrum of drone types and manufacturers, including DJI, AUTEL, FPV models, Wi-Fi-enabled drones, and custom-built DIY aircraft.

(5) Rapid Deployment & User-Friendly Interface
Features foldable antenna connectors for compact storage and quick setup. Equipped with swappable batteries for uninterrupted field operation. A large touchscreen interface enables intuitive control and real-time visual monitoring.

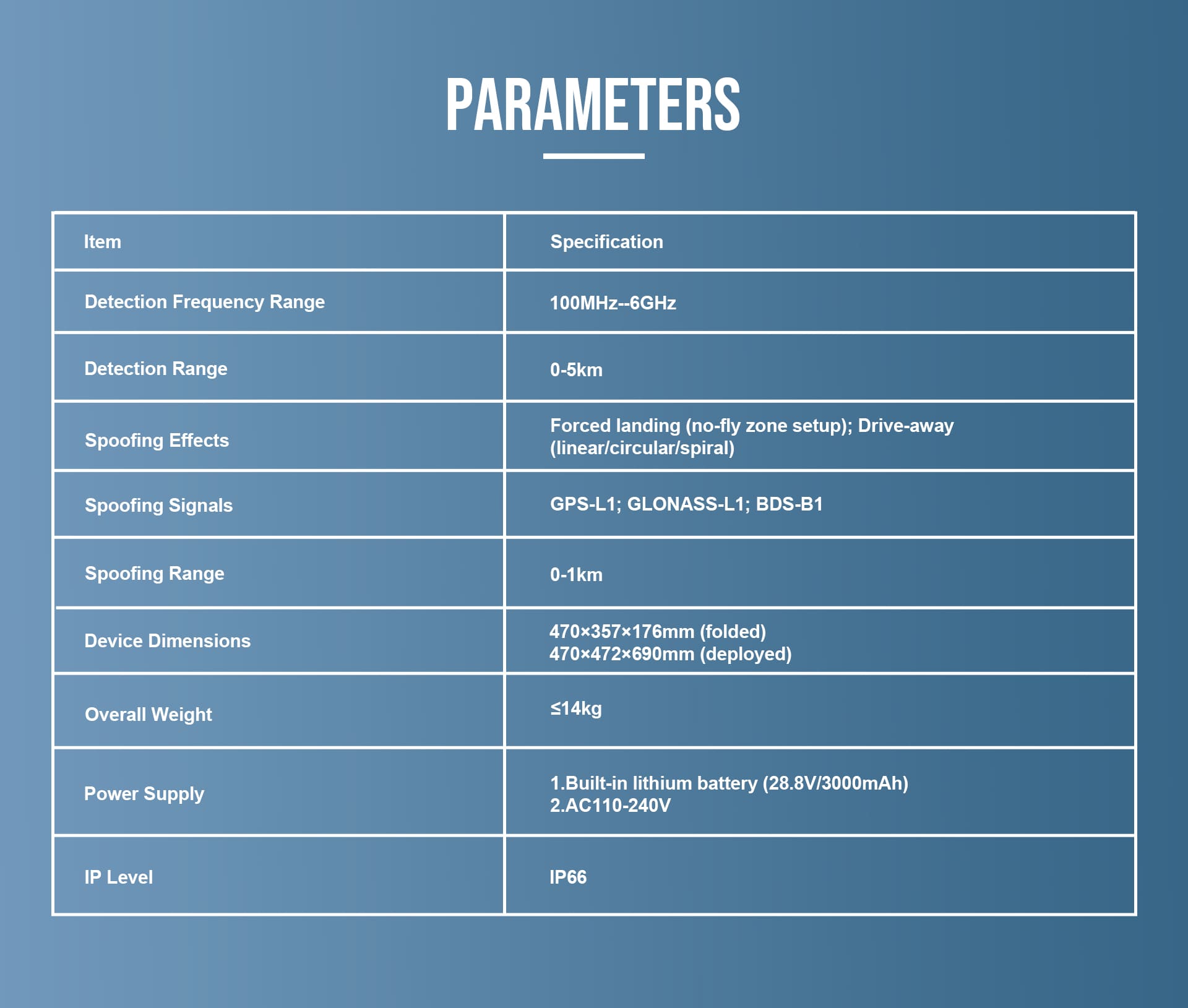

3.Key Parameters

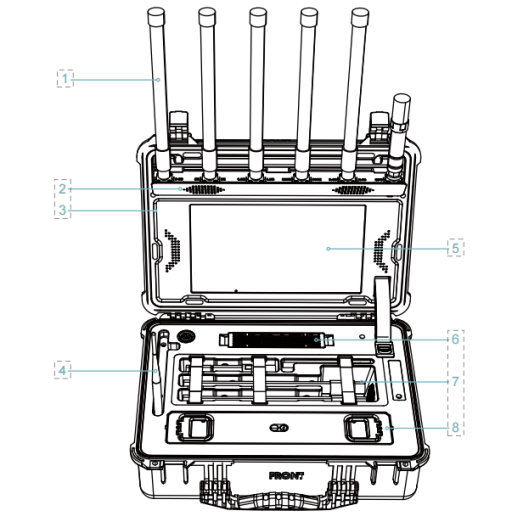

4.Device Diagram

5.Company Product

6. FREQUENTLY ASKED QUESTIONS (FAQs)

1. Q: Which drone types are supported for detection?
A: The system identifies a wide range of UAVs, including mainstream brands like DJI and AUTEL, as well as FPV drones, Wi-Fi-enabled models, and custom-built DIY aircraft.

2. Q: What is the detection frequency range and maximum distance?
A: It covers 100MHz to 6GHz with a maximum detection range of up to 5km. Actual performance may vary depending on drone model and environmental conditions.

3. Q: What spoofing signals are available, and what tactics can be executed?
A: The device supports GPS-L1, GLONASS-L1, and BDS-B1 spoofing signals. It enables forced landing or three types of evasive maneuvers: straight-line, circular, and spiral drive-away.

4. Q: Is the spoofing range adjustable?
A: Yes. The default spoofing range is 0–1km, and it can be customized based on specific low-altitude defense requirements.

5. Q: How portable is the system? Can it be operated by one person?
A: Absolutely. With a total weight (including battery) of ≤14kg, foldable antennas, quick-release battery, and an intuitive large touchscreen, the system is designed for single-operator deployment with no complex setup required.

6. Q: What are the power options and battery life?
A: The unit supports dual power sources: a built-in 28.8V/3000mAh lithium battery and AC110–240V mains input. The battery is hot-swappable, allowing for continuous operation through quick replacement.

7. Q: What is the ingress protection rating, and when is it effective?
A: The device is rated IP66 (dust-tight and protected against powerful water jets). Protection is effective when the unit is powered off.

8. Q: How does the system autonomously respond to drone intrusions?
A: Upon detecting an unauthorized UAV, the device automatically transmits multi-band GNSS spoofing signals to force a landing or initiate trajectory-based eviction—without requiring manual intervention.
