Portable Passive Drone Detector 100MHz-6GHz Frequency Range Single Station CRPC Positioning Non-cooperative Target Detection with Blacklist Whitelist Function 6-7H Long Battery Life IP66 Protection

Portable Passive Drone Detector 100MHz-6GHz Frequency Range Single Station CRPC Positioning Non-cooperative Target Detection with Blacklist Whitelist Function 6-7H Long Battery Life IP66 Protection

Name: Portable Passive Drone Detector 100MHz-6GHz Frequency Range Single Station CRPC Positioning Non-coop
Brand: Anti-Drone System Solution
SKU: 03426
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 03426

The DC01 is a compact handheld low-altitude detector with high integration and simple operation.

Detection Principle:

Passive Detection
Detection Range:

100MHz～6GHz
Key Frequency Bands:

433MHz、900MHz、1.4GHz、2.4GHz、5.2GHz、5.8GHz
Positioning Method:

Protocol parsing and location
Protocol Parsing:

CRPC parsing

Drone ID parsing

RID parsing
Screen Size:

A 13.3-inch LCD screen with a resolution of 1920*1080

using TFT technology.
Battery Capacity:

28.8V/9Ah x 2

259.2Wh x 2
Power Supply:

Lithium battery; Power adapter supports input voltage AC110V～240V
Operating Power Consumption:

Detection conditions: 71W (normal operating environment)
Equipment Weight:

14.4 kg(Includes two lithium batteries)

Request Quote Contact Us PDF Format

Description Review

Description

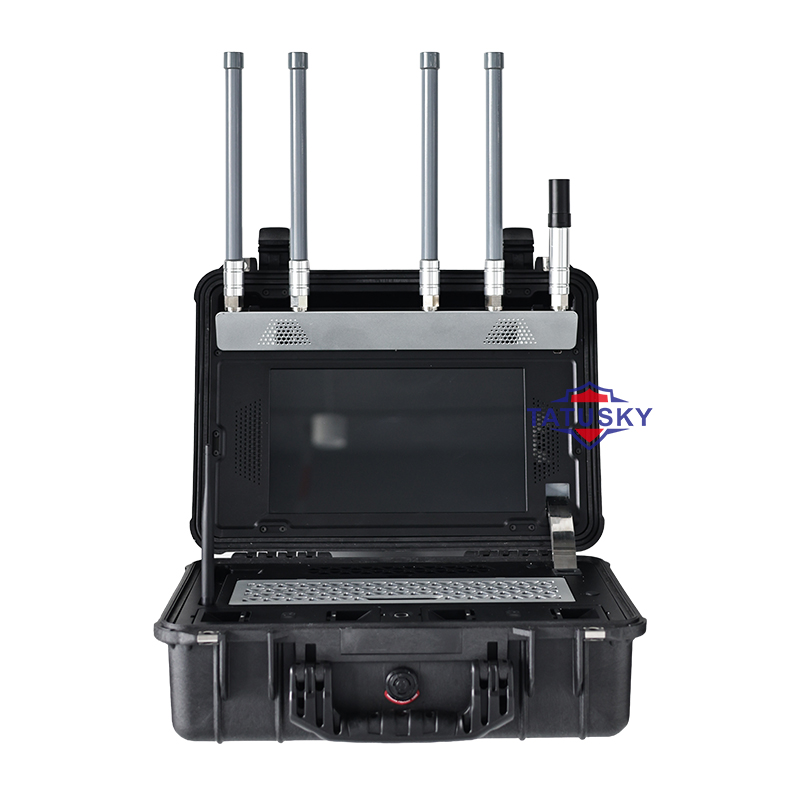

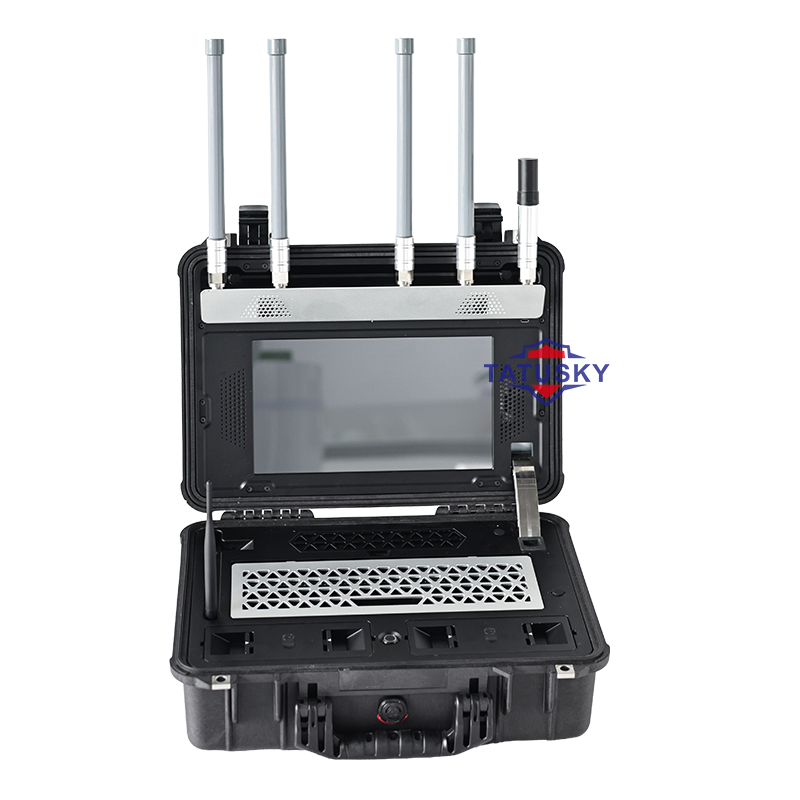

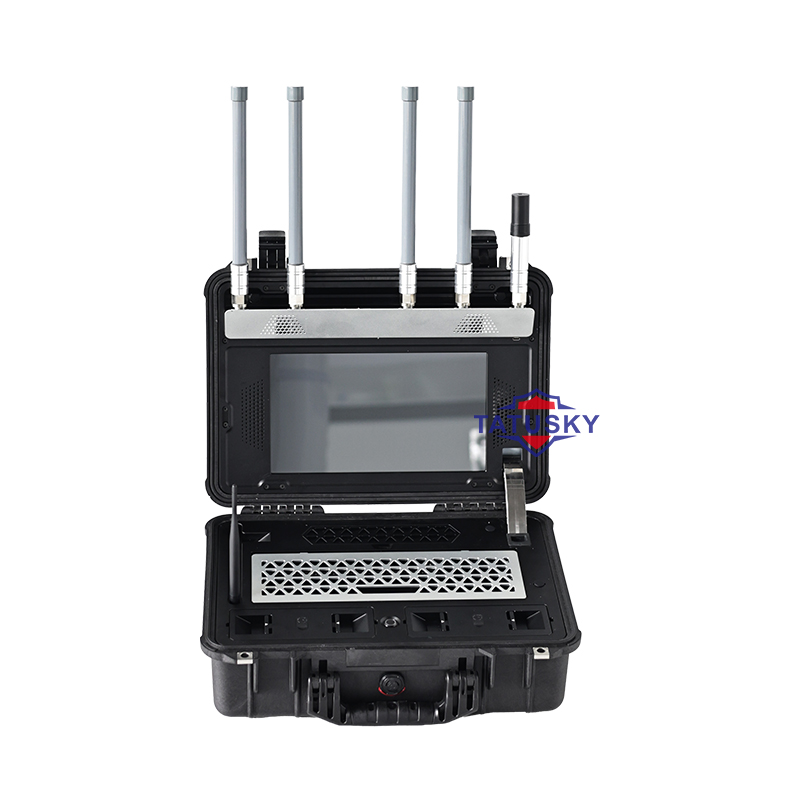

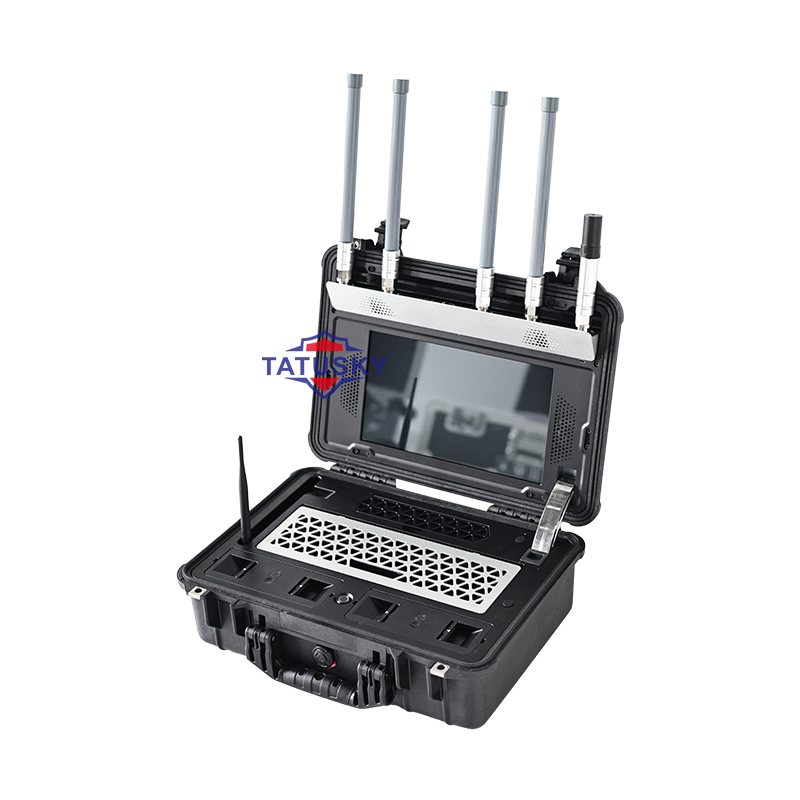

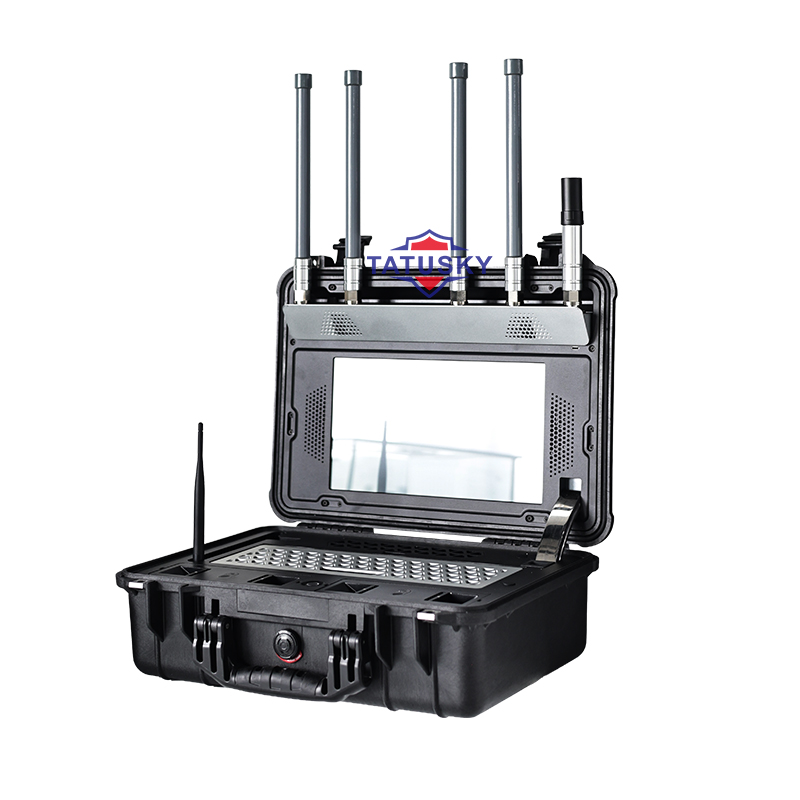

TTSK-DC01 Portable Passive Drone Detection Equipment

Advanced Handheld UAV Detection & Tracking System for Low-Altitude Airspace Security

Product Overview

The TTSK-DC01 is a portable portable low-altitude drone detector built into a highly integrated suitcase design. Utilizing passive signal reception and protocol reverse engineering, it enables passive UAV detection, precise identification, image capture and trajectory tracking. It also supports non-cooperative target detection, CRPC-based single-station positioning, as well as blacklist and whitelist management. Featuring an IP66 rating, wide operating temperature range and long battery life, it is widely deployed for low-altitude security at key locations.

Key Features

- - Passive Detection
    Receive signals only, no radiation, highly stealthy.
  - Precise Identification
    Pinpoint drone brand, model, frequency and fuselage ID.
  - Non-Cooperative Target Detection
    Full detection, identification and positioning of non-cooperative UAVs.
  - Single-Station Navigation-Grade Positioning
    High-precision positioning powered by CRPC.
  - Blacklist & Whitelist
    One-key configuration, permanent records, power-off data retention.
  - High Portability
    Lightweight suitcase design, easy to carry and deploy.

Technical Specifications

Item	Specification
Model	TTSK-DC01
Detection Principle	Passive receiving, no active radio signal emission
Detection Frequency	100MHz–6GHz
Key Bands	433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Radius	CRPC/RID/Drone ID: 0–5km; 433MHz: 0–1.5km; 915MHz: 0–3km
Positioning	Protocol parsing & location, CRPC/RID/Drone ID parsing
Screen	13.3-inch TFT LCD, 1920*1080 touch screen
Battery	28.8V/9Ah×2, 259.2Wh×2
Working Time	6–7 hours (dual batteries)
Power	AC110V–240V adapter, lithium battery
Power Consumption	71W (normal detection)
Size (Closed)	470mm×357mm×176mm
Weight	14.4 kg (with 2 batteries)
Operating Temp	-40℃~65℃ (adapter); -25℃~55℃ (battery)
Protection	IP66 (closed lid)
