1. Introduction
As low-altitude security concerns grow increasingly severe, incidents of unauthorized intrusion, malicious surveillance, and privacy violations occur frequently, posing serious risks to national security, public safety, and personal privacy. Therefore, developing efficient and advanced low-altitude protection equipment has become an urgent requirement for maintaining airspace security and ensuring social stability.
2. Product Overview

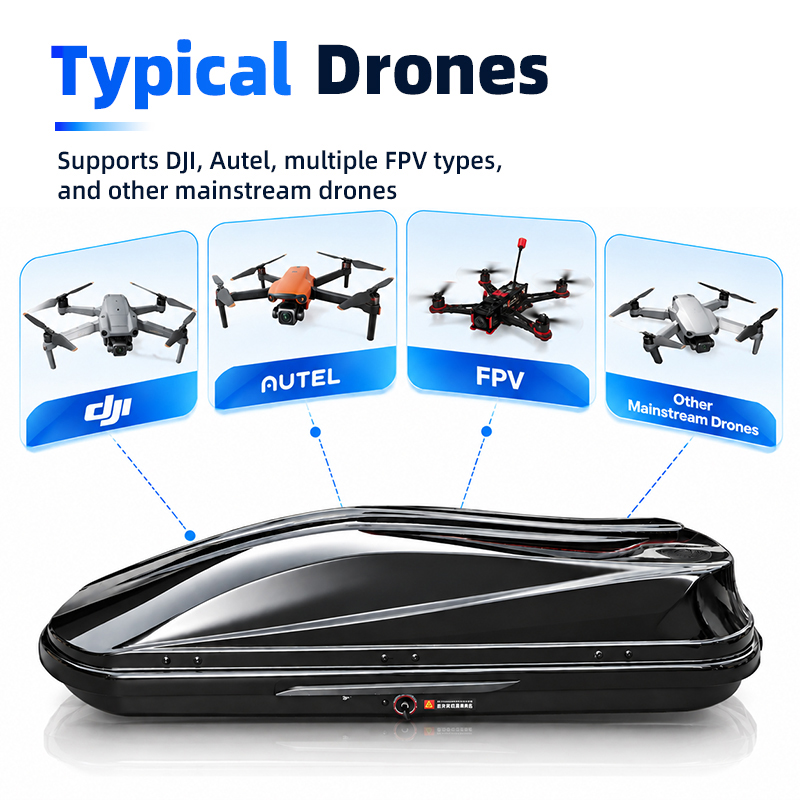

The pure-detection vehicle-mounted suitcase is a vehicle-mounted radio detection product. It integrates spectrum detection, RID, and protocol decoding detection capabilities to effectively identify DJI, Autel, various FPV, and other unauthorized drone targets. With a discreet appearance and flexible configuration options, it is suitable for low-altitude surveillance and high-end protection applications.
3. Product Features
1) Cloud-Based Display & Control: integrating detection and positioning capabilities, the display and control content is cloud-based, enabling security monitoring on tablets and smartphones.
2) Drone & Pilot Positioning: Precisely locates DJI drones and remote controllers using OcuSync2, OcuSync3, OcuSync4 communication protocols.
3) Intrusion Alert: When an intruding drone is detected, the device provides audible and visual alerts.
4) Drone Identification: After startup, the device enters detection mode; when a target drone is detected, the detection list displays the drone manufacturer, frequency, and other information.
5) Logging: Records historical detection target data.

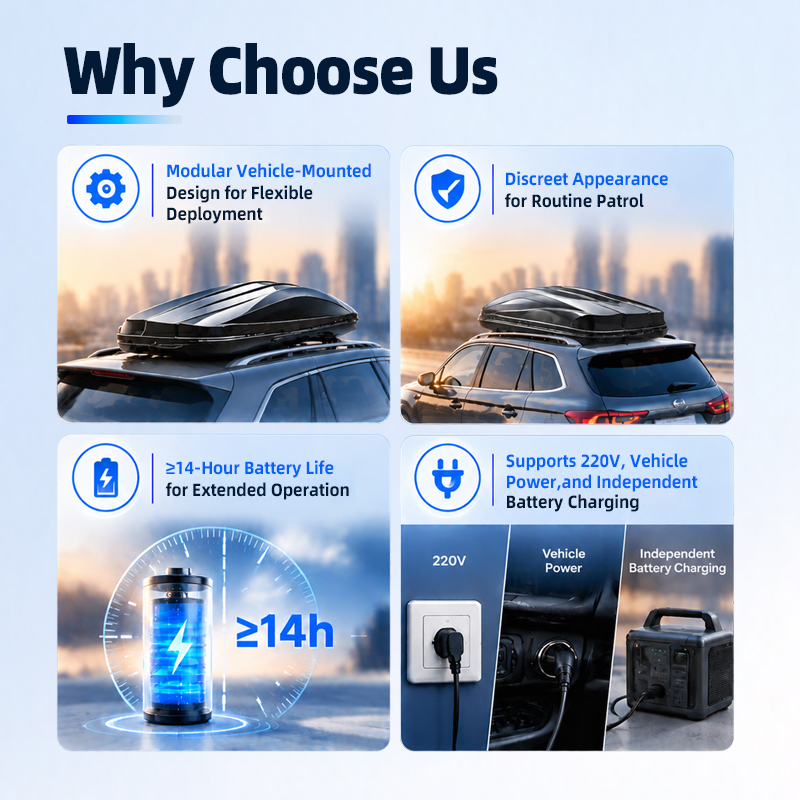

6) Discreet Appearance: The device exterior carries no identifiable features.
4. Equipment Specifications
|
No. |
Item |
Specification |
Remarks |
|
1 |
Band Detection |
Correctly reports the video transmission signal band of drones |
|
|
2 |

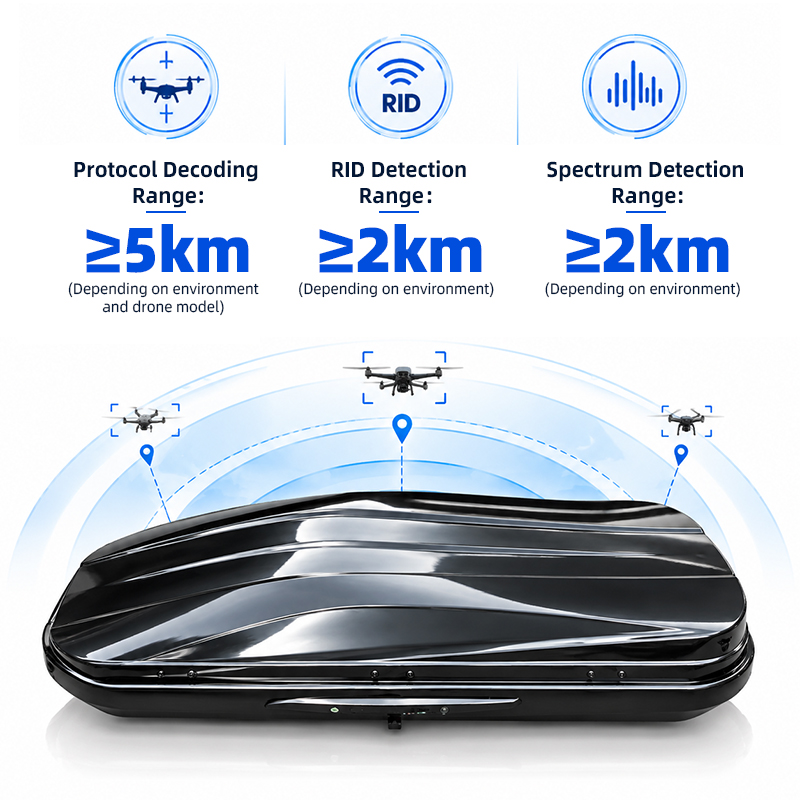

Protocol Decoding |
DJI O2, O3, O4 drone protocol decoding; accurately obtains drone coordinates, serial number, pilot position, and other information |
|
|
3 |
RID |
Correctly parses national-standard (GB) RID messages in Wi-Fi signals |
|
|
4 |
Alarm Function |
Audible and visual alarm |
|
|
5 |
Detection Bands |
845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 4.5GHz, 5.2GHz, 5.8GHz |
|
|
6 |
GPS Positioning |
Capable of positioning the device's own location |
|
|
7 |

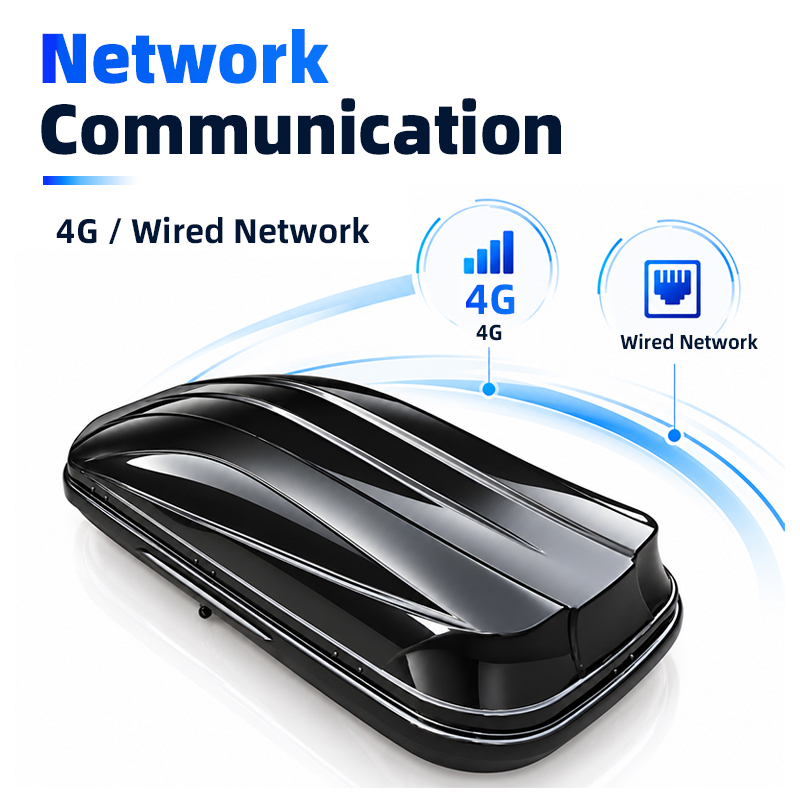

4G Network Communication |
Supports network access via SIM card |
|
|
8 |
Battery Power |
Battery level display; charging time ≤6h |
Depends on environment and drone model |
|
9 |
Battery Life |
No less than 14h |
|
|
10 |
Charging Method |
Supports 220V charging, vehicle power outlet charging, and independent battery charging |
|
|
11 |
Logging |
Records detected drone information, including: SN code, model, manufacturer, band, distance, altitude, latitude/longitude, etc. |
|
|
12 |
Whitelist Function |
1) Allows adding detected targets to, or removing them from, the whitelist; 2) Allows adding undetected drones to, or removing them from, the whitelist by SN code; 3) The device does not trigger alarms for whitelisted targets; alarms stop immediately once a drone is added to the whitelist |
|
|
13 |
Target Reporting |
Correctly reports decoded targets, RID targets, and spectrum targets |
|
|
14 |
Dedicated Vehicle Device Icon |
The map correctly displays the icon and device ID of the pure-detection vehicle-mounted suitcase |
|
|
15 |
Driving Route Display |
Records and plots the route traveled by the vehicle carrying the device |
