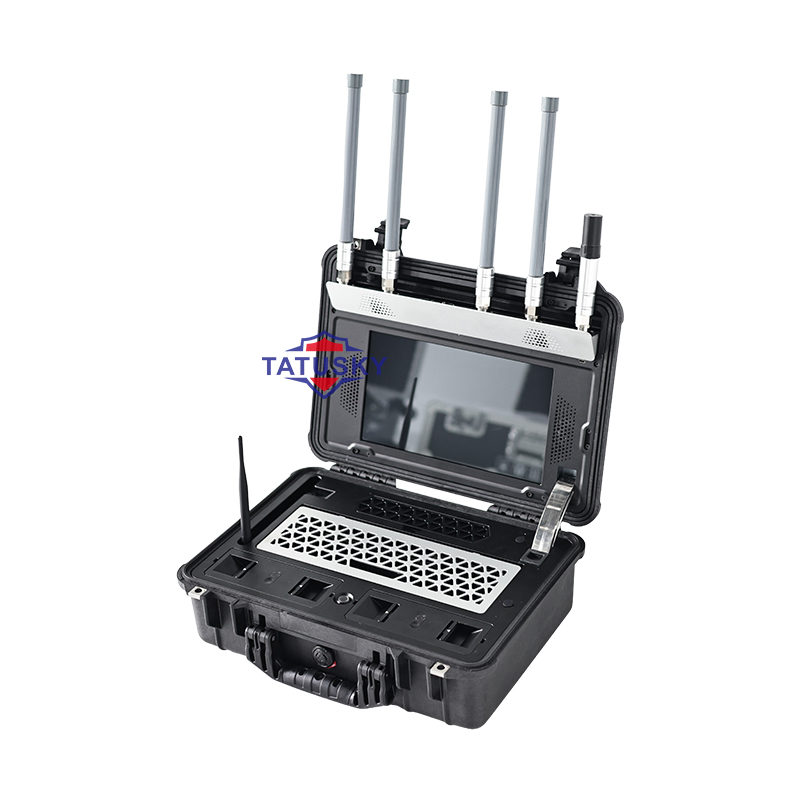

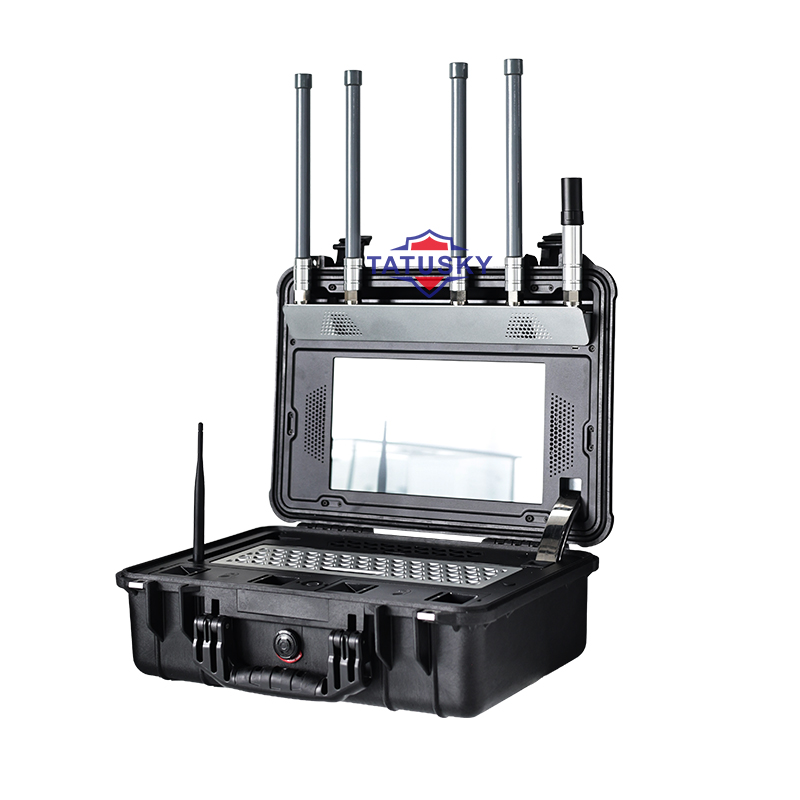

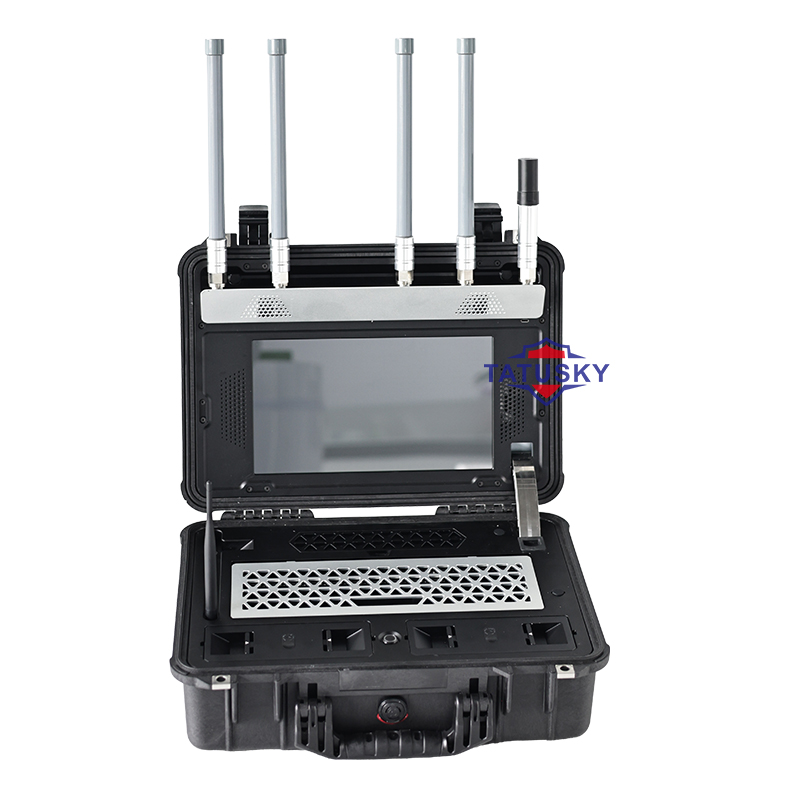

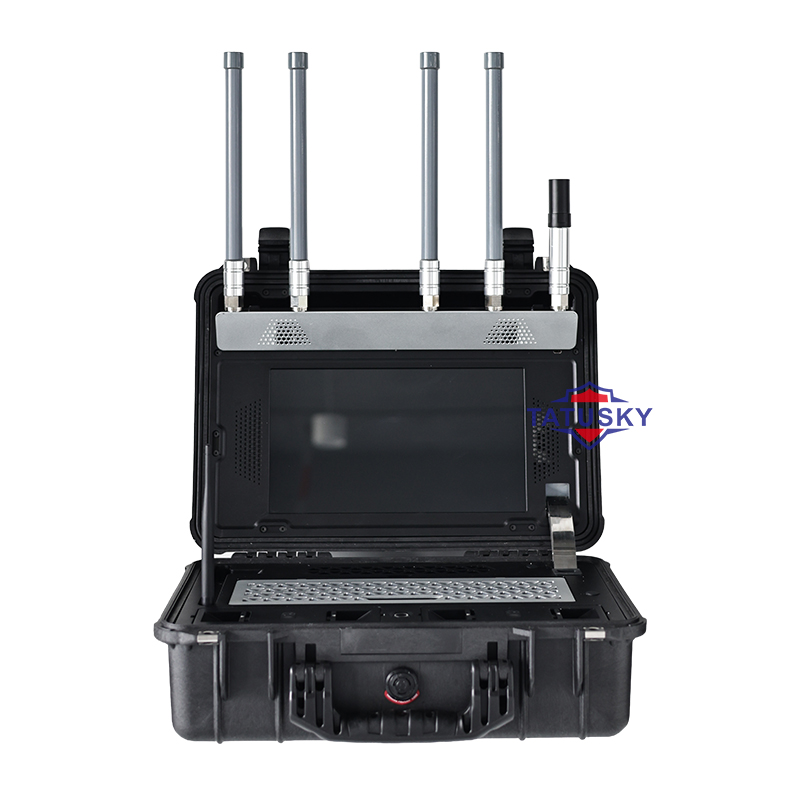

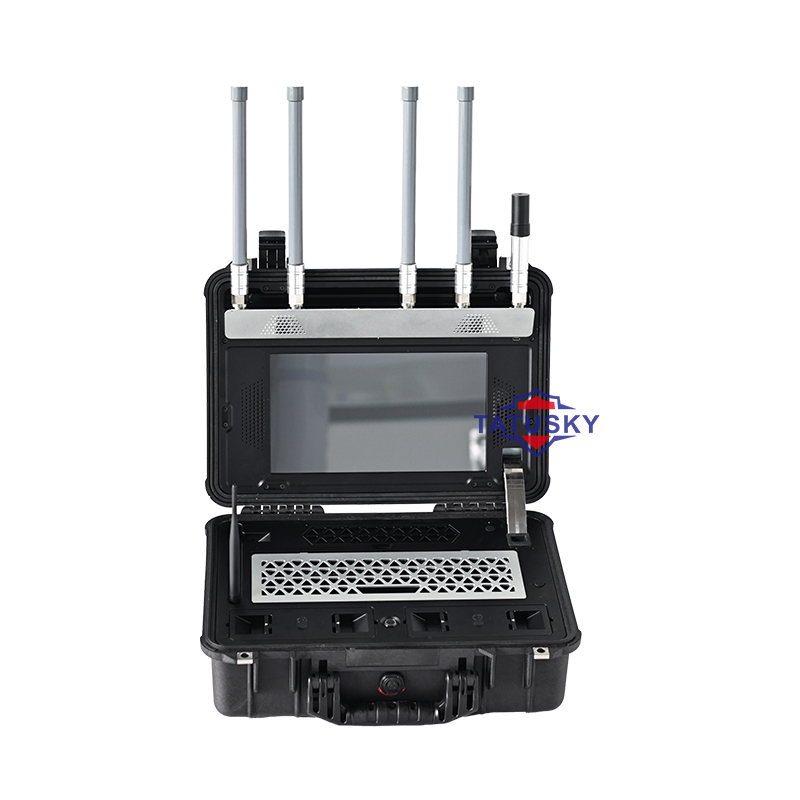

TTSK-DC01 is a mobile, handheld low-altitude drone detection device with highly integrated suitcase design. Adopting passive receiving technology and protocol reverse engineering, it realizes UAV passive detection, accurate identification, image capture and trajectory tracking. It supports non-cooperative target detection, single-station positioning based on CRPC technology, and blacklist/whitelist management. With IP66 protection, wide temperature range and long battery life, it is widely used in important places for low-altitude security protection.
| Item | Specification |
|---|---|
| Model | TTSK-DC01 |
| Detection Principle | Passive receiving, no active radio signal emission |
| Detection Frequency | 100MHz–6GHz |
| Key Bands | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection Radius | CRPC/RID/Drone ID: 0–5km; 433MHz: 0–1.5km; 915MHz: 0–3km |
| Positioning | Protocol parsing & location, CRPC/RID/Drone ID parsing |
| Screen | 13.3-inch TFT LCD, 1920*1080 touch screen |
| Battery | 28.8V/9Ah×2, 259.2Wh×2 |
| Working Time | 6–7 hours (dual batteries) |
| Power | AC110V–240V adapter, lithium battery |
| Power Consumption | 71W (normal detection) |
| Size (Closed) | 470mm×357mm×176mm |
| Weight | 14.4 kg (with 2 batteries) |
| Operating Temp | -40℃~65℃ (adapter); -25℃~55℃ (battery) |
| Protection | IP66 (closed lid) |
FAQ
Q: Does the TTSK-DC01 produce electromagnetic radiation?
A: No. Passive reception only, zero active transmission — safe and highly concealed.
