TTSK-DW01 Professional Handheld UAV Detection System
Product Overview
The TTSK‑DW01 is a professional tactical handheld UAV detection device built for high-demand security missions. It achieves full-band monitoring from 0MHz to 8000MHz, identifies both commercial OFDM drones and FPV racing drones, and supports real-time analog video capture. With directional antenna location, triple alarm, countermeasure linkage, IP54 rugged design, wide temperature resistance, 7-hour long battery and 35W fast charging, it provides reliable on-the-move UAV detection for public security, emergency response, military patrol, major event protection and confidential site perimeter security.
Key Features
- Professional Full-Band Monitoring：0MHz–8000MHz ultra-wideband, 1MHz precision stepping.
- Dual-Mode Signal Identification：Recognizes OFDM digital & FPV analog drone signals.
- Tactical Video Capture：Real-time FPV analog video interception, internal/external screen display.
- Precision Direction Finding：Directional antenna locates drone signal source rapidly.
- Tactical Alarm Control：Mute / vibration / audio three-level adjustable top knob.
- Detect-Counter Integration：Magnetic port links to countermeasure equipment for tactical system.
- Extreme Environment Adaptable：-20℃ ~ +60℃ operating temperature for harsh field use.
- IP54 Rugged Protection：Waterproof, dustproof, anti-collision for tough missions.
- High-Power Rapid Charging：35W fast charge, 1-hour full charge for continuous mission.
- Mission-Long Endurance：2900mAh replaceable battery, up to 7 hours working time.
- Bluetooth Wireless Transmission：Real-time data push to command terminal.
- Ergonomic Portable Design：≤580g lightweight, single-hand tactical operation.
Technical Specifications
| Parameter |
Specification |
Remarks |
| Model |
TTSK-DW01 |
|
| Detection Frequency Band |
0MHz–8000MHz |
Lab test data |
| Video Interception |
0MHz–8000MHz Analog Image Transmission |
|
| Target Recognition |
OFDM HD Image Transmission, FPV Racing Drone Signal |
|
| Detection Range |
Max. 1km |
Related to antenna & environment |
| Alarm |
Visual, Audible, Vibration |
|
| Power |
2900mAh Removable Battery |
|
| Endurance |
≥7 Hours |
|
| Charge |
35W Fast Charging, Type-C |
|
| Operation Temperature |
-20℃ ~ +60℃ |
|
| Protection Level |
IP54 |
|
| Net Weight |
≤580g (with battery) |
|
| Product Size |
≤164×44×68mm (main unit) |
|
| Communication |
Magnetic Port, Bluetooth |
|

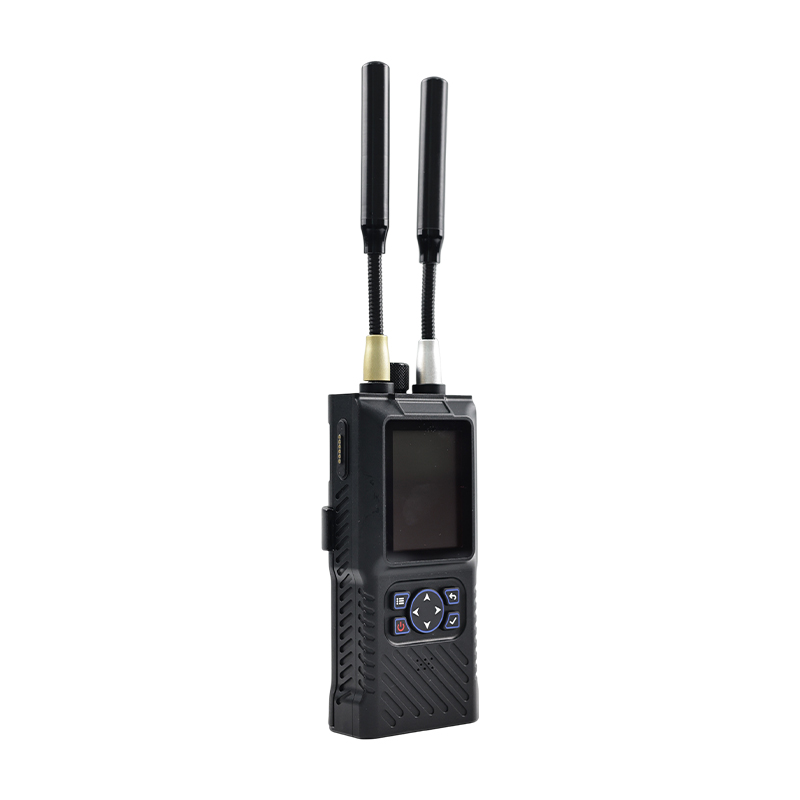

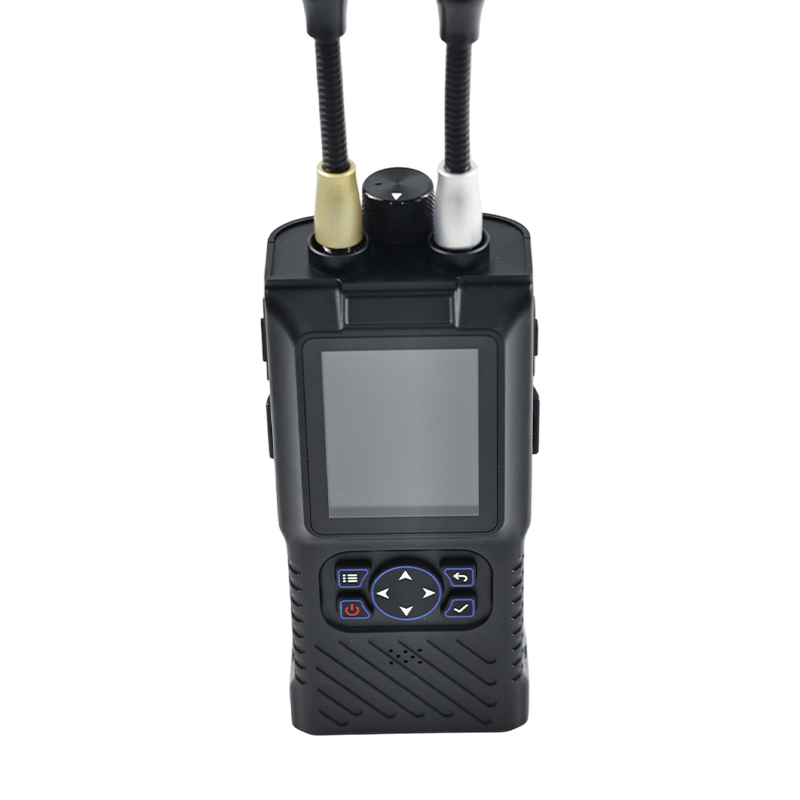

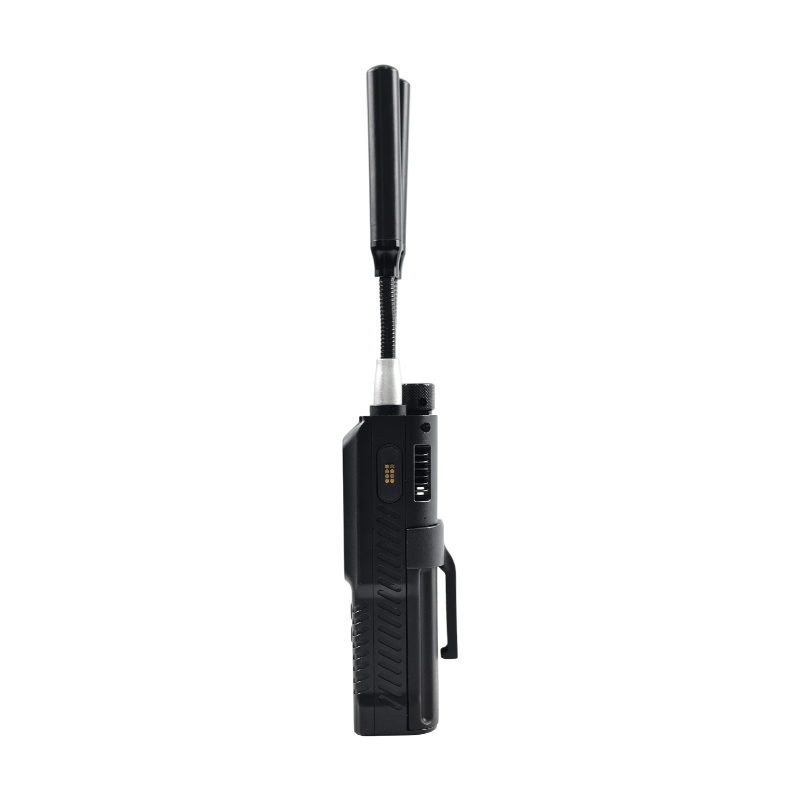

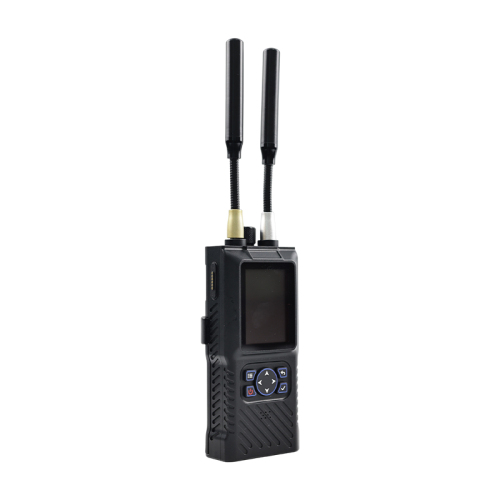

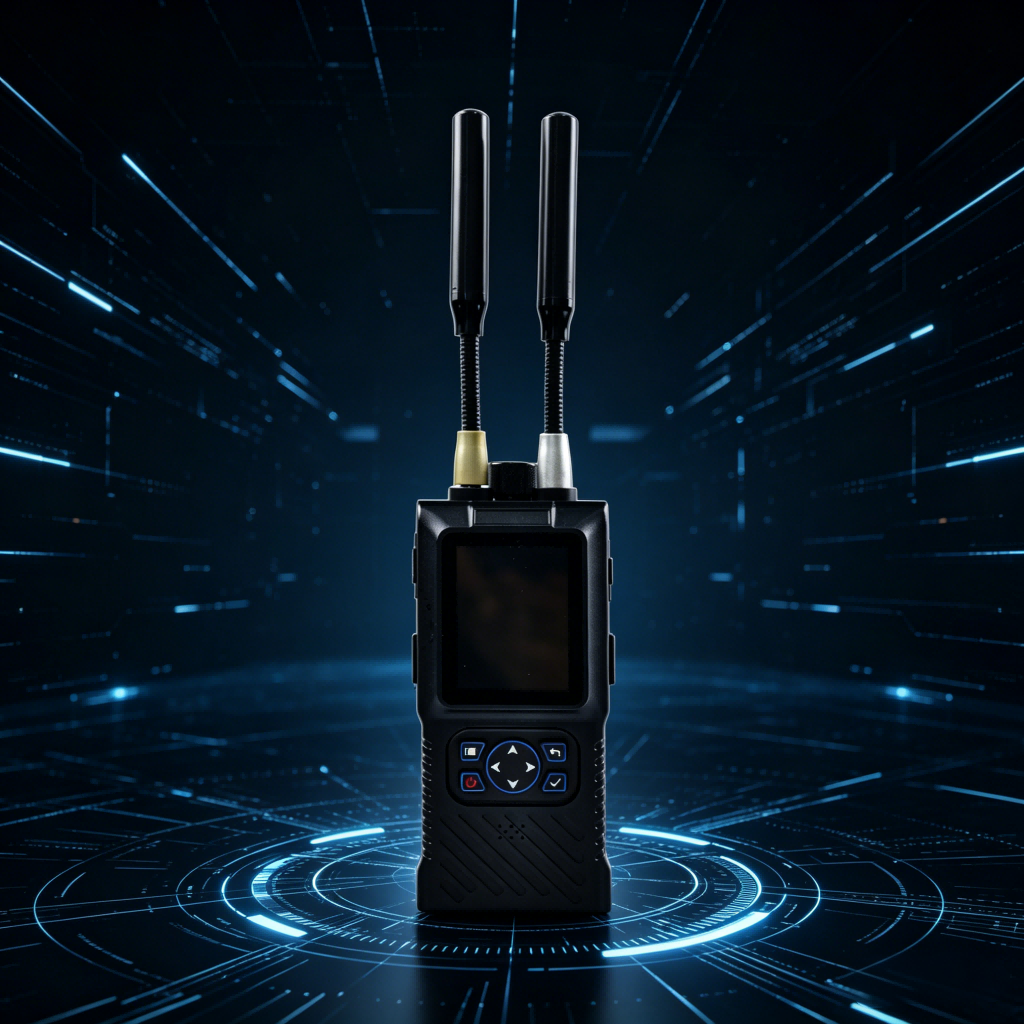

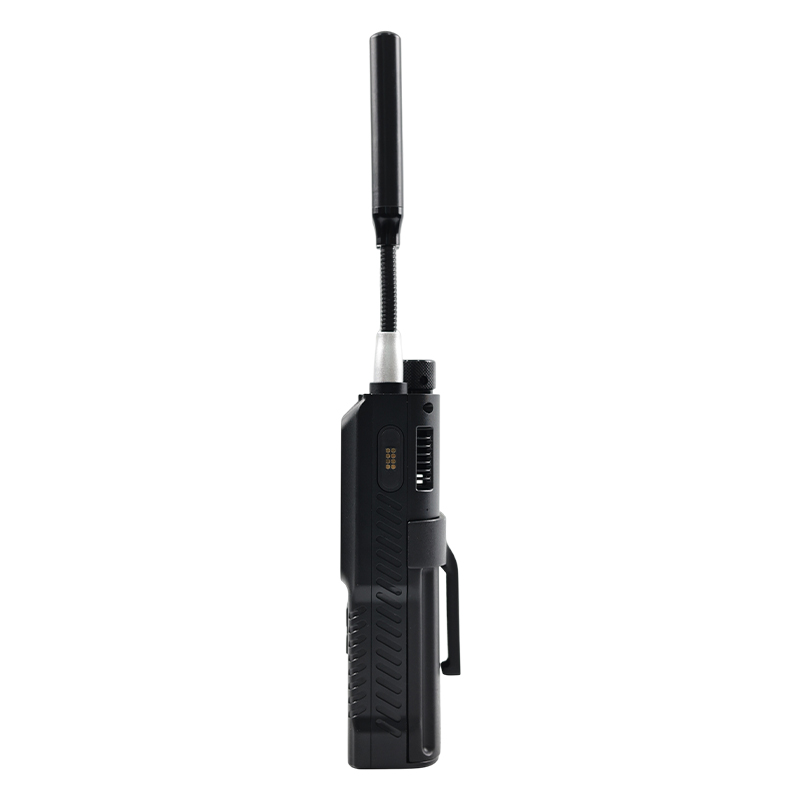

Product Image
Usage Scenarios
Manufacturer Information
Frequently Asked Questions
- What is the detection range of LDK-DW01?
It supports 0MHz–8000MHz full-band professional detection.
- Can it intercept FPV drone video?
Yes, it supports real-time FPV analog video capture for tactical reconnaissance.
- How long can it work continuously?
Single battery supports more than 7 hours of mission use.
- Is it rugged for outdoor tactical use?
Yes, IP54 protection and -20℃~+60℃ wide temperature range.
- Can it work with countermeasure equipment?
Yes, magnetic interface enables detection-countermeasure integrated system.
- How fast can it be charged?
35W fast charging, fully charged in about 1 hour.
- Does it support remote data transmission?
Yes, Bluetooth wireless data transmission to command terminal.
