The Tatusky DV01 is a vehicle-mounted drone detection system designed for mobile security and low-altitude airspace monitoring. It integrates spectrum detection, RID identification, and drone protocol decoding to identify DJI, Autel, and various FPV drones.
With drone and pilot positioning, audible and visual alerts, and cloud-based monitoring, DV01 enables users to monitor detected targets through smartphones or tablets. Its suitcase-style design supports flexible vehicle deployment, while a battery life of at least 14 hours enables extended operation.
Parameter Specification
Product Model DV01
Product Type Vehicle-Mounted Suitcase
Detection Technologies Spectrum Detection, RID, Protocol Decoding

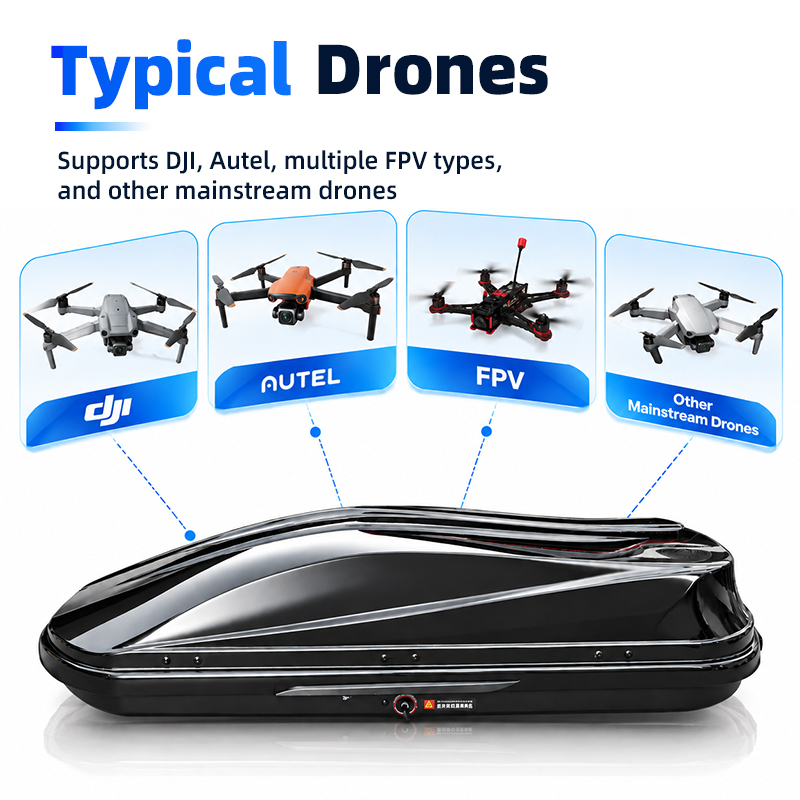

Supported Drone Brands DJI, Autel, and Various FPV Drones

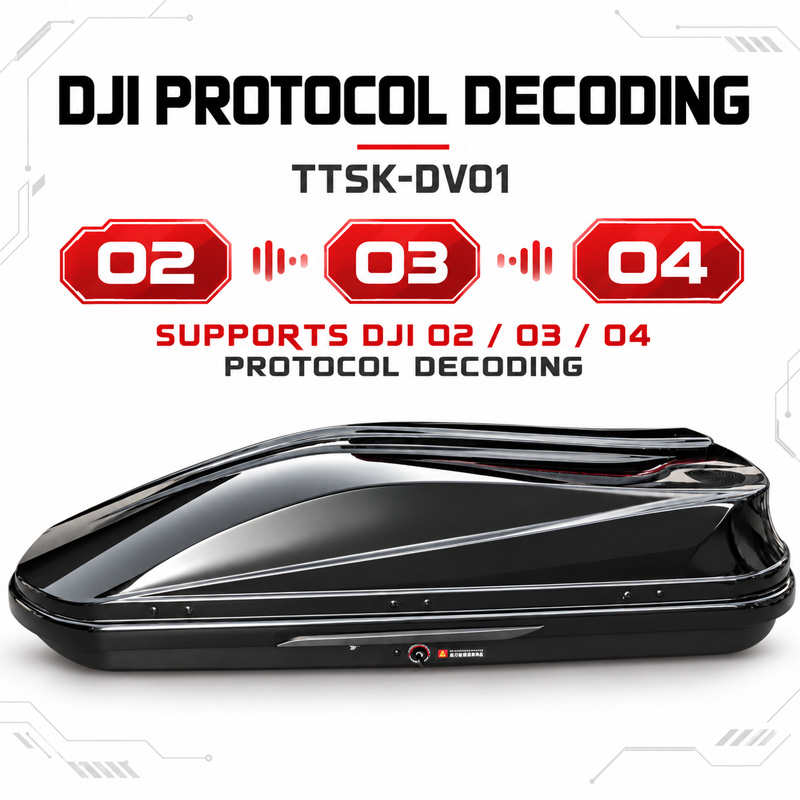

Supported DJI Protocols O2, O3, O4

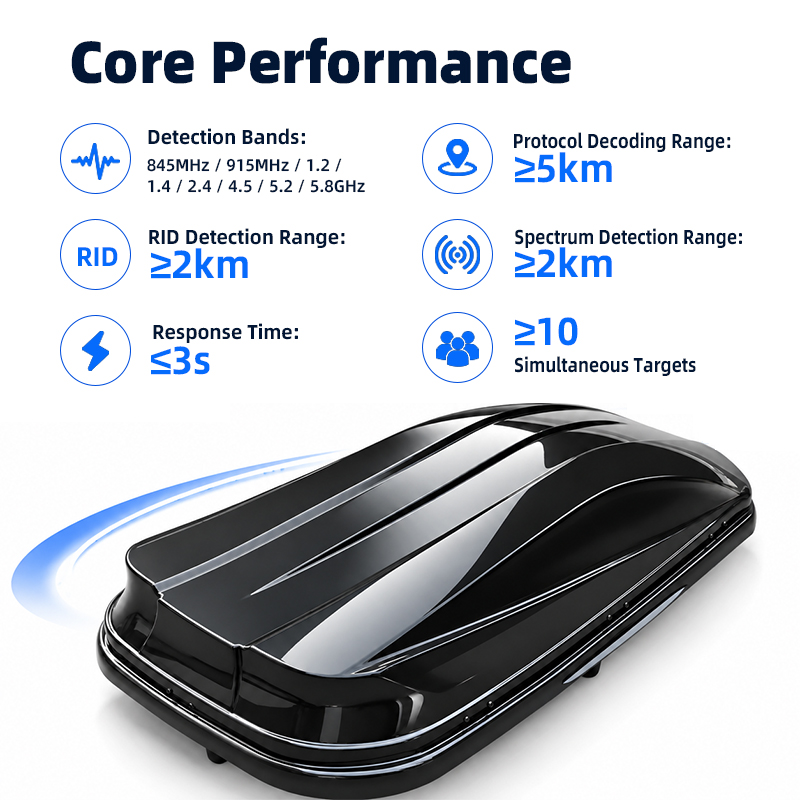

Detection Bands 845 MHz, 915 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 4.5 GHz, 5.2 GHz, 5.8 GHz

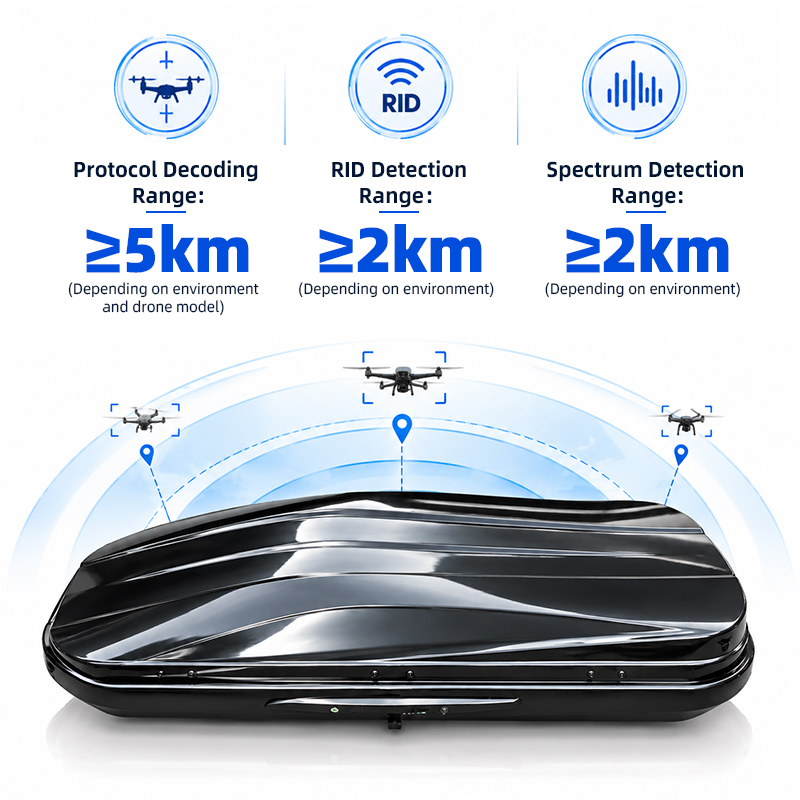

Protocol Decoding Range ≥5 km
RID Detection Range ≥2 km
Spectrum Detection Range ≥2 km
Detection Response Time ≤3 seconds
Simultaneous Target Reporting ≥10 Targets

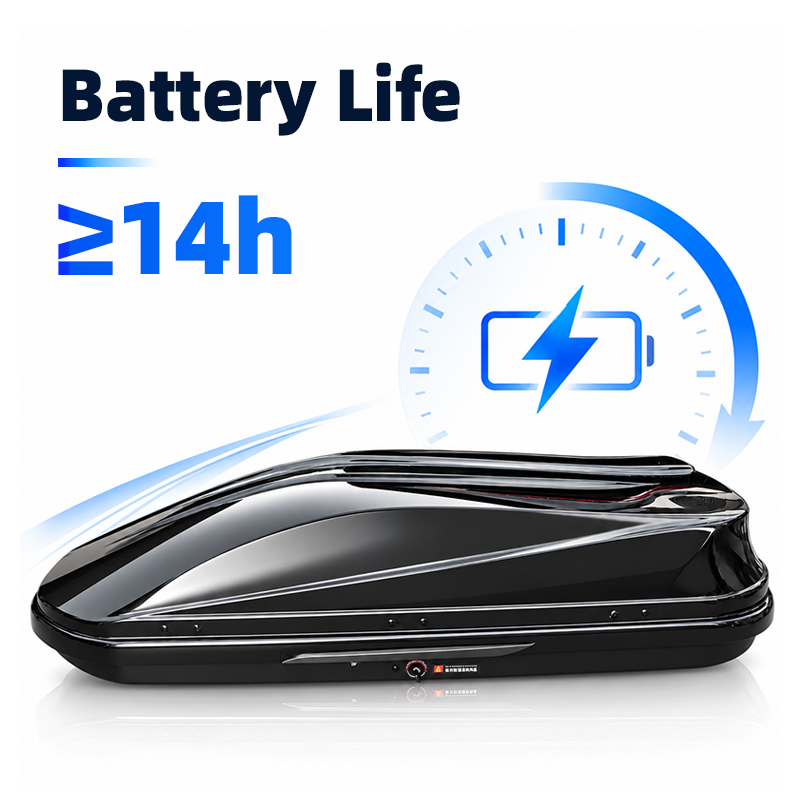

Battery Life ≥14 Hours
Battery Charging Time ≤6 Hours

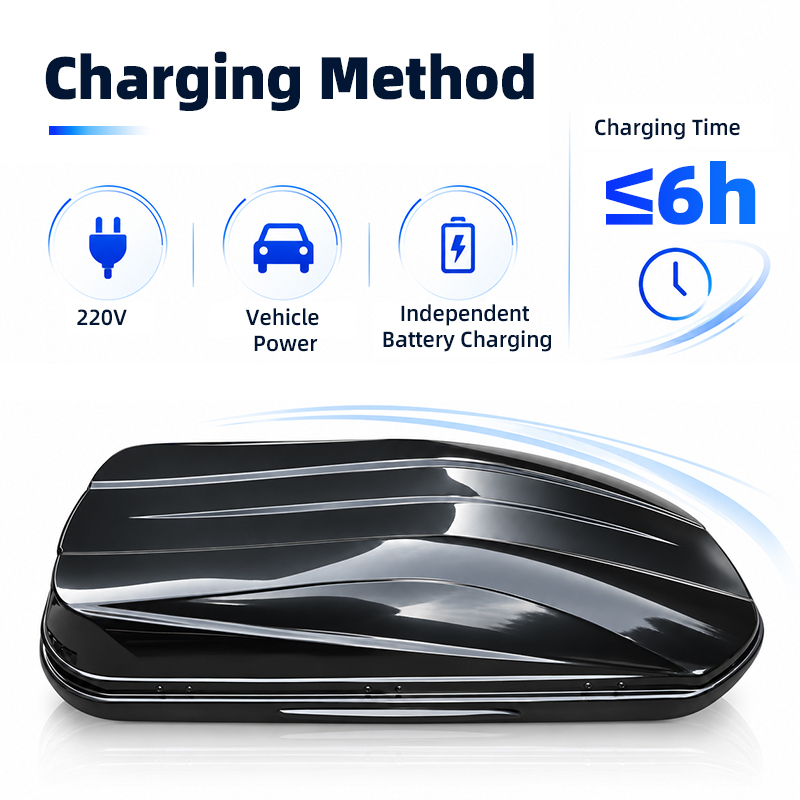

Charging Methods 220 V AC, Vehicle Power Outlet, Independent Battery Charging
Network Connectivity 4G via SIM Card, Wired Network

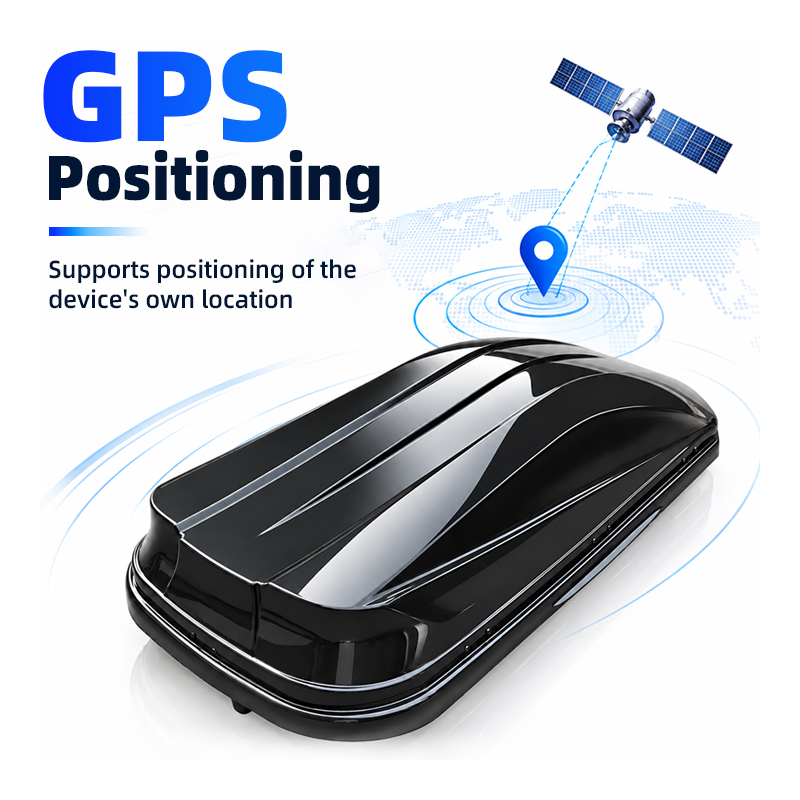

Positioning Device GPS Positioning; Drone and Pilot Positioning for Supported Protocols
Alarm Method Audible and Visual
Historical Data Logging Supported
Whitelist Management Supported

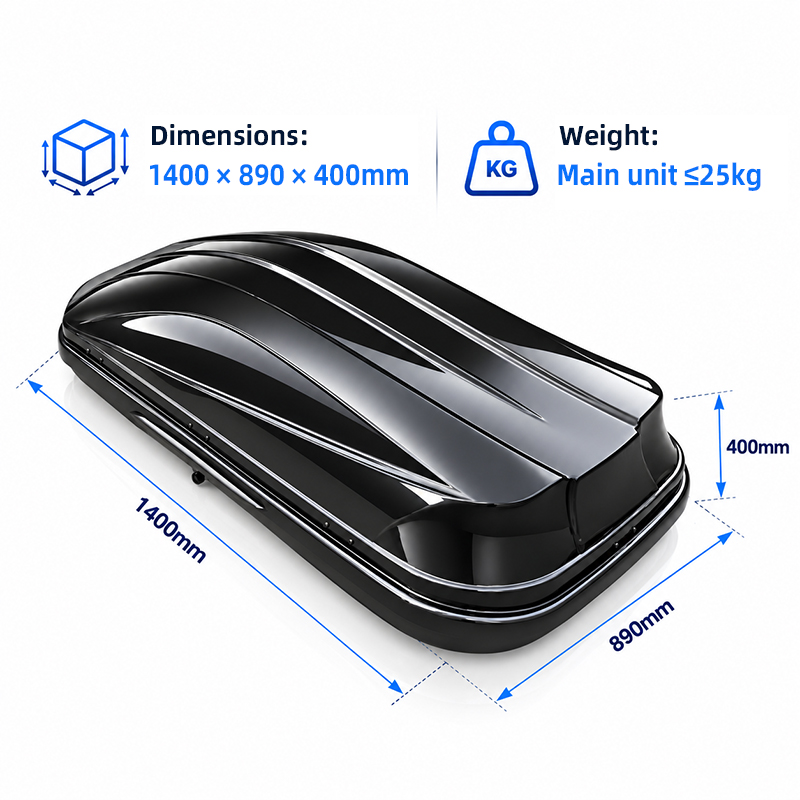

Weight Main Unit ≤25 kg
Dimensions 1400 × 890 × 400 mm
Operating Temperature -30°C to +55°C
Storage Temperature -30°C to +55°C
Protection Rating IPX5
Interface Languages Chinese, English
Note: Actual detection performance and range depend on the electromagnetic environment and drone model.
