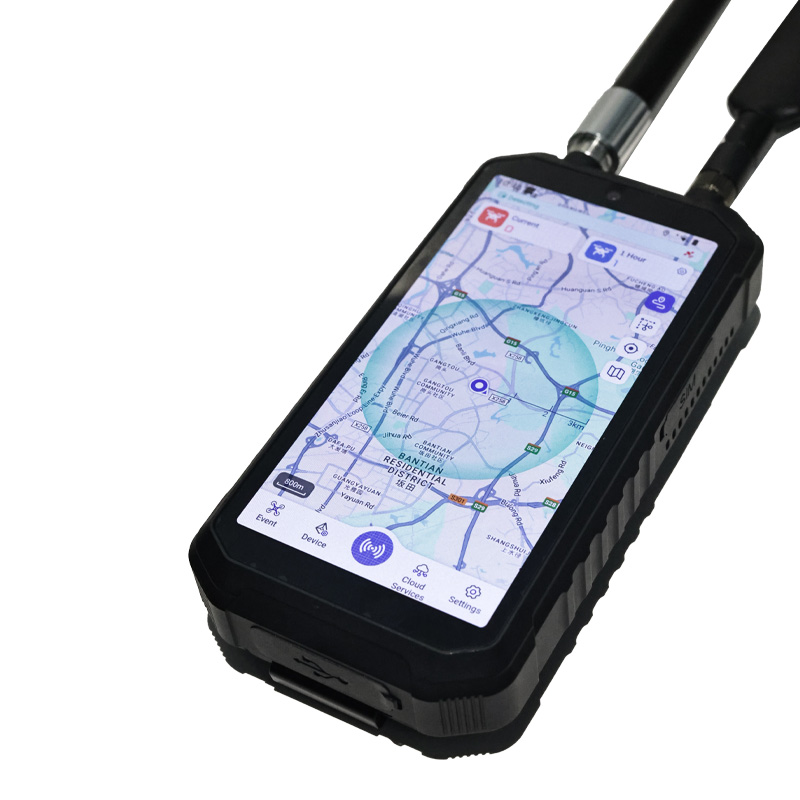

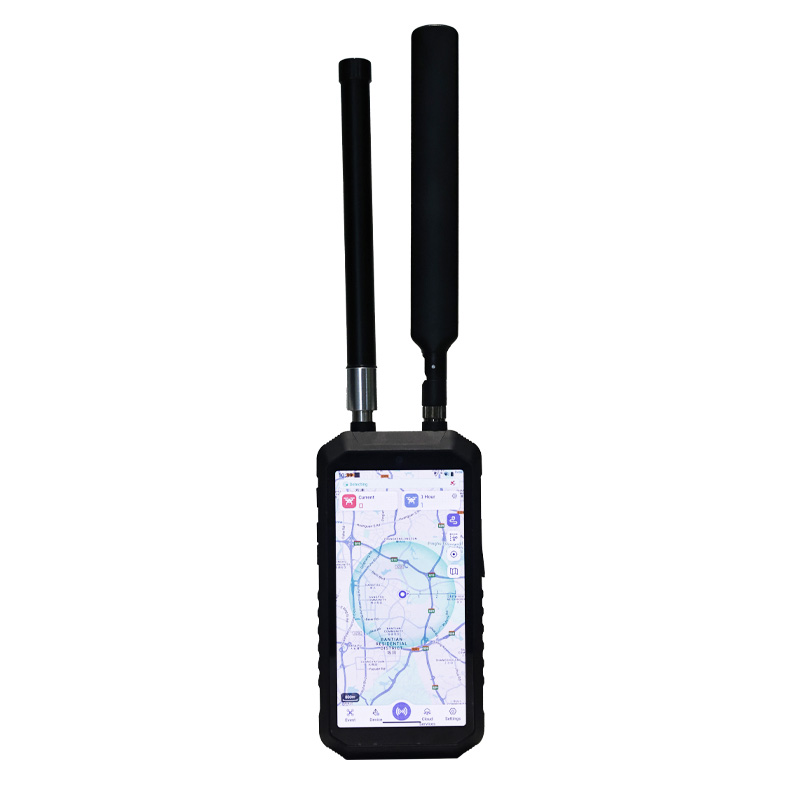

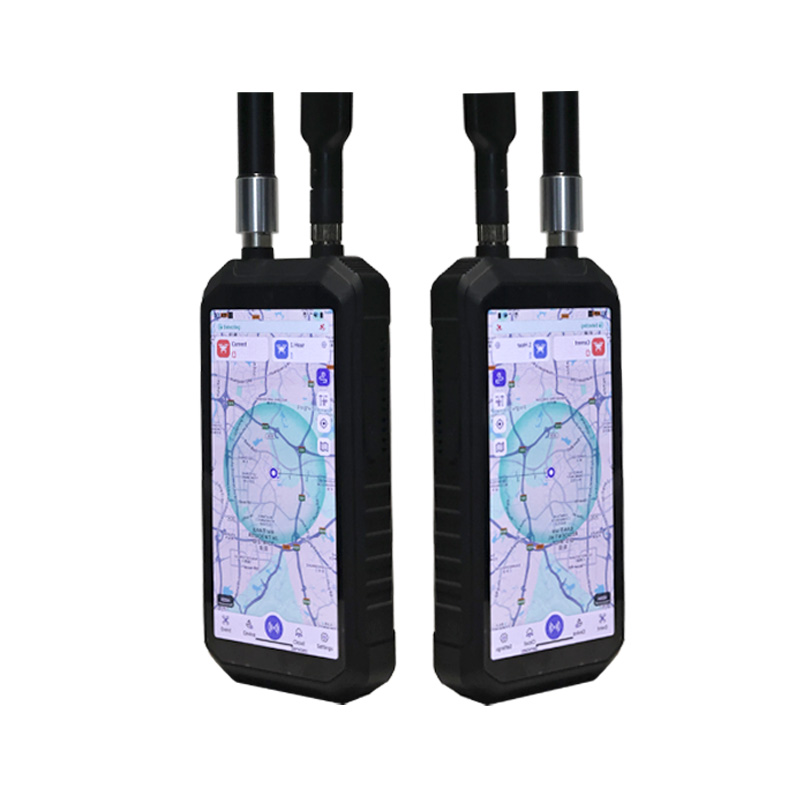

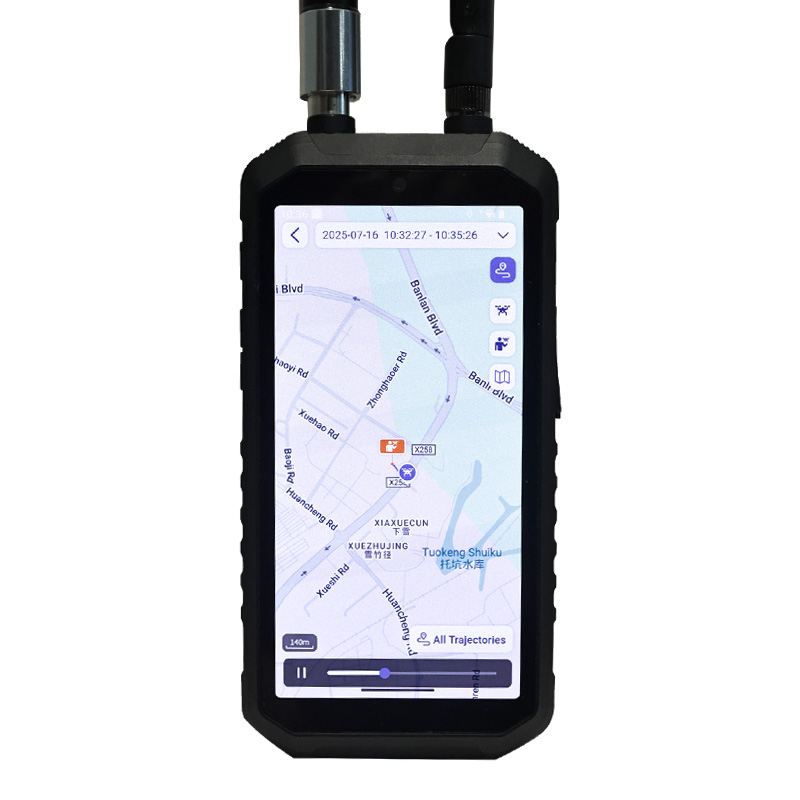

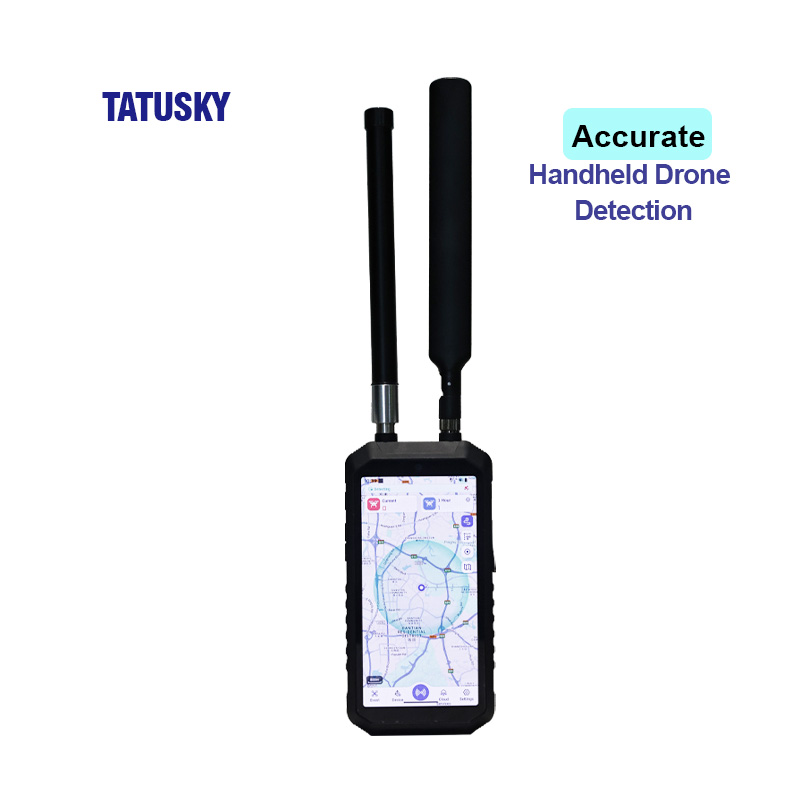

Based on CRPC 2.0 technology, it adopts a deeper data chain decoding solution to analyse and extract real-time flight attribute information from data in specific formats, and accurately identifies the drone’s graphic&video stream, SN number, geo-location, trajectory, altitude, speed and remote control position, etc., to detect, identify and locate the unauthorized drones more quickly and accurately. The device has an integrated design, small in size, light in weight, easy to carry, which is suitable for all kinds of low-altitude protection.
|
Working Principle |
Passive detection, does not emit any electromagnetic signals |
|

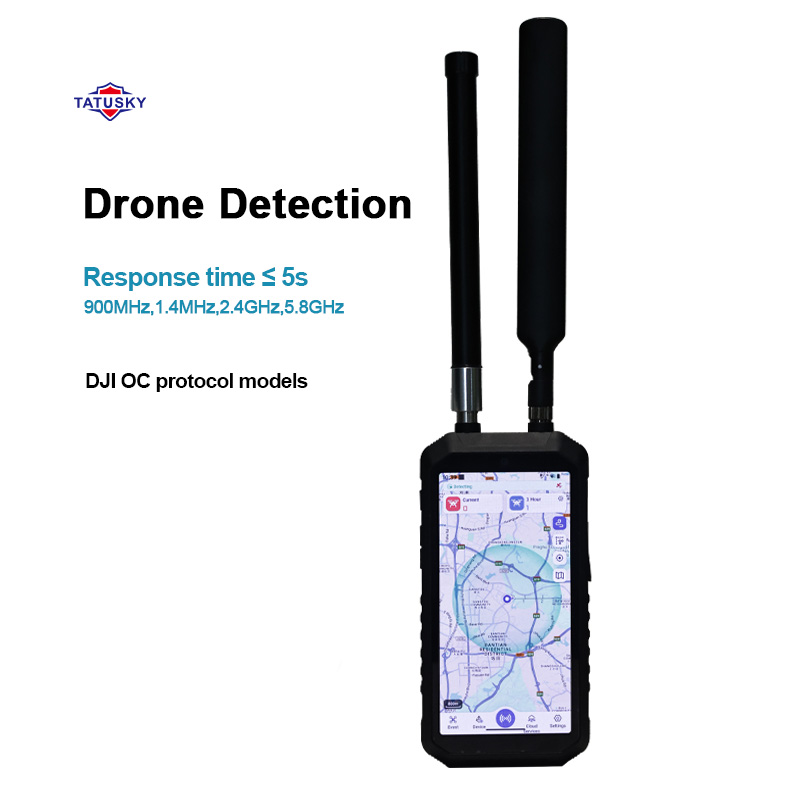

Detection Bands |
900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi； |
|
Sensitivity |
≤-100dBm |
|

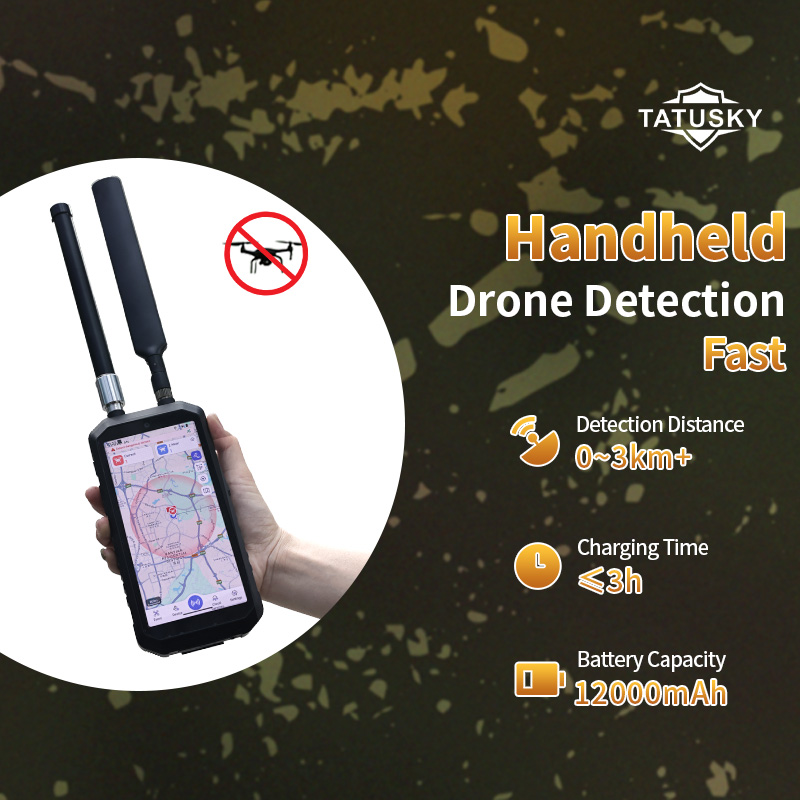

Detection Distance |
0~3km+ (Different exist due to different environments and drone type) |
|
Response Time |
≤5s |
|
Detection Quantity |
≥10 Drones (Simultaneous) |
|
Number of Drone Trajectories |
≥10 Drones (Simultaneous) |
|
Position Accuracy |
≤3m (Available for the drones can be decoded) |
|
Drone Library (Geo-Locaation) |
DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands |
|
Dynamic Detection Movement Speed |
≥60km/h (Available for the drones can be decoded) |
|
Screen Size |
6.0 Inch |
|

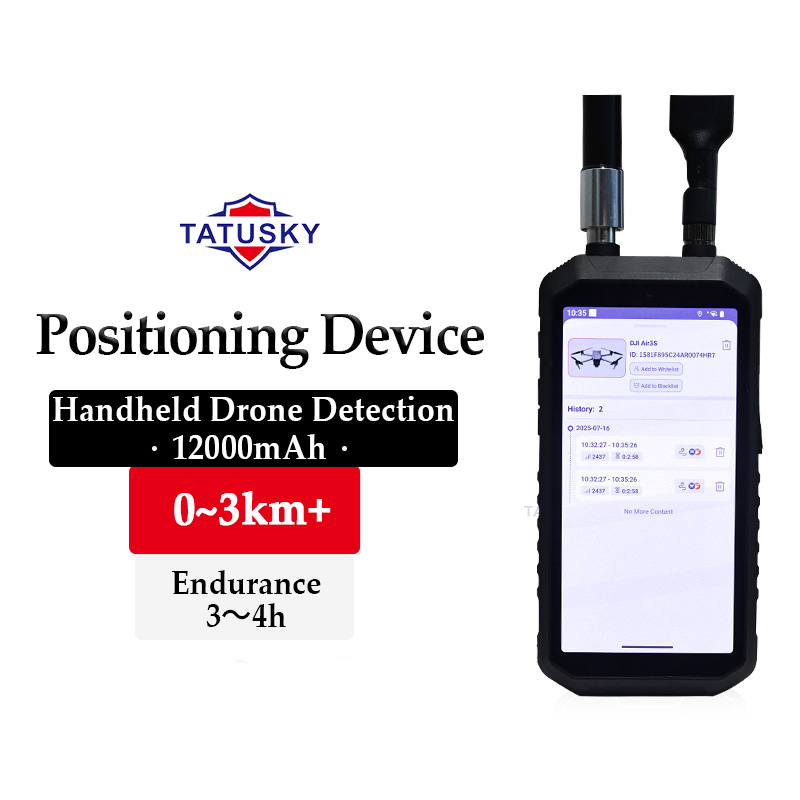

Battery Capacity |
12000mAh |
|
Endurance |
3～4h |
|
External Interface |
Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1 |
|
Charging Power |
DC9V, 2A |
|
Charging Time |
≤3h（0%-100%） |
|
Power Consumption |
≤15W |
|
Size |
177mm * 89mm * 29.5mm（±2mm） |
|
Weight |
≤580g(±0.05kg，without antenna) ≤46g per antenna |
|
Operation Temperature |
-20℃ to +50℃ |
|
Storage Environment |
15～25℃ RH25～65% |
|
IP Level |
IP54 |
