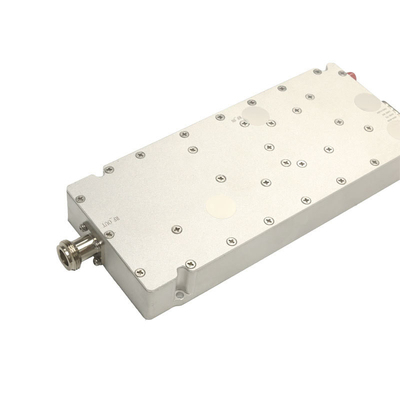

| RF OUT | |
|
Test item |
Technical Specification |
|
Working Frequency |
6000-8000MH |
|
Working Bandwidth |
2000MHZ |
|
Output Power |
47±1dB |
|
Gain |
|
|
Efficiency |
≤35% |
|
In-band Fluctuatio |
≤3.0dB |
| EVM | |
|
Input and Output Standing Waves |
|
| ACLR | |
| Swift | |
| Amplifier power supply RF response (amplifier on and off) |
The amplifier is turned on at high level and turned off at low level |
|
Environment |
|
| Working Environment Temperature | -40～+55℃ |
|
Working Temperature |
|
|
Relative Humidity |
5%～95%,No Condensation |
|
Storage Temperature |
-40～+85℃ |
| RF IN | SMA |

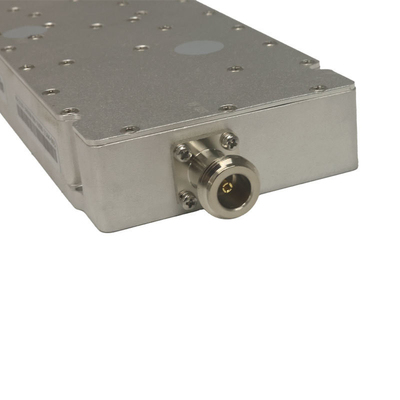

| RF OUT | SMA |

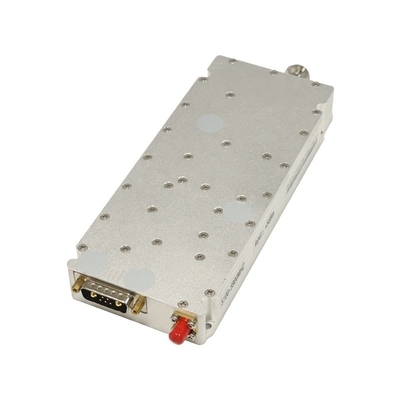

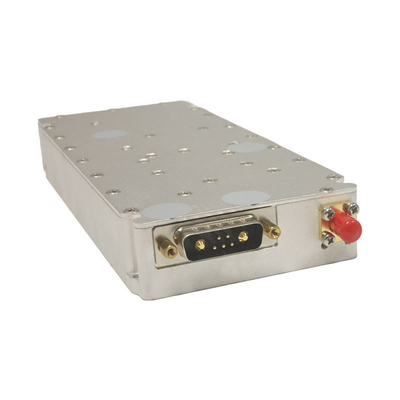

Interface Definition
|
N.O. |
Interface Name |
Remark |
| 1 |
Amplifier Switch |
Amplifier high level turns on, low level turns off 3.3-5V, white line |
| 2 | GND | Black Cable |
| 3 | GND | Black Cable |
| 4 | 28V | Red Cable |
| 5 | 28V | Red Cable |
| 6 | 28V | Red Cable |
