1. Introduction
As low-altitude security concerns grow increasingly severe, incidents of unauthorized intrusion, malicious surveillance, and privacy violations occur frequently, posing serious risks to national security, public safety, and personal privacy. Therefore, developing efficient and advanced low-altitude protection equipment has become an urgent requirement for maintaining airspace security and ensuring social stability.
2. Product Overview

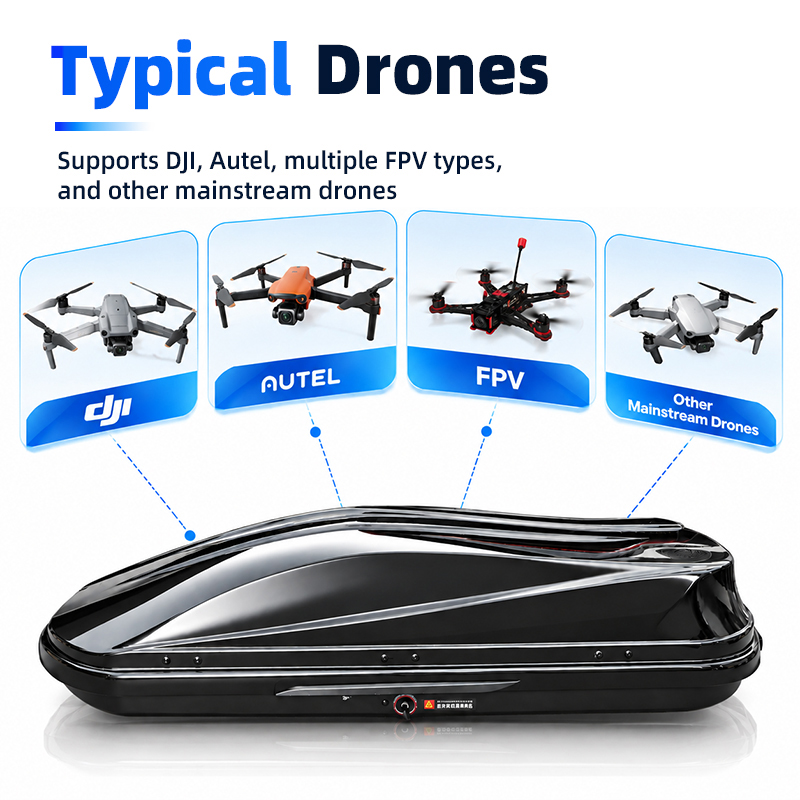

The pure-detection vehicle-mounted suitcase is a vehicle-mounted radio detection product. It integrates spectrum detection, RID, and protocol decoding detection capabilities to effectively identify DJI, Autel, various FPV, and other unauthorized drone targets. With a discreet appearance and flexible configuration options, it is suitable for low-altitude surveillance and high-end protection applications.
3. Product Features
1) Cloud-Based Display & Control: integrating detection and positioning capabilities, the display and control content is cloud-based, enabling security monitoring on tablets and smartphones.
2) Drone & Pilot Positioning: Precisely locates DJI drones and remote controllers using OcuSync2, OcuSync3, OcuSync4 communication protocols.
3) Intrusion Alert: When an intruding drone is detected, the device provides audible and visual alerts.
4) Drone Identification: After startup, the device enters detection mode; when a target drone is detected, the detection list displays the drone manufacturer, frequency, and other information.
5) Logging: Records historical detection target data.
6) Discreet Appearance: The device exterior carries no identifiable features.
4. Equipment Specifications
No.
Item
Specification
Remarks
1
Band Detection
Correctly reports the video transmission signal band of drones
2
Protocol Decoding
DJI O2, O3, O4 drone protocol decoding; accurately obtains drone coordinates, serial number, pilot position, and other information
3
RID
Correctly parses national-standard (GB) RID messages in Wi-Fi signals
4
Alarm Function
Audible and visual alarm
5
Detection Bands
845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 4.5GHz, 5.2GHz, 5.8GHz
6
GPS Positioning
Capable of positioning the device's own location
7

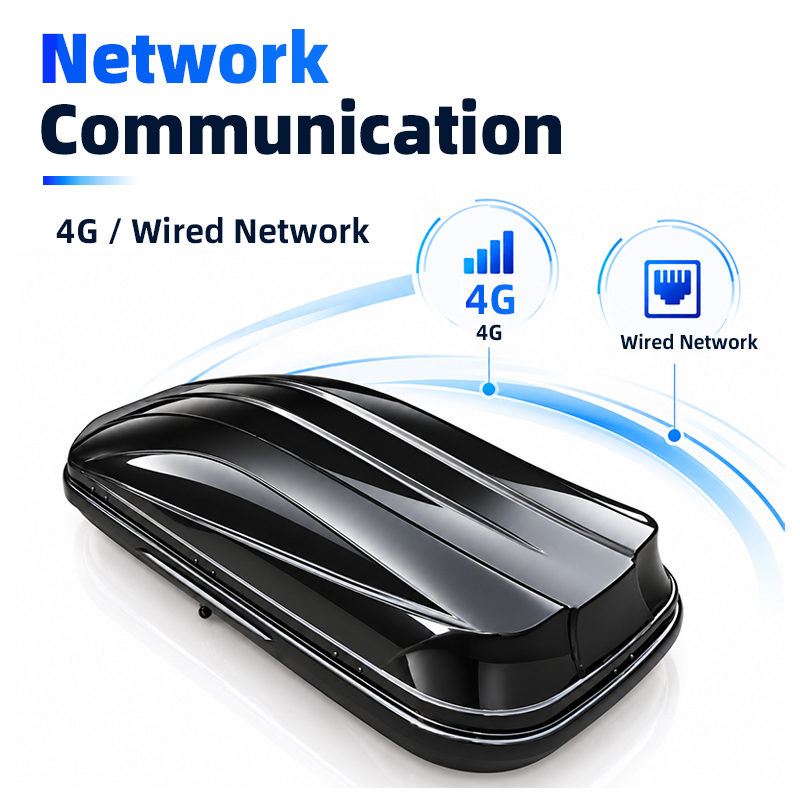

4G Network Communication
Supports network access via SIM card
8
Battery Power
Battery level display; charging time ≤6h
Depends on environment and drone model
9
Battery Life
No less than 14h
10
Charging Method
Supports 220V charging, vehicle power outlet charging, and independent battery charging
11
Logging
Records detected drone information, including: SN code, model, manufacturer, band, distance, altitude, latitude/longitude, etc.
12
Whitelist Function
1) Allows adding detected targets to, or removing them from, the whitelist;
2) Allows adding undetected drones to, or removing them from, the whitelist by SN code;
3) The device does not trigger alarms for whitelisted targets; alarms stop immediately once a drone is added to the whitelist
13
Target Reporting
Correctly reports decoded targets, RID targets, and spectrum targets
14
Dedicated Vehicle Device Icon
The map correctly displays the icon and device ID of the pure-detection vehicle-mounted suitcase
15
Driving Route Display
Records and plots the route traveled by the vehicle carrying the device
